Wet Fire Sprinkler System
The Standard of Protection
The most common, most reliable, and simplest fire sprinkler system — water-filled pipes ready to discharge instantly when heat activates a sprinkler head.
What Is a Wet Sprinkler System?
A typical wet sprinkler riser assembly with alarm check valve, OS&Y control valve, and pressure gauges.
A wet fire sprinkler system is the most widely installed type of automatic fire suppression in the world. The entire piping network is permanently filled with pressurized water connected directly to a reliable water supply. When a sprinkler head activates due to heat from a fire, water discharges immediately — no delay, no air to exhaust, no valve to trip NFPA 13, §7.1.
Wet systems protect the vast majority of commercial, institutional, and residential buildings: offices, hospitals, hotels, retail stores, schools, apartments, and any space maintained above 40°F (4°C). Their simplicity, reliability, and low maintenance cost make them the default choice whenever freezing is not a concern.
Approximately 70% of all sprinkler systems worldwide are wet pipe systems. They have the longest track record of any suppression technology, with over 100 years of proven performance in protecting life and property.
How a Wet Sprinkler System Works
The operational sequence of a wet system is elegantly simple — fewer steps than any other sprinkler type:
Fire Starts
A fire begins and hot gases rise toward the ceiling, heating the air around the nearest sprinkler head.
Head Activates
The heat-sensitive element (glass bulb or fusible link) reaches its rated temperature and breaks, opening the orifice.
Water Discharges
Pressurized water immediately flows from the open head onto the fire. Response time is measured in seconds, not minutes.
Alarm Triggers
Water movement activates the waterflow switch (electronic alarm) and water motor gong (mechanical alarm).
FD Responds
Central station receives the alarm. Fire department connects to the FDC to supplement the water supply.
Key fact: Only the sprinkler head(s) directly over the fire activate — not every head in the building. In 95% of fires controlled by sprinklers, five or fewer heads activated NFPA Fire Sprinkler Initiative.
In the Field

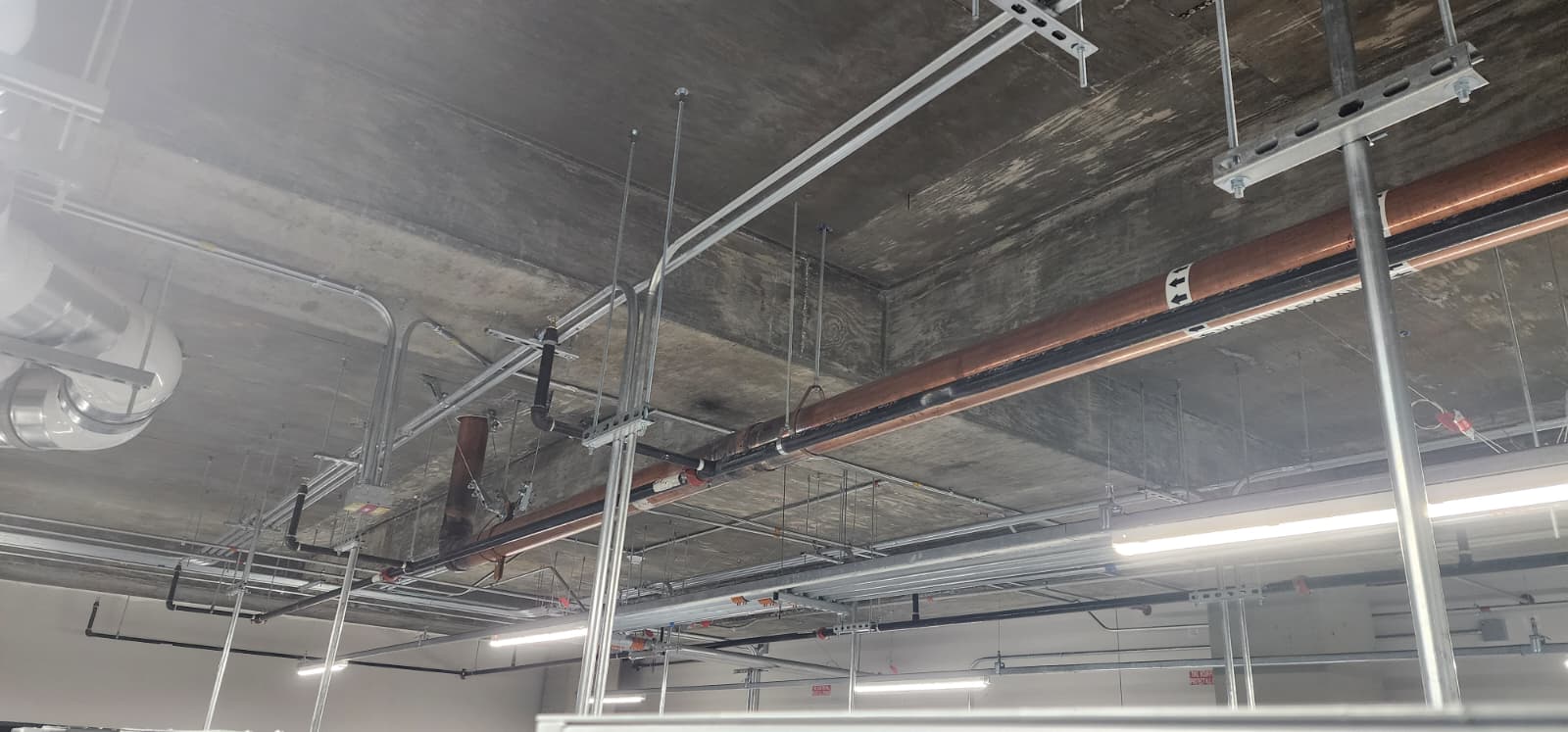

A wet sprinkler system installed overhead with upright sprinkler heads on the branch lines.
Why Wet Systems Are the Default Choice
⚡Instant Response
Water is at the sprinkler head — no air exhaust delay. The moment a head opens, water flows. In a dry system, there can be a 60-second delay while air exhausts.
🔧Simpler Design
Fewer components — no air compressor, no dry pipe valve, no air maintenance device, no accelerator. Lower installation cost, fewer failure points.
🛡️Less Corrosion
Water-filled pipes quickly consume dissolved oxygen, creating a stable environment. Dry systems cycle between wet and dry, causing significantly more internal corrosion and MIC.
💰Lower Maintenance
No trip tests, no air system checks, no low-air alarms. Annual inspection is straightforward. NFPA 25 maintenance requirements are fewer than dry or pre-action.
✅Proven Reliability
Over a century of performance data. Wet sprinklers control or extinguish fire 96% of the time when they operate, per NFPA research.
🕐No Water Delivery Delay
Dry systems must deliver water to the most remote head within 60 seconds (NFPA 13, §8.2.3). Wet systems have zero delivery delay — water is already there.
System Components
A wet system is built from interconnected components, each with a specific role. Click any component to read its full dedicated article:

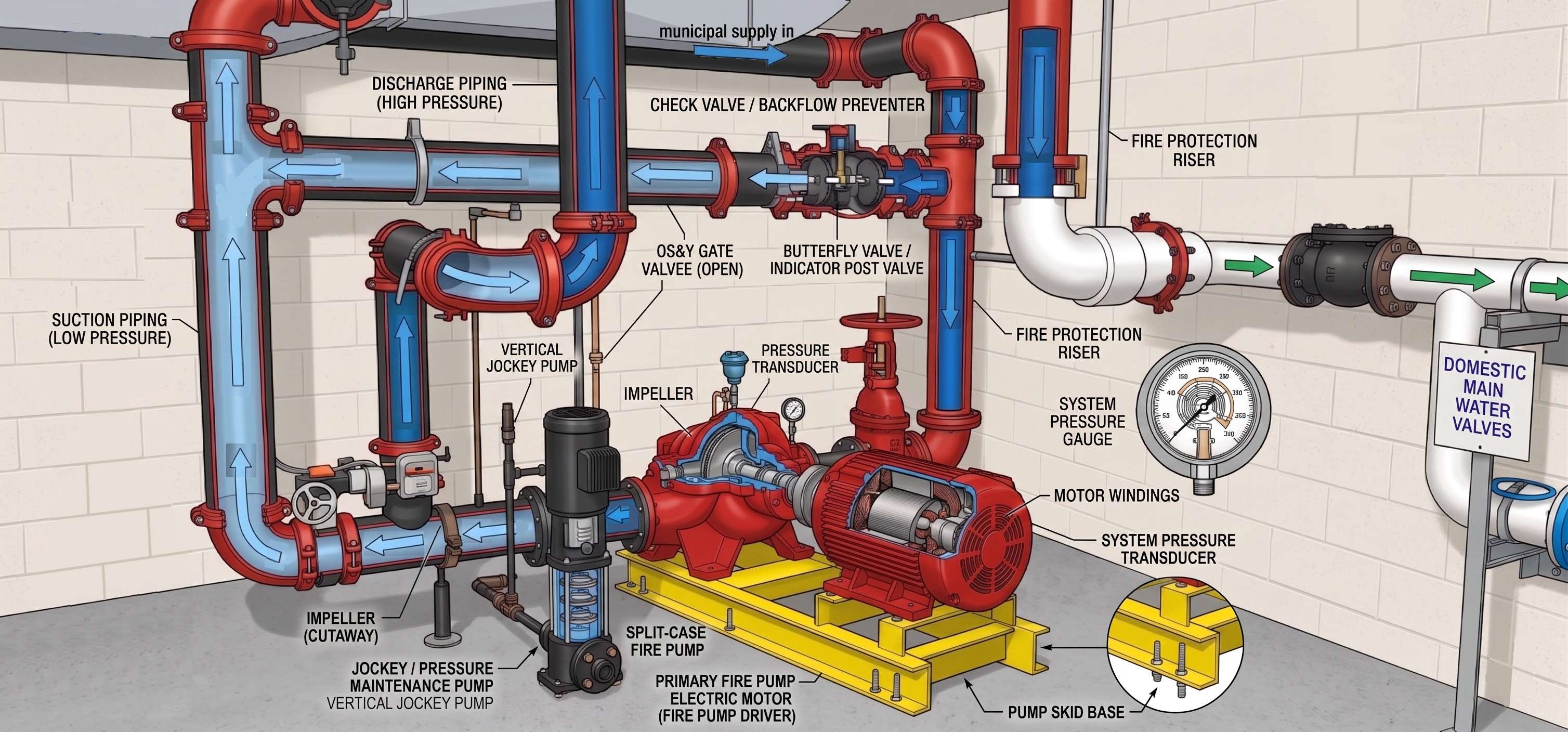

Cutaway diagram of the supply side — municipal water enters through the check valve and backflow preventer, flows through the OS&Y gate valve and butterfly/indicator post valve, then through the split-case fire pump (driven by the primary electric motor) to the fire protection riser. The vertical jockey pump maintains system pressure so the main pump only runs on actual demand.
Heat-activated discharge points — pendant, upright, sidewall, concealed, ESFR
Allows water flow in one direction and triggers the alarm port when water moves
Main shutoff — supervised open at all times via tamper switch
Electronic sensor that triggers building alarm when water moves through pipe
Monitors valve position — sends supervisory signal if valve moves from open
Protects potable water supply from contamination — RPZ or DC assembly
One-way flow enforcement at FDC and supply connections
Exterior mechanical alarm bell — no electricity needed, powered by water flow
Bourdon tube gauges on supply side and system side of the riser
Remote test point that simulates one sprinkler flowing to verify alarm activation
Exterior Siamese/Storz inlet for fire department supplemental water supply
Boosts system pressure when municipal supply is insufficient (not always required)
Black steel, galvanized, or CPVC pipe — mains, cross mains, and branch lines
Main drain and auxiliary drains for testing and winterization
NFPA 13 Design Considerations

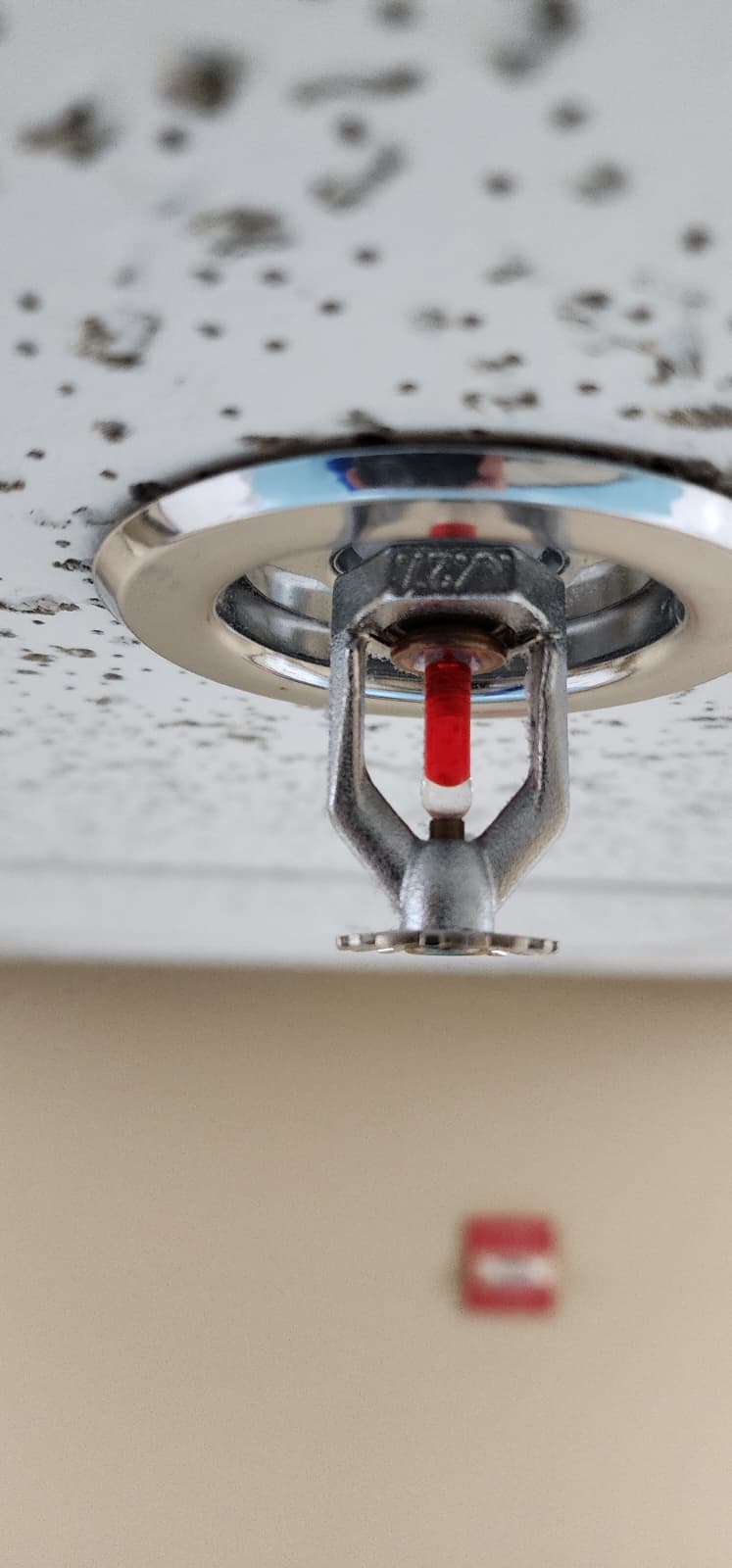

A standard-response pendant sprinkler head installed in a ceiling — the most common configuration in wet systems. The red glass bulb is filled with a heat-sensitive liquid rated at 155°F (68°C); when it reaches that temperature the bulb shatters, the plug drops, and water sprays through the deflector.
The design of a wet sprinkler system is governed primarily by NFPA 13. Key design factors include:
Occupancy Classification
Systems are designed for Light Hazard (offices, hotels), Ordinary Hazard Group 1 & 2 (manufacturing, retail), or Extra Hazard (flammable liquids). Higher hazard = more water density.
Hydraulic Calculations
Water supply must meet the design demand. Calculations prove that the most remote area of sprinklers will receive adequate pressure and flow. Supply curves must exceed demand curves.
Sprinkler Head Selection
Temperature rating (ordinary 155°F for most spaces, intermediate 200°F near heat sources), response type (QR for light hazard, standard for storage), K-factor, and orientation all affect performance.
Pipe Sizing
Mains, cross mains, and branch lines are sized based on hydraulic calculations or pipe schedule tables. Steel, CPVC, and copper are common materials — each with specific listing requirements.
Coverage Area
Standard coverage is 130 sq ft per head for light hazard, 130 sq ft for ordinary hazard. Maximum distance between heads is typically 15 ft for light hazard. 18-inch clearance below deflectors is required.
Water Supply
Municipal water, fire pump, gravity tank, or combination. Duration requirement is typically 30–60 minutes depending on hazard classification and occupancy.
Wet vs. Dry: Side-by-Side Comparison
Common Deficiencies Found During Inspections
These are the issues most frequently cited during NFPA 25 inspections and AHJ walk-throughs. Knowing them helps you prepare:
Obstructed sprinkler heads
Maintain 18-inch clearance below all sprinkler deflectors. No storage, shelving, or signage within the clearance zone.
NFPA 25, §5.2.1.1Painted or loaded heads
Sprinkler heads with paint, dust, or corrosion buildup must be replaced — never cleaned. One coat of paint can delay activation by 700%.
NFPA 25, §5.2.1.1.1Missing escutcheons
The decorative ring around concealed or recessed heads must be in place. Missing rings break the fire barrier at the ceiling.
NFPA 13, §8.5Closed control valve
All control valves must be supervised in the open position via lock, seal, or tamper switch. A closed valve is the #1 cause of sprinkler system failure.
NFPA 25, §13.1No spare sprinkler cabinet
A minimum of 6 spare heads (or per NFPA 13 requirements based on system size) must be available on-site with a wrench.
NFPA 13, §6.2.9Failed main drain test
Annual main drain test should show no significant drop from the prior year. A drop indicates supply obstruction or valve issue.
NFPA 25, §13.2.5NFPA 25: Inspection, Testing & Maintenance Schedule
Use this table as a quick reference for wet system ITM requirements. For the full interactive table with filtering, visit the NFPA 25 ITM Frequency Table.
When a Wet System Is Not Appropriate
Despite being the default choice, wet systems are not suitable for every application:
▶ Watch: Wet Pipe Fire Sprinkler Systems — How They Work
Source: National Fire Protection Association (NFPA) · Open on YouTube ↗
Frequently Asked Questions
What is a wet sprinkler system?
What is the minimum temperature a wet sprinkler system can tolerate?
How often does a wet sprinkler system need to be inspected?
Why do most wet sprinkler systems only have one head activate during a fire?
Can I turn off a wet sprinkler system for maintenance?
References
1. NFPA 13 — Standard for the Installation of Sprinkler Systems, §7.1 (Wet Pipe Systems). (nfpa.org/13 ↗)
2. NFPA 25 — Standard for ITM of Water-Based Fire Protection Systems, Chapters 5 & 13. (nfpa.org/25 ↗)
3. NFPA 20 — Standard for the Installation of Stationary Pumps for Fire Protection. (nfpa.org/20 ↗)
4. NFPA 13, §8.5.2.1 — Minimum operating pressure requirements.
5. NFPA 25, §5.2.1.1 — 18-inch clearance rule (see also Sprinkler Heads).
6. FM Data Sheet 2-0 — Installation Guidelines for Automatic Sprinklers. Free after registration at fm.com/datasheets ↗ (search "2-0").
7. NFPA 25 Handbook — the annotated companion to NFPA 25 with commentary, examples, and case studies for ITM of water-based systems. (nfpa.org ↗)
