SYSTEM COMPONENTSNFPA 72

Tamper Switch
The Watchdog

A closed valve is an impaired system. The tamper switch makes sure someone knows about it — before a fire proves the point.

By Stanislav Samek, Samektra · 10 min read · Last updated April 18, 2026

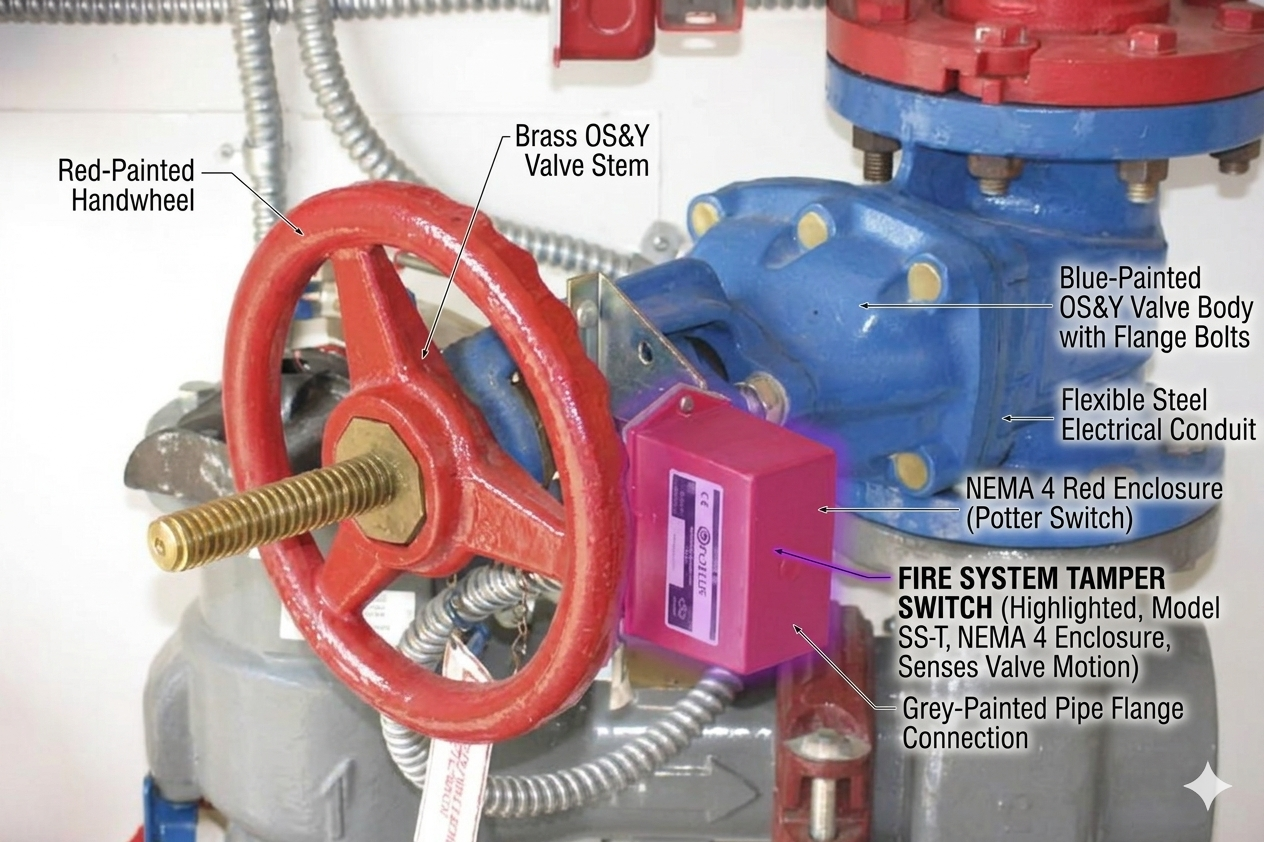

Annotated OS&Y gate valve with Potter tamper switch installed. Key components labeled: red-painted handwheel, brass rising stem (fully extended = valve open), blue OS&Y valve body with flange bolts, NEMA 4 red Potter switch enclosure (model SS-T, highlighted), flexible steel electrical conduit to FACP, and grey pipe flange connection. When the handwheel is turned clockwise, the stem retracts into the yoke and the switch arm detects the movement.

What Is a Tamper Switch?

A tamper switch (also called a valve supervisory switch) is an electromechanical device attached to a fire protection system control valve that monitors its position — open or closed. When the valve moves from its normal open position, the tamper switch sends a supervisory signal to the fire alarm control panel (FACP), alerting building management that the sprinkler system water supply has been compromised NFPA 72, §17.16.

Tamper switches exist because a closed control valve is the single most common reason sprinkler systems fail to operate during a fire. Studies by NFPA and FM Global consistently show that a significant percentage of sprinkler system failures are caused by someone shutting a valve — intentionally for maintenance, or accidentally — and never reopening it. The tamper switch is the safety net that catches this deadly mistake.

Every control valve in a fire protection system is required to be supervised — either electronically via a tamper switch, locked in the open position, or sealed open. Electronic supervision through the fire alarm system is the most reliable and most commonly required method NFPA 13, §8.16.1.

How Tamper Switches Work

The tamper switch monitors valve position through physical contact with the valve's operating mechanism. When the valve moves, the switch changes state and sends a signal NFPA 72, §17.16.1.

Signal Flow: Valve Closes → Alarm Panel
1Someone begins closing the control valve (turning the OS&Y stem or butterfly handle)
2The tamper switch detects movement — typically within 2 turns of the handwheel or 1/5 of the travel distance
3Switch changes state, sending a supervisory signal to the FACP via a dedicated supervisory zone
4FACP displays a SUPERVISORY condition (distinct from ALARM) — identifies the specific valve and zone
5Signal transmits to the central monitoring station, which dispatches personnel or notifies the building owner
6When the valve is returned to fully open, the tamper switch restores and the supervisory condition clears

Supervisory ≠ Alarm

A tamper switch generates a supervisory signal, not a fire alarm signal. The FACP must display and transmit it as a distinct condition. Supervisory signals indicate a system impairment that needs human intervention — they do not trigger building evacuation or fire department dispatch (unless the AHJ requires it).

Types of Tamper Switches

Different valve types require different tamper switch configurations. The switch must be compatible with the valve's operating mechanism.

OS&Y Tamper SwitchMounts to rising stem — lever arm detects linear movement
Butterfly Valve Tamper SwitchIntegral to gear operator — detects shaft rotation

OS&Y Valve Switch

Attaches to the rising stem of an OS&Y (Outside Screw & Yoke) gate valve. A lever arm rides the stem — as the stem retracts into the valve body (closing), the switch trips. This is the most common type in sprinkler riser rooms.

Butterfly Valve Switch

Mounts to the gear operator or handle of a butterfly valve. Detects rotation of the valve disc. Commonly used on PIV-style valves and in-line butterfly control valves. Switch must trip before the valve reaches the fully closed position.

Wall Post Indicator (WPI) Switch

Integral or externally mounted switch on a wall post indicator valve. The WPI protrudes through the building wall with an OPEN/SHUT indicator window. The tamper switch provides the electronic supervision signal.

PIV Switch

Mounted on a Post Indicator Valve — the freestanding yard valve with an OPEN/SHUT target visible through a window. The switch monitors the valve stem position and sends a supervisory signal when the target moves toward SHUT.

Which Valves Require Tamper Switches?

NFPA 13 requires that all valves controlling the water supply to any portion of a fire protection system be supervised. The method of supervision (tamper switch, lock, or seal) depends on the installation and AHJ requirements NFPA 13, §8.16.1.

Valves That Must Be Supervised

  • Main system control valve (riser OS&Y) — controls water to the entire system
  • Sectional / zone control valves — isolate floors or zones
  • Fire pump suction and discharge valves
  • PIV / Wall Post Indicator Valve — exterior yard valves
  • Backflow preventer isolation valves
  • Standpipe control valves
  • Pre-action / deluge valve trim valves (where closure impairs system)

The #1 Cause of Sprinkler Failure

According to NFPA's "U.S. Experience with Sprinklers" report, closed valves account for the largest share of sprinkler system failures in fire events. In most of these cases, the valve had been shut for maintenance and never reopened — or the tamper switch was not functioning, so nobody knew the valve was closed.

NFPA 25: Tamper Switch ITM Schedule

WeeklyVerify all control valves are in the normal open position (visual check or electronic monitoring)NFPA 25, §13.1.1
MonthlyInspect locked or sealed valves — confirm lock/seal is intact and valve is openNFPA 25, §13.1.1.2
QuarterlyOperate each tamper switch — partially close the valve and verify supervisory signal at the FACPNFPA 25, §13.1.1.3
QuarterlyVerify signal transmission to central monitoring stationNFPA 25, §13.1.1.3
AnnualFull valve inspection — exercise valve fully closed and fully open, verify tamper switch trips and restoresNFPA 25, §13.1.1
AnnualTest all supervisory signal initiation devices per NFPA 72NFPA 25, §13.1.1

Common Field Issues

Tamper switch deficiencies are frequently cited in both fire alarm and sprinkler inspection reports.

Switch Not Transmitting

Wiring fault, corroded terminals, broken conductor in conduit, or zone disabled at the FACP. The valve can close without anyone knowing. Quarterly testing catches this — if it is actually performed.

Valve Closed — No Signal

Tamper switch out of adjustment — does not trip before the valve reaches the closed position. NFPA 72 requires the signal within 2 turns of the handwheel on an OS&Y valve.

Wrong Signal Type

Tamper switch wired to an alarm zone instead of a supervisory zone. Closing a valve triggers a building fire alarm and fire department dispatch — a costly false alarm.

Switch Physically Bypassed

Maintenance crew disables the switch (tape, zip ties, or zone disabled at panel) during valve work and forgets to restore. Always use a formal impairment procedure per NFPA 25, Chapter 15.

Corrosion on OS&Y Stem

Corroded stem prevents smooth valve operation. The tamper switch may bind or fail to reset properly when the valve is reopened. Lubricate stems during annual valve exercise.

Missing on Sectional Valves

Main riser valve has a tamper switch, but floor control valves or zone valves do not. Every valve controlling supply to any portion of the system must be supervised.

How an OS&Y Tamper Switch Actually Works — The Mechanics

The OS&Y (Outside Screw & Yoke) tamper switch is the most common type in fire sprinkler systems. Understanding its mechanics helps explain why it fails and how to adjust it properly.

OS&Y Tamper Switch — Component Breakdown
Rising StemOn an OS&Y gate valve, the stem threads through a fixed yoke at the top. When the handwheel turns, the stem rises (valve opening) or retracts (valve closing). The amount of exposed stem tells you the valve position — full stem out = fully open, stem flush with yoke = closed.
Switch BodyA weatherproof enclosure (typically NEMA 4 rated) that bolts to the valve yoke or a mounting bracket on the stem. Houses the microswitch, lever arm, and wiring terminals. Must be UL Listed for fire protection service.
Lever Arm / FollowerA mechanical arm that rides against the valve stem. As the stem moves (retracts during closing), the arm pivots and presses against the microswitch plunger. The arm position is adjustable — it determines HOW MUCH stem movement triggers the switch.
MicroswitchA precision snap-action switch (typically SPDT — Single Pole Double Throw) that changes state when the lever arm moves a preset distance. The "normal" contact closes the supervisory circuit to the FACP. When the arm moves (valve closing), the contact opens and the FACP registers a supervisory condition.
Set Screw / AdjustmentControls the trip point — how far the valve must close before the switch trips. NFPA 72 §17.16.1 requires the signal within 2 turns of the handwheel. The set screw positions the lever arm so it trips before the valve is more than 2 turns from fully open.
Conduit ConnectionWiring exits through a conduit fitting at the bottom of the switch body. Runs to the FACP on a supervised circuit. The conduit must be weatherproof for exterior valves (PIV, yard valves) and protected from mechanical damage.

Butterfly Valve Tamper Switches — Different Mechanism

Butterfly valves do not have a rising stem — the disc rotates inside the valve body. The tamper switch mounts to the gear operator and detects shaft rotation instead of linear stem movement. A cam or lever on the shaft actuates the microswitch as the disc rotates toward closed. The trip point is set so the switch activates before the disc reaches 1/5 of full travel from open. Butterfly valve tamper switches are more susceptible to vibration-induced false signals because the gear operator has more mechanical play than a rigid OS&Y stem.

Wiring & Installation Details

Supervisory Circuit (NOT Alarm)

Tamper switches MUST be wired to a supervisory zone on the FACP — never to an alarm zone. A tamper signal on an alarm zone causes a full building fire alarm and fire department dispatch for a closed valve. This is one of the most common installation errors and one of the most expensive (false alarm fines).

End-of-Line Resistor

Like all supervised circuits, the tamper switch wiring terminates with an end-of-line resistor (EOLR) whose value matches the FACP manufacturer's specification. The EOLR provides continuous circuit supervision — if the wire is cut, the FACP detects the open circuit and generates a TROUBLE signal within 200 seconds.

Class B vs Class A Wiring

Most tamper switches are wired Class B (single pair, one EOLR). Class A wiring (return loop) provides continued operation if one wire is cut — the signal can still reach the FACP via the return path. Class A is required in some high-rise and healthcare installations where circuit survivability is critical.

Addressable vs Conventional

On addressable fire alarm systems, each tamper switch has its own address and reports individually to the FACP — "Tamper: 3rd Floor Riser Control Valve." On conventional systems, multiple tamper switches may share a zone — the FACP says "Supervisory: Zone 4" but does not identify which valve. Addressable is strongly preferred for multi-valve installations.

Things You Might Not Know About Tamper Switches

Closed Valves Kill More People Than Bad Sprinklers

According to NFPA's "U.S. Experience with Sprinklers" study, closed valves are the #1 reason sprinkler systems fail to control fires. In a significant percentage of sprinkler failures, the system was mechanically intact — heads, pipes, water supply all fine — but a control valve was shut. The tamper switch exists because of this statistic. One $50 switch prevents the most common mode of fire protection failure.

The "2 Turn" Rule Has a Physics Reason

NFPA 72 requires the supervisory signal within 2 turns of the OS&Y handwheel. This is not arbitrary — on a typical OS&Y valve, 2 turns retracts the stem approximately 0.5-0.75 inches, which corresponds to the gate dropping enough to restrict about 10-15% of the waterway. Beyond this point, flow restriction accelerates rapidly. The 2-turn trip point catches the closure before meaningful flow impairment occurs.

Some Tamper Switches Have Built-In Cover Tamper

Higher-end tamper switches (Potter, System Sensor) include a "cover tamper" feature — if someone removes the switch enclosure cover to access the wiring or microswitch, a second internal switch triggers a trouble signal at the FACP. This prevents someone from disabling the tamper switch by disconnecting wires inside the enclosure without the FACP knowing about it.

Hospitals Get Fined for Disabled Tamper Zones

CMS and TJC surveyors specifically check for disabled supervisory zones during healthcare facility surveys. A tamper switch zone that is "disabled" or "silenced" at the FACP is an Immediate Jeopardy finding — the highest severity level. The facility must prove the zone was disabled for a documented, active maintenance event with an impairment procedure in place, or face enforcement action.

Vibration From Water Hammer Causes Chronic False Supervisory Signals

In buildings with high water pressure or aggressive jockey pumps, water hammer (pressure surges) can vibrate OS&Y valve stems enough to cause the tamper switch lever arm to bounce against the microswitch intermittently. The FACP logs rapid supervisory/normal cycling. The fix is usually a combination of adjusting the lever arm tension, adding a vibration dampener, and addressing the root cause (jockey pump pressure settings or water hammer arrestor).

Tamper Switches on Underground Valves Are the Hardest to Maintain

Post Indicator Valves (PIVs) and underground gate valves in valve pits are exposed to weather, groundwater, insects, and rodents. The tamper switch wiring runs underground in conduit that can fill with water, corrode at fittings, or get damaged by landscaping equipment. Annual testing of PIV tamper switches has a higher failure rate than any other tamper switch type. Some facilities switch to wireless tamper switches for hard-to-reach exterior valves.

Know Your Switches — Tamper vs Waterflow vs Pressure vs Transfer

These four switches are the most commonly confused components in fire protection. They look similar (red boxes on pipes), but each serves a completely different purpose. Getting them mixed up — especially during wiring — causes false alarms, missed signals, and compliance failures.

Side-by-Side Comparison
FeatureTamper SwitchWaterflow SwitchPressure SwitchTransfer Switch (ATS)
What it detectsSomeone closing a control valveA sprinkler head has opened — water is flowingPressure drop below setpoint — triggers fire pump startUtility power failure or voltage sag
Signal typeSUPERVISORYALARMSUPERVISORY (pump start) or ALARM (via waterflow)TROUBLE (power failure)
What happensAlert to building management — valve has been moved from normal open positionBuilding fire alarm + fire department dispatchAutomatic fire pump start when pressure drops below thresholdAutomatic transfer to generator/backup power so fire pump can still run
Installed whereOn every control valve (OS&Y, butterfly, PIV)On each sprinkler riser, downstream of the alarm check valveOn fire pump controller, connected to system pressure sensing lineBetween utility power and fire pump controller
Code referenceNFPA 72 §17.16 / NFPA 13 §8.16NFPA 72 §17.12 / NFPA 13 §8.16.1NFPA 20 §12.4 / NFPA 72 §17.16NFPA 20 §9.7 / NFPA 110
Test frequencySemi-annual — close valve 2 turns, verify signal at FACPQuarterly — open inspector's test, verify alarm within 90 secondsAnnual — verify start/stop pressure setpoints, calibrationAnnual — simulate power failure, verify transfer and retransfer

Quick Memory Aid

🔒
Tamper:"Is the valve open?" — monitors position, sends SUPERVISORY
💧
Waterflow:"Is water moving?" — detects flow, sends ALARM
📊
Pressure:"Is the pressure dropping?" — starts the fire pump
⚡
Transfer:"Did we lose power?" — switches to backup electricity

Related System Components

The tamper switch is part of the valve supervision and fire alarm signaling chain:

▶ Watch: How an OS&Y Tamper Switch Works

Source: Fire Protection · Open on YouTube ↗

Frequently Asked Questions

What is a tamper switch?
A tamper switch (also called a valve supervisory switch) is an electromechanical device attached to a fire protection control valve that monitors its position — open or closed. When the valve moves off fully open, the switch sends a supervisory signal to the fire alarm control panel, alerting building management that the sprinkler water supply may be impaired.
Does a tamper switch sound a fire alarm?
No — a tamper switch generates a SUPERVISORY signal, not a fire alarm. Supervisory signals indicate a system impairment that needs human intervention — they do NOT trigger building evacuation or fire department dispatch unless the AHJ specifically requires it. The FACP displays the condition distinctly from fire alarms, and transmission goes to maintenance staff rather than dispatch.
How quickly must a tamper switch trip when a valve is closed?
NFPA 72 §17.16.1 requires the supervisory signal within two revolutions of the handwheel on an OS&Y valve, or one-fifth of total valve travel — whichever comes first. On a typical OS&Y, two turns retracts the stem about 0.5-0.75 inches, which corresponds to the gate dropping enough to restrict 10-15% of the waterway. Beyond this point, flow restriction accelerates rapidly.
Which valves in a fire protection system need tamper switches?
Every valve controlling the water supply to any portion of the fire protection system must be supervised. This includes the main riser valve, sectional and zone control valves, fire pump suction and discharge valves, PIV and wall post indicator valves, backflow preventer isolation valves, standpipe control valves, and pre-action/deluge trim valves. Supervision can be tamper switch, locked open, or sealed open — electronic tamper switching is the most reliable.
How often do I test a tamper switch?
Quarterly — partially close the valve and verify the supervisory signal reaches the FACP and the central monitoring station. Annually, exercise the valve through full closed and full open range to confirm the switch trips and restores cleanly. A switch that intermittently bounces between normal and supervisory states creates alarm fatigue at the monitoring station and must be readjusted.
Can the same cable run a tamper switch and a waterflow switch?
No. Tamper switches must be wired to a supervisory zone on the FACP — waterflow switches go to an alarm zone. Wiring a tamper switch to an alarm zone causes a full building fire alarm and fire department dispatch every time a valve is closed, which leads to costly false-alarm fines. Always verify the zone type on the FACP, not just the wire path.
