Fire Pump
The Heart of the System
When city water pressure isn't enough to reach every sprinkler head, the fire pump steps in — boosting pressure to protect lives on every floor.
What Is a Fire Pump?
A fire pump is a dedicated, high-reliability centrifugal pump that boosts water pressure in a fire protection system when the available water supply cannot meet system demand on its own. Governed by NFPA 20, fire pumps are required in high-rise buildings, large-area facilities, and any property where the static pressure from city mains or gravity tanks falls short of the hydraulic demand calculated per NFPA 13 NFPA 20, §4.1.
The fire pump does not create water — it takes an existing supply and adds pressure. A properly sized fire pump ensures that the most hydraulically remote sprinkler head on the highest floor receives the minimum required pressure and flow. When no sprinklers are flowing, the pump sits idle while a smaller jockey pump maintains system pressure.
Fire pumps are life-safety equipment. They must start automatically, run without human intervention, and deliver rated performance for the duration of a fire event. Every component — from the driver to the controller to the suction piping — is designed for one purpose: guaranteed water delivery when it matters most.
When Is a Fire Pump Required?
A fire pump is required whenever the available water supply pressure is less than the pressure demand of the most hydraulically demanding area of the sprinkler system. The determination comes from hydraulic calculations performed during design per NFPA 13 NFPA 13, §23.4.
Common scenarios requiring a fire pump:
- High-rise buildings — city pressure cannot push water above ~8–10 stories
- Large warehouse / manufacturing — high-density storage demands flows of 500+ GPM at high pressure
- Remote facilities — served by small-diameter mains with limited residual pressure
- Standpipe systems — NFPA 14 requires 100 PSI at the topmost hose connection
- Campus settings — long piping runs create friction loss exceeding supply pressure

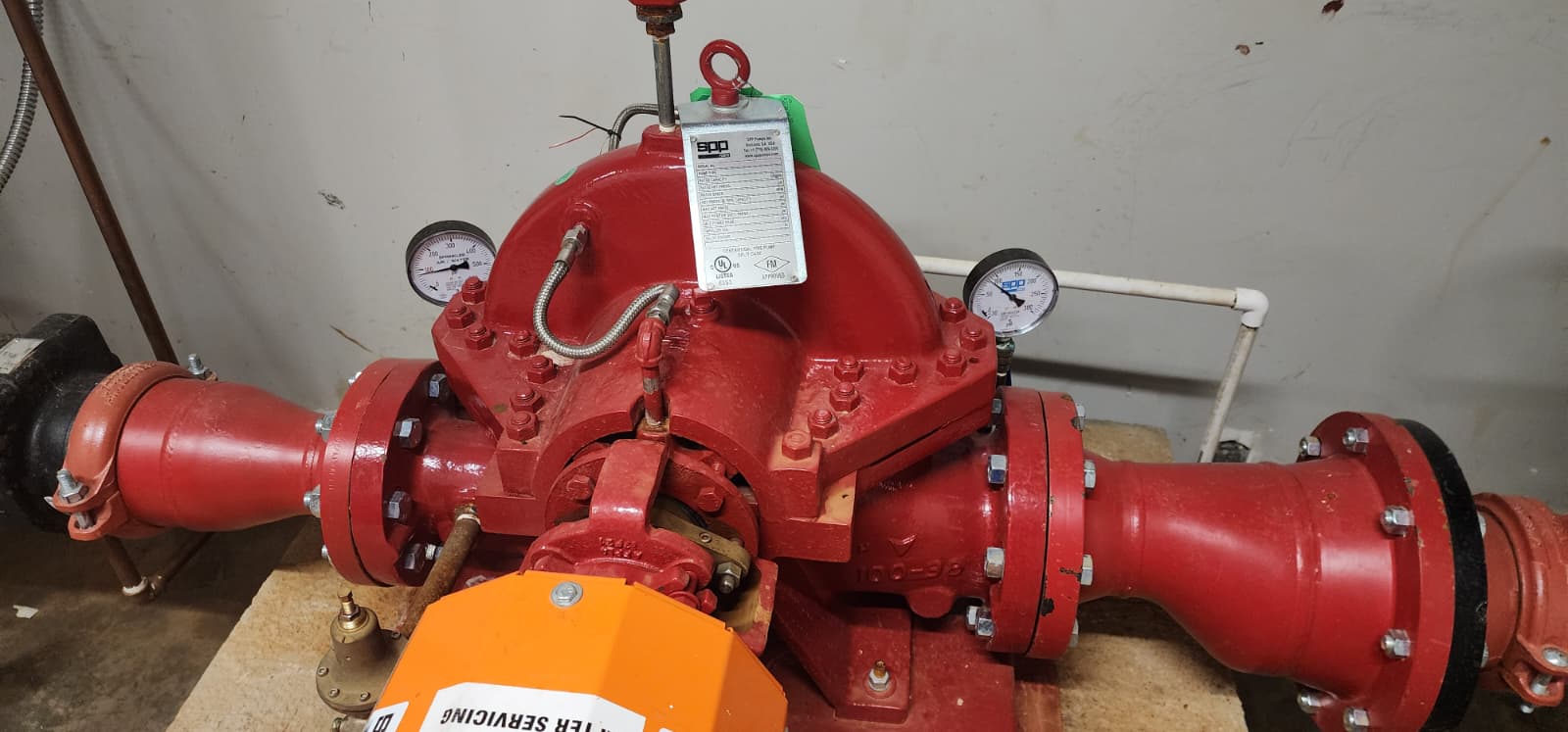

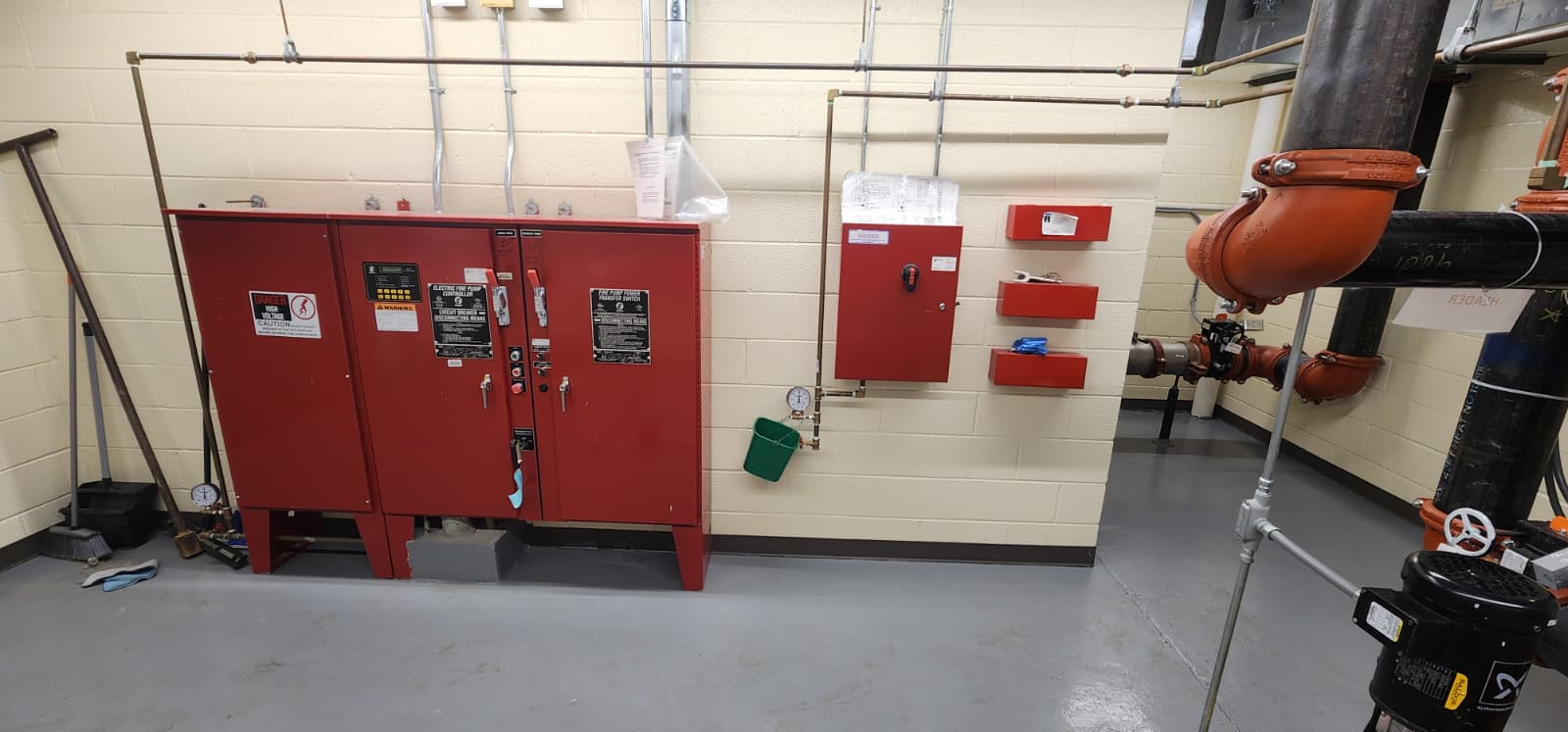

The Whole Pump Room at a Glance
Types of Fire Pumps

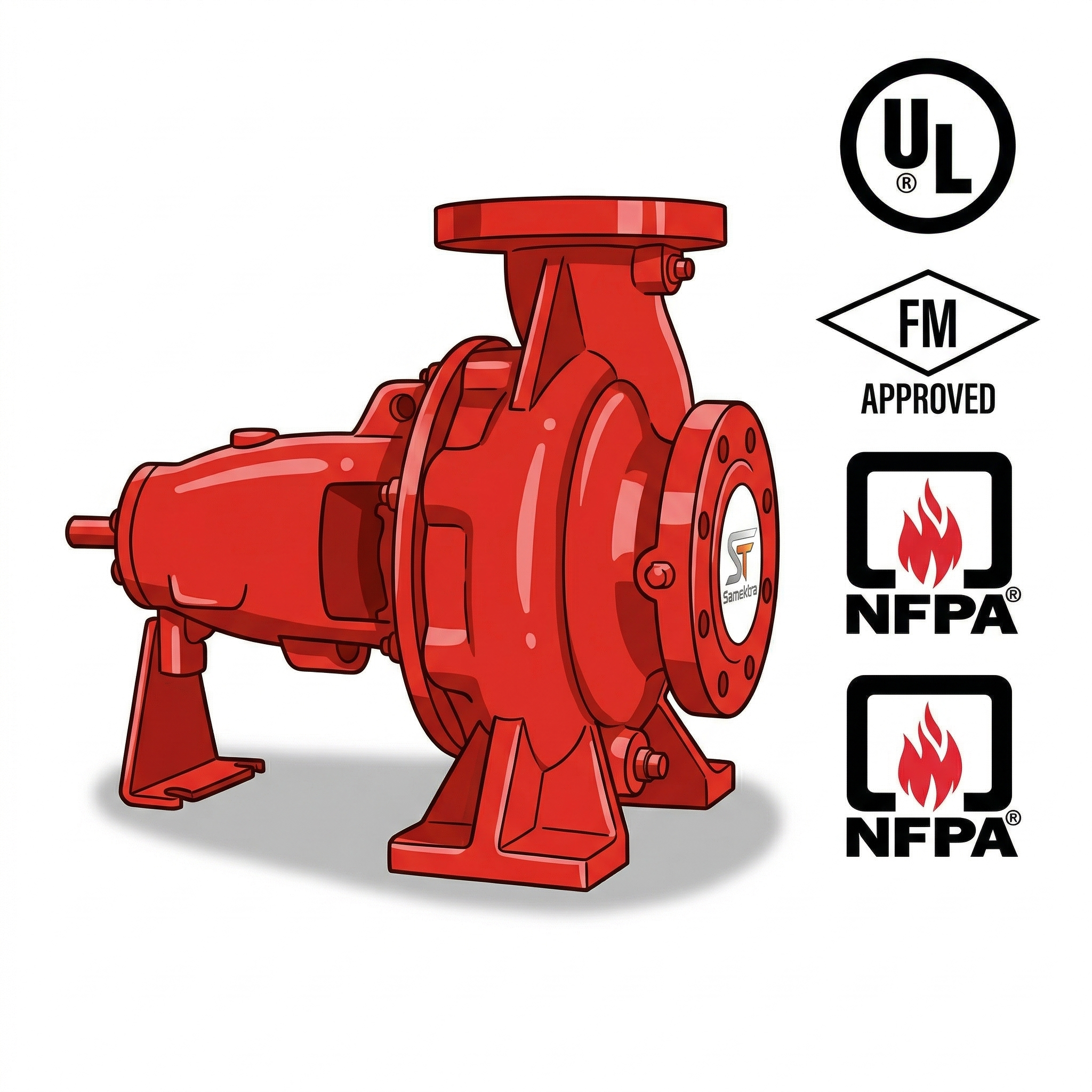

End-suction centrifugal fire pump — UL Listed, FM Approved. Illustration: Samektra
NFPA 20 recognizes several pump configurations. The correct choice depends on the water source, building layout, required flow, and available pump room space NFPA 20, Ch. 5–7.
All fire pumps used in NFPA 20 systems must be UL Listed and FM Approved. The listing ensures the pump has been tested to meet fire service performance standards — including the critical requirement that it delivers at least 65% of rated pressure at 150% of rated flow.
Horizontal Split-Case
- Most common fire pump type
- Casing splits along the horizontal axis — easy access to impeller
- Capacities from 250 to 5,000 GPM
- Double-suction impeller minimizes axial thrust
- Requires dedicated pump room with adequate floor space
- Preferred for municipal water supply connections
Vertical Turbine
- Used when water source is below the pump (wells, reservoirs, underground tanks)
- Multi-stage bowl assembly submerged in the water
- Lineshaft or submersible motor configuration
- Capacities from 250 to 5,000 GPM
- Does not require a flooded suction — no priming needed
- Common in areas without reliable municipal water
End Suction
- Compact single-stage centrifugal pump
- Suction enters axially, discharge exits at top
- Limited to 1,500 GPM maximum per NFPA 20
- Smaller footprint than split-case
- Often used for smaller buildings or as booster pumps
- Must be installed with positive suction pressure
⚠ In-Line and Positive Displacement Pumps
NFPA 20 also addresses in-line pumps (vertical shaft, compact footprint, up to 1,500 GPM) and positive displacement pumps for foam concentrate service. In-line pumps are gaining popularity in retrofit projects where space is limited.
Fire Pump System Components
A complete fire pump installation is more than just the pump. NFPA 20 requires a carefully integrated assembly of components:
Fire Pump Sizing
Fire pump sizing is not guesswork — it is derived directly from the hydraulic calculations for the sprinkler system (or standpipe system) the pump serves. The goal is to select a pump whose rated capacity and pressure satisfy the system demand point NFPA 20, §4.7.
Pump Curve Requirements (NFPA 20, §4.7.4)
- 100% rated flow: Pump delivers 100% of rated net pressure
- 150% rated flow: Pump delivers at least 65% of rated net pressure
- Shutoff (churn): Pressure must not exceed 140% of rated net pressure
Electric vs. Diesel Drivers
Every fire pump needs a driver. NFPA 20 permits electric motors and diesel engines, each with distinct advantages NFPA 20, Ch. 9–11.

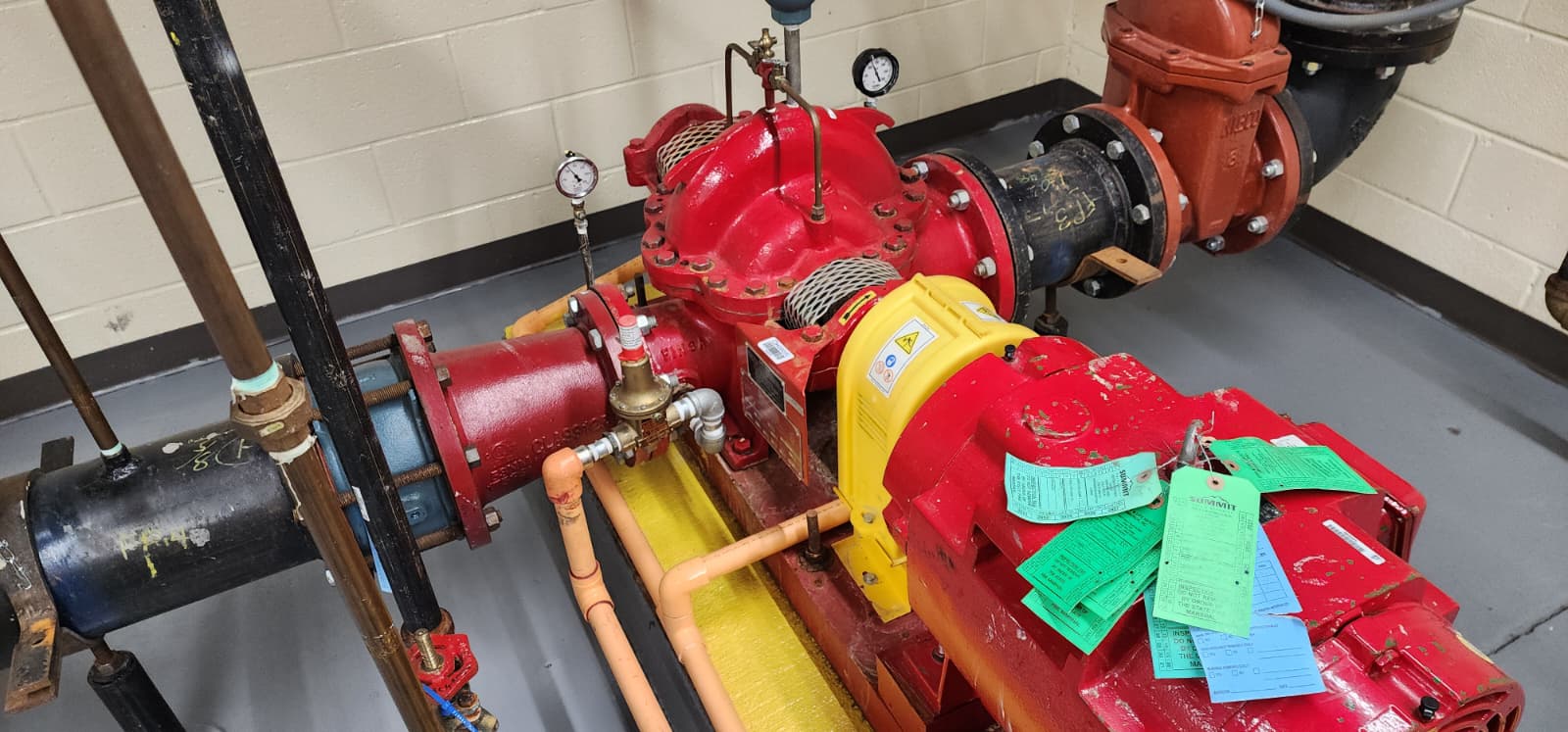

Electric Motor Driver
- Most common in buildings with reliable utility power
- Requires a dedicated, locked electrical disconnect
- Power feed must be independent and reliable — NFPA 20 defines acceptable sources
- No fuel storage, no exhaust ventilation, lower maintenance
- Vulnerable to power outages unless backed by a generator with ATS
- Controller must have locked rotor protection but no overload protection that could prevent starting

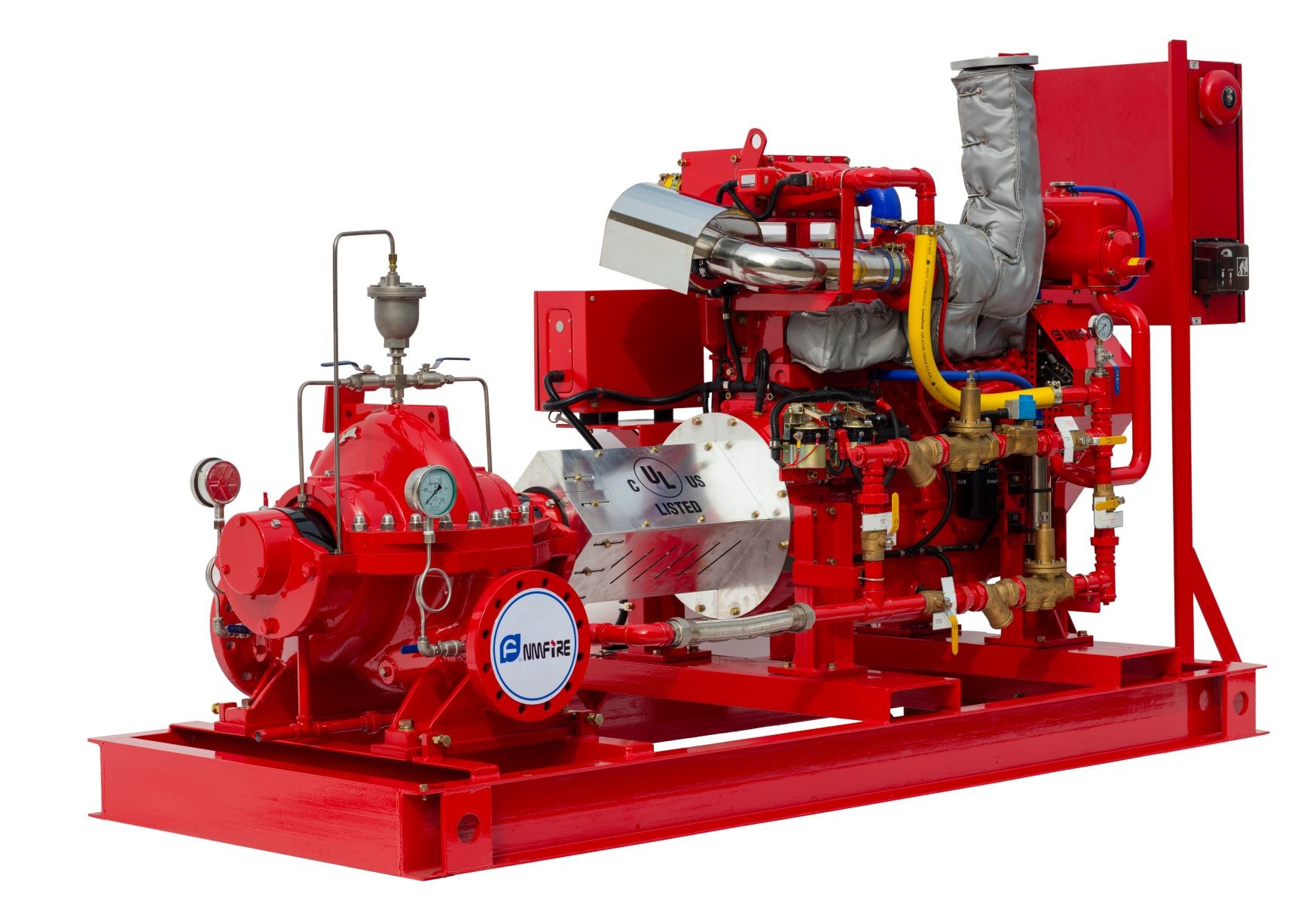

Diesel Engine Driver
- Self-contained power — runs independently of utility electricity
- Required when reliable electric power is not available
- Dual battery banks for redundant cranking
- Fuel tank must hold minimum 1 gallon per HP plus 5% margin for 8 hours
- Requires engine room ventilation, exhaust piping, and fuel line fire protection
- Weekly automatic crank cycle test required NFPA 25, §8.3.1
The Fire Pump Controller
The fire pump controller is the brain of the fire pump assembly. It receives a pressure drop signal, starts the pump automatically, monitors running conditions, and sends alarm signals to the building fire alarm system NFPA 20, Ch. 12.
Controller Functions
Automatic Start
Pressure switch senses drop below setpoint → controller starts pump within seconds
Manual Start
Local start button at controller — cannot be overridden by automatic stop logic
Alarm Signals
Pump running, phase reversal, phase loss, controller trouble — all sent to FACP
No Automatic Stop
Once started by automatic means, the pump must NOT stop automatically — manual stop only
Sequential Starting
When multiple pumps exist, controllers sequence starts with a time delay
Transfer Switch (Diesel)
For diesel controllers — manages crank attempts across dual battery banks
Critical Rule: No Automatic Stop
NFPA 20, §12.4.2 — A fire pump that starts automatically is not permitted to stop automatically. Only a manual stop at the controller is allowed. This prevents the pump from cycling off during a fire event if pressure momentarily recovers. This is one of the most frequently cited violations during acceptance testing.
Weekly No-Flow (Churn) Test
The weekly churn test is the most frequent required test for a fire pump. "Churn" means the pump runs against a closed (no-flow) discharge — it verifies the pump starts and runs, but does not measure flow or pressure performance NFPA 25, §8.3.1.
⚠ Diesel Engine Weekly Requirement
Diesel-driven pumps must run for a minimum of 30 minutes each week to reach full operating temperature and prevent fuel system issues. The 10-minute minimum applies to electric pumps only NFPA 25, §8.3.1.1.
Annual Flow Test
The annual flow test is the most important performance test for a fire pump. Unlike the weekly churn test, the annual test measures actual flow and pressure — plotting the pump's current performance curve and comparing it to the original acceptance test data NFPA 25, §8.3.3.
What to Record During the Annual Test
- Suction pressure and discharge pressure at each test point
- Net pressure (discharge minus suction) at each test point
- Flow in GPM (via calibrated flow meter or test header with Pitot tube)
- Pump speed (RPM) — particularly important for diesel drivers
- Voltage and amperage for each phase (electric motors)
- Oil pressure, coolant temperature, exhaust condition (diesel engines)
- Vibration observations and packing gland/mechanical seal condition
Performance Degradation Threshold
If the pump's performance has degraded by more than 5% from the original acceptance test curve, the pump must be investigated and corrective action taken. Causes may include impeller wear, internal clearance issues, suction obstruction, or bearing degradation NFPA 25, §8.3.3.1.
Annual Flow Test Requirements — Electric Fire Pumps
Electric-driven fire pumps have specific annual flow test requirements that differ from diesel in several ways. The test must be performed by a qualified technician with calibrated test equipment, and the results compared against the original acceptance test baseline NFPA 25, §8.3.3.
Pre-Test Electrical Checks
Before flowing any water, the technician must verify the electrical system is ready to handle sustained full-load operation:
Phase Voltage Balance
Measure voltage on all three phases at the motor terminals under no-load and full-load. Voltage imbalance greater than 2% between phases causes motor overheating. A 5% imbalance reduces motor life by 50%.
Amperage Draw per Phase
Record amperage on each phase at every test point (churn, 100%, 150%). Compare to motor nameplate FLA. If any phase draws more than nameplate, investigate wiring connections, bearing condition, or impeller binding.
Voltage Drop Under Load
When the pump starts and runs at full load, supply voltage must not drop more than 15% from no-load readings. Excessive voltage drop indicates undersized feeders, loose connections, or utility supply problems.
Locked Rotor Current
The controller must allow locked rotor current during startup without tripping. NFPA 20 prohibits overcurrent protection that could prevent the pump from starting — only short-circuit protection is permitted for electric fire pump circuits.
Electric Pump Flow Test Procedure
Electric-Specific Concerns During Flow Testing
Motor Overheating
Electric motors are sized for the maximum demand across the full pump curve — but sustained operation at 150% flow pushes the motor toward its service factor limit. Monitor motor frame temperature. If the motor is undersized (common in older installations), it may trip on thermal overload before 150% is reached.
No Overcurrent Trip Allowed
Unlike standard motors, fire pump motors are not permitted to have overcurrent protection that could prevent starting. The circuit breaker only protects against short circuits, not overload. This means the motor relies entirely on its own thermal capacity during extended tests.
Utility Power Fluctuation
When a large fire pump starts (200+ HP), the inrush current can cause voltage sag on the building's electrical system. During the flow test, other building systems may dim or flicker. This is normal but should be noted — if voltage drop exceeds 15%, the electrical supply may be inadequate.
Transfer Switch Testing
If the pump has an automatic transfer switch (ATS) for generator backup, the annual test should include a simulated power failure to verify the ATS transfers to generator and the pump restarts. This is often missed during flow tests but is critical for buildings that depend on backup power.
Phase Reversal After Utility Work
If the utility has done any work on the building's power feed since the last test, check for phase reversal. Reversed phases cause the motor to spin backward — the pump will run but produce little or no pressure. The controller should have phase reversal protection, but verify it works.
Bearing and Seal Condition
Electric pumps with packed stuffing boxes should show a slight drip (1 drop/second) during operation. No drip means the packing is too tight (overheating the shaft sleeve). Heavy leaking means worn packing. Mechanical seals should show zero leakage — any drip requires seal replacement.
See it in action: Watch an annual electric fire pump flow test → — shows the full procedure including churn, 100%, and 150% rated capacity test points per NFPA 25 §8.3.3.
Phase reversal testing: Watch phase reversal testing during a fire pump annual test → — demonstrates how to verify the controller detects reversed phases and prevents the motor from running backward. Critical after any utility work on the building power feed.
NFPA 25: Fire Pump ITM Schedule
Common Field Issues
These are the problems inspectors, technicians, and facility managers encounter most often with fire pump installations. Many of these are recurring deficiencies cited in AHJ inspection reports.
Pump Fails to Start
Dead batteries (diesel), tripped breaker, pressure switch out of calibration, controller in "OFF" or "MANUAL" instead of "AUTO", corroded wiring terminals.
Low Discharge Pressure
Impeller wear or damage, internal clearance degradation, partially closed suction valve, air entrainment in suction, clogged suction strainer, worn wear rings.
Excessive Vibration
Misaligned pump-to-driver coupling, worn bearings, impeller imbalance, cavitation from inadequate NPSH, loose mounting bolts, pipe stress on casing.
Packing Gland Leaks
Packing should drip (1 drop/second) during operation — excessive leaking means worn packing rings or scored shaft sleeve. Overtightening causes overheating and shaft damage.
Diesel Won't Crank
Dead or undercharged batteries, corroded battery cables, starter motor failure, low fuel level, fuel contamination (water or algae), glow plug failure in cold climates.
Controller Alarms
Phase reversal (wiring error after utility work), ground fault, loss of power, running signal stuck on, pressure switch failure, transfer switch malfunction.
Jockey Pump Short-Cycling
Small system leak causing continuous pressure drops, jockey pump undersized, pressure switch differential set too narrow, waterlogged pressure tank.
Overheating at Churn
Casing relief valve closed, plugged, or piped incorrectly — pump overheats when running against closed discharge with no water circulation for cooling.
Suction Issues
Partially closed suction valve, debris in suction strainer, negative suction pressure (pump cavitating), pipe collapse from corrosion, shared suction with domestic booster.
Missing or Expired Test Records
Weekly churn logs incomplete, annual flow test not performed, no baseline acceptance test on file — this is a compliance finding on nearly every AHJ audit.
Understanding the Pump Performance Curve
Every fire pump has a characteristic performance curve — a graph plotting net pressure (PSI) against flow (GPM). Understanding this curve is essential for sizing, acceptance testing, and annual performance evaluation NFPA 20, §4.7.
Shutoff (Churn)
0% flow / max pressure
Zero flow — the pump runs but no water moves. Pressure is at its maximum. Must not exceed 140% of rated pressure. If exceeded, the pump generates dangerous overpressure that can damage piping and components.
Rated Point
100% flow / 100% pressure
The design operating point — where the pump delivers its rated flow at its rated pressure. Example: a 1000 GPM pump at 100 PSI net. This is the point specified on the pump nameplate and the point the system was designed around.
Overload (150%)
150% flow / 65%+ pressure
The pump is pushed to 150% of rated flow. It must still deliver at least 65% of rated pressure. This proves the pump can handle demand exceeding design — a real-world scenario when multiple sprinkler heads or hose connections are flowing simultaneously.
Why the Curve Shape Matters
A "flat" curve (pressure does not drop much as flow increases) is preferred for fire pumps because it provides consistent pressure across a range of demands. A "steep" curve means pressure drops sharply at higher flows — acceptable at rated conditions but potentially dangerous at overload. The annual flow test plots three points on this curve and compares them to the acceptance test baseline. A shift greater than 5% indicates pump degradation.
Acceptance Testing
Before a fire pump is placed in service, it must pass a field acceptance test per NFPA 20 §14.2. This test establishes the baseline performance data that all future annual tests will be compared against. Without acceptance test data on file, there is no way to evaluate whether the pump is degrading.
No Acceptance Test = No Baseline
One of the most common problems in older buildings is that the original acceptance test report has been lost. Without baseline data, annual flow test results cannot be evaluated for degradation. If the acceptance report is missing, the next annual flow test becomes the de facto baseline — but there is no way to know whether the pump was already degraded at that point. Always retain the original acceptance test data for the life of the pump.
Pump Room Requirements
NFPA 20 has specific requirements for the room or area housing the fire pump. These are frequently overlooked during construction and flagged during acceptance inspections NFPA 20, §4.12.
- Dedicated space — the pump room must not be used for general storage
- Adequate size — room for maintenance access on all sides of the pump and controller
- Temperature — maintained above 40°F (4°C) minimum to prevent freezing of suction and discharge piping
- Lighting — adequate illumination for operation, testing, and maintenance — not just a single bare bulb
- Drainage — floor drain capable of handling packing leakage, casing relief valve discharge, and test water from the annual flow test. The drain must not back up during testing.
- Ventilation — especially critical for diesel engines which require combustion air intake and heat rejection. Electric pump rooms need ventilation to prevent excessive heat buildup from the motor.
- Fire-rated construction — 2-hour fire-rated separation where required by building code (IBC §913.2). The pump must be protected from fire in adjacent spaces.
- Access — accessible for testing, maintenance, and emergency response without obstruction. Door must be large enough for pump and motor replacement.
- Signage — the pump room must be clearly identified with signage visible from the building corridor or exterior
- No other equipment — domestic water booster pumps, HVAC equipment, and electrical panels should not share the fire pump room unless specifically approved by the AHJ
Diesel Pump Room — Additional Requirements
- Combustion air louvers sized per engine manufacturer specifications
- Exhaust piping routed to exterior — fire-rated penetration seals at walls
- Fuel tank within or adjacent to pump room — day tank if remote bulk storage
- Fuel line fire protection (automatic shutoff valve at tank)
- Room temperature maintained above 40°F for reliable engine starting
- Battery charger with visual status indicators
Electric Pump Room — Key Items
- Dedicated electrical disconnect — locked in the ON position, labeled "FIRE PUMP"
- Electrical supply must be independent and reliable per NFPA 20 §9.3
- No overcurrent protection that could prevent the pump from starting
- Generator transfer switch (if applicable) adjacent to or within the pump room
- Adequate ventilation for motor heat dissipation
- Emergency lighting for power-out conditions
Fire Pump Alignment Inspection
One of the most overlooked maintenance items on a horizontal split-case fire pump is pump-to-motor shaft alignment. Misalignment is the leading cause of premature bearing failure, excessive vibration, seal leaks, and coupling destruction. NFPA 25 requires alignment to be checked as part of the annual mechanical inspection NFPA 25, §8.1.1.
Why Alignment Matters
The fire pump impeller spins at 1,750–3,600 RPM. At those speeds, even a few thousandths of an inch of misalignment creates destructive forces. The pump and motor shafts are connected by a flexible coupling — but "flexible" does not mean "forgiving." The coupling absorbs minor vibration, not chronic misalignment. When shafts are misaligned, the coupling acts as a constant stress point, generating heat, wearing coupling elements, and transmitting vibration into both sets of bearings.
Angular Misalignment
The pump shaft and motor shaft meet at an angle rather than being perfectly parallel. The coupling flexes with every rotation, creating a cyclic bending load on both shafts. This is the most common type and is usually caused by uneven shimming or foundation settling.
Parallel (Offset) Misalignment
The two shafts are parallel but not on the same centerline — one is higher, lower, or to the side. This forces the coupling to shuttle back and forth axially with every revolution, wearing coupling elements and thrust bearings.
Axial Misalignment
The gap between coupling halves is too large or too small. Too tight and thermal expansion during operation jams the coupling. Too loose and the shafts can separate or create excessive end play in the bearings.
Combined Misalignment
In practice, most misalignment is a combination of angular and offset. A single correction rarely fixes the problem — both planes (vertical and horizontal) must be checked and corrected independently.
How Alignment Is Checked
Signs of Misalignment
A misaligned fire pump may run "fine" during a 10-minute weekly churn test but is silently destroying itself. Watch for these warning signs:
- Excessive vibration — felt at the coupling guard, bearing housings, or base plate. Vibration that increases over time is the #1 indicator.
- Hot bearings — bearing housings that are too hot to touch after a churn test (above ~180°F) suggest misalignment loading.
- Coupling element wear — rubber inserts, grid elements, or disc packs wearing unevenly or failing prematurely.
- Shaft seal or packing leaks — misalignment deflects the shaft, causing seals to wear on one side and leak.
- Unusual noise — clicking, grinding, or whining from the coupling area during operation.
- Foundation cracks — cracks in the pump base or grouting indicate the base is moving, which changes alignment over time.
- Motor amp imbalance — a misaligned pump puts uneven mechanical load on the motor, which can show up as phase-to-phase amperage differences.
⚠ Thermal Growth
Alignment must account for thermal growth — as the motor heats up during operation, the motor shaft centerline rises slightly (steel expands). A pump aligned perfectly cold will be misaligned hot. Experienced technicians intentionally set the motor slightly low when cold so it grows into alignment at operating temperature. The motor manufacturer's thermal growth specification determines the offset. This is called "cold offset alignment."
See it in action: Watch a fire pump alignment inspection → — demonstrates dial indicator and laser alignment techniques on a horizontal split-case fire pump.
Monthly Fire Pump Run Log
Track monthly fire pump tests with our professional xlsx form — records discharge/suction/start PSI, P/F/C scoring for all checklist items, jockey pump exercise, phase reversal, and overheating checks. Based on real-world hospital fire pump testing forms. Per NFPA 25 §8.3.1 & TJC PE.04.01.01 EP2.
Download Fire Pump Monthly Run Log (.xlsx)Things You Might Not Know About Fire Pumps
A Fire Pump Cannot Create Water
A fire pump only adds pressure — it does not create flow. If the water supply fails (broken main, closed valve), the pump will cavitate and destroy itself within minutes. This is why suction supply reliability is the single most critical design factor.
The Pump Must Never Stop Itself
NFPA 20 §12.4.2 forbids automatic shutoff. Once started by a pressure drop, the pump runs until someone manually presses the stop button at the controller. This rule exists because a fire event can cause intermittent pressure recovery — an auto-stop could shut down protection mid-fire.
Diesel Pumps Must Run 30 Minutes, Not 10
Electric pumps require a 10-minute weekly churn test. Diesel engines require 30 minutes — long enough to reach full operating temperature, burn off moisture in the crankcase, and exercise the cooling system. Short runs cause "wet stacking" and carbon buildup.
The Largest Fire Pump Ever Made Was 5,000 GPM
NFPA 20 standard pump sizes top out at 5,000 GPM. For facilities needing more, multiple pumps are installed in series or parallel. The World Trade Center had multiple 750 GPM pumps stacked vertically — each serving a different zone of the 110-story towers.
Fire Pump Rooms Must Stay Above 40°F
NFPA 20 requires the pump room to be heated — not for human comfort, but because water in the suction and discharge piping will freeze. A frozen fire pump is worse than no pump at all because ice expansion can crack the pump casing and flood the room.
Jockey Pumps Prevent 3 AM False Alarms
Without a jockey pump, tiny leaks and thermal contraction cause system pressure to drop slowly overnight. When the pressure hits the fire pump start threshold, the main pump kicks on at full power — creating a massive pressure surge and a building-wide waterflow alarm at 3 AM. The jockey pump prevents this by maintaining pressure with a gentle drip.
The Casing Relief Valve Prevents Boiling
When a fire pump runs at churn (no flow), all the energy goes into heating the water inside the casing. Without the casing relief valve bleeding off a small amount of hot water, the temperature can reach boiling point and damage seals, packing, and the impeller itself. A plugged casing relief valve is a critical deficiency.
Fire Pumps Are Tested at 150% — Not Just 100%
The annual flow test must include a 150% overload point. Why? Because in a real fire with multiple heads flowing, demand often exceeds 100% of rated capacity. The 150% test proves the pump can handle worst-case conditions while maintaining at least 65% of rated pressure.
Related System Components
The fire pump works as part of a larger assembly. Click any component to read its full article:
▶ Watch: Fire Pump Churn Test — Weekly No-Flow Run
Source: Samektra · Open on YouTube ↗
Frequently Asked Questions
What is a fire pump?
What is the weekly fire pump churn test?
What is the annual fire pump flow test?
How often does a diesel fire pump need to be run?
What is the difference between a horizontal split-case and vertical turbine fire pump?
References
1. NFPA 20: Standard for the Installation of Stationary Pumps for Fire Protection, 2022 Edition.
2. NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems, 2023 Edition, Chapter 8.
3. NFPA 13: Standard for the Installation of Sprinkler Systems, 2022 Edition.
4. FM Global Property Loss Prevention Data Sheet 3-7: Fire Protection Pumps.
5. NFPA Fire Protection Handbook, 21st Edition, Section 15, Chapter 3.
Open the discussion panel to comment, flag an inaccuracy, add field experience, or ask a question. Approved contributions earn SRP and may be incorporated into the article.
