Pressure Gauges
The Pulse of the System

The dials that tell an inspector everything they need to know in three seconds of looking — if they know what 'normal' is and whether the gauge is still accurate. Here are the NFPA 13 placement rules (where every gauge MUST be), NFPA 25 inspection frequencies (weekly/monthly/quarterly/5-year), the 3% accuracy rule, the four NFPA-25-listed deficiencies, and why the date on the gauge (or in your log) is The Joint Commission's #1 Physical Environment finding in this category.

By Stanislav Samek, Samektra · 14 min read · Last updated April 18, 2026

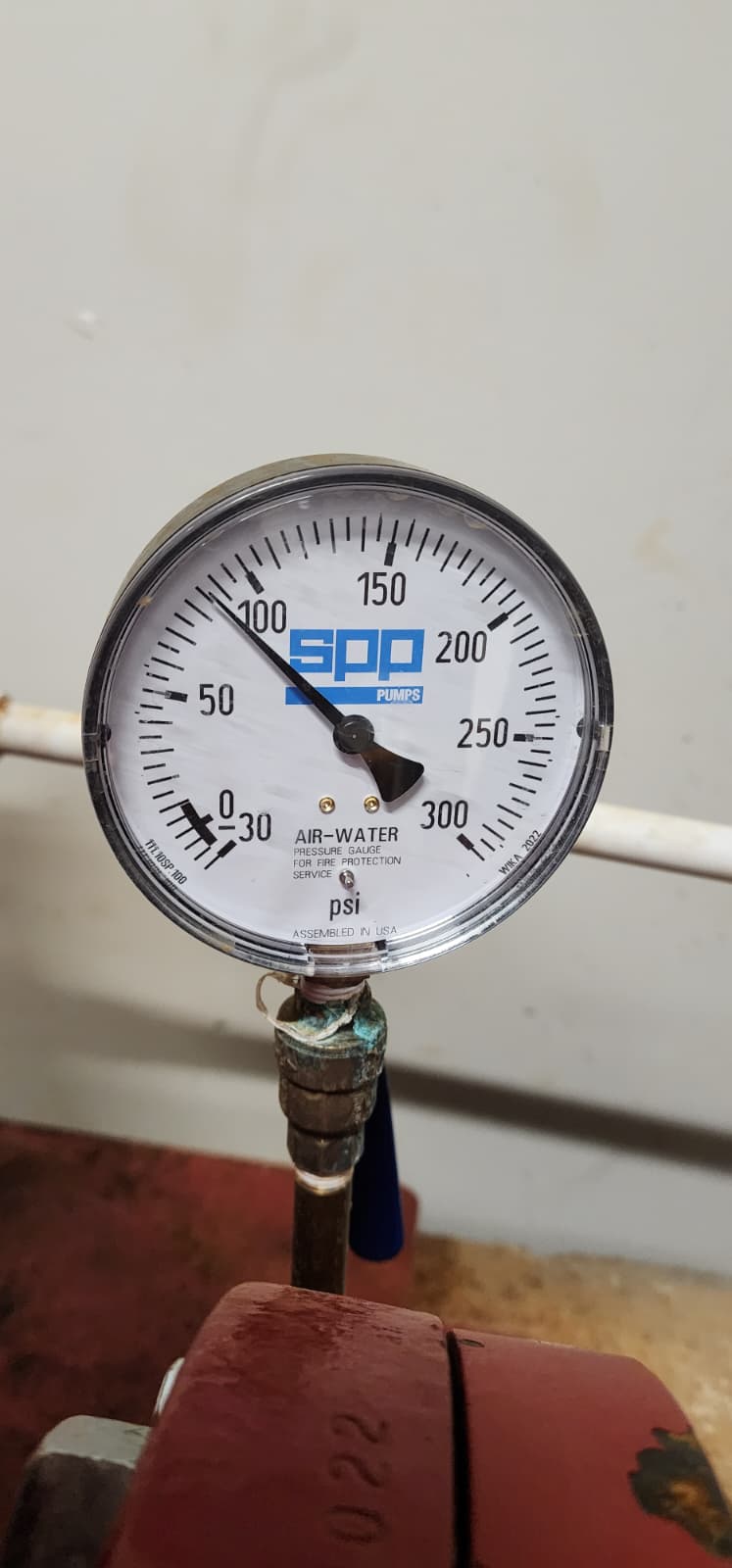

Fire-protection-service air-water pressure gauge (SPP Pumps, 0–300 PSI). NFPA 25 §13.2.4.2 requires these gauges to be replaced or recalibrated every 5 years — note the date stamp in the lower right of the dial ("WIKA 2022").

The Dial Nobody Really Reads

Every fire protection system is covered in small, round, 3.5-inch Bourdon-tube pressure gauges. NFPA 13 §16.13 tells you where to put them. NFPA 25 §13.2.4 tells you how often to check them. They are cheap, mechanical, and require no power. They are also the single fastest field diagnostic tool you have.

A gauge that reads zero on the system side and 70 psi on the supply side tells you a control valve is closed. A gauge that reads 40 psi on the air side and 0 on the water side of a dry pipe valve tells you the differential has set. A gauge that reads 175 psi where you expected 60 tells you thermal expansion has pressurized a closed section of wet system.

But all of that only works if the gauge itself is still honest — and Bourdon tubes drift silently. That's why NFPA 25 and every major AHJ (including TJC) care about the date on the gauge, not just the reading.

Where Every Gauge Must Be — NFPA 13 §16.13

Per NFPA 13 §16.13, a gauge with a connection not smaller than ¼" must be installed at at least these locations Source 5:

System main drainSupply-side indication for main drain test§16.13.1
Floor control valve main drainsEach floor gets its own§16.13.1
Inlet AND outlet of every pressure-reducing valveTo verify PRV is doing its job§16.13.1
Each system riserWet pipe requirement§8.1.1.1
Above AND below each alarm check valve / system riser check valveException: single gauge on manifold under multiple riser checks permitted§8.1.1.2
Water side AND air side of every dry pipe valveThe core differential indicator§8.2.1
At air pumps supplying an air receiver + at the air receiver itselfDry-system supervision chain§8.2.1
In each independent air-supply pipe to a dry pipe systemPer-pipe monitoring§8.2.1
At every quick-opening device (QOD)Dry-system trip assistance§8.2.1
Above AND below preaction valve; below deluge valve; air supply to bothPreaction/deluge supervision§8.3.1.3
Below the control valve on every exposure-protection sprinkler systemOutdoor-exposure systems§8.7.7

On check valves and alarm check valves, the pair of gauges (supply-side below, system-side above) is a basic diagnostic: if both read the same pressure the valve is seating properly; if the system side reads significantly lower, something upstream is restricting flow or the valve is leaking.

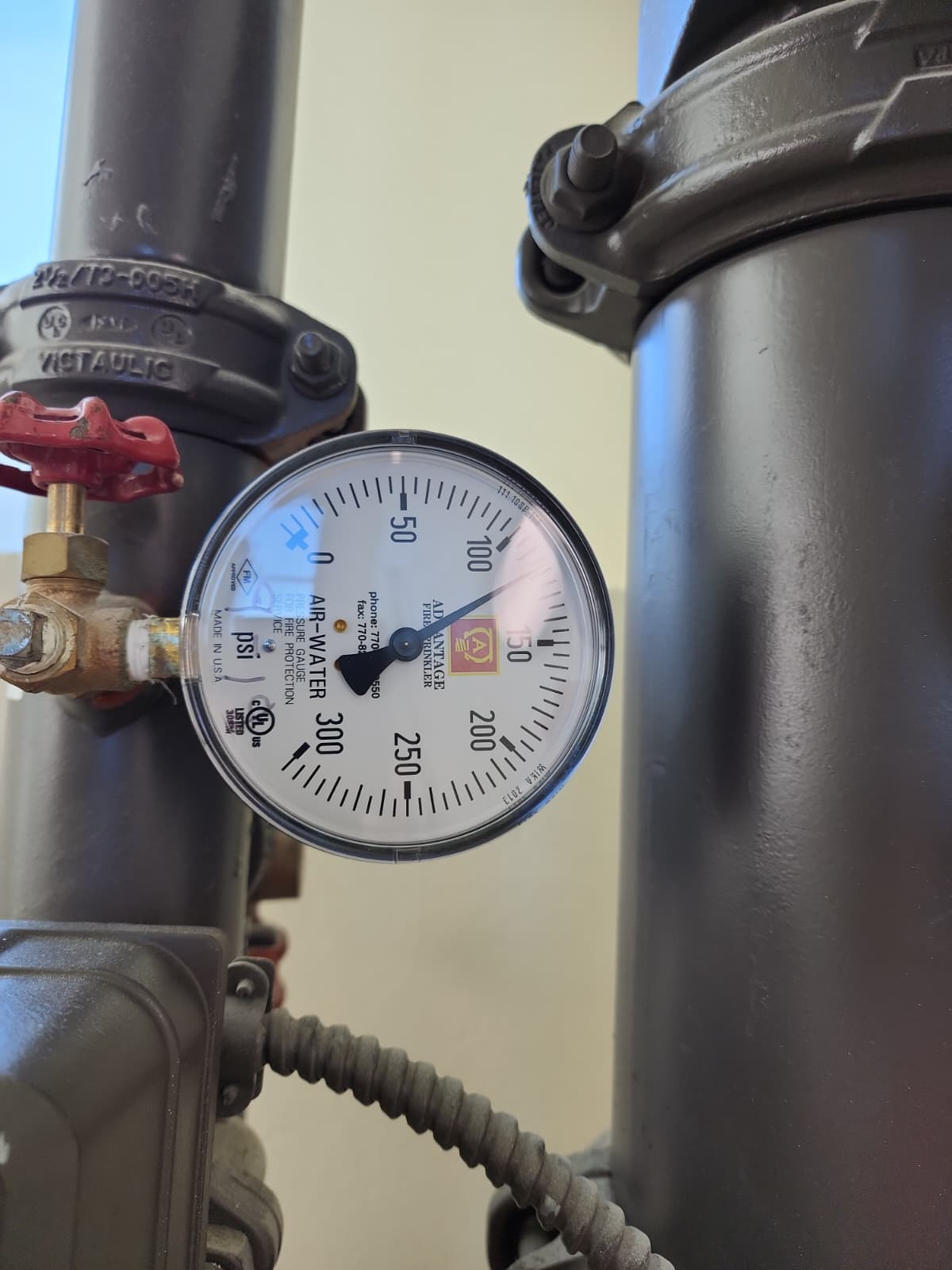

A stairwell-riser pressure gauge — 0–300 PSI dual-service “AIR – WATER” dial (dual range is common on pre-action, dry, and standpipe gauges where the same gauge may see air during supervision and water after trip/charge). Note the brass needle isolation valve on the left — NFPA 13 permits a shut-off between the gauge and the system so the gauge can be replaced or recalibrated without draining the riser. The FM Approved and UL Listed marks on the dial face, plus the Victaulic 2½" T3‑095H grooved couplings on the adjacent risers, are all visible compliance markers a surveyor will check on a walk-through.

🏥 The TJC / CMS Date-Documentation Rule

🏥 TJC PHYSICAL ENVIRONMENT / CMS K-291

Every gauge must show — or have documented — a date within the last 5 years.

The Joint Commission Physical Environment surveyors look for proof that every gauge is within its NFPA 25 §13.2.4.2 five-year service interval. Missing date documentation is one of their most-cited findings in this category — and CMS K-291 captures the same issue for Medicare/Medicaid healthcare facilities.

What counts as acceptable date documentation

✅ Dated calibration sticker on gauge

The gold standard. Calibration lab sends the gauge back with a sticker showing the test date and the next-due date. Easy to verify in seconds.

✅ Install date on a tag or label

Stainless-wire brass tag attached to the gauge stem showing install date. Preferred when a new gauge replaces an old one rather than going through calibration.

✅ Facility maintenance log entry

Dated log by gauge location (riser, FDC, fire pump suction, fire pump discharge, etc.) showing install/test date. Works but the surveyor must be able to find it in under a minute.

❌ Factory date stamp on dial

Does NOT count. "WIKA 2022" on the dial tells you the gauge was manufactured in 2022 — not when it was installed or last tested. A 2022-dated gauge sitting in a warehouse for 3 years before installation still has a 5-year clock starting at install.

❌ "Looks new"

Not a surveyor answer. If you can't produce a date, the surveyor assumes the gauge is overdue and writes the finding. Clean appearance is not proof of compliance.

❌ "We replace them on a schedule"

The schedule must be documented AND the specific gauge must be identifiable in the log. "We do all of them every 5 years" without a per-gauge record = finding.

💡 Simplest compliance approach

Sticker every gauge with a label showing install date (or last calibration date) at the time of service. Keep a spreadsheet with one row per gauge (location / manufacturer / range / install date / next-due date). Print and post in the fire riser room. Facilities with this in place pass TJC's gauge review in under 5 minutes.

How a Bourdon Tube Works — and Why It Drifts

Inside a typical 3.5″ fire-protection gauge is a curved, sealed brass or stainless tube — the Bourdon tube. The tube cross-section is flattened, not round. When pressure rises inside the tube, it tries to become more round, and that small dimensional change causes the tube tip to straighten slightly. A tiny geared linkage amplifies that motion and turns the needle on the dial.

Bourdon gauges drift over time. Sudden pressure spikes (water hammer), freeze-thaw cycles, corrosion of the brass tube, and simple metal fatigue all shift the zero point. A gauge that was accurate to 1% when installed can be 10%+ off after 10 years — and you can't tell by looking at it. The only way to know is to compare against a calibrated test gauge. That's why NFPA 25 §13.2.4.2 requires replacement or calibration every 5 years regardless of whether the gauge appears to be working.

The 3% Accuracy Rule (NFPA 25 §13.2.4.3)

Per NFPA 25 §13.2.4.3: “Gauges not accurate to within 3 percent of the full scale shall be recalibrated or replaced.”

Worked example

Gauge range: 0–300 PSI
Full scale = 300 PSI
3% of full scale = 300 × 0.03 = 9 PSI allowable error

Test gauge reads: 100 PSI
Installed gauge reads: 91 PSI → error = 9 PSI → at the threshold
Installed gauge reads: 87 PSI → error = 13 PSI → FAIL — recalibrate or replace

Most inspectors carry a ±0.5%-accurate test gauge in their kit specifically to spot-check suspect readings during ITM. If a facility gauge shows significant drift from the test reading, it gets flagged for calibration or replacement. The inspector doesn't need to test every gauge — just the ones that look wrong, plus spot-checks on the ones due for 5-year service anyway.

The Four NFPA-25-Listed Deficiencies

Per NFPA 25 §4.1.5.1 Annex (A.4.1.5.1), these four gauge conditions are called out as symptoms of potential larger system problems Source 4:

1. Gauge not returning to zero

After depressurization, the needle stays above zero. The Bourdon tube has taken a set (permanent deformation) or the pivot is seized. Replace.

2. Gauge reading off scale

Needle pinned above full scale or below zero. Over-pressure event (water hammer, closed valve trapping thermal expansion) or mechanical damage. Investigate the cause AND replace the gauge.

3. Gauge with bent needle

Physical impact during maintenance, over-pressure spike, or vandalism. The needle-to-linkage relationship is compromised. Replace.

4. Drift beyond 3% full scale

Reading differs from a calibrated test gauge by more than 3% of the gauge's full-scale range. Silent failure mode — the gauge looks fine but isn't honest. Recalibrate or replace.

None of these typically cause a system to fail in a fire by themselves — but they can mask an underlying problem (corroded piping, closed upstream valve, failing backflow preventer) that they exist specifically to reveal. Replace or recalibrate promptly.

NFPA 25 Inspection Schedule

NFPA 25 §13.2.4 sets different inspection frequencies by system type. Note the section renumbering: this was §5.2.4 in the 2020 edition, moved to §13.2.4 in the 2023 edition Source 4.

FrequencyRequirementReference
MonthlyWet-pipe gauges — visual inspection for physical damage and operability.§13.2.4.1.1
QuarterlyWet-pipe gauges monitoring water pressure — verify normal supply pressure maintained.§13.2.4.1.2
MonthlyDry/preaction/deluge gauges monitoring air or nitrogen pressure — verify normal pressure.§13.2.4.1.3
QuarterlyDry/preaction gauges WHERE air pressure supervision connects to a constantly-attended location.§13.2.4.1.3.2
MonthlyFreezer-system dry/preaction — compare compressor-side gauge to system-side gauge.§13.2.4.1.4
5-YearReplace OR test by comparison with calibrated gauge. Label with test/install date.§13.2.4.2
Any timeIf gauge is not accurate to within 3% of full scale, recalibrate or replace.§13.2.4.3

Residential & Single-Family — Reduced Requirements

NFPA 13R (low-rise multi-family, ≤ 4 stories)

  • Required at main drain, floor-control-valve drains, and both sides of PRVs (§5.2.15).
  • Separate supply pressure gauge and system pressure gauge with shutoff valves (§6.12).
  • Must be approved by the AHJ.
  • 5-year replacement/calibration applies per NFPA 25.

NFPA 13D (one- and two-family dwellings)

  • Most NFPA 13D wet systems have NO gauges required.
  • Required ONLY if: dry system, pressure-tank water supply, or standalone system with PRV (§7.3).
  • Gauges do NOT need to be listed.
  • No explicit 5-year replacement requirement (but still good practice).

Reading Gauge Pairs — Field Diagnostic Cheat Sheet

Pairs of gauges across check valves, alarm check valves, and dry pipe valves tell a richer story than any single reading. Common scenarios:

ConfigurationWhat you seeWhat it means
Alarm check valveSupply 80 psi / System 80 psiNormal — valve seated, pressures equalized by bypass
Alarm check valveSupply 80 psi / System 20 psiClosed upstream control valve OR severe leaking check
Alarm check valveSupply 80 psi / System 120 psiThermal expansion of trapped water — common at end-of-day in hot attics; verify with expansion relief valve
Dry pipe valveAir 40 psi / Water 70 psiNormal — differential latching mechanism holds valve closed at ~2:1 ratio
Dry pipe valveAir 0 psi / Water 70 psiValve has tripped OR air leak in system piping exceeds compressor makeup
Dry pipe valveAir 40 psi / Water 0 psiSupply-side problem — closed PIV/OS&Y or city water outage
Fire pumpSuction 50 / Discharge 150Normal churn pressure — 100 psi rise is within typical pump curve
Fire pumpSuction 0 / Discharge 80Supply-side restriction or suction valve closed; pump starved

▶ Watch: Fire sprinkler pressure gauges — field walkthrough

Source: Field walkthrough · Open on YouTube ↗

Frequently Asked Questions

How often do fire sprinkler gauges need to be replaced?
Per NFPA 25 §13.2.4.2: every 5 years, gauges must be EITHER replaced OR tested by comparison with a calibrated gauge. Both are acceptable compliance paths. Replacement is typically cheaper and simpler (new gauges run $15-50). Calibration testing requires a listed calibration laboratory and the gauge returns with a dated calibration sticker. Either way, the date on the gauge (or in the facility log) must be within 5 years of the current inspection date.
Where does NFPA 13 require pressure gauges?
Per NFPA 13 §16.13 and system-specific sections: (1) System main drain, (2) Each floor control valve's main drain, (3) Inlet AND outlet of every pressure-reducing valve, (4) Each system riser, (5) Above AND below each alarm check valve and each system riser check valve, (6) Water AND air sides of every dry pipe valve, (7) At every air pump supplying an air receiver, (8) At each air receiver, (9) In each independent pipe from air supply to dry pipe system, (10) At every quick-opening device, (11) Above and below preaction valve, below deluge valve + on air supply to both, (12) Below the control valve on every exposure-protection sprinkler system.
What is the 3% accuracy rule for gauges?
NFPA 25 §13.2.4.3: gauges not accurate to within 3% of full scale shall be recalibrated or replaced. Example: a 0-300 PSI gauge has 300 PSI of full scale; 3% of 300 = 9 PSI allowable error. If the gauge reads 91 PSI when a calibrated test gauge reads 100, that's 9 PSI error = exactly at the threshold; anything beyond = recalibrate or replace. Common inspectors carry a ±0.5%-accurate test gauge to spot-check suspect readings during ITM.
Why is the date on the gauge a TJC finding?
The Joint Commission (TJC) Physical Environment surveyors look for documentation that every gauge is within its 5-year NFPA 25 §13.2.4.2 service interval. Acceptable proof: (1) a dated calibration sticker directly on the gauge, (2) an installation date written on a tag attached to the gauge, (3) a facility maintenance log showing the install/test date by gauge location. A factory manufacture date stamp on the dial does NOT count — it's the date the gauge was MADE, not when it was put in service. Missing date documentation is one of TJC's most-cited Physical Environment findings and also shows up under CMS K-291 for Medicare-participating healthcare facilities.
How often do I inspect gauges?
NFPA 25 §13.2.4 sets different frequencies by system type: (1) Wet pipe — monthly visual inspection for damage and operability; quarterly inspection of water-pressure gauges for normal supply pressure. (2) Dry pipe / preaction — monthly inspection of air/nitrogen gauges for normal pressure (or quarterly if air pressure is supervised to a constantly-attended location). (3) Freezer-system dry pipe gauges — additional monthly comparison between the compressor-side and valve-side gauges. (4) 5-year replacement or calibration check. All inspections must be documented in the ITM report.
What are the four gauge deficiencies NFPA 25 specifically lists?
Per NFPA 25 §4.1.5.1 annex (A.4.1.5.1), these four conditions are called out as potential signs of larger system problems beyond normal wear: (1) Gauge not returning to zero after depressurization. (2) Gauge reading off-scale. (3) Gauge with bent needle. (4) Gauge drifting from baseline comparable readings (implied by the 3% rule). Any of these = deficiency, and the gauge should be replaced or recalibrated. None of these alone typically cause system failure, but they can mask a serious underlying issue (corrosion, water hammer damage, supply problems) that they exist specifically to reveal.
Are residential sprinkler gauges different?
Yes — the requirements scale down with system type: (a) NFPA 13R (low-rise multi-family up to 4 stories): required at main drain, floor-control-valve drains, and both sides of PRVs (same as NFPA 13 for those locations), plus supply and system gauges with shutoff valves. (b) NFPA 13D (single/two-family dwellings): gauges only required IF the system is dry, uses a pressure tank, or has a PRV on a standalone system. Most NFPA 13D wet systems have NO gauges. Residential gauges in NFPA 13D installations are not required to be listed and have no explicit 5-year replacement requirement.
What goes wrong when gauges are ignored?
Silent failure. A Bourdon tube drifts over years until the gauge reads a plausible-looking but wrong number. Inspectors and maintenance rely on the reading, miss the real pressure, and fail to catch a closed valve or supply problem. Worst case scenario: a facility with a closed upstream valve shows "normal" pressure on a dead gauge for years — until a fire event when the sprinklers cannot flow. That's why the 5-year replacement/recalibration rule is absolute, not optional, and why facilities that treat gauges as permanent fixtures earn citations.

References

1. NFPA 13 (2022): Standard for the Installation of Sprinkler Systems, §16.13 (general gauges), §8.1.1 (wet), §8.2.1 (dry), §8.3.1.3 (preaction/deluge), §8.7.7 (exposure protection).

2. NFPA 13R (2022): §5.2.15 (gauges at main drain and PRVs) and §6.12 (supply / system pressure gauges).

3. NFPA 13D (2022): §7.3 — gauges only required for dry systems, pressure tanks, and standalone systems with PRVs.

4. NFPA 25 (2023): Standard for ITM of Water-Based Fire Protection Systems, §13.2.4 (inspection, formerly §5.2.4 in 2020 edition), §13.2.4.2 (5-year replacement/calibration), §13.2.4.3 (3% accuracy), §4.1.5.1 + Annex A.4.1.5.1 (deficiency examples).

5. QRFS: Fire Sprinkler Gauges — Where They Must Be and When to Replace Them — comprehensive placement and replacement guide.

6. The Joint Commission: Physical Environment (PE) standards — gauge date documentation as a frequently-cited finding.

7. CMS: K-291 — Automatic Sprinkler Systems — healthcare life safety survey tag covering gauge maintenance as part of system ITM.
