Dry Pipe Valve
The Gatekeeper of the Cold
How dry pipe valves use differential pressure to protect buildings in freezing environments — and the NFPA 25 maintenance schedule that keeps them reliable.
The Problem: Water in Freezing Pipes
In a standard wet sprinkler system, water sits in the pipes at all times, pressurized and ready for immediate discharge. This works perfectly in heated environments. But when piping runs through unheated spaces — parking garages, attics, loading docks, cold-storage warehouses — that standing water will freeze, expand, and rupture the piping.
The result is massive property damage and a fire protection system that's completely out of service when you need it most.
The Solution: The Differential Dry Pipe Valve

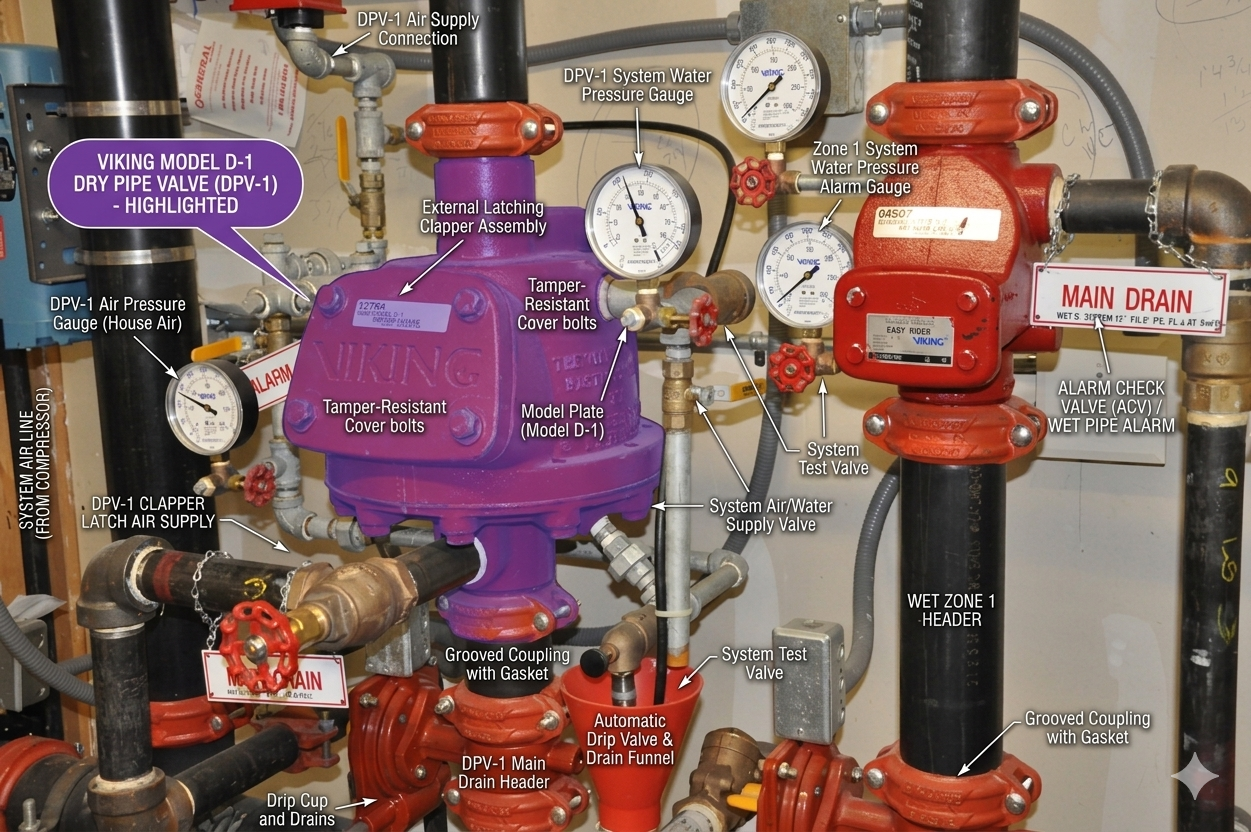

Annotated trim of a Viking Model D-1 dry pipe valve — every callout is a component you'll see on a real riser: the differential valve body (purple) with its external latching clapper, paired air/water pressure gauges on each side, air supply and clapper-latch air lines, the automatic drip valve and drain funnel at the bottom, and the separate wet-pipe alarm check valve to the right.
The dry pipe valve is a specialized clapper-type check valve that uses compressed air (or nitrogen) pressure to hold back water pressure on the supply side. It works on a differential principle — the clapper has a larger surface area on the air side, so a relatively low air pressure (typically 40 PSI) can hold back significantly higher water pressure (100+ PSI) on the supply side.
Key Concept
The differential ratio is typically around 5.5:1 to 6:1 — meaning 1 PSI of air holds back approximately 5.5–6 PSI of water. This is what makes the entire dry system possible: you only need a small air compressor to maintain system pressure against a much larger municipal water supply.
Air-to-Water Pressure Settings
NFPA 13 §7.2.5 requires the supervisory air pressure to be set 20 PSI above the valve's calculated trip point. The trip point is the water pressure divided by the manufacturer's differential ratio. In practice, the numbers land in the ranges below — the typical installation sits between 30 and 60 PSI of air regardless of whether the water supply is 50 PSI or 200 PSI.
Numbers use a representative 5.5:1 differential (Viking Model D-1). Tyco TFP DPV-1 is ~5.5:1; Reliable Model DDX is ~5.8:1; older Globe and Grinnell valves range from 5:1 to 6:1. Always consult the specific manufacturer data sheet for the installed valve.
Manufacturers like Viking (Model D-1), Tyco (TFP DPV-1), Reliable (DDX), and Potter all produce dry pipe valves following this differential principle, though each has slightly different internal mechanisms and maintenance requirements.
Key Components of the Assembly

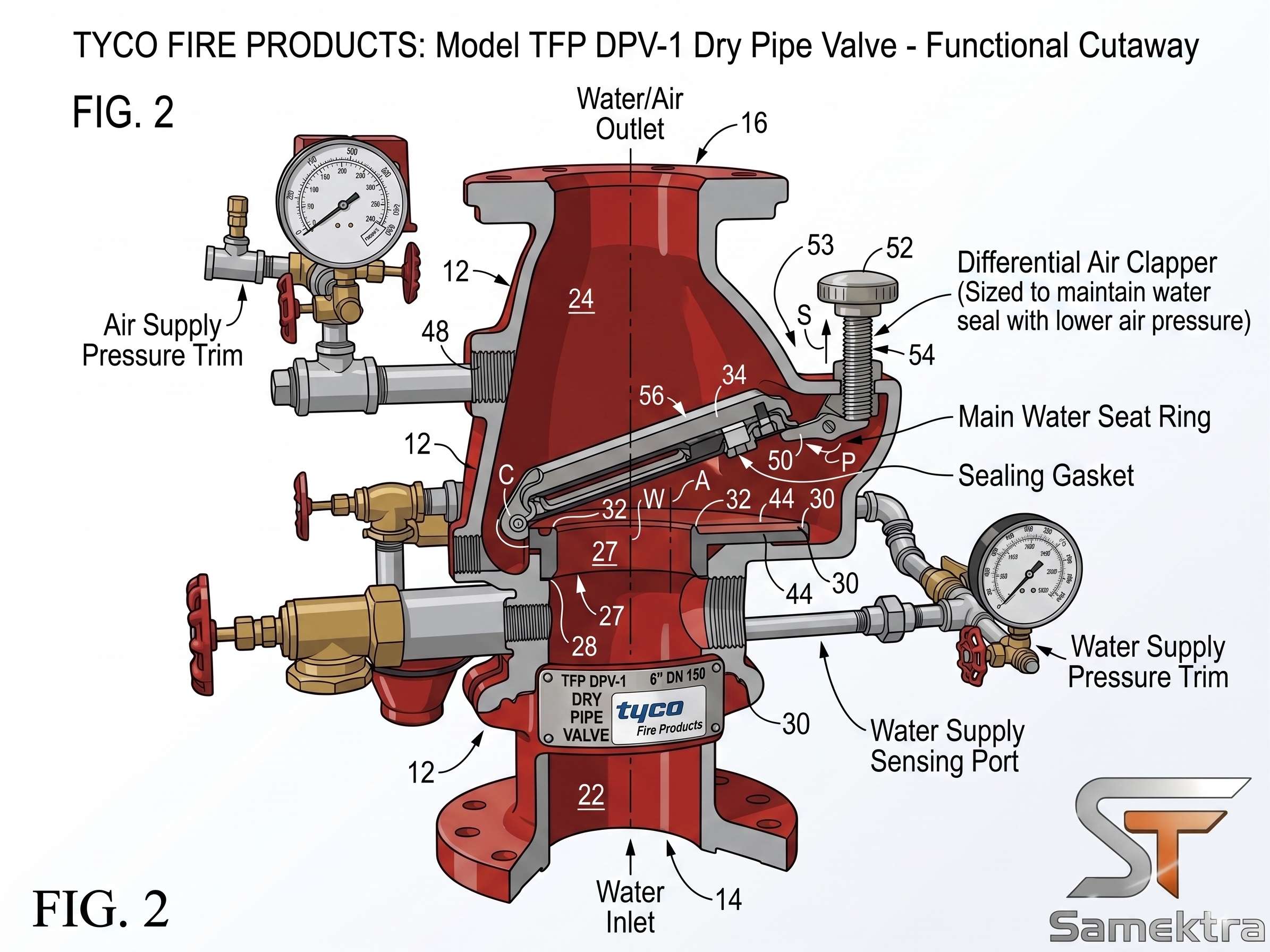

Tyco Fire Products TFP DPV-1 functional cutaway. The differential air clapper (top right, sized larger on the air side) seals against the main water seat ring — a small amount of supervisory air holds back a much larger water pressure until the system loses air. Air-supply pressure trim on the left, water-supply pressure trim on the right, and the water-supply sensing port below the seat.
Latching Clapper
The primary seal inside the valve body. When air pressure drops below the trip point, water pressure forces the clapper open. Once tripped, it latches in the open position to ensure full, unobstructed water flow — it won't re-seat until manually reset.
System Pressure Gauges
The "dashboard" of the valve — typically two gauges showing air pressure (system side) and water pressure (supply side). Inspectors check these during weekly/monthly visits to verify pressures are within manufacturer specifications.
Automatic Drip Valve (Condensate Drain)
A critical fail-safe that drains small amounts of water that leak past the primary seal into the system side. Without it, water would accumulate in the "dry" piping, defeating the purpose of the system and creating freeze risk.
Accelerator / Exhauster
An optional device that speeds up trip time. When it senses air pressure dropping, it rapidly vents remaining air to ensure the clapper opens faster — reducing the delay between sprinkler activation and water delivery.
The Trip Sequence: From Fire to Water
Understanding the trip sequence is essential for anyone inspecting or maintaining dry systems:
Heat activates sprinkler
A sprinkler head's thermal element (glass bulb or fusible link) breaks, opening the orifice. Compressed air begins escaping from the system piping.
Air pressure drops
As air vents through the open sprinkler, system air pressure falls. The pressure gauges will show a declining air-side reading.
Trip point reached
When air pressure drops below the differential ratio threshold, water pressure on the supply side overcomes the clapper's holding force.
Clapper opens and latches
The clapper swings fully open and mechanically latches — ensuring it stays open even if conditions fluctuate. Water rushes into the system piping.
Water delivery
Water pushes remaining air out through the open sprinkler head(s) and begins suppression. NFPA 25 requires water delivery within 60 seconds for most systems.
Trim Close-Up — What It Looks Like in the Field

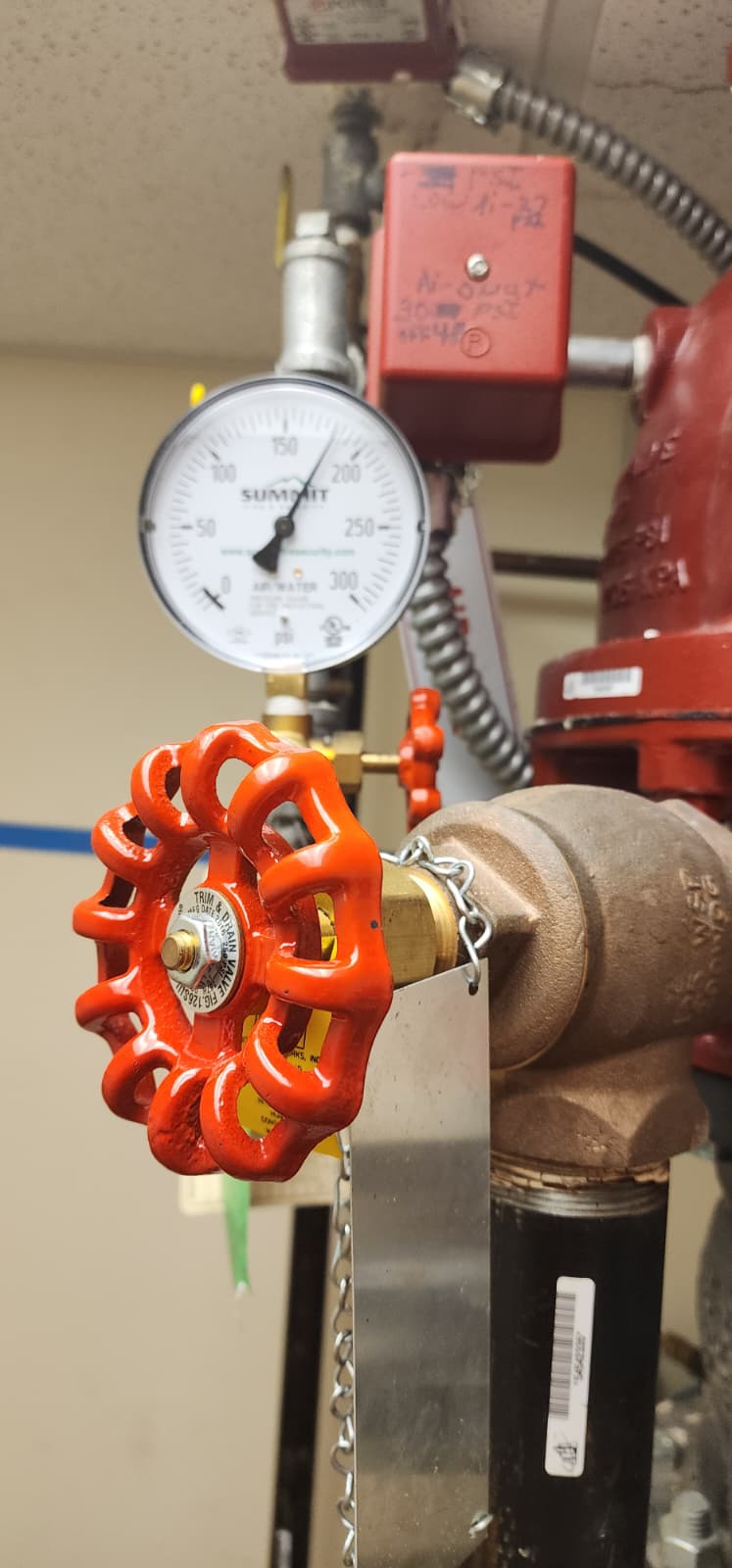

Trim components on a live dry pipe valve — pressure gauge, Potter pressure switch with FACP wiring, and a red trim & drain valve.
When Maintenance Is Neglected — Internal Ice & Frost Buildup

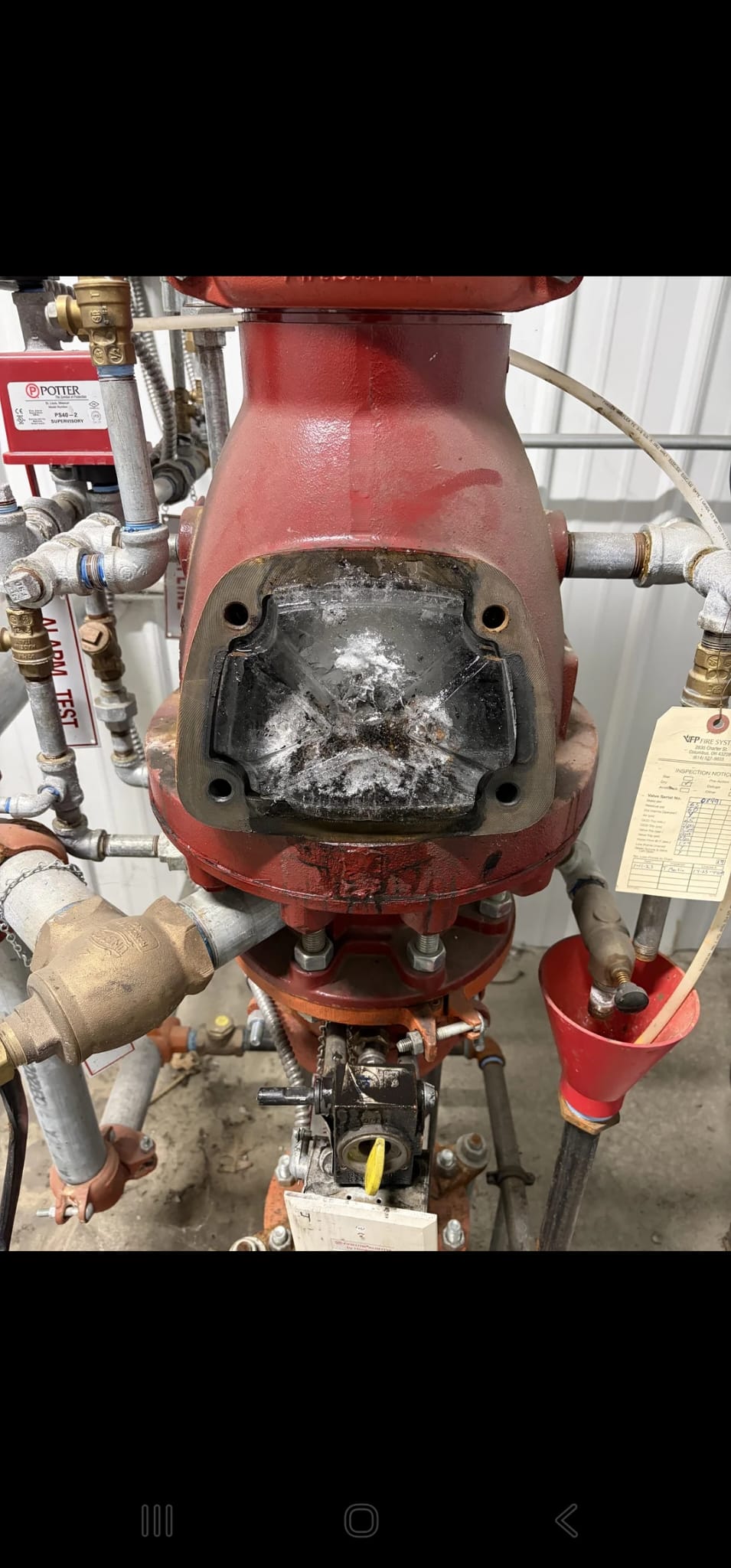

Internal view of a dry pipe valve with the cover plate removed — extensive ice and frost buildup coating the clapper seat and valve body. Condensate that should have been drained has accumulated inside the valve and frozen solid, physically preventing the clapper from seating and coating the sealing surfaces in ice.
A dry pipe valve is only as dry as its drainage program. Every cycle of the air compressor pushes shop air through the system, and that air carries moisture — even with a good dryer on the compressor. Moisture condenses at low points in the piping and inside the valve body itself. In the unheated spaces dry systems are designed to protect (parking garages, loading docks, cold-storage warehouses, freezer rooms), that condensate freezes. The result is what you see in the photo above: ice coating the clapper seat and valve internals, preventing a clean seal and turning the “dry” system into a slow-motion failure.
Clapper won't seat cleanly
Ice buildup on the seat ring (exactly as in the photo) prevents the clapper from sealing. The valve loses air faster than the compressor can replace it — chronic low-air trouble signals at the FACP.
Frozen pipe ruptures
If enough water accumulates past the clapper into the dry side and freezes, the expansion cracks the pipe or splits an elbow — the exact freeze-rupture failure the dry system was specified to prevent.
Blocked priming water path
Ice in the intermediate chamber blocks the priming-water seal between air and water sides. The differential ratio effectively drops and the valve trips below its design pressure.
Failed 60-second delivery
Ice obstructions restrict flow once the valve trips. Water delivery time to the most remote sprinkler exceeds the NFPA 13 §8.2.3 limit and the system fails the 3-year full-flow trip test.
Cracked valve body
In extreme cases the valve body itself cracks when water inside freezes. Cast iron splits at the thinnest section — replacement cost of a 4"–6" dry pipe valve runs into the thousands, plus system downtime.
Nuisance trips
Every chronic-air-loss trip discharges water into the piping, which sits and re-freezes in the low points, accelerating the next failure. The maintenance debt compounds on itself.
How to Prevent It
Four measures compound — do all four and the valve in the photo never gets to that state:
1. Drain every low point after every system operation — NFPA 25 §13.2.5 requires drainage of all auxiliary / drum drip drains before freezing conditions. The drum drip under the valve is a five-minute weekly task that prevents most of this.
2. Keep the compressor air dryer serviced — a failing desiccant dryer or refrigerated dryer puts moist air into the pipe continuously. Most ice problems trace back to an upstream dryer that nobody maintains.
3. Nitrogen supervision — a membrane nitrogen generator delivers 98–99% N2 and eliminates most of the residual moisture that causes condensation inside the piping (FM Global Data Sheet 2-0).
4. 5-year internal inspection per NFPA 25 §13.4.4.3 — pop the cover, look at the clapper seat, and catch ice or corrosion before the valve fails in service.
Resetting the Valve After a Trip
Once a dry pipe valve trips — whether from a real fire, a tripped sprinkler, or an annual test — it stays latched in the open position and the system cannot be restored to service until the valve is manually reset. The procedure is straightforward but has to be done in the right order: isolate the main, drain the system, pump out the intermediate chamber, re-set the clapper, re-prime the valve, and slowly repressurize both the air side and the water side before opening the main control valve back up. The short below is a compact walkthrough of that reset on a typical differential valve.
▶ Watch: Resetting a Dry Pipe Valve
NFPA 25 Compliance and Maintenance Schedule
Dry pipe valves are among the most complex mechanical components in fire protection. NFPA 25 mandates a rigorous maintenance schedule:
Gauge readings — verify air and water pressures are within manufacturer specifications. Check for abnormal drops that indicate leaks.
Full trip test — open the test valve to confirm the clapper physically trips, latches open, and the alarm activates. Measure trip time.
Full flow test — flow water to the most remote point. Verify water delivery within 60 seconds. Tests the entire hydraulic path.
Internal inspection — open the valve body and inspect clapper, seat, gaskets, and springs for corrosion, debris, and wear.
Inspector's Note
On the ITM report, look for: dry pipe valve family identified, quantity reviewed, annual trip test results, and separate tracking of longer-cycle replacements. Use SAMEKTRA's ITM Report Analyzer to decode these details automatically from your contractor's inspection reports.
Summary: Reliability in the Cold
The dry pipe valve is a masterpiece of mechanical engineering — using simple physics (differential pressure) to solve an otherwise impossible problem: fire protection in freezing environments. But that mechanical complexity comes with responsibility.
Without proper NFPA 25 maintenance — weekly gauge checks, annual trip tests, three-year full flow tests, and five-year internal inspections — this "gatekeeper" can fail silently, leaving your building unprotected when it matters most.
▶ Watch: Dry Pipe Valve — How It Works
Frequently Asked Questions
What is the air-to-water differential ratio on a dry pipe valve?
How often must a dry pipe valve be trip-tested?
What is the maximum water-delivery time?
Why do dry pipe valves need a quick-opening device on large systems?
When does the valve need internal inspection?
