Control Valve
The Authority
The component that holds the power to enable or disable your entire life safety system — and why it's the most strictly monitored valve in any building.
of sprinkler system failures where the system did not operate are attributed to the system being shut off, damaged, or improperly maintained. The control valve — a single component — is the most common point of failure in fire protection.
The Problem: Accidental Deactivation

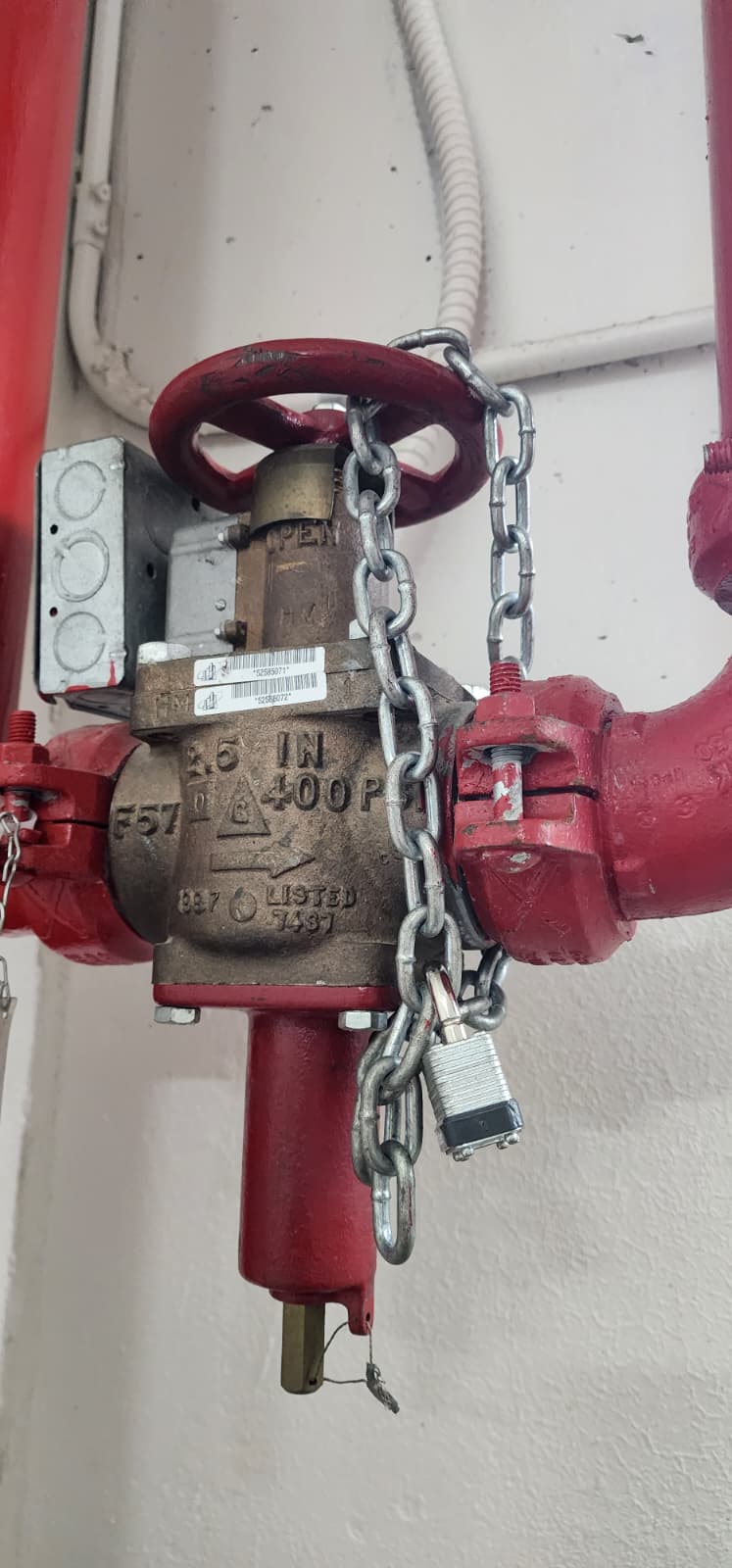

A 4½-inch, 400 PSI brass control valve in its normal supervised configuration — red handwheel with “OPEN” cast into the flange, an electrical tamper switch mounted to the stem on the left, and a chain-and-padlock holding the valve mechanically locked in the open position. Every fire protection control valve you see in the field should look roughly like this.
The most significant risk to any fire sprinkler system isn't a mechanical pipe failure — it's a human one. A control valve inadvertently left in the "closed" position after repair or inspection transforms a multi-million dollar safety system into a network of useless empty pipes. Because of this "single point of failure" potential, the control valve is one of the most strictly monitored components in any building NFPA 25, §13.3.
Two Primary Types

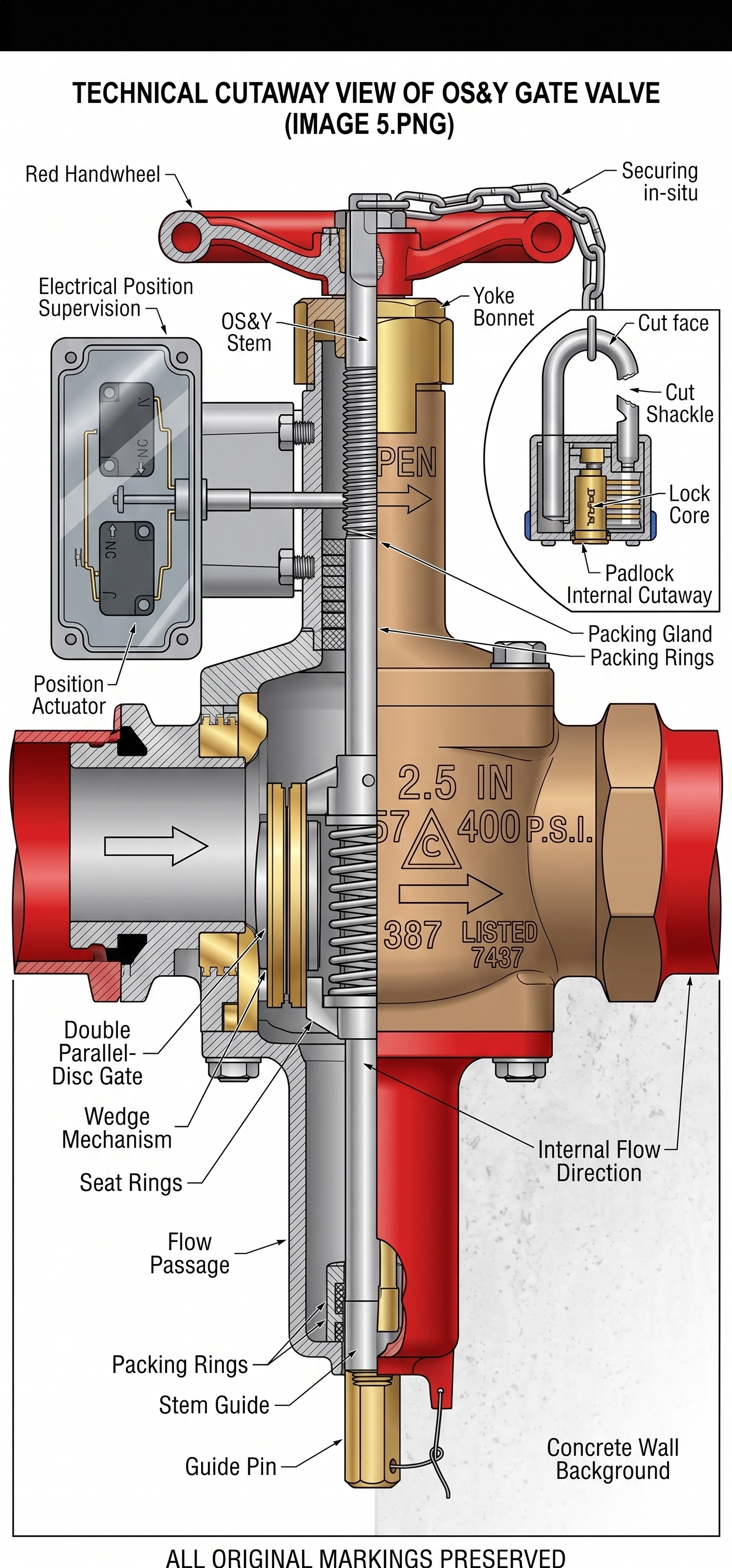

Technical cutaway of an OS&Y gate valve. The rising stem makes the valve position unambiguous — stem fully extended = open, stem retracted inside the yoke = closed. The electrical position supervision (tamper switch) on the left bonnet signals the fire alarm panel the moment the valve is moved off the fully-open position.
OS&Y Gate Valve
The "gold standard" for fire protection. Features a rising stem that provides visual indication of valve status: stem out = open, stem flush = closed. No ambiguity.
Butterfly Valve
Compact and modern, uses a rotating disc to control flow. Typically includes a built-in tamper switch that electronically alerts the fire alarm panel if the valve is moved.
The "Normally Open" Mandate
Unlike most building plumbing valves — which are closed until you need water — a fire protection control valve must be "Normally Open". Its default state must be fully open to ensure maximum hydraulic flow is available instantly. A partially closed valve creates significant friction loss, potentially preventing the system from meeting its calculated hydraulic demand during a fire NFPA 13, §8.1.
NFPA 13: Installation Requirements
NFPA 25 Compliance: Tiered Inspection Schedule
Because a closed valve is the #1 cause of sprinkler failure, NFPA 25 mandates a tiered inspection schedule based on the level of supervision NFPA 25, §13.3:
Monthly Tracking Sheet — What Every Facility Needs
The single most effective way to keep the 79% statistic from happening to your building is a recurring written inspection log. Both NFPA 25 (§13.3.2.1) and FM Global Data Sheet 2-81 (§2.3) require that control-valve inspections be documented — a checkmark on a clipboard isn't enough; each valve needs its position and supervision status recorded every inspection cycle.
- Weekly — sealed valves (no lock, no electronic supervision)
- Monthly — valves locked in the open position
- Quarterly — electronically supervised valves (tamper switches on a monitored circuit)
- Weekly physical check for any valve not electronically supervised — stricter than NFPA 25
- Monthly check for all water control valves regardless of supervision method
- Documented log required for insurance recovery on a shut-valve loss
Below is a professional Control Valve Inspection Log template you can adapt for your facility. The critical columns are position (Open/Closed) and supervision intact (chain/lock, seal, or electronic) — these are exactly the two data points that determine whether a valve will do its job in a fire.
| # | Valve ID / Name | Location | Type | Size | Position (Open / Closed) | Supervision (Chain+Lock / Seal / Electronic) | Sign Legible | Tamper Signal OK | Notes / Corrective Action |
|---|---|---|---|---|---|---|---|---|---|
| 1 | CV-001 — System Main | Pump Room, ground floor | OS&Y | 6" | Open | Chain + Lock | ✓ | ✓ | — |
| 2 | CV-002 — Floor 2 Riser | Stair A, Floor 2 | Butterfly | 4" | Open | Electronic | ✓ | ✓ | — |
| 3 | CV-003 — Floor 3 Riser | Stair A, Floor 3 | Butterfly | 4" | Open | Electronic | ✓ | ✓ | — |
| 4 | PIV-1 — Private Main | Exterior, north drive | Post Indicator | 8" | Open | Padlock | ✓ | — | Re-paint indicator window |
| 5 | … | … | … | … | … | … | … | … | … |
Example rows only — replace with your facility's actual valve inventory. Keep one row per valve and archive the completed sheet monthly; FM Global and TJC surveyors will ask for the last 12 months of logs during any walk-through.
Inspector's Tip
If you work in a healthcare facility, TJC EC.02.03.05 adopts the NFPA 25 inspection frequencies verbatim. Surveyors routinely ask to see the monthly control-valve log as part of the EC/LS tracer. An un-signed or incomplete log is treated the same as no log at all.
Things You Might Not Know
Tamper switches trip fast
NFPA 25 §13.3.3.5 requires the tamper switch to send a supervisory signal within two revolutions of the handwheel OR one-fifth of total stem travel — whichever comes first. Partial closure is not invisible.
The chain must capture the handwheel
A classic field violation: a chain looped around the yoke bonnet or pipe only. The chain must pass through the handwheel spoke so the wheel itself cannot rotate. Ask any inspector — this is the #1 partial-closure vector.
Floor control valves every 5 stories
Modern NFPA 13 editions require a floor-level control valve assembly for each floor when the sprinkler riser exceeds a certain height. This lets maintenance isolate one floor without dropping the whole building.
PIVs have their own inspection column
Post Indicator Valves (PIVs) sitting outside a building are control valves too. They need their own monthly inspection for the indicator window (OPEN / SHUT), the wrench box, and the padlock — distinct line items from indoor valves.
Supervision ≠ Control
The tamper switch reports the valve's position to the fire alarm panel. It does NOT physically keep the valve open. That is what the chain and padlock (or the electronic supervision chain) are for.
Painting is specified
NFPA 13 allows control valve handwheels and bodies to be painted red as part of identification. The red you see in the field is a convention enforced by most AHJs and FM requirements — not a decoration.
Butterfly valves are harder to tamper with
A butterfly valve's built-in actuator integrates the tamper switch with the stem. Unlike an OS&Y where the chain can be defeated, the butterfly signals the FACP the moment the disc moves a few degrees.
Readily accessible means readily
NFPA 13 §8.1.1.4 requires "ready access." Valves hidden behind drop ceilings, stored items, or locked rooms without key provisions have failed acceptance tests more than once. Plan cabinet doors and ladders into the valve layout from day one.
Watch: Floor Control Valves Explained
In a multi-story building, an individual floor-level control valve lets maintenance isolate a single floor for service without dropping the whole riser. The video below walks through the floor-control-valve assembly — the video jumps to the 33-second mark where the floor-control discussion begins.
▶ Floor Control Valves
▶ Watch on YouTube
See sprinkler system inspections and maintenance on What The Fire Code.
Watch on YouTube →Frequently Asked Questions
Why is a closed control valve the #1 cause of sprinkler system failure?
What is the difference between an OS&Y valve and a butterfly valve for fire protection?
How often do I need to inspect control valves under NFPA 25?
How should I lock a control valve open correctly?
Does a tamper switch physically keep the valve open?
What is a floor control valve assembly?
References
1. NFPA 13: Standard for the Installation of Sprinkler Systems, §8.1.
2. NFPA 25: Standard for ITM of Water-Based Fire Protection Systems, §13.3.
3. FM Global Data Sheet 2-81 — Fire Protection System Inspection, Testing and Maintenance and Other Fire Loss Prevention Inspections.
4. NFPA Blog: Floor Control Valve Assemblies.
Open the discussion panel to comment, flag an inaccuracy, add field experience, or ask a question. Approved contributions earn SRP and may be incorporated into the article.
