Check Valve
The Silent Sentinel
How check valves enforce one-way water flow — and why a failed clapper can compromise an entire fire protection system.
The Problem: Multi-Directional Flow

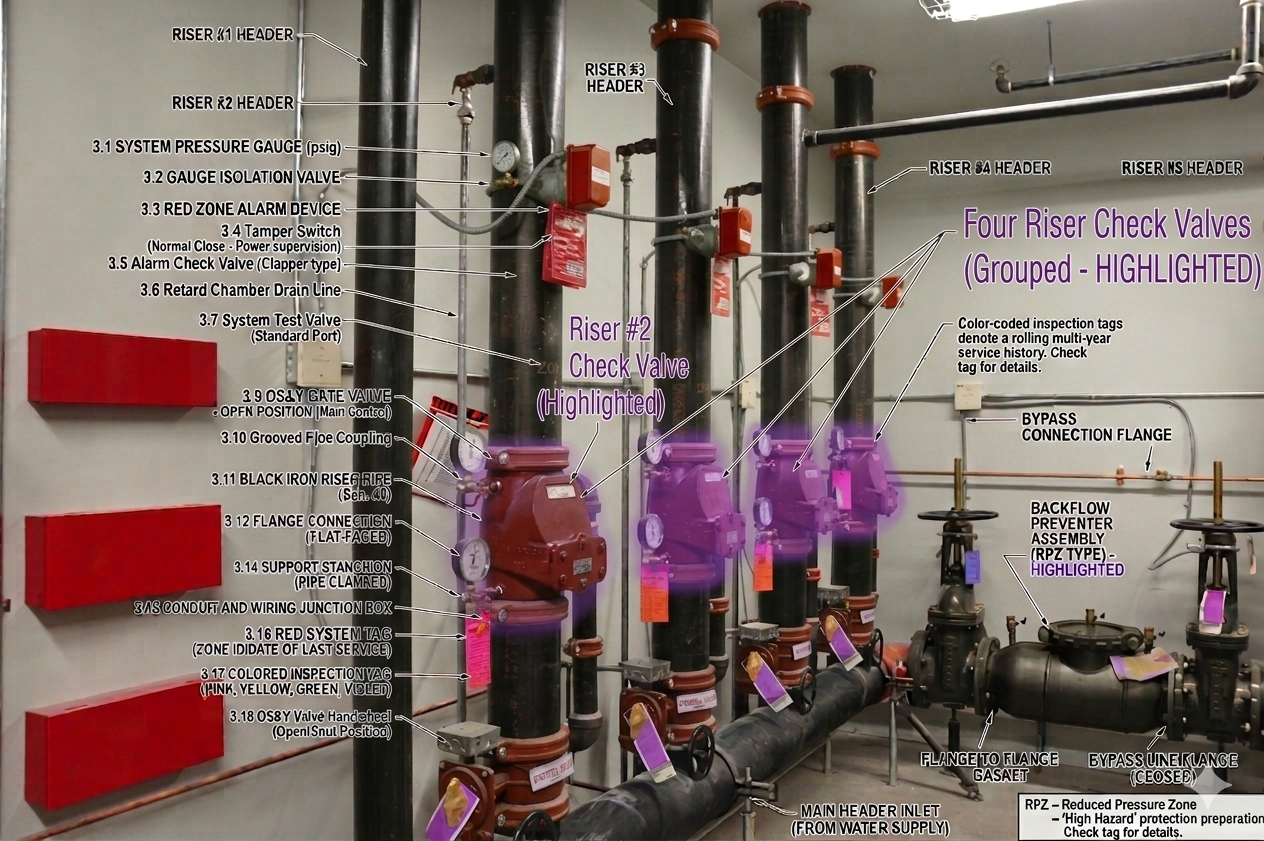

A pump-room riser wall labeled in detail — four grouped check valves (highlighted in purple) sit above their respective risers alongside the alarm check valve, retard chamber, OS&Y gate valves, system pressure gauges, tamper switches, and the RPZ backflow preventer on the right. This is what a well-organized fire protection main looks like in practice.
A fire sprinkler system is a complex hydraulic network that may receive water from multiple sources — the city main, a fire pump, and a fire department connection (FDC). Without directional control, water can flow backward, surge, create pressure spikes, or attempt to fill a supplementary source rather than discharge through sprinkler heads. This multi-directional confusion is a recipe for system failure.
The Solution: One-Way Flow
A check valve (also called a non-return valve) is a mechanical device whose sole function is to ensure water flows in only one direction — the direction needed for system operation — and never in reverse. It is the mechanical definition of a one-way street NFPA 13, §8.16.
Where Check Valves Are Required
Anatomy of a Modern Grooved Check Valve

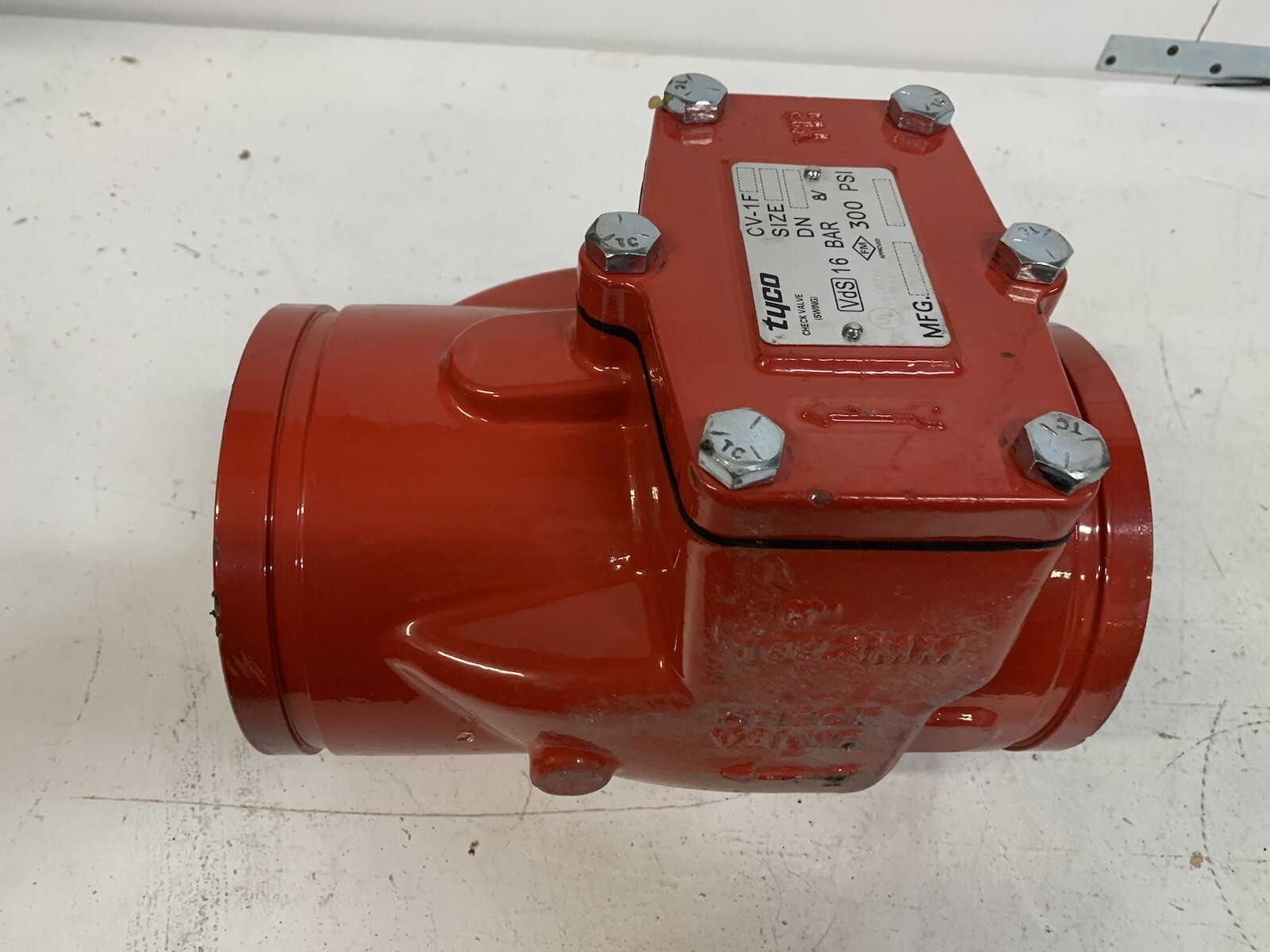

A Tyco CV-1F 8-inch grooved swing check — representative of the modern non-slam spring-loaded design now standard on new construction.
Key anatomy on this unit: grooved ends couple directly to Victaulic-style couplings (no flanges needed). The bolted bonnet on top is the access port for the 5-year internal inspection — six chrome hex bolts unscrew without breaking the line apart. The nameplate carries the FM Global approval mark, UL listing, VdS (Germany) and LPCB (UK) listing marks, and the maximum working pressure — 300 PSI / 16 BAR on this model. The cast arrow on the body (visible on the underside) shows forward flow direction. The clapper spring inside is what makes this a non-slam check — the spring starts closing the clapper as flow decelerates, so the clapper seats before reverse flow develops.
Four Types Used in Fire Protection
1. Swing Check
Hinged clapper, gravity-assisted return. Most widespread in fire protection. Horizontal or vertical-up only. Simple, rugged, but prone to slam closure on sudden flow reversal — not recommended immediately downstream of a fire pump.
2. Grooved Check (non-slam)
Spring-loaded clapper presses against an EPDM rubber seat, "forming a water-tight seal" before reverse flow develops QRFS. Ductile-iron body, 2"–8" sizes, horizontal or vertical. Modern new-construction default. The Tyco CV-1F above is this type.
3. Shotgun Riser Check
Grooved check + integrated pressure gauges + electric waterflow switch. QRFS describes it as “a more compact and economical alternative to an alarm check valve” on systems where a water motor gong is not required and the alarm is handled by the FACP.
4. Alarm Check Valve
Swing check with a divided-seat ring and an alarm port. Opens to route a trickle of water to a water motor gong or pressure switch when a sprinkler flows. Covered in detail in the Alarm Check Valve article.
Inside the Valve — Teardown Reference
The exploded drawing below is Tyco's Model AV-1-300 — technically an alarm check valve, but its internal anatomy is shared with most swing check valves in fire protection service. The same components you see here (valve body, handhole cover, seat ring, clapper, clapper facing, hinge pin, hinge-pin bushing, clapper spring) are what you inspect at every NFPA 25 §13.4.1.1 five-year internal inspection. Learning this diagram once gives you the field vocabulary for standard check valves, alarm check valves, and the alarm valves covered in the Alarm Check Valve article.
Component callouts — what to inspect at the 5-year teardown
Note: the AV-1-300 is classified as an alarm check valve because of its divided-seat ring and alarm port. For the full alarm-path description (retard chamber, water motor gong, pressure switch), see the Alarm Check Valve article. Standard check valves omit the alarm port but share everything else in the drawing.
How It Works: Swing Check Valve Mechanics
The most common type in fire protection is the swing check valve. It uses an internal hinged gate called a clapper that rests against a machined valve seat.
Forward Flow
Water pressure pushes the clapper upward off the seat, allowing water to pass through with minimal resistance and turbulence.
Backflow Attempted
When forward flow stops, the clapper falls against the seat by gravity (often spring-assisted). Any backpressure forces the clapper tighter against the seat — a positive, snap-shut seal requiring no external power.
Things You Might Not Know About Check Valves
Check valves look simple from the outside — a cast-iron body with an inlet and an outlet. Most of what makes them interesting happens inside the clapper chamber and in the installation rules that governs where they actually end up. A handful of details that catch even experienced crews off guard:
Direction arrow is not decoration
Every swing check valve body has a cast-in arrow showing forward flow. Installing a check valve backward is one of the most common installer errors and will quietly let backflow happen every day — the valve looks fine, the system doesn't. NFPA 25 §13.1 visual inspection includes verifying the arrow matches actual flow direction.
Water hammer is the silent killer
A "slam-shut" on sudden flow reversal produces a pressure spike that can damage piping, fittings, and the clapper itself. This is why modern fire-pump packages use a non-slam/silent check valve (spring-loaded, short travel) immediately downstream of the pump — the cheaper standard swing check valve would eventually crack a flange or pop a gauge.
Horizontal vs vertical installation
Most swing check valves are approved only for horizontal pipe runs OR vertical runs with flow going UP. Installed vertically with downward flow, gravity doesn't help the clapper close and the valve can fail to seal on flow reversal. Check the valve label — every UL-listed check valve states its allowed orientations.
Alarm check valves are check valves with a trick
An alarm check valve is a specialized swing check valve with a small pilot port in the clapper. Forward flow opens a retard chamber that trips the mechanical water-motor gong and electrical waterflow switch on wet systems. Same valve family, one extra port, an entire alarm function.
The FDC check valve fails backwards
If the FDC check valve fails to seal, pressurized system water pours out of the FDC inlet whenever the system is charged — visible as constant dripping from the Siamese connection. This is one of the more embarrassing field findings because it's obvious to anyone walking past the building and screams "this fire protection system is not maintained."
Wafer-style check valves save space
Modern engineered systems often use wafer-style (double-disc spring-loaded) check valves that sandwich between flanges. They're one-third the length of a swing check, open faster, and close without the slam — but they must be installed exactly per the manufacturer's orientation diagram or they bind.
Backflow preventers ≠ check valves
A backflow preventer is typically a reduced-pressure zone (RPZ) device containing TWO independent check valves plus a relief valve between them. If one check fails, the second still holds; the relief dumps to atmosphere as a visible warning. A plain check valve has no such redundancy — which is why NFPA 13 requires a backflow preventer, not just a check valve, at the utility connection.
5-year internal is non-negotiable
The external operation test only proves the clapper moved. Debris past the hinge pin, a cracked seat ring, or a corroded spring can all let the valve pass an external test while silently failing to snap-shut on reverse flow. Only §13.4.2's teardown inspection finds these failure modes before they matter.
Failure Modes — What Actually Breaks
Synthesized from QRFS, Tyco datasheets, UNITEC slam-analysis, and field reports. The value of a check valve is entirely in the reverse direction — a valve that passes the external test but cannot snap-shut on reverse flow is worse than no valve at all, because it creates a false sense of protection.
Seat ring erosion
The #1 field failure. Undersized valves run at high velocity; high-velocity water across the seat erodes the machined sealing surface over years. Once the seat has a groove, the clapper cannot form a tight seal. Caught only at the 5-year internal inspection.
Stuck clapper (open)
Pipe scale, weld slag, rust flakes, or construction debris wedges behind the hinge pin. The clapper will not reseat on reverse flow — backflow happens on every pump cycle. The external test passes because the clapper still moves in the forward direction.
Stuck clapper (closed)
Less common — foreign debris or corrosion seizes the hinge. Forward flow stops. On fire-pump-discharge applications, the system is effectively disconnected from the pump. On multi-supply systems, the zone loses one of its supplies.
Clapper flutter
Per rubbervalve.com: "since a check valve's clapper is always in the flow path, clapper movement will happen even if there isn't enough flow, causing parts that rub against each other to wear." Undersized valves in low-flow applications flutter constantly, grinding the hinge pin and bushings.
Water hammer / slam damage
Per UNITEC: "The check valve's disc, seat, hinge pin, and spring suffer accelerated wear, deformation, or fracture, leading to valve leakage and eventual failure." Pump-discharge swing checks are the most vulnerable — use a spring-loaded non-slam type instead.
Hinge-pin separation
Rare but dramatic. The pin retention fails and the clapper detaches inside the valve body. Forward flow drives the loose clapper downstream where it can block a sprinkler riser, fire pump impeller, or fire department connection.
MIC corrosion pitting
Microbiologically influenced corrosion creates deep pits on the clapper face and seat ring, especially in stagnant zones or systems with recurring air introduction. Treated by tank-draining the compressor monthly and considering nitrogen conversion.
Spring fatigue (non-slam)
On spring-loaded grooved checks, the clapper spring loses free length over decades of cycles. Without proper spring force, the clapper stops closing before reverse flow — the valve degrades back into a standard (slamming) swing check. Measure spring free length at 5-year internal against the manufacturer's spec.
Manufacturers & Listings
The major fire-protection check valve manufacturers in North America: Tyco (Johnson Controls) CV-1F, Viking, Reliable Automatic Sprinkler, Victaulic Series 717/716, and Globe Fire Sprinkler. Required listings for fire protection service:
- UL 312 — primary US listing standard for fire protection check valves
- FM Global Approval (FM 1210) — required by most property insurance carriers
- VdS (Germany) and LPCB (UK) — common on international exports
- cUL — Canadian variant of UL listing
Always verify listing marks are legible on the body or nameplate before installation. An unmarked or de-listed check valve can fail an inspection even if it functions correctly — the lack of a listing mark alone is a code violation.
NFPA 25 Compliance: Maintenance Schedule
Chapter 13 of NFPA 25 mandates a strict inspection, testing, and maintenance schedule for check valves NFPA 25, Ch. 13.
Important: Failure to perform the 5-year internal inspection is a major code violation and one of the most commonly cited deficiencies during fire protection system audits.
▶ Watch: Check Valves — How They Work
Frequently Asked Questions
What does a check valve do in a fire sprinkler system?
What types of check valves are used in fire sprinkler systems?
Which direction does a check valve go?
What is water hammer and how does a check valve cause it?
What is the 5-year internal inspection looking for?
Is a check valve the same as a backflow preventer?
What UL/FM listing should a fire protection check valve have?
References
1. NFPA 13: Standard for the Installation of Sprinkler Systems, §§16.9.4.1, 16.11.3.1, 16.12.6.1.
2. NFPA 25: Standard for ITM of Water-Based Fire Protection Systems, Chapter 13 & §13.4.1.1.
3. QRFS: Guide to Check Valves for Fire Protection.
4. QRFS: Check Valve Installation & Shotgun Riser Check Valves.
5. QRFS: How to Install a Check Valve with Proper Orientation.
6. Koorsen Fire & Security: Common Check Valve Types for Fire Sprinkler Systems.
7. UNITEC: Check Valve Water Hammer / Slam Analysis.
8. Tyco (Johnson Controls): CV-1F Grooved Check Valve datasheet.
