SYSTEM COMPONENTS

Water Motor Gong & Electric Bell
The Voice of the System

When water flows through your sprinkler system, something needs to make noise. Whether it is a mechanical gong powered by water pressure alone or an electric bell triggered by a pressure switch — this is how the building knows.

By Stanislav Samek, Samektra · 10 min read · Last updated April 18, 2026

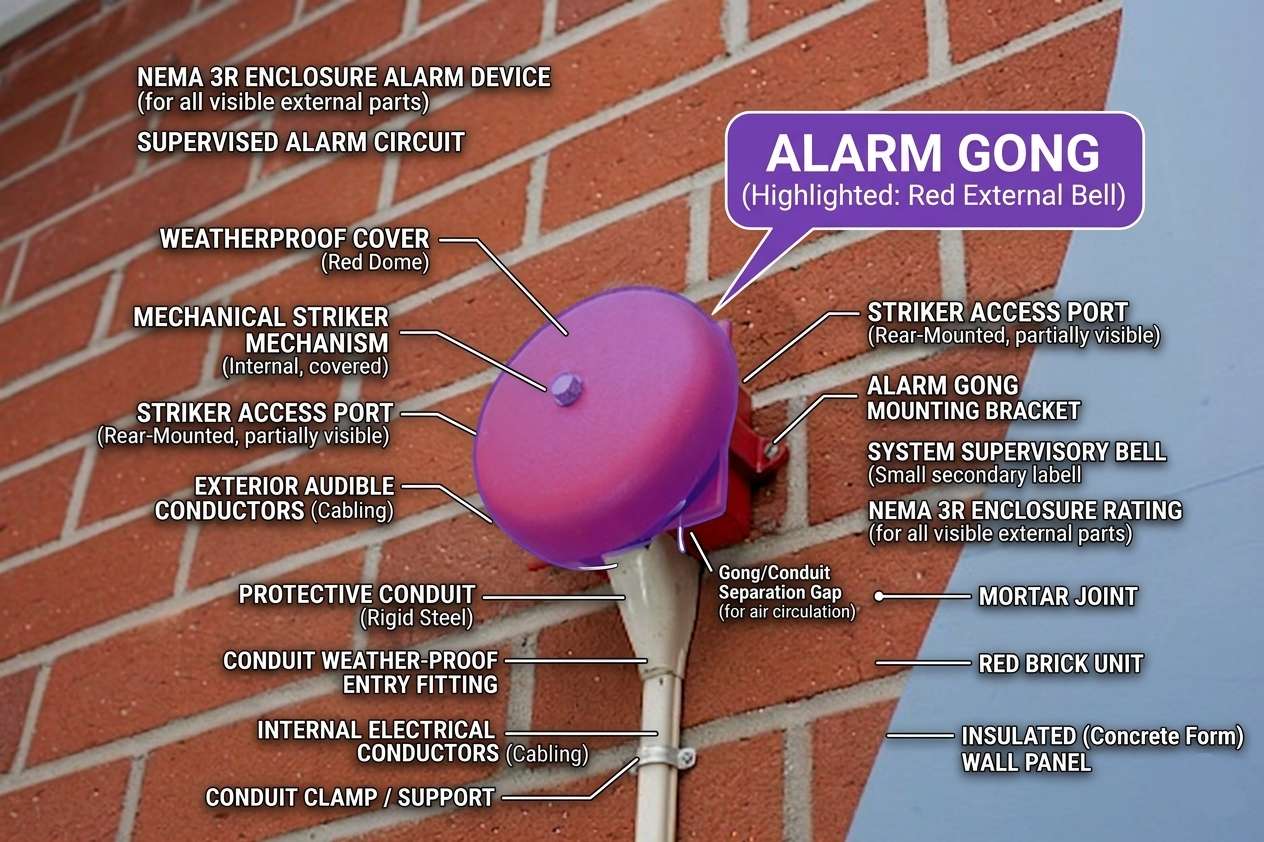

Annotated exterior alarm gong mounted on a brick wall. Key components labeled: weatherproof red dome cover (highlighted), mechanical striker mechanism, NEMA 3R enclosure rating, supervised alarm circuit conductors, rigid steel protective conduit with weather-proof entry fitting, alarm gong mounting bracket, and system supervisory bell label. This is what the fire department sees from the street when water is flowing.

Why It Still Matters

In a power failure or a fire that disables the building's electrical system, the water motor gong will continue to sound as long as water is flowing. It requires no electricity, no batteries, and no network connection — just water pressure. This purely mechanical operation makes it one of the most reliable alarm devices in any building.

How It Works: Powered by Water

Unlike electronic alarms, the water motor gong is powered entirely by the water flow from the sprinkler system. Here's the sequence:

1

Water Flow

A sprinkler head opens and water passes through the alarm check valve or dry pipe valve.

2

Pressure Line

A small portion of water is diverted into a dedicated alarm line connected to the gong.

3

The Impeller

Water hits an internal impeller (water motor), causing it to spin at high speed inside the housing.

4

The Striker

The spinning motor drives a mechanical striker that repeatedly hits the metal gong shell — creating a loud, continuous ringing.

Key Components

Gong ShellThe large, weather-resistant metal bell mounted on the exterior of the building. Must be visible and unobstructed.
Water MotorInternal housing where water pressure is converted into mechanical rotation via the impeller.
StrainersCritical filters in the alarm line that prevent debris from clogging the motor or orifice. Must be cleaned after every flow test.
Drain LineAfter spinning the motor, water is safely piped to a drain to prevent flooding at the gong location.
Retard ChamberInstalled on wet systems to absorb minor pressure surges and prevent false alarms from water hammer.

NFPA 25 Compliance

Because it is a mechanical device exposed to the elements, the water motor gong requires specific attention under NFPA 25 NFPA 25, §5.3:

QuarterlyInspect the exterior gong for obstructions (bird nests, debris, paint), verify the weather hood is intact, and confirm the alarm line piping is not frozen or damaged.NFPA 25, §5.3.3
Semi-AnnualFunctional test: open the Inspector's Test Valve or Alarm Bypass Valve to flow water through the alarm line. Verify the motor spins and the bell rings audibly at the exterior.NFPA 25, §5.3.3
After Each FlowClean mechanical alarm line strainers after every system operation or flow test to prevent sediment buildup that could block the water motor.NFPA 25, §5.3.3

See it from another angle: Watch a water motor gong impeller spin → — shows the water discharge and striker mechanism during a flow test.

The Electric Bell — The Modern Alternative

While the water motor gong is the original sprinkler alarm, many modern installations use an electric bell (also called an electric waterflow alarm or electronic alarm bell) instead of or in addition to the mechanical gong. The electric bell is powered by the building's electrical system and triggered by a pressure switch on the alarm check valve alarm line — rather than by water pressure directly.

How the Electric Bell Works

  1. Sprinkler head opens — water flows through alarm check valve
  2. Water enters the alarm line and fills the retard chamber
  3. Pressure builds and activates the pressure switch
  4. Pressure switch closes an electrical circuit
  5. Electric bell on the exterior wall rings continuously
  6. Simultaneously, the pressure switch signal goes to the FACP as a waterflow alarm

How the Water Motor Gong Works

  1. Sprinkler head opens — water flows through alarm check valve
  2. Water enters the alarm line and fills the retard chamber
  3. Water continues past retard to the gong's water motor
  4. Water hits the impeller, spinning it at high speed
  5. Spinning impeller drives a mechanical striker
  6. Striker hits the metal gong shell — loud continuous ringing
  7. No electricity involved at any step

Mechanical Gong vs Electric Bell — Head to Head

Which One Should Your Building Have?
FeatureWater Motor GongElectric Bell
Power sourceWater pressure onlyBuilding electrical (120V AC typical)
Works during power failure?YES — always, as long as water flowsNO — unless on battery backup or emergency power
Triggered byWater flowing through the alarm linePressure switch closing an electrical circuit
Sound level~90 dB at 10 ft (varies by model)~85-95 dB at 10 ft (adjustable on some models)
MaintenanceHigher — strainers, impeller, drain line, freeze protectionLower — mostly wiring checks and pressure switch calibration
Freeze riskYES — water in the alarm line and gong can freeze in cold climatesMinimal — pressure switch has no standing water if properly drained
False alarm filteringRetard chamber absorbs surges (15-40 sec delay)Retard chamber + electronic retard timer at FACP (adjustable)
NFPA 13 requirementRequired on every alarm check valve per §16.11.2Accepted as the alarm device when connected to supervised FACP
Typical locationExterior wall, visible from streetExterior wall or interior hallway near riser room
Cost$200-400 for gong + $100-200 for alarm line piping$50-150 for bell + pressure switch cost

Do You Need Both?

NFPA 13 §16.11.2.1 requires a local waterflow alarm on every sprinkler system with more than 20 heads. This can be a water motor gong, an electric bell, or an approved alarm device connected to the fire alarm system. Many modern buildings use both — the electric bell/pressure switch for the primary FACP alarm signal, and the water motor gong as a backup that works without power. In healthcare and high-rise occupancies, having both is strongly recommended because the gong provides alarm notification even during total electrical failure.

Other Sprinkler Alarm Notification Types

Beyond the classic gong and bell, sprinkler systems use several other alarm notification methods:

Vane-Type Waterflow Switch

Installed directly on the riser pipe. A paddle inside the pipe deflects when water flows, triggering an electrical alarm signal to the FACP. This is the most common electronic waterflow alarm device in modern installations. Does NOT make sound itself — the FACP activates building notification appliances.

Pressure Alarm Switch

Mounted on the alarm check valve alarm line. Activates when pressure builds in the alarm line (confirming sustained waterflow, not a surge). Can trigger both the electric bell and the FACP alarm zone. Often used in conjunction with a retard chamber.

Electronic Horn/Strobe

Standard fire alarm notification appliances (horns, strobes, speakers) activated by the FACP when it receives a waterflow alarm signal. These are inside the building — the gong and bell are the exterior notification. Both are needed for complete coverage.

Things You Might Not Know About Sprinkler Alarm Bells

The Water Motor Gong Was Invented Before Electricity Was Common

The water motor gong dates back to the 1870s-1880s, when automatic sprinkler systems were first installed in New England textile mills. There was no reliable building electricity, so engineers designed a purely hydraulic alarm — water pressure spinning an impeller to ring a bell. The basic design has not changed in 140+ years because it works perfectly without any modern technology.

Bird Nests Are the #1 Gong Failure

Fire inspectors consistently report that the most common reason a water motor gong fails its quarterly test is a bird nest built inside the gong shell. The shell is weather-protected by a hood, making it an ideal nesting spot. The nest blocks the striker from hitting the shell. Some manufacturers now offer mesh screens over the opening, but quarterly visual inspection remains the primary defense.

The Gong Is Louder Than Most Fire Alarm Horns

A water motor gong produces approximately 90 dB at 10 feet — comparable to a lawn mower. Standard fire alarm horns produce 75-85 dB. The gong is designed to be heard from the street so that passersby and arriving fire crews know water is flowing before they even enter the building. In dense urban areas, the gong may be the first indication to the fire department that a sprinkler system is operating.

Freezing Kills Gongs Every Winter

The alarm line between the alarm check valve and the exterior gong contains standing water. In climates where temperatures drop below 32°F, this water freezes and blocks the alarm line — the gong cannot ring even during a real fire. NFPA 13 §8.17.2.4 requires alarm lines to be protected from freezing with heat tracing, insulation, or anti-freeze loops. Despite this, frozen alarm lines are one of the most common cold-climate deficiencies.

Some Cities Still Require Gongs Even With Full Electronic Monitoring

New York City, Chicago, and several other major cities still require a mechanical water motor gong on every sprinkler riser — even when the building has a fully supervised fire alarm system with electronic waterflow switches. The reasoning: in a catastrophic event that knocks out all building power and communications, the mechanical gong is the only alarm device that will still function. It is the alarm of last resort.

The Electric Bell Can Be Wired to Flash a Strobe

Modern electric alarm bells often include or can be paired with a visual strobe light for ADA/NFPA 72 compliance. The strobe provides visual notification for hearing-impaired individuals in the vicinity of the riser room. The combination bell-strobe unit mounts in a single housing and activates from the same pressure switch circuit.

▶ Watch: Mechanical Water Motor Gong — Impeller & Striker in Action

Source: Fire Protection · Open on YouTube ↗

Frequently Asked Questions

What is a water motor gong?
A water motor gong is a purely mechanical exterior sprinkler alarm — a bell-shaped shell mounted on the outside of a building that sounds when water flows through the sprinkler system. A small portion of the flowing water is diverted through an internal impeller (water motor) that spins and drives a striker against the gong shell. It uses no electricity, runs on water pressure alone, and has been in service since the 1870s.
Do I still need a water motor gong if I have electronic waterflow switches?
In many cases yes. NFPA 13 §16.11.2.1 requires a local waterflow alarm on every sprinkler system over 20 heads — this can be a water motor gong or an electric bell driven by a pressure switch. New York City, Chicago, and several other major cities require a mechanical gong even with full electronic supervision, because the gong is the only alarm device that continues operating during total electrical failure. It is the alarm of last resort.
Why would a water motor gong fail to ring?
The top four causes are: (1) bird nests inside the shell blocking the striker — the #1 failure by far, (2) alarm-line strainers clogged with pipe sediment, (3) a frozen alarm line in cold climates (NFPA 13 §8.17.2.4 requires freeze protection), and (4) a retarding chamber drain plugged up, which paradoxically causes a trickle of water to bleed off before it ever reaches the motor.
How loud is a water motor gong?
Approximately 90 dB at 10 feet — comparable to a lawn mower, louder than most interior fire alarm horns (75-85 dB). The gong is designed to be heard from the street so that passersby and arriving fire crews know water is flowing before they even enter the building.
How often must a water motor gong be tested?
NFPA 25 §5.3.3 requires quarterly visual inspection (obstructions, weather hood, alarm-line freeze protection) and semi-annual functional testing (open the inspector's test valve or alarm bypass and confirm the gong rings audibly from outside). After every system operation or flow test, the mechanical alarm-line strainers must be cleaned to prevent sediment buildup.
Does a water motor gong work during a power failure?
Yes — that is its entire reason for existing. The gong is powered by water pressure alone. As long as water is flowing through the sprinkler system, the gong will ring — regardless of whether the building has electricity, whether the FACP batteries are charged, or whether the fire alarm system is operational.

References

1. NFPA 25: Standard for ITM of Water-Based Fire Protection Systems, §5.3.

2. NFPA 13: Standard for the Installation of Sprinkler Systems.

3. Reliable Automatic Sprinkler Co.: Model C Water Motor Gong Specifications.

4. QRFS: How the Water Motor Gong Works.
