SYSTEM COMPONENTS

Transfer Switch
The Power Failover

The listed automatic transfer switch (ATS) that decides in milliseconds whether the fire pump runs on utility power or generator power.

By Stanislav Samek, Samektra · 6 min read · Last updated April 21, 2026

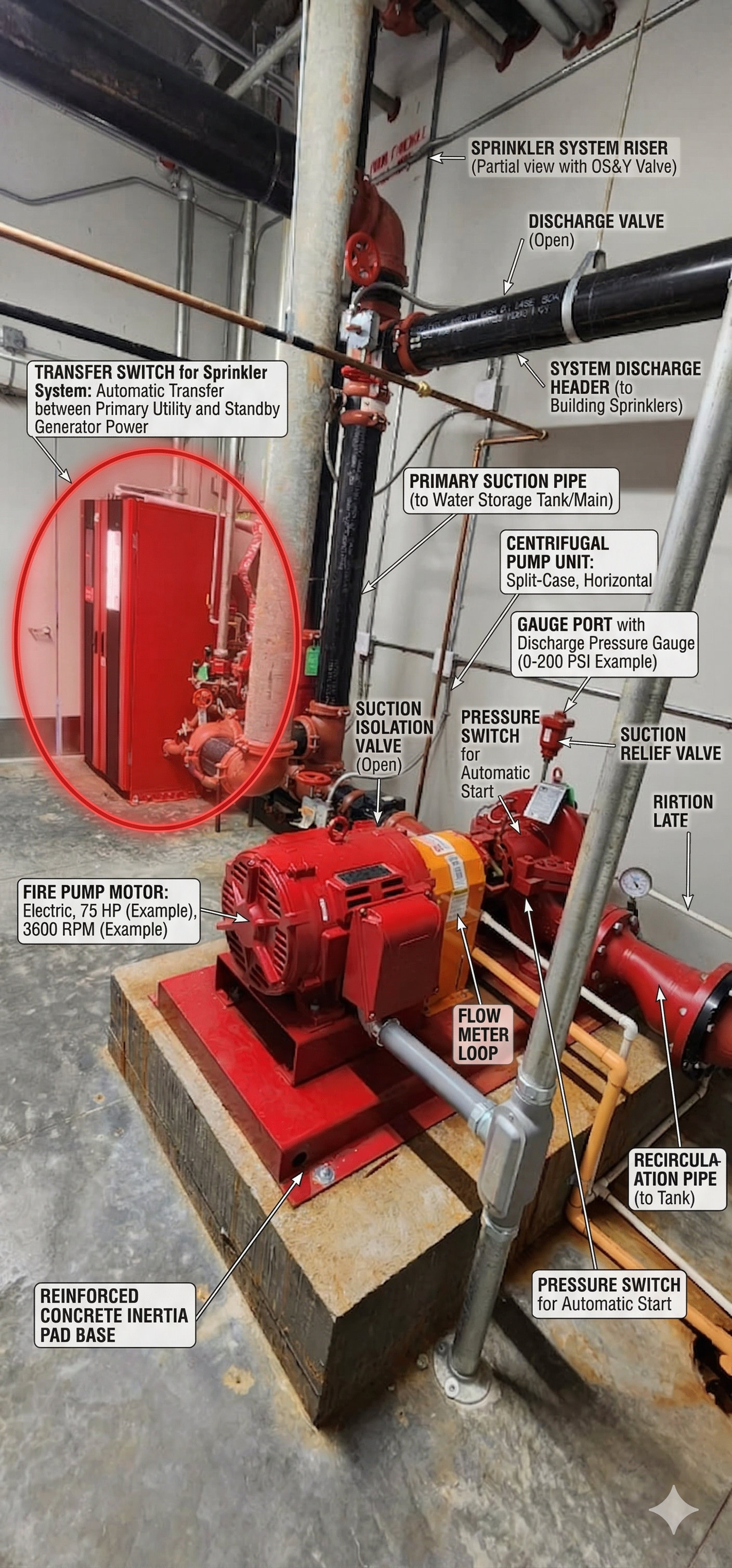

Complete fire pump room with transfer switch highlighted (red circle, left). The ATS automatically switches between utility and generator power. Also labeled: 75 HP electric motor, horizontal split-case pump on reinforced concrete inertia pad, discharge header to building sprinklers, suction isolation valve, pressure switches for automatic start, flow meter loop, and system riser with OS&Y valve.

What an ATS Does

An automatic transfer switch is a power-switching device with two sources and one load. In fire pump service, the two sources are Normal (utility feed) and Emergency (standby generator or second utility feed), and the one load is the fire pump controller. The ATS monitors Normal power continuously. When it detects a loss of phase, a sustained voltage sag, or an over-frequency event, it initiates a transfer to Emergency — typically within 10 seconds for a healthy generator.

NFPA 20 §9.7 requires the ATS used with a fire pump to be listed for fire pump service. That listing adds features a normal ATS doesn't have: locked-in operation against pump inrush, dedicated controller communication contacts, annunciated transfer and return status, and inhibit logic to prevent transfer during a pump start.

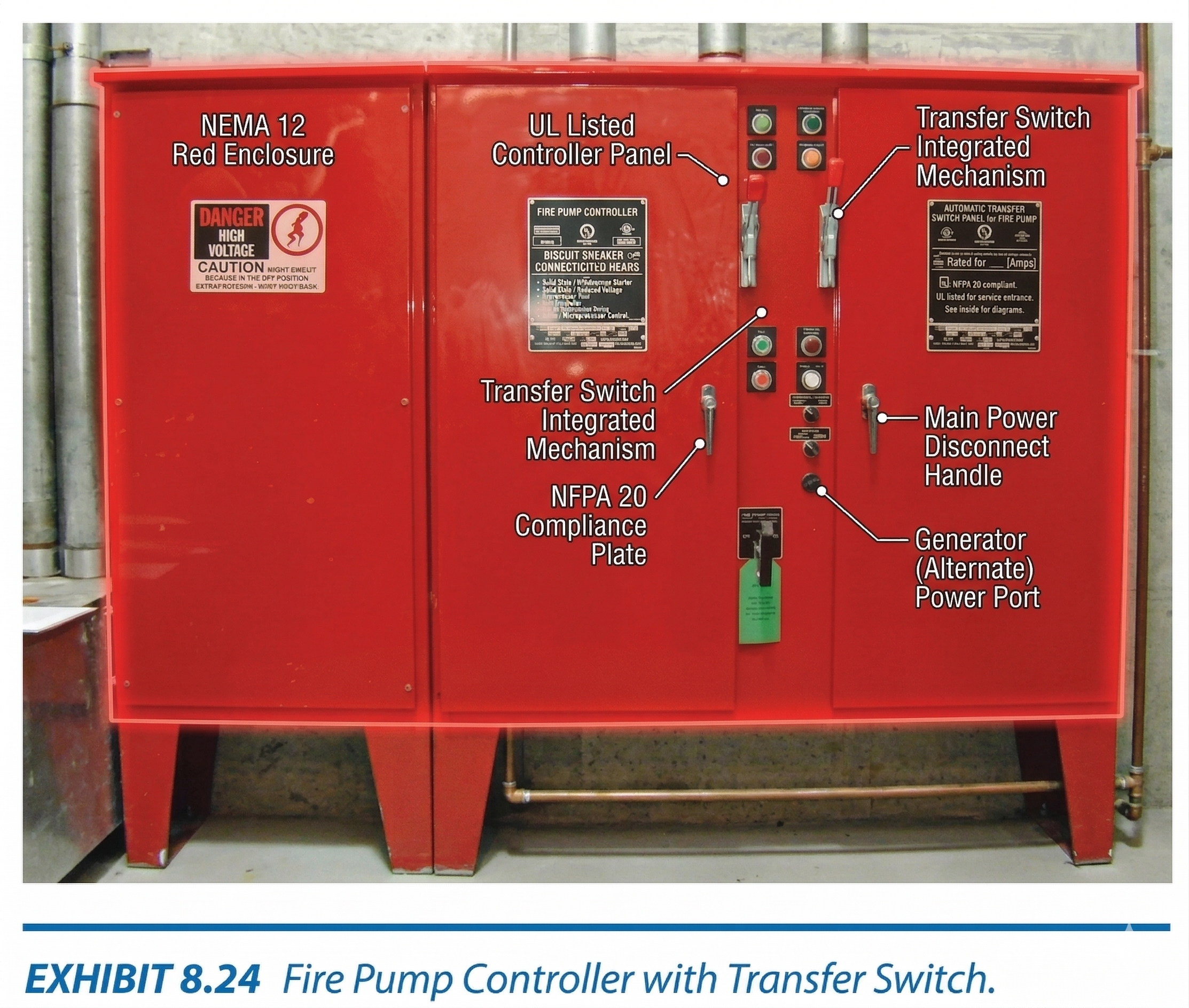

Fire pump controller with integrated automatic transfer switch — NEMA 12 red enclosure. Left: UL Listed controller panel with status indicators. Center: transfer switch integrated mechanism with NFPA 20 compliance plate. Right: automatic transfer switch panel with indicator lights, main power disconnect handle, and generator (alternate) power port. This is a single-cabinet solution where both the controller and ATS share one enclosure — which is what the NFPA 20 §9.7 “listed for fire pump service” language contemplates.

Transfer Sequence

  1. ATS senses loss of Normal power.
  2. After a short time delay (typically 1–3 seconds) to ride through momentary events, the ATS sends a start signal to the generator.
  3. Generator starts, warms up, and reports healthy voltage and frequency to the ATS.
  4. ATS transfers load from Normal to Emergency in a break-before-make or closed-transition sequence.
  5. Fire pump controller sees power again. If the pump was already commanded on, it re-starts immediately.

NFPA 25 Annual Test

§8.3.2.7 requires the ATS to be exercised in conjunction with the annual fire pump flow test. That means, with the pump running at rated flow, simulate a loss of Normal by opening the utility breaker or disconnect. The ATS should transfer, the generator should carry the load, and the pump should never stop pumping.

Field tip: Observe the ATS return-to-Normal sequence after the test. A healthy unit retransfers smoothly. If the pump drops out for more than a second or two, you've found something worth investigating before the real emergency.

Inside the ATS — Decision Logic & Timing

A fire pump ATS is not just a switch — it is a decision engine with multiple monitoring inputs, timing sequences, and fail-safe behaviors. Understanding the internal logic helps troubleshoot problems and interpret alarm signals correctly.

What the ATS Monitors Continuously

Voltage (All 3 Phases)

The ATS monitors voltage on all three phases of the normal source. If any phase drops below the adjustable undervoltage setpoint (typically 80-85% of nominal), the ATS begins the transfer countdown. The setpoint must be low enough to ride through momentary sags but high enough to detect a real outage.

Frequency

Monitors the power supply frequency (60 Hz in North America). Abnormal frequency indicates generator instability or utility grid problems. An overfrequency or underfrequency condition beyond the adjustable window (typically ±3-5 Hz) triggers a transfer or prevents retransfer to a source that is not stable.

Phase Sequence

Verifies all three phases are in the correct A-B-C rotation. If two phases are swapped (phase reversal), the motor would spin backward. The ATS blocks transfer to any source with incorrect phase sequence and annunciates a trouble signal.

Transfer Timing Sequence

Every step in the transfer has a purpose and an adjustable time delay:

Normal → Emergency Transfer Timeline
0 secNormal power failsATS detects undervoltage on one or more phases. Starts the time delay to engine start (TDES).
1-3 secTime delay to engine startAdjustable delay that rides through momentary power blips. If power returns during this window, the ATS cancels the transfer — no generator start needed. Set too short: nuisance starts. Set too long: delayed protection.
3-5 secGenerator start signal sentATS sends a start command to the generator. The generator cranks and starts within 5-10 seconds for a properly maintained unit. The ATS waits for the generator to report stable voltage and frequency.
10-15 secGenerator at rated voltage & frequencyGenerator stabilizes. ATS verifies voltage, frequency, and phase sequence on the emergency source are all within acceptable ranges before transferring.
12-20 secTransfer occursATS mechanically transfers the load from normal to emergency. For open-transition units, there is a brief (50-100ms) dead bus period. For closed-transition units, both sources are momentarily paralleled for a seamless transfer.
12-20 secFire pump controller sees powerThe fire pump controller recognizes the restored power source. If the pump was running when power was lost, it restarts immediately. If no demand exists, the pump stays in standby.

Retransfer — Back to Normal Power

When utility power is restored, the ATS does not immediately switch back. It waits to confirm the power is stable:

Time Delay to Retransfer (TDRE)

After normal power returns, the ATS starts a timer — typically 30 minutes. This ensures the utility is truly stable and not flickering on and off (which is common during storm recovery). If normal power drops again during this window, the timer resets. Only after the full TDRE elapses with stable normal power does the ATS initiate retransfer.

Engine Cooldown Timer

After retransfer to normal, the ATS keeps the generator running for an adjustable cooldown period — typically 5-10 minutes. This allows the engine to dissipate heat under no-load conditions before shutting down. Abrupt shutdown of a loaded diesel engine can cause turbocharger bearing damage and thermal shock to the engine block.

Open Transition vs Closed Transition

An open-transition (break-before-make) ATS briefly disconnects the load before connecting to the new source — creating a 50-100ms dead bus. The fire pump motor stops momentarily and restarts with full inrush current. A closed-transition (make-before-break) ATS overlaps both sources for 100ms, providing a seamless transfer with no motor interruption. Closed-transition is preferred for fire pumps but costs significantly more and requires the two sources to be synchronized in voltage and phase.

ATS vs. Transfer Switch — Are They the Same Thing?

These terms get used interchangeably in the field, but they are not identical. Understanding the distinction matters for code compliance and testing.

Transfer Switch (Broad Category)

Any device that switches an electrical load between two power sources. Can be:

  • Manual — operator physically moves a handle or lever to switch sources
  • Automatic (ATS) — senses power loss and transfers without human intervention
  • Non-automatic — requires a signal from a separate control to initiate transfer

ATS — Automatic Transfer Switch (Specific Type)

A transfer switch that operates automatically — senses normal power failure and transfers to the alternate source without any human action. For fire pump service:

  • Must be listed for fire pump service per NFPA 20 §9.7
  • Must handle locked rotor inrush current without tripping
  • Must transfer in-phase to prevent motor damage
  • Must not have load-management or load-shedding features

Key Point: All ATSes Are Transfer Switches, But Not All Transfer Switches Are ATSes

A manual transfer switch requires someone to physically switch the handle — not acceptable for fire pump service where the pump must start within seconds of a pressure drop, even if nobody is in the building. NFPA 20 requires an automatic transfer switch for fire pumps when an alternate power source is provided. Standard building ATSes (for HVAC, lighting, etc.) are also not acceptable — fire pump ATSes must be specifically listed for fire pump service and lack the time delays and load management features found in general-purpose units.

ATS Testing Requirements — Which Standard Applies?

Different codes and standards require different ATS testing frequencies. If your facility falls under multiple standards (common in healthcare), you must meet all applicable requirements — not just the least demanding one.

ATS Testing Requirements by Standard
NFPA 25 (ITM)AnnualOperate the ATS during the annual fire pump flow test. With the pump running at rated flow, simulate loss of normal power. Verify the ATS transfers to the alternate source, the generator carries the pump load, and the pump never stops. Also test retransfer to normal.§8.3.3.9
NFPA 20 (Installation)Acceptance + AnnualDuring acceptance testing: operate the ATS at least 6 times between normal and alternate sources. During annual testing: include ATS transfer as part of the annual fire pump test. Verify transfer and retransfer timing, voltage/frequency at motor terminals on alternate source.§14.2.7
NFPA 110 (Emergency Power)MonthlyMonthly testing of the emergency power supply system (EPSS) including the ATS. Run the generator under load for minimum 30 minutes. Transfer must occur within the Class specified (typically 10 seconds for Class 10). Test both transfer and retransfer.§8.4.2
NFPA 99 (Healthcare)MonthlyMonthly testing of the essential electrical system. The ATS must transfer within 10 seconds. Test under load — not just a no-load exercise. Annual testing must include a full building simulation where normal power is interrupted for a minimum duration.§6.4.4.1
TJC (Joint Commission)Monthly + AnnualMonthly: exercise the generator and ATS under load. Generator must run for 30 minutes minimum. Annual: test the entire essential electrical system including all ATSes, with the generator carrying the building load for a continuous 4-hour period.PE.03.01.01 EP16
CMS (Medicare)Per NFPA 99/110CMS adopts NFPA 99 and NFPA 110 for Medicare-certified healthcare facilities. Monthly ATS testing is required. Failure to test is a survey deficiency. CMS surveyors specifically ask for ATS test records during life safety surveys.CMS CoPs

Healthcare Facilities: You Are Under ALL of These

A hospital with a fire pump on emergency power must comply with NFPA 25 (annual fire pump test with ATS), NFPA 20 (acceptance and ongoing), NFPA 110 (monthly EPSS test), NFPA 99 (monthly essential electrical), TJC (monthly + annual 4-hour), and CMS (adopts NFPA 99/110). In practice this means the ATS is tested monthly as part of the generator exercise and annually under full fire pump flow conditions. Missing either frequency is a compliance finding.

Things You Might Not Know About Transfer Switches

A Standard Building ATS Will Damage Your Fire Pump

General-purpose ATSes for HVAC and lighting have time delays (30-60 seconds), load shedding, and programmed transfer sequences. A fire pump ATS must transfer immediately — within seconds — and cannot shed the fire pump load for any reason. Using a standard building ATS on a fire pump circuit violates NFPA 20 and can cause the pump to drop offline during a fire when utility power is lost.

The ATS Must Handle In-Phase Transfer

When transferring a running motor between two power sources, the voltage phase angle must align. An out-of-phase transfer creates a momentary short circuit through the motor windings that can destroy the pump coupling, damage bearings, and trip breakers. Fire pump ATSes use phase monitoring to ensure the transfer occurs at the correct moment. This is one reason fire pump ATSes cost 3-5x more than standard units.

Retransfer Is More Dangerous Than Transfer

The transfer from normal to emergency is a planned event — the ATS knows normal power is gone. The retransfer back to normal is trickier: the ATS must verify that utility power has been stable for a preset time (typically 30 minutes) before switching back. A premature retransfer during unstable utility restoration can cause the pump to cycle off and on repeatedly, creating voltage transients and water hammer.

A Seized ATS Contactor Is the Most Common Failure Mode

ATS contactors are heavy-duty mechanical relays that carry hundreds of amps. If the ATS is never exercised (common in buildings that skip monthly testing), the contactor can seize in one position from corrosion or contact welding. When utility power finally fails for real, the ATS tries to transfer and the contactor does not move. Monthly exercise is not optional — it is the only thing that keeps the mechanical parts from seizing.

Some Fire Pump ATSes Have a "Bypass" Mode

Higher-end fire pump ATSes include a bypass-isolation switch that allows the ATS to be removed from the circuit for maintenance while the fire pump remains connected to one power source (usually normal). Without bypass, any ATS maintenance requires shutting down the fire pump — creating an impairment. Bypass-isolation ATSes are strongly recommended for healthcare and high-rise installations.

The Generator Must Be Sized for Locked Rotor Current

When the ATS transfers to the generator and the fire pump starts, the motor draws locked rotor current (5-7x FLA) for several seconds. The generator must be sized to handle this massive inrush without voltage collapse. A 100 HP fire pump can draw 800+ amps on startup — if the generator is sized only for running load, the voltage sags so badly the pump cannot start. Generator sizing for fire pump service follows NFPA 20 §9.6.

Know Your Switches — Tamper vs Waterflow vs Pressure vs Transfer

These four switches are the most commonly confused components in fire protection. They look similar (red boxes on pipes), but each serves a completely different purpose. Getting them mixed up — especially during wiring — causes false alarms, missed signals, and compliance failures.

Side-by-Side Comparison
FeatureTamper SwitchWaterflow SwitchPressure SwitchTransfer Switch (ATS)
What it detectsSomeone closing a control valveA sprinkler head has opened — water is flowingPressure drop below setpoint — triggers fire pump startUtility power failure or voltage sag
Signal typeSUPERVISORYALARMSUPERVISORY (pump start) or ALARM (via waterflow)TROUBLE (power failure)
What happensAlert to building management — valve has been moved from normal open positionBuilding fire alarm + fire department dispatchAutomatic fire pump start when pressure drops below thresholdAutomatic transfer to generator/backup power so fire pump can still run
Installed whereOn every control valve (OS&Y, butterfly, PIV)On each sprinkler riser, downstream of the alarm check valveOn fire pump controller, connected to system pressure sensing lineBetween utility power and fire pump controller
Code referenceNFPA 72 §17.16 / NFPA 13 §8.16NFPA 72 §17.12 / NFPA 13 §8.16.1NFPA 20 §12.4 / NFPA 72 §17.16NFPA 20 §9.7 / NFPA 110
Test frequencySemi-annual — close valve 2 turns, verify signal at FACPQuarterly — open inspector's test, verify alarm within 90 secondsAnnual — verify start/stop pressure setpoints, calibrationAnnual — simulate power failure, verify transfer and retransfer

Quick Memory Aid

🔒
Tamper:"Is the valve open?" — monitors position, sends SUPERVISORY
💧
Waterflow:"Is water moving?" — detects flow, sends ALARM
📊
Pressure:"Is the pressure dropping?" — starts the fire pump
Transfer:"Did we lose power?" — switches to backup electricity

▶ Watch: Fire Pump Automatic Transfer Switch — How It Works

Source: Fire Protection · Open on YouTube ↗

Frequently Asked Questions

What is a fire pump transfer switch and how is it different from a generator ATS?
A fire pump transfer switch (also called a fire pump ATS or power transfer switch) is a listed UL 1008 device that automatically switches the fire pump motor between utility power and an emergency generator source. It is integrated into the fire pump controller — it is NOT the same as the building generator ATS (which supplies emergency lighting, life-safety loads). The fire pump transfer switch is specifically rated for motor loads with the locked-rotor current of the fire pump, whereas a typical building ATS is rated for general panel loads.
How fast does a fire pump transfer switch have to operate?
NFPA 20 does not set a hard numerical transfer time, but the transfer must occur "automatically and without human intervention" on loss of normal power. In practice, properly sized ATS units transfer in 50–250 milliseconds — fast enough that the fire pump motor sees a momentary power interruption but continues running once the generator source stabilizes. Coordinated with a Type 10 (10-second start) generator, the sequence is: utility failure → contacts open → generator cranks and stabilizes → ATS transfers to emergency → pump resumes full flow, typically within 10–15 seconds total.
What testing is required on a fire pump transfer switch?
NFPA 25 §8.3.2.7 requires the transfer switch be exercised during the annual fire pump flow test at each flow point. The sequence: simulate loss of utility power, verify ATS transfers to generator, confirm pump continues to run at rated flow, then restore utility and verify retransfer back. This is in addition to the monthly ATS exercise required by NFPA 110 §8.4.6. Documented evidence of each transfer direction (utility → emergency and emergency → utility) must be retained. Failure of any step is a citable NFPA 25 deficiency.
Why does the fire pump transfer switch stay engaged after a simulated power loss?
Fire pump ATS units include a feature called "commitment to start" per NFPA 20 §10.5.3.2. Once the fire pump starts on a call, the ATS remains on whichever source carried the pump through start-up, even after normal power is restored — the pump must be manually stopped by an authorized person. This prevents an unnecessary re-transfer during a fire event that could cause pump re-sequencing, water hammer, or a momentary loss of flow. This is different from a generator ATS, which re-transfers automatically after normal power is stable for the programmed time delay.
Can a fire pump share the building's generator and ATS?
NFPA 20 §9.7 requires that where emergency power is supplied, the fire pump must be supplied through a dedicated listed transfer switch — NOT through the general building ATS. The fire pump transfer switch is inside or adjacent to the fire pump controller, and it is fed from an emergency power source that may or may not be the same generator as the building. The distinction matters because the fire pump motor's locked-rotor current (6–8× full load amps) can trip a general-use ATS that is not rated for motor starting.
What happens if the transfer switch fails during an actual fire?
Catastrophic. If utility fails and the ATS cannot transfer to emergency power, the fire pump stops, water-based suppression fails, and the sprinkler system becomes dependent on city water pressure alone. This is why monthly exercising is non-negotiable — a transfer switch that sat idle for six months may have contacts pitted from arcing, stuck control-logic relays, or dead control batteries. NFPA 20 also requires a "ready-to-start" alarm at the fire command center whenever the transfer switch is in a trouble state, so operators know before a fire occurs.
