SYSTEM COMPONENTS

Electric Motor Driver
The Muscle

The electric motor that spins a fire pump impeller — and the short list of things NFPA 20 demands of its power supply, controller, and transfer switch.

By Stanislav Samek, Samektra · 7 min read · Last updated April 23, 2026

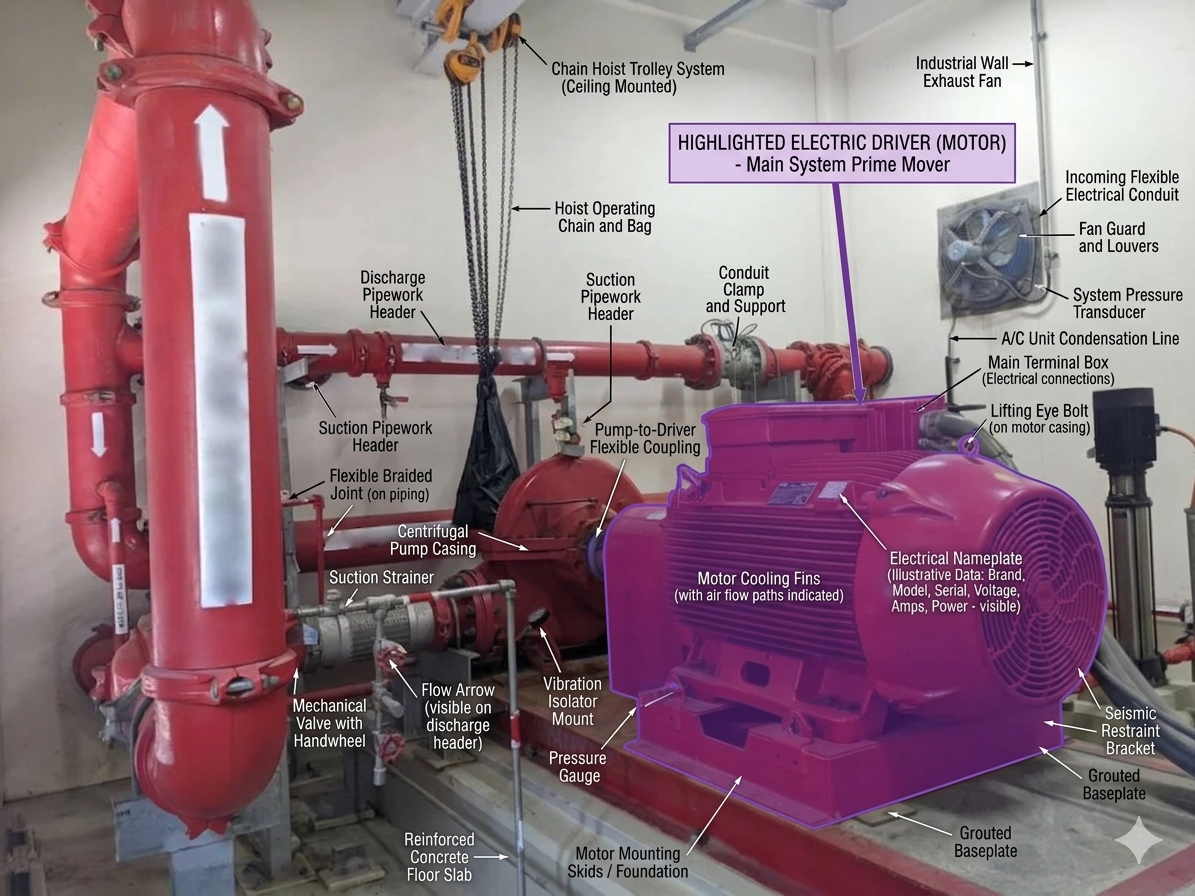

Annotated fire pump room — electric motor driver (highlighted purple) coupled to a horizontal split-case centrifugal pump. Every major component labeled: suction/discharge headers, flexible coupling, pressure gauges, suction strainer, vibration isolator mounts, seismic restraint brackets, grouted baseplate, motor cooling fins, electrical nameplate, conduit, and exhaust fan.

What an Electric Driver Actually Is

A fire pump needs a prime mover — something to spin the impeller. In most modern installations, that mover is a three-phase electric squirrel-cage induction motor. It is mechanically coupled to the pump shaft and controlled by a dedicated fire pump controller mounted in the same room.

The motor itself is conventional. What makes a fire pump motor special is everything around it: a listed controller, a protected feeder, a second source of power, and a controller that is not allowed to shut the motor off automatically on overload. The pump runs until someone goes to the room and stops it manually.

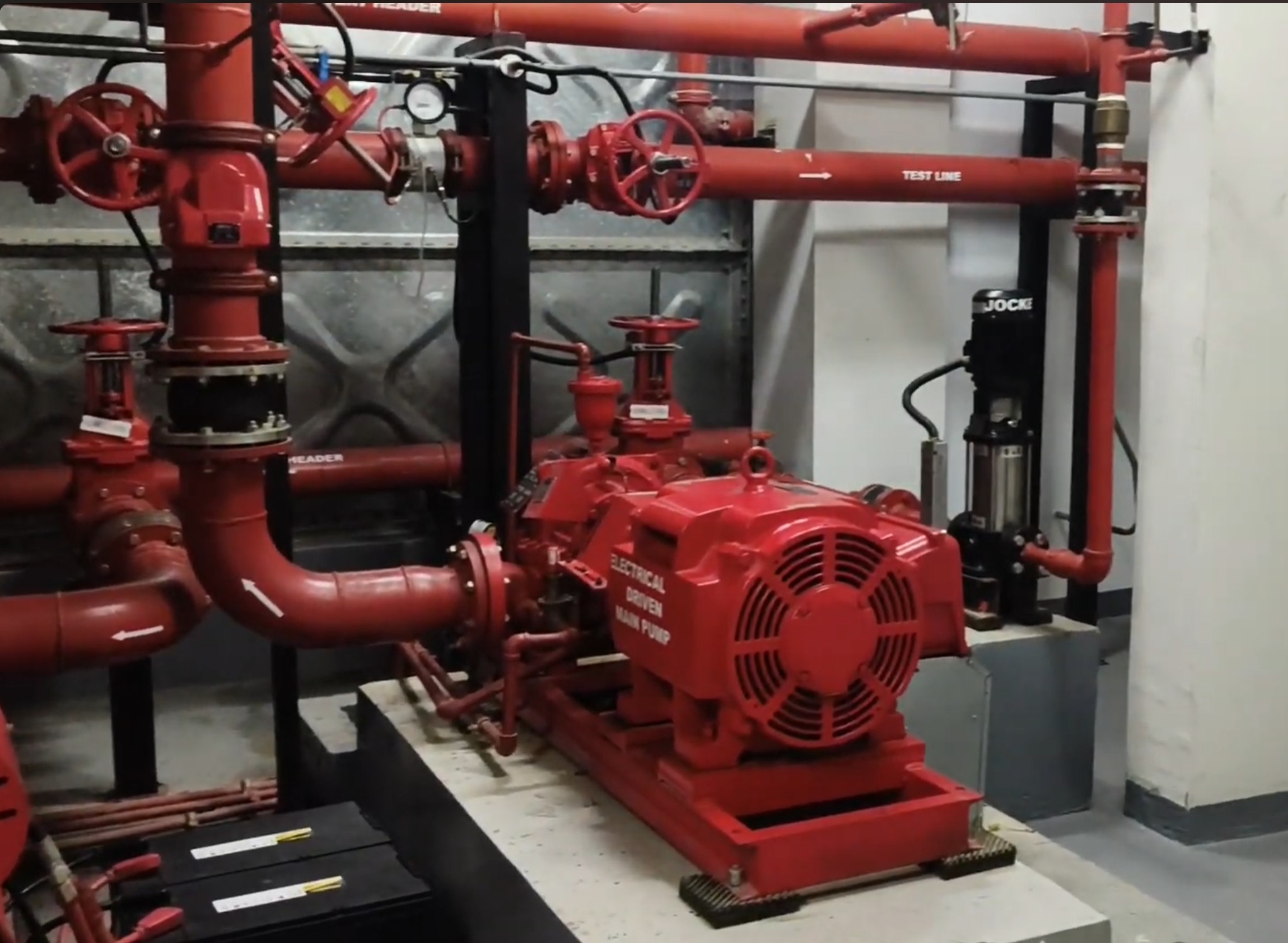

Electric driven main pump with test header and jockey pump on the right.

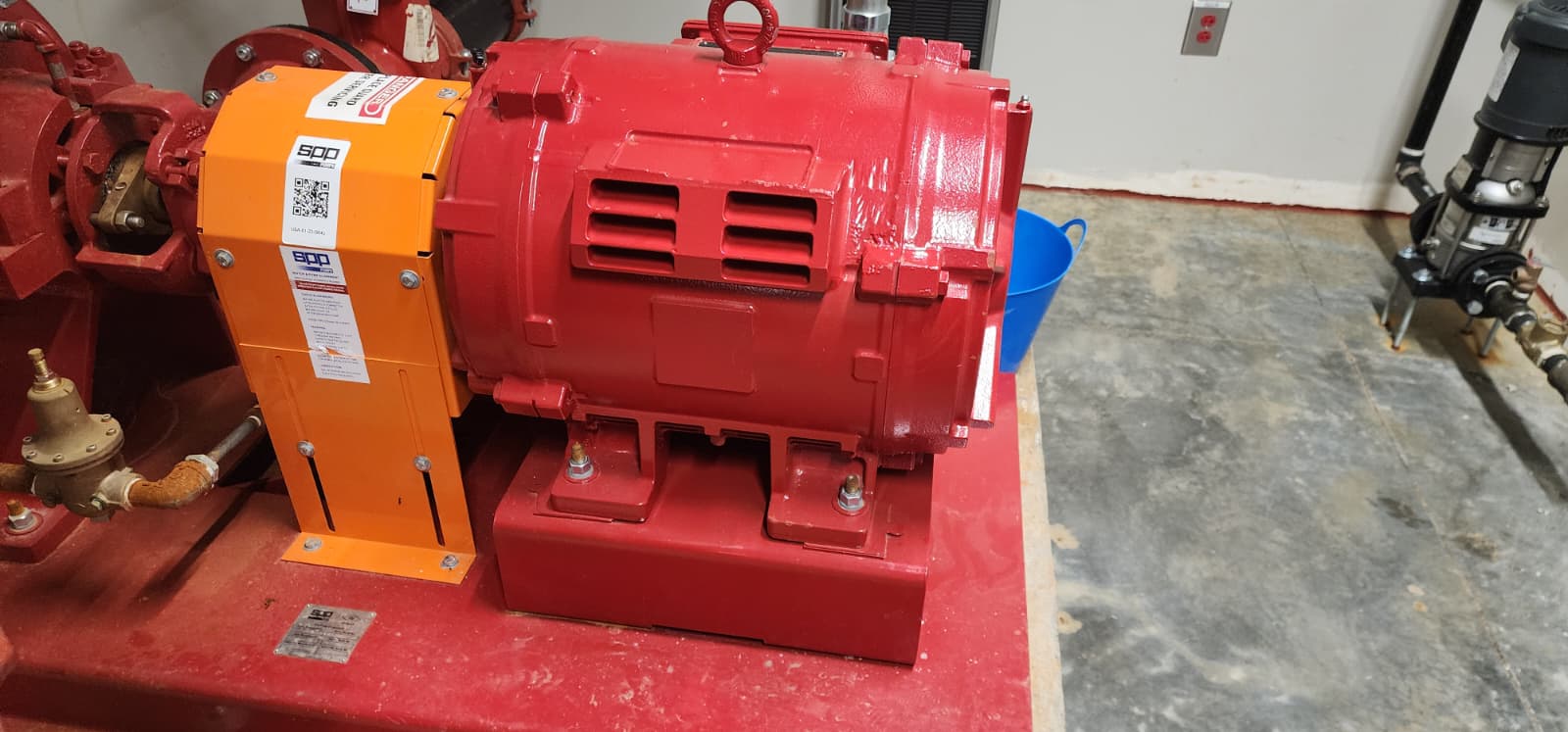

Close-up of an SPP TEFC fire pump motor — cooling vents, orange coupling guard (mandatory per OSHA 1910.219), and the grouted baseplate that keeps the pump-motor shaft alignment within 0.005 in.

Power Supply — The Hard Rule

NFPA 20 §9.2 and NEC Article 695 require power to a fire pump to come from at least one reliable source. Where the AHJ determines the source is not reliable (typical for high-rise, healthcare, and similar), the pump must have a second source. Second sources include:

  • A feeder from a separate utility service at a different transformer bank.
  • An on-site generator sized per NFPA 20 §9.6.
  • A second utility connection on a different substation.

When a second source is provided, an automatic transfer switch listed for fire pump service handles the handoff NFPA 20 §9.7.

Why Electric Motors Must Not Trip

The controller is explicitly prohibited from opening the circuit on normal overloads. A fire pump trip that removes the pump from service during a fire could cost lives. NFPA 20 §10.4.4 requires overcurrent devices to lock in against anything short of a sustained fault — locked-rotor current for a fire pump is an acceptable condition.

Weekly Churn Test

NFPA 25 §8.3.1 requires fire pumps to be tested weekly under no-flow (churn) conditions. Electric-driven pumps must run for a minimum of 10 minutes each test. During the churn test, record suction pressure, discharge pressure, and pump speed (RPM). Verify motor current draw on each phase, check bearing temperature by touch, observe packing gland leakage (a slight drip — about one drop per second — is normal and necessary for cooling the shaft sleeve), and confirm the controller logs a successful automatic start NFPA 25, §8.3.1.

Motor Specifications — What the Nameplate Tells You

Every fire pump motor has a nameplate riveted to the frame. Understanding these numbers is critical for testing, troubleshooting, and replacement:

Horsepower (HP)25–500+ HP typicalMust be sized for the maximum brake horsepower the pump draws across its entire curve — not just at rated conditions. Undersized motors overheat at 150% flow.
Voltage208V / 230V / 460V / 575VMust match the building electrical supply. 460V is most common for pumps over 25 HP. Voltage at motor terminals under load must be within ±10% of nameplate.
Full Load Amps (FLA)Varies by HP/voltageThe current the motor draws at rated HP and voltage. Used to verify motor loading during annual flow tests. Phase-to-phase imbalance >5% indicates a problem.
Locked Rotor Amps (LRA)5–7x FLA typicalThe massive inrush current during startup. Fire pump controllers must allow this without tripping — no overcurrent protection is permitted that could prevent starting.
Service Factor (SF)1.15 typicalA 100 HP motor with 1.15 SF can run continuously at 115 HP without damage. This margin handles the overload at 150% pump flow during testing and fire events.
Speed (RPM)1,770 or 3,550Synchronous speed minus slip. 1,770 RPM (4-pole) is most common for fire pumps. Speed must be recorded during every test — a drop indicates electrical or mechanical problems.
Frame SizeNEMA standard frameDetermines the physical mounting dimensions. Critical for replacement — a new motor must be the same frame or require new base rails and alignment.
EnclosureTEFC / ODPTotally Enclosed Fan Cooled (TEFC) is standard for fire pumps — sealed against dust and moisture. Open Drip Proof (ODP) is acceptable in clean, dry pump rooms.

Common Electric Driver Field Issues

Voltage Drop at Startup

When a large fire pump motor starts, inrush current (5-7x FLA) causes voltage to sag across the building. If the voltage at the motor terminals drops more than 15% during starting, the motor may not develop enough torque to spin the pump to speed. Undersized feeders, long wire runs, and loose connections are the usual culprits.

Phase Imbalance

Unequal voltage across the three phases causes unequal current draw, motor overheating, and reduced torque. A 3% voltage imbalance causes approximately 18% current imbalance. Sources: utility transformer issues, single-phase loads on the same service, or a failing motor winding.

Insulation Breakdown

Motor winding insulation degrades over time from heat cycling, moisture, and age. Megohm readings below 1 MΩ at operating temperature indicate deteriorating insulation. Annual megger testing catches this before the winding fails catastrophically during a fire event.

Bearing Failure

Motor bearings have a finite life — typically 20,000-40,000 hours. Fire pump motors that run only during weekly tests accumulate hours slowly, but the constant start-stop thermal cycling and vibration from misalignment accelerate wear. Hot bearing housings (>180°F) after a 10-minute churn test are a warning sign.

Overheating from Poor Ventilation

TEFC motors rely on the shaft-mounted fan to move air across the cooling fins. A pump room with blocked ventilation, no exhaust fan, or high ambient temperature causes the motor to run hotter. Every 10°C rise above rated temperature cuts insulation life in half. The pump room must have adequate air circulation.

Corroded Terminal Connections

Motor terminal lugs corrode over time, especially in humid pump rooms. High-resistance connections cause local heating, voltage drop, and eventually arcing and terminal failure. Annual thermographic scanning of motor terminals during loaded operation catches hot spots before they fail.

Phase reversal testing: Watch phase reversal testing during a fire pump annual test → — if two phases are swapped (common after utility work), the motor spins backward and the pump produces little or no pressure. The controller's phase reversal relay must catch this and prevent starting.

Things You Might Not Know About Electric Fire Pump Motors

The Motor Is Designed to Burn Up Rather Than Stop

Unlike any other motor in a building, a fire pump motor has no overload protection. NFPA 20 §10.4.4 requires the controller to let the motor run even if it is drawing locked rotor current. The logic: a motor that burns out fighting a fire has done its job. A motor that trips off to save itself while people are still inside the building has failed its mission. The motor is expendable; the occupants are not.

A 100 HP Fire Pump Motor Draws 800+ Amps on Startup

Locked rotor current for a typical 460V, 100 HP motor is 5-7 times the full-load amps — approximately 800-900 amps for 3-5 seconds. This is why NEC Article 695 requires the fire pump feeder to be protected only by a circuit breaker sized at 300% of FLA (or 600% for certain conditions). Normal motor branch-circuit protection would trip immediately.

The Wires to a Fire Pump Are Thicker Than You Think

NEC 695.6 requires fire pump feeder conductors to be sized at 125% of motor FLA — same as any motor. But the conductors must also survive a fire for a minimum period. In high-rise buildings, the fire pump feeder must have a 2-hour fire rating or be routed through a 2-hour rated enclosure. Some jurisdictions require mineral-insulated (MI) cable, which can survive direct flame exposure indefinitely.

Losing One Phase Does Not Stop the Pump

If one of three power phases is lost while the motor is running, the motor continues to run on two phases — but it draws 1.7x normal current on the remaining phases. This is called single-phasing. The motor will overheat and eventually fail, but it keeps running and pumping water. The controller should alarm on phase loss, but it does NOT stop the pump. This is by design.

The Transfer Switch Is Listed Differently Than Normal ATSes

A fire pump automatic transfer switch (ATS) must be specifically listed for fire pump service per NFPA 20 §9.7. Standard building ATSes have a time delay and load management features that are prohibited on fire pump transfers. A fire pump ATS must transfer to the alternate source within seconds and retransfer only when the normal source is fully restored and stable for a preset time.

Motor Replacement Is a 6-Figure Problem on Large Pumps

A 300 HP fire pump motor weighs 3,000-4,000 pounds. Replacing one requires a crane or chain hoist, rigging through the pump room door (which must be large enough — per NFPA 20 §4.12), laser alignment of the new motor to the pump shaft, full rewiring, and a complete acceptance test. Lead time on a custom-wound replacement can be 12-16 weeks. Preventive maintenance (megger testing, bearing greasing, ventilation) is far cheaper than emergency replacement.

▶ Watch: Fire Pump Requirements — NEC Article 695 & NFPA 20

Source: Electrical Exam Academy · Open on YouTube ↗

Frequently Asked Questions

Why can a fire pump motor not have normal overload protection?
NFPA 20 §10.4.4 and NEC 695.5 explicitly prohibit automatic overload shutoff on a fire pump motor. The logic: a motor that trips off during a fire fails its mission and people die. A motor that burns out while pumping water has done its job. The controller is required to "lock in" against everything short of a sustained short-circuit fault — locked-rotor conditions, sustained overloads, and single-phasing must all let the pump keep running.
How is the fire pump power supply different from normal building power?
NFPA 20 §9.2 and NEC Article 695 require the fire pump feeder to be tapped AHEAD of the main disconnect (so that opening the main does not kill the pump) or to come from a dedicated utility service. The feeder is protected ONLY by a short-circuit-protective device sized at 300% of motor FLA — far above normal motor branch protection. In high-rise buildings the feeder must survive fire for 2 hours (rated cable or rated shaft enclosure).
What is a second power source and when is it required?
Where the AHJ determines the primary utility source is not reliable — typical for high-rise, healthcare, and life-safety-critical occupancies — NFPA 20 §9.2 requires a SECOND power source. Options: a feeder from a separate utility substation, an on-site generator sized per §9.6, or a dual-utility connection at different transformers. A listed fire-pump automatic transfer switch (NOT a standard building ATS) handles the handoff per §9.7.
Why is a 100 HP fire pump controller rated to handle 800+ amps?
Locked-rotor current for a typical 460V, 100 HP motor is 5–7× full-load amps — roughly 800–900 A for 3–5 seconds during startup. Normal motor branch protection would trip instantly. NEC 695.4 requires fire pump disconnects and overcurrent devices to carry locked-rotor current indefinitely. This is why fire pump controllers are purpose-built and carry a higher price tag than equivalent-HP commercial motor starters.
What does phase reversal do to a fire pump?
If any two of the three phases are swapped (common after utility maintenance or panel rewiring), the motor spins in the wrong direction — backward. A centrifugal pump running backward produces about 30–40% of rated pressure and drastically reduced flow. The controller's phase reversal relay must catch this and prevent starting. Annual fire pump tests specifically include phase-rotation verification.
What is the weekly churn test for an electric fire pump?
NFPA 25 §8.3.1 requires weekly no-flow (churn) testing — the pump runs against a closed discharge for at least 10 minutes. During the test, record suction + discharge pressure, verify current on all three phases (imbalance > 5% suggests a problem), check bearing temperature, observe packing gland leakage (a slow drip around 1 drop/sec is normal), and confirm the controller logs a successful automatic start sequence. The churn test catches nearly every fire-pump failure mode before the pump is needed for a real fire.

References

1. NFPA 20 (2022), Ch. 9 — Electric-drive controllers and motors.

2. NFPA 70 (NEC) Article 695 — Fire pumps.

3. NFPA 25 (2023), §8.3 — Weekly and annual fire pump tests.
