Air Compressor
The Lungs of the Dry System

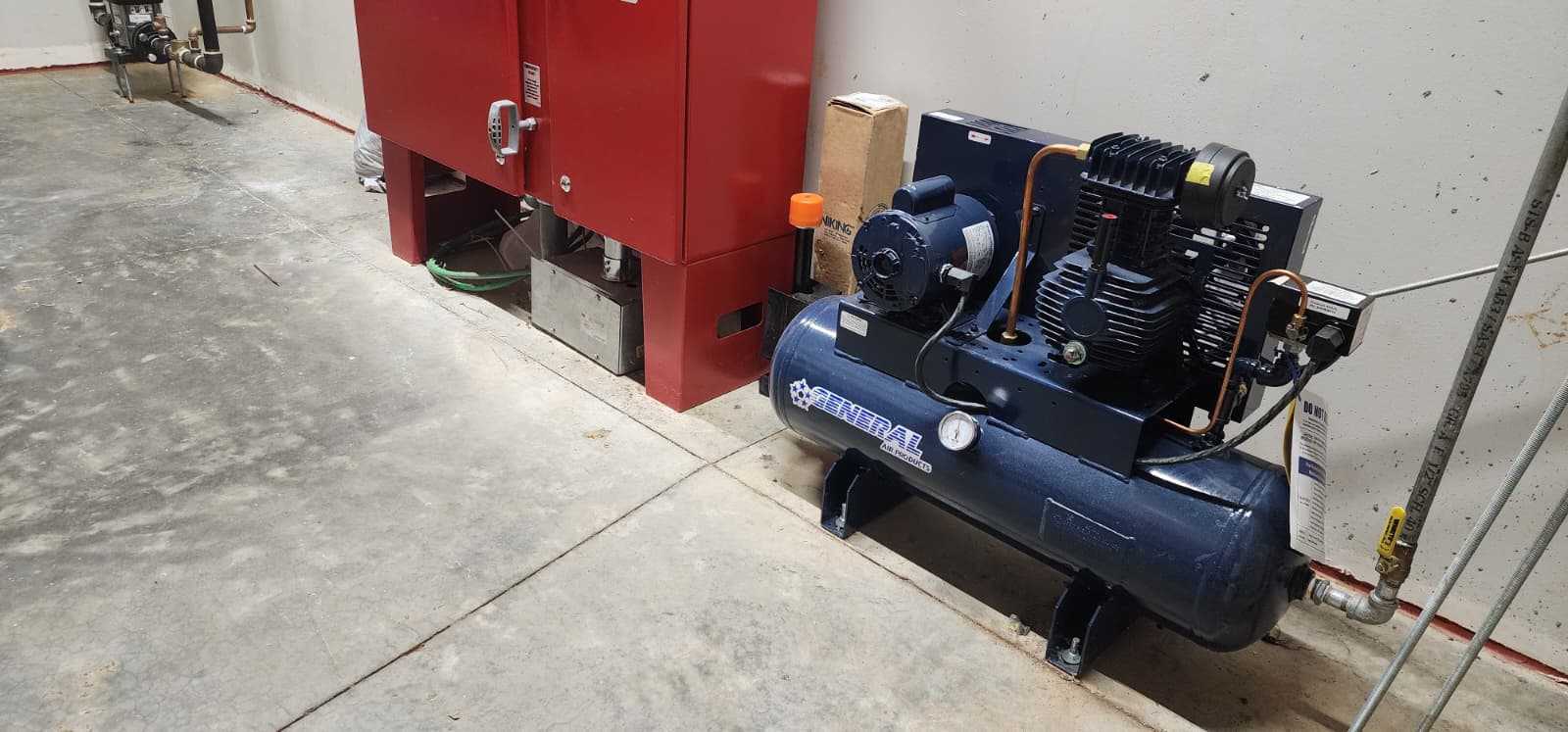

A dedicated dry-system air compressor next to its dry pipe valve. Every dry system has one.

The Functional Role: Maintaining the Atmospheric Barrier

In fire protection environments subject to freezing temperatures, the standard water-filled “wet” pipe system is impractical. The dry pipe sprinkler system addresses this by filling the piping network with pressurized air or nitrogen instead of water. This internal pressure holds the dry pipe valve — a specialized differential latching mechanism — in the closed position NFPA 13, §8.2.

When a sprinkler head reaches its thermal activation point and opens, pressurized air escapes. Once the air pressure drops below a critical threshold, the dry pipe valve “trips,” allowing water to flood the piping network and discharge onto the fire. The air compressor's primary role is to provide and maintain constant supervisory air pressure, compensating for minor fluctuations and ensuring the valve does not accidentally trip due to small leaks NFPA 13, §8.2.6.

Anatomy of a Fire-Protection-Listed Compressor

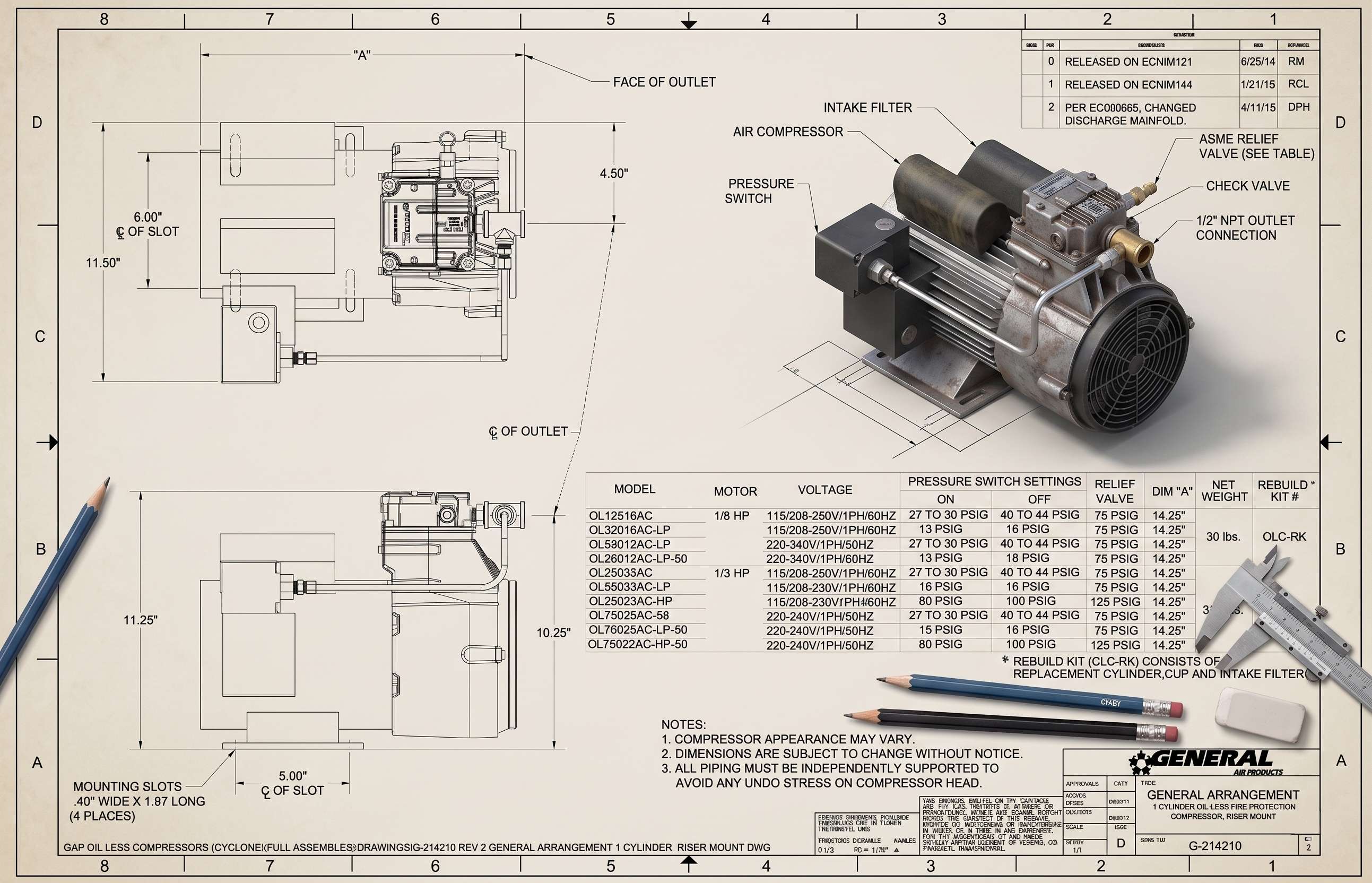

The technical drawing below shows a General Air Products G-214210 — a one-cylinder oil-less riser-mount compressor typical of small- to mid-sized dry systems. Note the named components: intake filter (ambient-air entry), compressor cylinder, ASME relief valve, check valve (prevents backflow when the compressor cycles off), pressure switch (on/off control), and the ½" NPT outlet connection that goes to the dry pipe valve via the Air Maintenance Device.

Engineering Requirements: Sizing and Recovery

Air compressors for dry systems are not “one size fits all.” According to NFPA 13: Standard for the Installation of Sprinkler Systems, they must be sized based on the total internal volume of the piping network NFPA 13, §8.2.6.1.

Undersized compressors fail the 30-minute rule, leaving the building exposed after trips. Oversized compressors create the opposite failure: the compressor can keep up with the air loss from an opened sprinkler, preventing the dry pipe valve from tripping during an actual fire. That's why the Air Maintenance Device exists (see below).

Selecting the Right Compressor — Manufacturer Guidance

General Air Products summarizes the industry rule of thumb bluntly: “Sizing by horsepower wastes money. Fire protection air compressor manufacturers are concerned with high flow, not horsepower.” Source 4

What to spec

• System volume in gallons, not pipe footage or sprinkler count. Ask your designer for the calculated internal volume.
• CFM delivery at the required system pressure, not displacement CFM. Manufacturer cut sheets list both — displacement is marketing, delivery is engineering.
• Duty cycle rating — fire-protection units target 5,000–8,000 hours of service; retail units 500–1,000 Source 4.
• Tank-mount vs riser-mount: General Air recommends tank-mount as the default because it adds reserve volume, reduces motor cycling, and typically regulates down from 60–100 psi tank pressure to system pressure via the AMD. Riser-mount is for tight spaces, small systems, and strictly one compressor per riser.
• Oil-less for most installations. Oil-lubricated is cheaper long-term BUT only if the site has a proven maintenance program — General Air warns “a neglected lubricated air compressor will require an oil check inside of the first year.”
• UL 1450 Supplement SC marking — required by NFPA 13 §8.2.7.5.2 (2025 edition) for dedicated sprinkler compressors. Verify the nameplate before accepting delivery.

The FM Global 1-in-3 rule

Property insurers following FM Global guidance recommend one dedicated compressor per three sprinkler systems — especially for freezer and cold-storage occupancies. Loading a single compressor with too many systems means it runs continuously, wears out faster, and masks system leaks that should be repaired Source 4.

Technical Distinctions: Riser-Mounted vs. Tank-Mounted

In professional installations, you will typically encounter two configurations:

The Air Maintenance Device (AMD)

A high-capacity compressor connected directly to a dry system creates a dangerous scenario: if a small leak develops, the compressor can dump air fast enough to maintain system pressure — effectively masking the leak and potentially delaying a valve trip during an actual fire.

The Air Maintenance Device (AMD) solves this by acting as a regulated gateway between the compressor and the sprinkler piping. It restricts the air flow rate to a safe level, ensuring the compressor can maintain pressure against minor leaks while still allowing the system to trip properly when a sprinkler head activates NFPA 13, §8.2.6.6. NFPA 13 makes the AMD mandatory when compressor capacity exceeds 5.5 CFM at 10 psi.

Failure Modes & Dangerous Situations

These are the failures fire protection contractors see most often in the field, synthesized from NFPA 13, NFPA 25, CAIRE Compressors, General Air Products, and QRFS published field reports. Know these before your next inspection.

1. Motor overheating & continuous running

CAIRE identifies electrical faults as the single most common troubleshooting category Source 3. A compressor that runs continuously is either (a) chasing a pipe leak that exceeds the 1½ psi / 24 hr NFPA 13 §28.2.2.1 threshold and must be repaired, (b) serving too many systems (violates the FM 1-in-3 rule), or (c) has a failed pressure switch stuck “on.” Continuous duty beyond the unit's design rating melts motor windings and — if the relief valve also fails — can over-pressurize the head.

2. Check valve failure

The check valve (see the drawing above) stops system pressure from bleeding back through the compressor when the motor cycles off. A stuck-open check valve means every motor-off cycle dumps system air, causing the compressor to run almost constantly. A stuck-closed check valve during startup prevents the compressor from pressurizing the system. Test during annual inspection by listening for reverse-flow hiss at the inlet when the motor shuts off.

3. Moisture, corrosion & ice plugs

CAIRE puts it plainly: “Dry pipe systems are prone to corrosion, in part, due to moisture in the air produced by the air compressor.” Source 3 The compressor pulls in ambient humidity, compresses it into the tank and downstream piping, and over years creates microbiologically influenced corrosion (MIC) and pinhole leaks. In freezer rooms the consequence is dramatic: “In a freezer system, that moisture freezes where ambient meets subzero, forming ice plugs that block pipe and cripple system performance.” Source 6 Mitigation: tank-drain monthly (NFPA 25 §13.1), install a regenerative dryer (CAIRE R-series delivers −40 °F dewpoint), or convert to nitrogen (NOT in cold storage — see below).

4. Nitrogen-generator starvation on cold-storage systems

General Air Products explicitly warns against nitrogen generators on freezer/cold-storage dry systems: “nitrogen generator at 98% purity: ~0.6 CFM… less than 3% of the original flow from the compressor… a complete chokehold on your system's ability to respond to leaks.” Source 6 Use nitrogen generators for corrosion management in ambient-temperature dry systems only.

5. Undersized air supply failing the 30-minute rule

After an annual trip test, a building without a working compressor is an unprotected building. Undersized units leave the system in a race against freezing (in winter) or against the next event (year-round). Verify recovery time annually under NFPA 25 §13.4.4.2.

6. Oversized compressor defeating the trip

Mirror of #5: an oversized compressor without a proper AMD continues supplying air through a single open sprinkler head faster than air escapes. The dry pipe valve never trips; water never reaches the fire. NFPA 13 §8.2.6.6 mandates the AMD when capacity exceeds 5.5 CFM @ 10 psi precisely to prevent this.

7. Intake filter clogging

A clogged intake filter starves the compressor of ambient air, reduces delivery, and accelerates motor wear. NFPA 25 §13.4.4.2 requires filter replacement at the annual inspection. Facilities with dusty environments (warehouses, wood shops, bakeries) need shorter intervals.

8. Oil carryover destroying system seals

A lubricated compressor used in place of an oil-less model — or one with failed piston rings — pushes oil vapor downstream. That vapor condenses on EPDM gaskets and valve seats, swelling and softening them. Over years the coupling gaskets fail, the dry pipe valve seat loses integrity, and the system leaks chronically. Specifying oil-less is the manufacturer default for exactly this reason.

9. Relief valve failure or disablement

The ASME relief valve (typically 75 or 125 PSIG on riser-mount units) is the final safety between a stuck pressure switch and a cylinder rupture. A corroded, leaking, or — worse — plugged relief valve turns the compressor into an unvented pressure vessel. Annual visual inspection of the relief valve, and an actuation test per the manufacturer's O&M manual, is non-negotiable.

DO NOT — Explicit Manufacturer Warnings

Electrical Supervision & Power Loss

The compressor must be on a dedicated, labeled circuit, wired per NEC Article 430 (motors) NFPA 13 §8.2.6.6.5. No light switches. No cord-and-plug.

The supervisory low-air pressure switch on the system side is monitored by the Fire Alarm Control Panel (FACP) per NFPA 72. Loss of power to the compressor — after the tank reserve dissipates — will trigger a low-air supervisory signal, giving the facility time to respond before the dry pipe valve trips. In winter, a compressor that has been de-energized for maintenance without notification is a common source of accidental flooding.

NFPA 25 Compliance: Maintenance Schedule

Because the air compressor is the only component preventing the system from tripping and potentially causing water damage or freeze exposure, NFPA 25 mandates a strict maintenance schedule:

Summary: The Foundation of Freeze Protection

The air compressor is the unsung hero of cold-weather fire protection. It bridges the gap between mechanical engineering and life safety, ensuring that water remains behind the valve until it is actually needed. Professional adherence to NFPA 13 sizing and listing requirements, plus NFPA 25 maintenance schedules, plus the eleven DO NOTs above, is what keeps a dry system both “dry” and ready.
