Dry Fire Sprinkler System
The Complete Guide
How every component works together to protect buildings where water would freeze — from the air compressor to the gong.
What Is a Dry Sprinkler System?

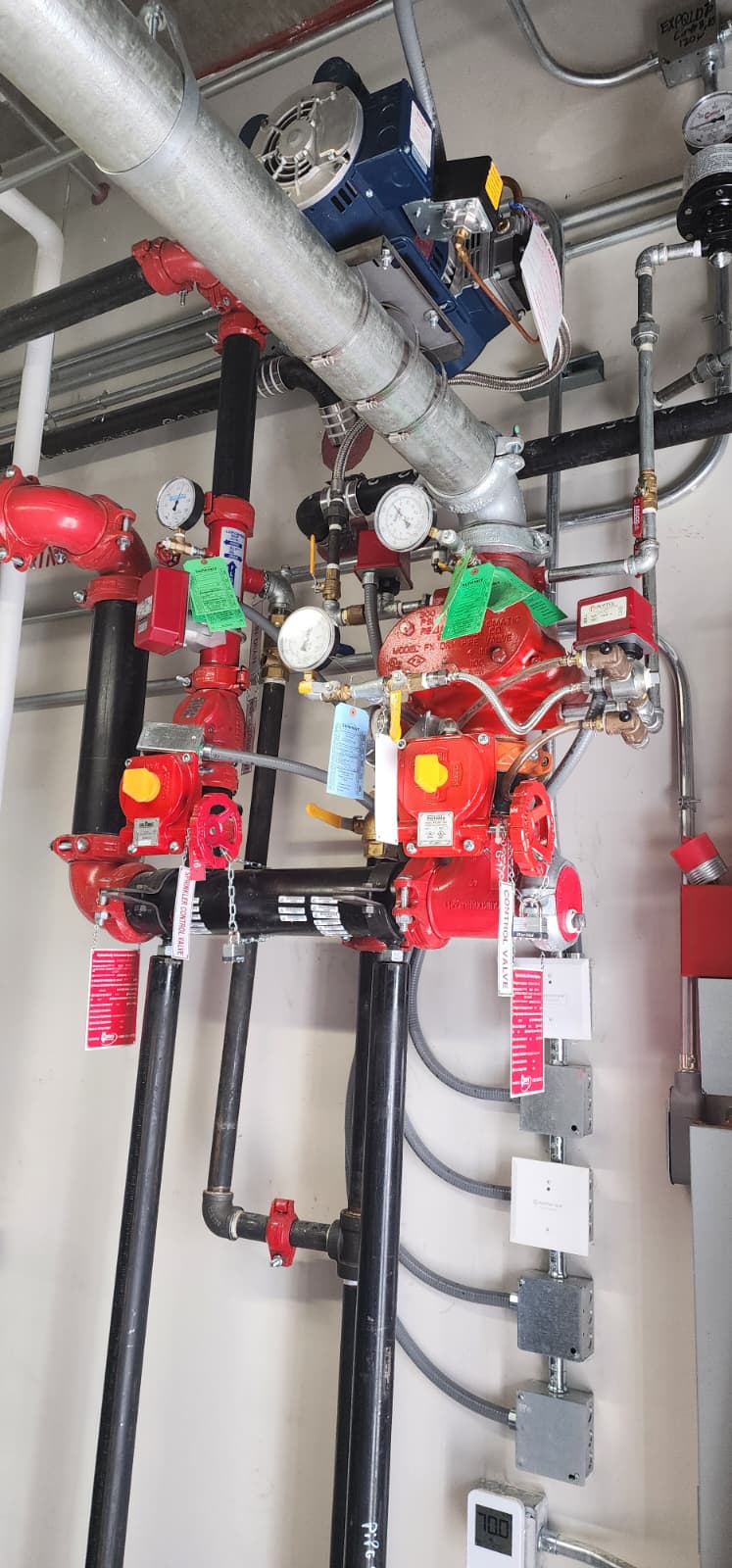

A complete dry pipe valve assembly: wall-mounted air compressor feeding the galvanized system side (top), the differential dry pipe valve with air and water pressure gauges, control valves with tamper switches, pressure switches wired back to the FACP, and the drum-drip drain at the low point.
A dry fire sprinkler system is a water-based fire suppression system designed for environments subject to freezing temperatures — unheated warehouses, parking garages, attics, loading docks, and cold-storage facilities. Unlike a wet system where water sits in the pipes at all times, a dry system fills its piping with pressurized air or nitrogen NFPA 13, §8.2.
The pressurized air holds a dry pipe valve closed, keeping water behind the valve in the heated supply riser. When a sprinkler head activates in a fire, air escapes, the valve trips, and water floods the pipes to suppress the fire. This design eliminates the risk of frozen and burst pipes while maintaining automatic fire protection.
Dry systems account for approximately 20-25% of all sprinkler installations in North America. They are more complex, more expensive, and require more maintenance than wet systems — but in freezing environments, they are the standard solution. Understanding the design constraints, operational sequence, and common failure modes is essential for anyone who inspects, tests, or maintains these systems.
Dry vs. Wet: Key Differences
Step-by-Step Activation Sequence
The activation of a dry system is more complex than a wet system — there are more steps and a critical time delay. Understanding this sequence is essential for inspection, testing, and troubleshooting.
Standby State
Pipes are filled with pressurized air (typically 40 PSI supervisory air pressure). The dry pipe valve clapper is held closed by differential pressure — air pressure on the larger clapper face (system side) mechanically holds back higher water pressure on the smaller face (supply side). A typical ratio is 1:5.5 — so 40 PSI of air holds back 220 PSI of water. The air compressor or nitrogen generator maintains this pressure.
Fire Starts — Head Activates
A fire starts and hot gases rise to the ceiling. When the air temperature around the nearest sprinkler head reaches its rated temperature (e.g., 155°F), the glass bulb shatters or fusible link melts. The head opens and pressurized air begins escaping through the open orifice.
Air Pressure Drops
As air exhausts through the open head, system air pressure falls rapidly. The air compressor cannot keep up with the loss rate. If a quick-opening device (QOD) or accelerator is installed, it senses the pressure drop and opens a port to exhaust air faster, speeding the trip. Without a QOD, air must exhaust naturally through the single open head.
Dry Pipe Valve Trips
When air pressure drops below the trip point (typically 8-15 PSI depending on water supply pressure and differential ratio), water pressure on the supply side overcomes the reduced air pressure and forces the clapper open. The clapper latches in the fully open position via an intermediate chamber or latch mechanism to prevent re-seating during surges.
Water Floods the Piping
Water rushes from the supply riser into the dry piping network, pushing remaining air ahead of it. Water fills the mains first, then cross mains, then branch lines. Air is pushed out through the open sprinkler head(s) and through air vents (if installed on the system). NFPA 13 §8.2.3 requires water to reach the most remote head within 60 seconds.
Water Discharges from Sprinkler Head
Once water reaches the open sprinkler head, it begins discharging onto the fire. The initial discharge may contain a burst of air followed by sputtering water, then full flow. The effective suppression begins when full water flow is established.
Alarms Activate
As water flows past the dry pipe valve, it enters the alarm port. The waterflow switch sends an electronic signal to the building FACP (fire alarm). Water also flows through the alarm line to the water motor gong on the exterior of the building. Central station monitoring is notified. The alarm sequence starts when the valve trips — even before water reaches the sprinkler head.
Key fact: The total time from head activation to water discharge in a dry system is typically 30-60 seconds longer than a wet system. In a fast-growing fire, this delay means the fire is significantly larger before suppression begins — which is why dry systems are only used where freezing makes a wet system impossible.
Every Component — Mapped

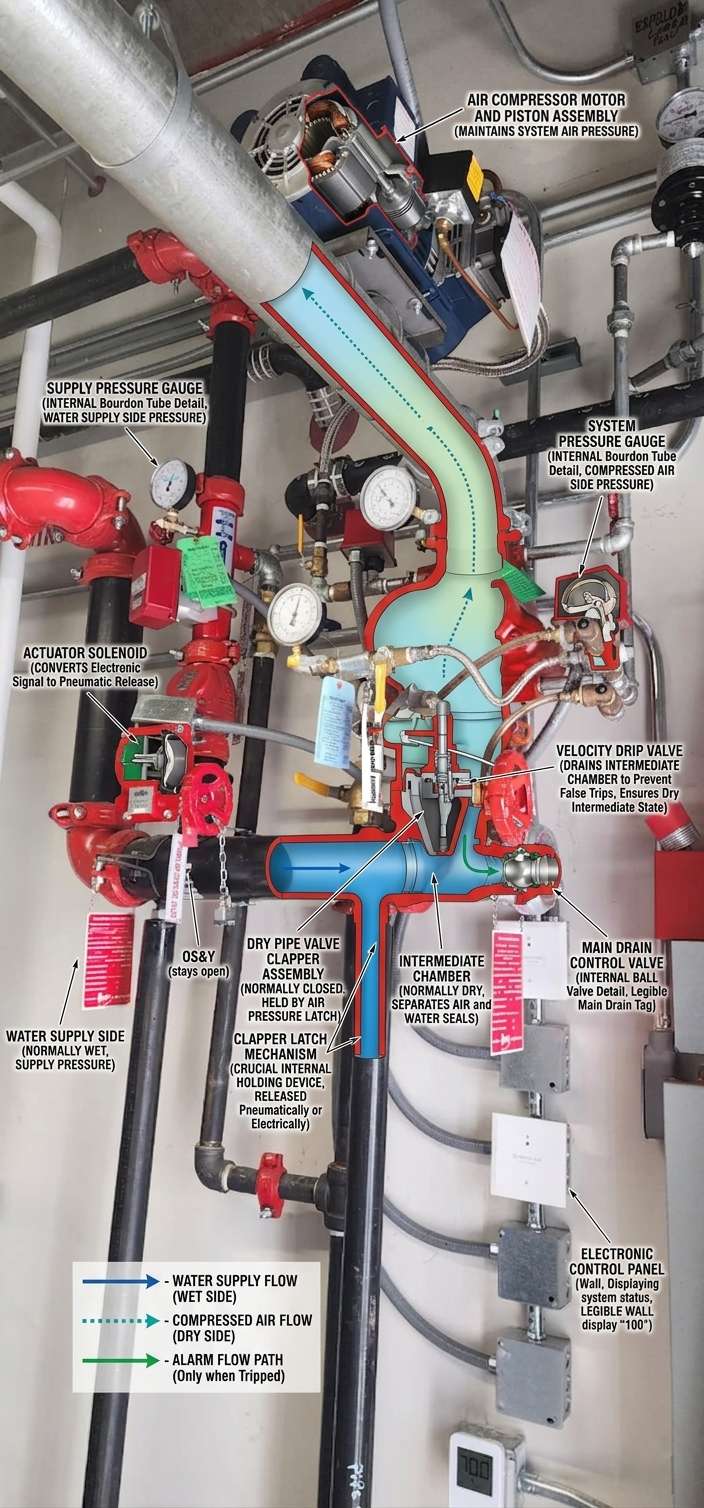

Cutaway of the dry pipe valve assembly. The clapper holds water back on the supply side (red) while compressed air (green) keeps it latched closed on the system side. When a sprinkler opens, air pressure drops, the clapper releases, and water races through the velocity drip valve and system piping to the fire.
A dry sprinkler system is a team of specialized components, each with a critical role. Click any component to read its full deep-dive article:
Also part of the system: Sprinkler heads (pendant, upright, or sidewall), piping network (black iron, with required slope), hangers and supports, FDC (Fire Department Connection), auxiliary drains at all low points, and system risers.
NFPA 13: Design Requirements
Dry systems have additional design constraints beyond those for wet systems. These requirements exist because of the air-water transition, the delivery delay, and the corrosion risk inherent in dry pipe operation.
Inside the Dry Pipe Valve — Differential Pressure Explained

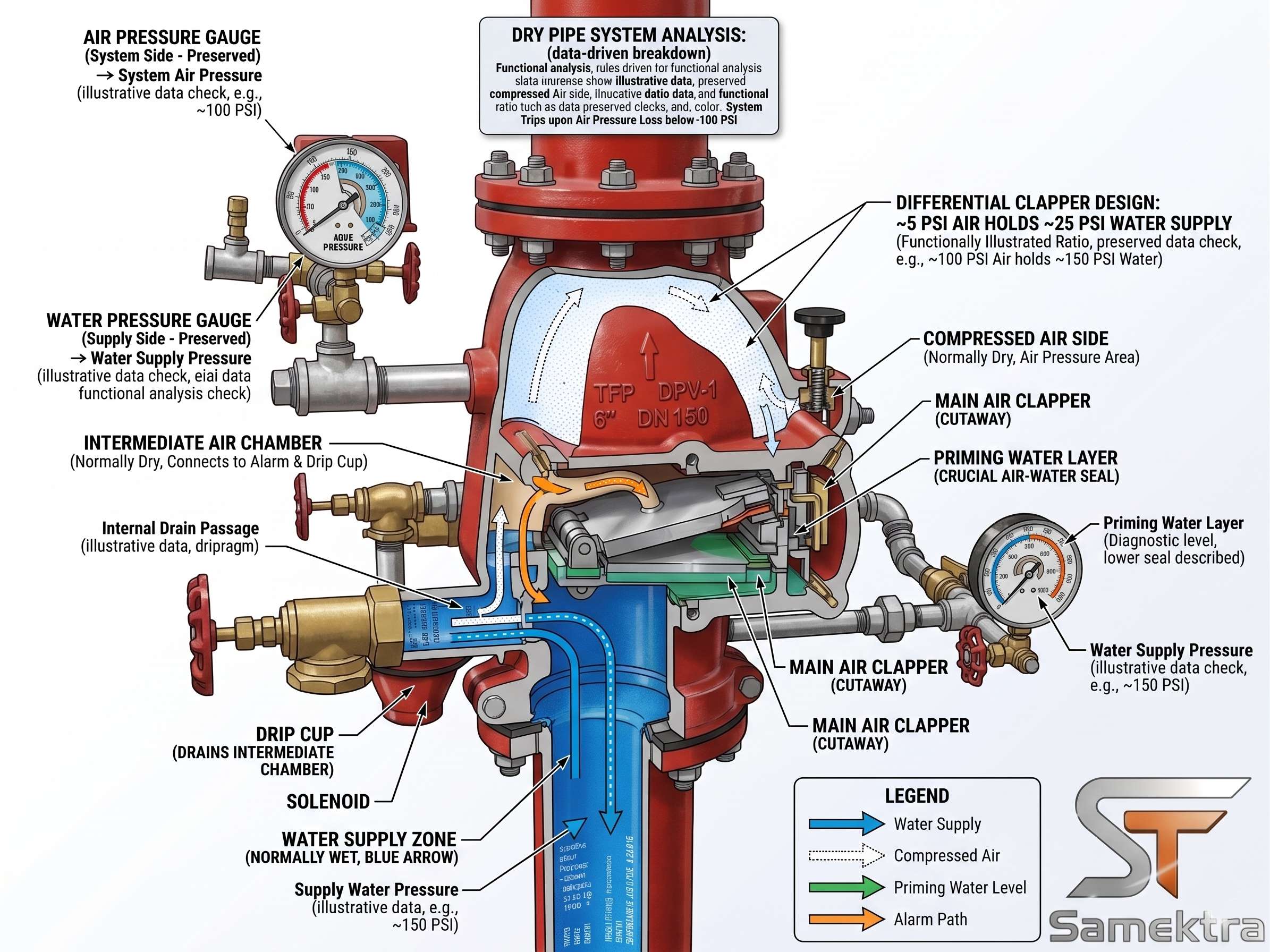

Samektra annotated cutaway — 5:1 differential clapper: ~25 PSI air holds back ~150 PSI water. The priming water layer forms a diagnostic seal between the air side and water side; the intermediate chamber and drip cup detect leaks past the clapper before they flood the system.
The differential clapper design is what lets a small amount of air hold back a large amount of water. The clapper has two faces of different surface areas — the water-side face is much smaller than the air-side face (typically a 5:1 to 6:1 ratio). When you multiply force = pressure × area, ~25 PSI of air pressure on the larger face produces the same closing force as ~150 PSI of water pressure on the smaller face. That mechanical advantage is why you only need a shop-size compressor to supervise an entire sprinkler system.
The priming water layer sitting above the clapper serves two purposes: it seals the air-to-water boundary (preventing slow air migration that would otherwise drop system pressure over time) and it gives the inspector a diagnostic reference — if priming water disappears, the clapper seat is leaking. The intermediate chamber and drip cup downstream of the priming water catch any leakage past the clapper before it can fill the system side, giving a visible early warning without false-tripping the valve.
Nitrogen vs. Compressed Air: The Corrosion Problem
Dry systems face a unique and serious challenge: accelerated internal corrosion. The combination of oxygen (from the compressed air) and residual moisture inside the pipes creates an aggressive corrosion environment that is significantly worse than wet systems. Over time, this produces MIC (Microbiologically Influenced Corrosion), pinhole leaks, and obstructed piping NFPA 25, §14.2.
Compressed Air (The Problem)
- Compressed air is 21% oxygen — the key ingredient for oxidation
- Residual water in pipes creates an oxygen-water-iron interface
- Corrosion rates are 10x higher than in wet systems
- MIC bacteria thrive at the air-water boundary inside pipes
- Pinhole leaks develop within 10-15 years in many systems
- Obstructed piping can reduce flow below design requirements
- Corrosion deposits fill auxiliary drains and block low-point drainage
Nitrogen (The Solution)
- Nitrogen is inert — displaces oxygen inside the piping
- Reduces internal oxygen concentration to below 2%
- Corrosion rates drop by 90% or more with nitrogen inerting
- MIC bacteria cannot survive without oxygen
- Extends system service life by decades
- Nitrogen generators are now cost-effective for retrofit
- NFPA 13 (2022) explicitly recognizes nitrogen as a supervisory gas
- ROI is typically 3-5 years vs. the cost of pipe replacement
Industry Trend
Nitrogen inerting is rapidly becoming the standard of care for dry systems. Insurance carriers (FM Global, Hartford Steam Boiler) increasingly recommend or require it for new installations. Retrofit nitrogen generators can be added to existing systems by connecting to the air maintenance device port — no system redesign required.
Common Problems & Field Deficiencies
Dry systems have more failure modes than wet systems due to their complexity. These are the problems inspectors and technicians encounter most often:
False Trips
The dry pipe valve trips without a head opening. Causes: air compressor failure, air leak exceeding compressor capacity, quick-opening device malfunction, low-air alarm not connected, supervisory pressure set too close to trip point. A false trip floods the system with water that must be completely drained before service is restored.
Slow Water Delivery
Water takes longer than 60 seconds to reach the most remote head during a trip test. Causes: system volume exceeds 750 gallons without QOD, corroded/obstructed piping reducing internal diameter, quick-opening device not functioning, excessive pipe lengths. This is a code violation requiring immediate correction.
Internal Corrosion & MIC
Rust, scale, and biofilm buildup inside pipes — the most destructive long-term problem in dry systems. Causes pinhole leaks, reduced flow capacity, blocked auxiliary drains, and eventual pipe replacement. MIC produces distinctive "tubercles" (rust mounds) and a sulfur-like odor when pipes are opened.
Frozen Auxiliary Drains
Low-point drains (drum drips) freeze solid in winter because they were not drained on schedule, or condensation accumulated faster than expected. A frozen drum drip can crack the valve body or piping. Auxiliary drains in exposed locations may need heat tracing or insulation.
Air Compressor Failure
Compressor cannot maintain supervisory pressure — air leaks exceed capacity, motor fails, intake filter clogged, unloader valve stuck. The system sends a low-air supervisory signal, but if no one responds, pressure can drop to the trip point.
Condensation Buildup
Water collects inside the piping from compressed air condensation and fire department connection back-fill. In freezing conditions, this water forms ice plugs that can block water delivery or crack pipes. Regular draining of all low points is critical.
Accelerator / QOD Malfunction
The quick-opening device sticks open (causes false trips) or sticks closed (delays valve trip). QODs must be included in the trip test and inspected annually. Some manufacturers have issued service bulletins for specific models.
Incorrect Air Pressure
Pressure set too high wastes compressor capacity and delays valve trip time (more air to exhaust). Pressure set too low reduces the safety margin and risks false trips from minor leaks. The correct setting is typically 20 PSI above the calculated trip point.
Improper Pipe Slope
Piping that sags or has insufficient slope toward drains creates water pockets. These pockets cannot be drained, freeze in winter, and accelerate corrosion year-round. Often found in older systems where hanger supports have shifted.
No Obstruction Investigation
NFPA 25 §14.2 requires an obstruction investigation every 5 years (or when triggered by events like broken FDC caps). Many dry systems have never had one. Internal pipe inspection frequently reveals alarming amounts of corrosion, scale, and foreign material.
When to Use a Dry System — and When NOT To
When Dry Systems Are Appropriate
- Unheated warehouses and storage — no reliable heat source to keep pipes above 40°F
- Parking garages — open-air or partially enclosed, exposed to freezing temperatures
- Loading docks — doors open frequently to outside cold air
- Attic spaces — above the heated envelope, no heat supply
- Walk-in freezers — below 0°F; dry pendant sprinklers extend from heated space above
- Exterior canopies and overhangs — fully exposed to weather
- Agricultural buildings — unheated barns, grain storage
- Any space that may drop below 40°F for any period
When NOT to Use a Dry System
- Heated buildings — use a wet system; it is simpler, faster, cheaper, and more reliable
- When heat can be maintained — if you can keep the space above 40°F, do it and use wet pipe
- High-value / water-sensitive areas — consider pre-action (single or double interlock) instead
- Areas needing instant response — the 30-60 second delay is unacceptable for some fast-growing fire hazards
- Highly corrosive environments — the air/moisture cycling makes corrosion worse; nitrogen inerting helps but adds cost
- As a cost-saving measure — never choose dry to avoid antifreeze costs; dry systems are more expensive to install AND maintain
The Antifreeze Alternative Is Gone
Prior to 2022, glycerin-based antifreeze loops were a common alternative to dry systems for small freezing zones (stairwells, vestibules, loading docks). NFPA 13 (2022) banned new antifreeze systems due to fire risk from concentrated glycerin. Existing listed antifreeze solutions at approved concentrations are still permitted for maintenance, but new installations must use dry pipe, pre-action, or heat tracing NFPA 13, §7.6.
NFPA 25: Dry System ITM Schedule
Dry systems have significantly more ITM requirements than wet systems. The additional testing addresses the air supply, dry pipe valve, drainage, and corrosion issues unique to dry pipe operation. Use the NFPA 25 ITM Frequency Table for the complete interactive reference.
Restoring a Dry System After a Trip
After a fire event, a trip test, or a false trip, the dry system must be completely drained and reset. This is a multi-step process that takes significantly longer than resetting a wet system:
Incomplete Drainage = Ice Damage
If the system is not completely drained before repressurizing with air, residual water will collect at low points and freeze. In the best case, this blocks water delivery during the next activation. In the worst case, ice expansion cracks pipes and fittings, requiring expensive repairs with the system out of service. Always verify complete drainage at every drum drip.
▶ Watch: Dry Pipe Fire Sprinkler Systems — How They Work
Source: National Fire Protection Association (NFPA) · Open on YouTube ↗
Frequently Asked Questions
What is a dry sprinkler system?
Why is nitrogen better than compressed air in a dry sprinkler system?
What is the 60-second rule for dry sprinkler systems?
Do dry sprinkler systems activate slower than wet systems?
What is the 3-year internal inspection requirement for dry sprinkler systems?
