Pre-Action Sprinkler System
The Double Interlock

What It Is

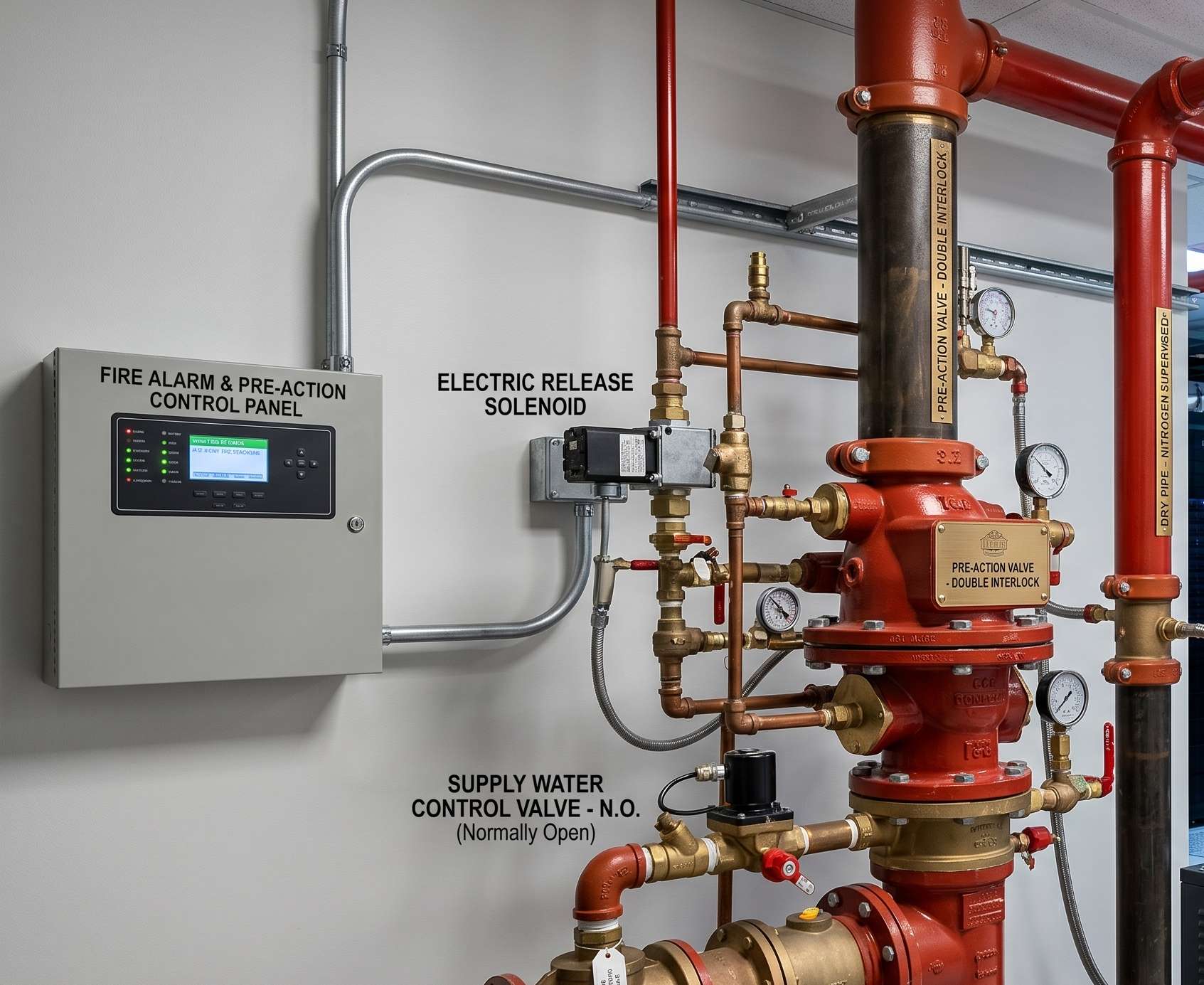

A double-interlock pre-action riser. The FACP releases the electric solenoid on the pre-action valve only after two independent signals: a detector alarm AND a drop in supervisory nitrogen pressure on the sprinkler side.

A pre-action sprinkler system is a dry-pipe arrangement where sprinklers are held closed (as in a dry system), the piping holds supervisory air or nitrogen, and an independent fire detection system must operate before water can enter the pipe. Only after both a detection-device alarm and a sprinkler fuse trigger will water discharge. This double-trigger arrangement makes accidental wetting almost impossible.

The system exists for one reason: the water is more dangerous than you'd think. A burst pipe or a damaged head in a server room, a museum archive, or a refrigerated storage area can ruin irreplaceable contents before anyone notices. Requiring a second, independent signal prevents that.

A Short History — Why They Exist at All

Pre-action valves were developed in the 1950s and early 1960s by Viking, Grinnell, and Globe for applications where conventional wet and dry systems were unacceptable: telephone switching rooms at Bell Labs, early mainframe halls at IBM and Control Data Corp., and industrial freezers at meatpackers like Swift & Co. The engineering brief was simple — “get water to the fire but never to the equipment by accident.”

The design took a leap forward after the 1978 Norfolk Naval Yard computer fire and the 1988 First Interstate Bank fire in Los Angeles, both of which highlighted how discharge from a wet system — even when the system worked correctly — could produce more water damage than the fire itself. By the mid-1990s, NFPA 13 had formalized three distinct pre-action types (non-interlock, single-interlock, double-interlock) and required the 60-second water-delivery test now codified in §8.3.5.3.

The Three Types

Sequence of Operations

For a single-interlock preaction system in a data center:

If the smoke detector alarm is a false trip, the system sits flooded until the maintenance team drains and resets it — but nothing has been damaged by water.

The 60-Second Water-Delivery Rule

The single most important — and least understood — requirement for pre-action systems is NFPA 13 §8.3.5.3: water must reach the most hydraulically remote sprinkler within 60 seconds of the inspector's-test connection being opened. The clock starts the moment the detection circuit trips the valve.

This matters because a pre-action system is essentially a dry system that has been deliberately handicapped with an extra trigger. Every second spent exhausting supervisory gas, traveling through empty piping, and reaching the fire location is a second in which the fire is growing. If the delivery time exceeds 60 seconds, the system is considered non-compliant regardless of how well every other component works.

Nitrogen Supervision — The Quiet Revolution

Pre-action and dry systems have been supervised with compressed air for 70+ years. Starting around 2015, nitrogen generators began appearing on new installations — and the change is more consequential than it sounds. Compressed air from a shop compressor is about 78% nitrogen and 21% oxygen, plus whatever humidity survived the dryer. That oxygen drives microbiologically influenced corrosion (MIC) in the damp low points of the piping: black iron pipe can lose up to 0.05 mm/year of wall thickness under the right conditions, producing pinhole leaks and blocked sprinkler orifices within 10–15 years.

A membrane nitrogen generator brings supervisory gas to 98–99% N₂. FM Global research (Data Sheet 2-0, 2023) puts the corrosion rate at roughly one-fifth of what compressed air produces. For a double-interlock freezer system where a pipe leak could freeze and rupture an entire branch, nitrogen supervision has become the de facto standard on new builds.

Where You'll Find Them

Pre-action systems are niche — roughly 2–3% of all installed sprinkler systems in North America — but they concentrate in very specific occupancies:

Design Gotchas Nobody Warns You About

• Detection zone alignment. The detector spacing NFPA 72 §17 requires is usually tighter than the sprinkler spacing NFPA 13 requires. Running one detector per sprinkler spacing leaves dead zones where heat rises between heads without tripping the valve.
• Low-point drains on every branch. Even with nitrogen supervision, condensate accumulates at every low point. Miss one, and you get a slow-growing water trap that hides corrosion and blocks the 60-second delivery on trip.
• Accelerators vs. quick-opening devices. Accelerators flood the intermediate chamber. QODs dump system air to atmosphere. They are not interchangeable on a double-interlock valve — using the wrong one defeats the air-pressure-loss interlock.
• False-trip testing. NFPA 25 requires a quarterly alarm test but does NOT require a full trip test annually — the partial flow is often sufficient. Facilities commonly over-test, which increases wear on the clapper seat.
• Cross-zoning detection. Many single-interlock jobs use cross-zoned smoke detection (two detectors in alarm on different circuits) to reduce false trips further. This is allowed by NFPA 72 but tightens the detector layout.

Stunning Real-World Applications

Pre-action systems are the fire protection chosen wherever a false discharge would be a different kind of disaster than the fire itself. That's why they end up installed over some of the most valuable, irreplaceable, or one-of-a-kind things humans have ever built. A partial list:
