SYSTEM COMPONENTSNFPA 13 §8.2.6.6DRY SYSTEM

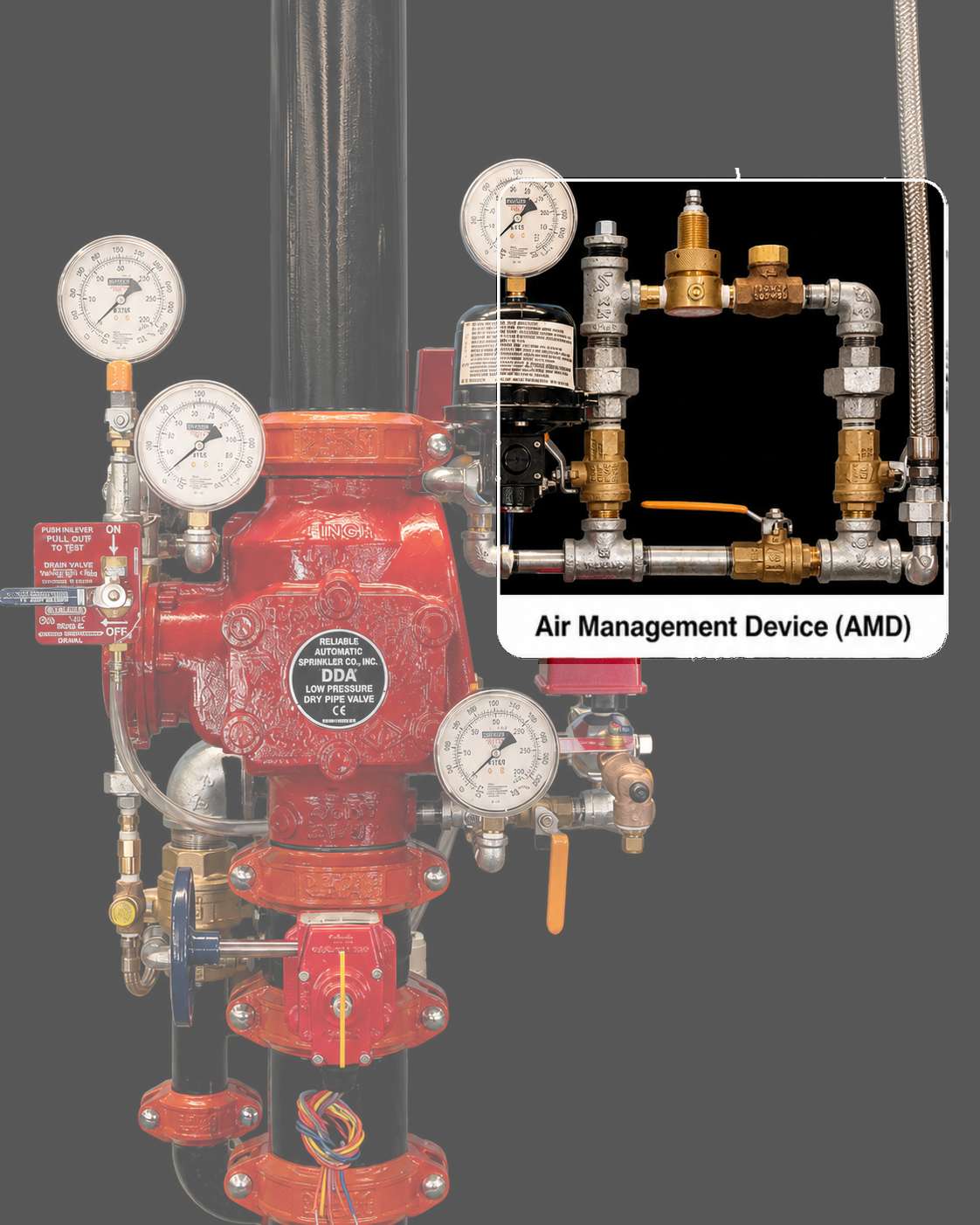

Air Maintenance Device
The Dry-System Traffic Controller

Not an air compressor — but required with most of them. The small inline assembly between the compressor and the dry pipe valve that restricts air flow so a single open sprinkler head can still trip the valve during a fire. NFPA 13 §8.2.6.6 makes it mandatory above 5.5 CFM @ 10 psi. Here's what it does, why it exists, common field failures, and the ONE thing you must never do to it.

By Stanislav Samek, Samektra · 10 min read · Last updated April 17, 2026

It Is Not an Air Compressor

This is the most important distinction to get right: the Air Maintenance Device (AMD) is not the air compressor, and the air compressor is not the AMD. They are two separate components that work together on a dry pipe sprinkler system, and inspection reports that list them as separate line items are correct to do so.

Air Compressor

Electric motor + compressor head that MAKES compressed air. Typically delivers 80–125 psi to a tank. UL 1450 Supplement SC listed per NFPA 13 2025. Covered in detail in the Air Compressor article.

Air Maintenance Device (this article)

Inline assembly INSTALLED BETWEEN the compressor and the dry pipe valve. Restricts flow rate and reduces pressure. UL 1821 listed. Mandatory above 5.5 CFM @ 10 psi compressor capacity per NFPA 13 §8.2.6.6.

What the AMD Actually Does

The AMD has two simultaneous jobs, both critical to dry-system operation:

1. Pressure reduction

The compressor delivers ~80–125 psi to its receiver tank. The dry pipe valve needs supervisory pressure of roughly 30–45 psi (set approximately 20 psi above the valve's calculated trip pressure). The AMD contains a pressure-reducing valve that drops the compressor output to this supervisory level.

2. Flow restriction

This is the safety-critical function. Without restriction, a properly-sized compressor could supply air fast enough to keep up with the air loss from a single opened sprinkler head — meaning the dry pipe valve would never trip during a small fire, and water would never reach the fire. The AMD's fixed restrictor orifice throttles the feed rate to a level that:

  • CAN maintain supervisory pressure against small leaks (valve packing, air-escape fittings, supervisory switches — typical 1–2 CFM total leak rate on a healthy system)
  • CANNOT keep up with an opened sprinkler head (~15+ CFM discharge at system pressure)

This difference is what preserves the dry pipe valve's trip function regardless of how large the compressor is.

The 5.5 CFM @ 10 PSI Threshold

Per NFPA 13 §8.2.6.6: an AMD is required whenever compressor capacity exceeds 5.5 CFM at 10 psi. Below that threshold, the compressor is physically incapable of keeping up with a single opened sprinkler, and no flow restriction is needed. Above the threshold, the AMD's restrictor enforces the trip behavior.

💡 Why exactly 5.5 CFM?

A single open sprinkler head discharges air at roughly 10–15 CFM at typical system supervisory pressures. 5.5 CFM is comfortably below that rate, so a compressor limited to 5.5 CFM cannot outrun a single opening sprinkler — the dry pipe valve's trip is guaranteed by physics, not by a device. Above 5.5 CFM, the margin is gone and the AMD is needed to restore it via flow restriction.

NFPA 13 §8.2.8.2 provides an alternative: a listed restricted-orifice assembly (the restrictor as an independent component rather than an integrated AMD). Functionally equivalent, code-compliant, but less common in modern installations.

What's Inside an AMD Assembly

Inlet shut-off valve

Isolates the AMD from the compressor for service. Typically a ¼-turn ball valve.

Strainer

Removes debris from the compressor supply before it reaches the PRV and restrictor. Clean during annual service.

Pressure-reducing valve (PRV)

Drops the compressor's 80–125 psi output to the system's 30–45 psi supervisory pressure. Adjustable setting.

Fixed restrictor orifice

The core flow-throttling element. Sized per the manufacturer's listing. Do NOT drill out or modify.

Check valve

Prevents system air from backing up into the compressor when the compressor cycles off. Essential for stable pressure.

Outlet shut-off valve

Isolates the AMD from the dry pipe valve for service. Normally open.

Gauges (2)

Supply-side (post-PRV) and system-side (post-restrictor) pressure. Comparison confirms AMD is working.

Bypass line (optional)

Larger parallel valve, normally CLOSED, for fast fill during service. Return to closed before returning system to service.

Common Failure Modes

Permanent bypass plumbed around AMD

The #1 field finding. "Fixes" slow fill times after trip tests but defeats the flow-restriction safety function. Code violation and life-safety concern.

PRV setpoint drift

Over years, the pressure-reducing valve spring loses calibration. Supervisory pressure drifts high (excessive compressor run time) or low (false trips). Caught at annual verification.

Check valve leak-back

System air bleeds back through the AMD to the compressor when the compressor is off. Compressor short-cycles. Replace check valve.

Strainer clogged

Debris accumulation from compressor wear or new-install commissioning dust. Restricts flow to below design. Fill-time increases. Clean or replace strainer.

Restrictor orifice drilled out

Someone "enlarged the hole" to speed up fill times. Destroys the listed flow characteristic. Replace the entire AMD — the orifice is not a field-adjustable part.

Bypass valve left open

After service, technician forgets to close the manual bypass. System still works at supervisory pressure but flow restriction is gone. Check bypass valve position quarterly.

Isolation valves closed

Inlet or outlet shut-off valve closed during service and never reopened. Compressor cannot feed the system; pressure drops over hours until dry pipe valve trips unnecessarily.

Gauge pair mismatch

Supply-side gauge reads expected pressure but system-side reads unexpected value — AMD is not reducing properly, restrictor is plugged or damaged. Primary diagnostic indicator.

🚫 DO NOT — The Cardinal Rule

Do not do any of the following

  1. Do NOT plumb a permanent bypass around the AMD. The built-in bypass valve is for temporary manual use during service only.
  2. Do NOT drill out, file, or otherwise modify the restrictor orifice. It is a LISTED component sized for the AMD's listing.
  3. Do NOT substitute a generic shop-type pressure regulator for a listed AMD. NFPA 13 §8.2.6.6 specifies LISTED air maintenance device.
  4. Do NOT “tune” the PRV setpoint to speed up fill times. Adjust only to achieve the correct supervisory pressure.
  5. Do NOT leave the bypass valve open after service. Verify position before returning the system to service.
  6. Do NOT assume “no AMD” is correct just because the system has always been that way. Many older installations were grandfathered or installed with out-of-code compressor sizing. Verify against NFPA 13 §8.2.6.6 at annual inspection.

NFPA 25 ITM Schedule

QuarterlyVerify AMD is delivering correct supervisory pressure; compare supply-side and system-side gauges; check all valves are in normal service position; confirm no unauthorized bypass plumbing.§13.5
AnnualTrip-test coordination — observe AMD fill rate during the annual dry pipe valve trip test. Clean strainer. Verify PRV setpoint against commissioning baseline. Document pressure readings.§13.5 / §13.4.4.2
5-YearRebuild or replace internal components: PRV seat, check valve, strainer, restrictor (if an AMD with replaceable orifice) per manufacturer's service schedule.Manufacturer
After any maintenanceVerify bypass valve closed, inlet and outlet shut-off valves open, and supervisory pressure restored before returning system to service.Best practice

AMD on Inspection Reports

Inspection reports that list the AMD as a separate line item from the air compressor are correct to do so — they're inspecting distinct components. When you see “AMD: Pass” or “Air Maintenance Device: Deficient” on a report, the inspector is referring to the inline assembly between the compressor and the dry pipe valve, NOT the compressor itself.

Typical AMD-specific findings on reports: unauthorized bypass, incorrect supervisory pressure, gauge mismatch indicating restriction failure, closed isolation valve, or missing AMD on an oversized compressor. Any of these requires service; none are normal wear-and-tear.

For the related compressor content, see the Air Compressor article. For the dry pipe valve the AMD supplies, see the Dry Pipe Valve article.

▶ Watch: Air Maintenance Device — field walkthrough

Source: Field demonstration · Open on YouTube ↗

Frequently Asked Questions

Is an Air Maintenance Device the same as an air compressor?
No — they are different components that work together on dry pipe systems. The air compressor is the motor-driven machine that MAKES compressed air (typically delivering 80–125 psi to a tank). The Air Maintenance Device (AMD) is a separate inline assembly installed BETWEEN the compressor and the sprinkler piping. The AMD contains a flow restrictor, typically a pressure-reducing valve, a check valve, gauges, and isolation valves. Its job is to throttle the compressor's feed rate INTO the sprinkler piping so a single open sprinkler can still cause the dry pipe valve to trip during a fire. Report entries sometimes list "AMD" as a separate line item — it is not the compressor itself.
When is an AMD required by NFPA 13?
Per NFPA 13 §8.2.6.6: an air maintenance device (or a listed restricted-orifice assembly per §8.2.8.2) is REQUIRED whenever the compressor's capacity exceeds 5.5 CFM at 10 psi. This threshold was chosen so that below it, the compressor physically cannot outrun a single opening sprinkler head — no AMD needed. Above it, the compressor could supply air faster than a single open sprinkler discharges it, preventing the dry pipe valve from ever tripping during a small fire. The AMD's restrictor orifice enforces the trip behavior regardless of compressor size.
What components are inside an AMD assembly?
Typical AMD components: (1) Inlet shut-off valve — isolates the AMD for service. (2) Strainer — removes debris from the compressor supply. (3) Pressure-reducing valve — drops the compressor's 80–125 psi output to the system's 30–45 psi supervisory pressure. (4) Fixed restrictor orifice — the core throttling element that limits flow rate. (5) Check valve — prevents system air from backing up into the compressor when the compressor cycles off. (6) Outlet shut-off valve — isolates the AMD from the dry pipe valve for service. (7) Gauges — supply-side (compressor output) and system-side (after reduction and restriction) for diagnostic comparison. (8) Optional bypass — a second parallel line with a larger valve, normally closed, used for fast fill after a trip test or maintenance.
Why is bypassing the AMD so dangerous?
Because it defeats the one device that makes a large compressor safe for the system. Without the AMD's flow restriction: (1) When a sprinkler head opens during a fire, the compressor can potentially supply air faster than the sprinkler discharges it — the dry pipe valve never trips, water never reaches the fire. (2) Small system leaks that should be detectable by rising compressor run-time get masked because the oversized air supply easily keeps up. (3) The rapid pressure restoration after any event creates water-hammer conditions on the downstream piping. The most common reason AMDs get bypassed is impatience with slow fill times after a trip test — a 6-minute bypass fill vs an 18-minute code-compliant fill. The bypass valve on the AMD itself is designed for temporary manual use during service; a permanent plumbed bypass around the AMD is a code violation and a life-safety concern.
What supervisory pressure should the AMD deliver to the dry pipe system?
Typically 30–45 psi, set approximately 20 psi above the calculated trip pressure of the dry pipe valve. The exact setting depends on: (a) the valve's differential ratio (typically 1:5.5 on most manufacturers), (b) the highest normal water supply pressure, (c) the trip pressure derived from those two (~10 psi air ≈ 55 psi water trip, for a 1:5.5 valve). Too low: the valve trips on normal supply fluctuations → false trips and wet piping in freezing space. Too high: excessive compressor run time, unnecessary component wear, and extended fill times after service. Per NFPA 25 §13.5, the AMD's pressure setting should be verified annually and compared to previous readings — drift is a common finding.
How do I inspect an AMD during NFPA 25 ITM?
Per NFPA 25 §13.5: quarterly verify the pressure-reducing setting matches the system supervisory target; annually verify the AMD is delivering supervisory pressure and not bypassed or modified. During the annual dry pipe valve trip test, observe the AMD's fill rate behavior — a fill-time significantly faster than original commissioning suggests the AMD restrictor has been compromised. Check the AMD's inlet and outlet shut-off valves are in normal service position (typically both open, bypass closed). Replace internal components (PRV seat, check valve, strainer) at 5-year or as indicated by performance issues.
Can I use a regular pressure-reducing valve instead of a listed AMD?
No. NFPA 13 §8.2.6.6 requires a LISTED air maintenance device. The listing (commonly UL 1821) evaluates the combined PRV + restrictor + check valve assembly for fire-protection service, including the specific flow-restriction characteristics needed to preserve dry pipe valve trip behavior. A generic shop-type pressure regulator does not provide the restricted-orifice flow limitation and will not satisfy §8.2.6.6. As an alternative, NFPA 13 §8.2.8.2 allows a listed restricted-orifice assembly where the restrictor is an independent component — but both paths require listed hardware, not improvised plumbing.

References

1. NFPA 13 (2022): Standard for the Installation of Sprinkler Systems, §8.2.6.6 (air maintenance device requirement at 5.5 CFM @ 10 psi threshold), §8.2.6.6.1 (listed restriction + bypass requirement), §8.2.8.2 (listed restricted-orifice assembly alternative).

2. NFPA 25 (2023): Standard for ITM of Water-Based Fire Protection Systems, §13.4.4 (dry system air supply) and §13.5 (air maintenance device inspection).

3. UL 1821: Standard for Fire Protection Service Air Maintenance Devices.

4. General Air Products: AMD product family + installation guides.

5. QRFS: Air Maintenance Devices — The Basics.

6. QRFS: Guide to Dry Sprinkler Systems Part 4 — Air Compressor & AMD Installation.
