5-Year Standpipe Flow Test
Proving the System Under Real Conditions
Every five years, NFPA 25 requires a full-flow test of your standpipe system to verify it can actually deliver the water pressure and volume firefighters need at the most remote hose connection.
What Is the 5-Year Standpipe Flow Test?
The 5-year standpipe flow test is an NFPA 25 requirement to verify that a standpipe system can deliver its design flow rate at the required pressure to the hydraulically most remote hose connection. Unlike quarterly inspections that check components visually or annual exercises that simply open valves, the 5-year flow test puts real water through the system at real flow rates and measures whether the system actually works as designed NFPA 25, §6.3.1.
For firefighters, the standpipe is the water supply above the ground floor in high-rise buildings, large single-story warehouses, and mall complexes. If the standpipe cannot deliver 500 GPM at 100 PSI to the top floor, the fire department's interior attack is compromised. The 5-year flow test is the only test that proves the full system — from water supply through the fire pump, up the riser, through pressure-reducing valves, and out the most remote hose connection — can deliver under real conditions.
When Is It Required?
Flow Test (All Automatic Standpipes)
Every 5 years, automatic wet and automatic dry standpipe systems must be flow-tested at the hydraulically most remote hose connection §6.3.1.
This applies to: Class I systems in high-rises, Class III systems in older buildings, standpipes in malls, parking structures with standpipes, and any building with automatic standpipe protection.
Hydrostatic Test (Manual & Semi-Auto Dry)
Every 5 years, manual-dry and semi-automatic dry standpipes must undergo a hydrostatic pressure test at 200 PSI (or 50 PSI above normal working pressure, whichever is greater) for 2 hours §6.3.3.
This proves the piping integrity — no leaks in piping that normally sits empty and dry. Leaks are common at threaded joints, grooved couplings, and branch connections that corrode internally from moisture.
Performance Requirements
The standpipe system must meet the design criteria from NFPA 14 at the time of installation. The flow test must demonstrate these minimums at the hydraulically most remote hose connection:
Why 100 PSI Matters
A fire attack nozzle operating at 100 PSI through 200 feet of 2½-inch fire hose delivers an effective stream with reach, penetration, and volume. Drop the nozzle pressure to 50 PSI and the stream breaks apart — it cannot reach the ceiling, cannot push through convective heat, and cannot protect the nozzle team. In a high-rise fire, inadequate standpipe pressure is a life-safety crisis for both occupants and firefighters.
How the 5-Year Flow Test Is Performed
Testing Methods — How the Flow Is Measured
NFPA 25 §6.3.1 requires proving the system delivers design flow at design pressure at the most remote hose connection — but it does not mandate a single specific method. The standard requires calibrated measuring equipment and that the test be conducted at the hydraulically most remote outlet. Here are the accepted methods:
Hose & Pitot Gauge (Most Common)
Attach fire hose to the 2½-inch hose valve on the top floor, run it to an approved discharge point (exterior through a window, down the stairwell, or to a roof drain), and measure flow at the hose discharge using a Pitot tube and nozzle. The Pitot gauge reading plus the known nozzle coefficient gives GPM. Simultaneously, a gauge at the hose valve outlet reads residual pressure. This is the most traditional method and is widely accepted by AHJs.
Simple equipment, well-understood by fire departments, works on any building.
Requires a safe discharge point for large volumes of water (500+ GPM). Hose friction loss must be accounted for if measuring pressure at the nozzle end rather than the valve outlet. Water management on upper floors can be messy.
Inline Flow Meter
A calibrated inline flow meter (electromagnetic, ultrasonic, or mechanical) is installed temporarily at the hose connection outlet or in the test piping. The meter reads flow directly in GPM while a pressure gauge at the outlet reads residual pressure. No Pitot gauge or nozzle coefficient calculation needed.
Most accurate method. Direct GPM reading without calculations. No large hose runs needed if the water can be discharged nearby.
Flow meters are expensive equipment. Must be calibrated and properly sized for the expected flow range. Requires compatible fittings.
Fire Pump Test Header
If the building has a fire pump with a test header, the pump can be flow-tested through the header while monitoring pressure at the most remote hose connection simultaneously. This tests the pump and standpipe together but requires two crews — one at the pump room and one at the top floor.
Tests pump and standpipe as an integrated system. Water discharges at ground level through the test header — no upper-floor water management.
Only works if the building has a fire pump with a test header. Does not directly flow water through the most remote hose valve (pressure is read but flow is measured at the header). Some AHJs do not accept this as a standalone method.

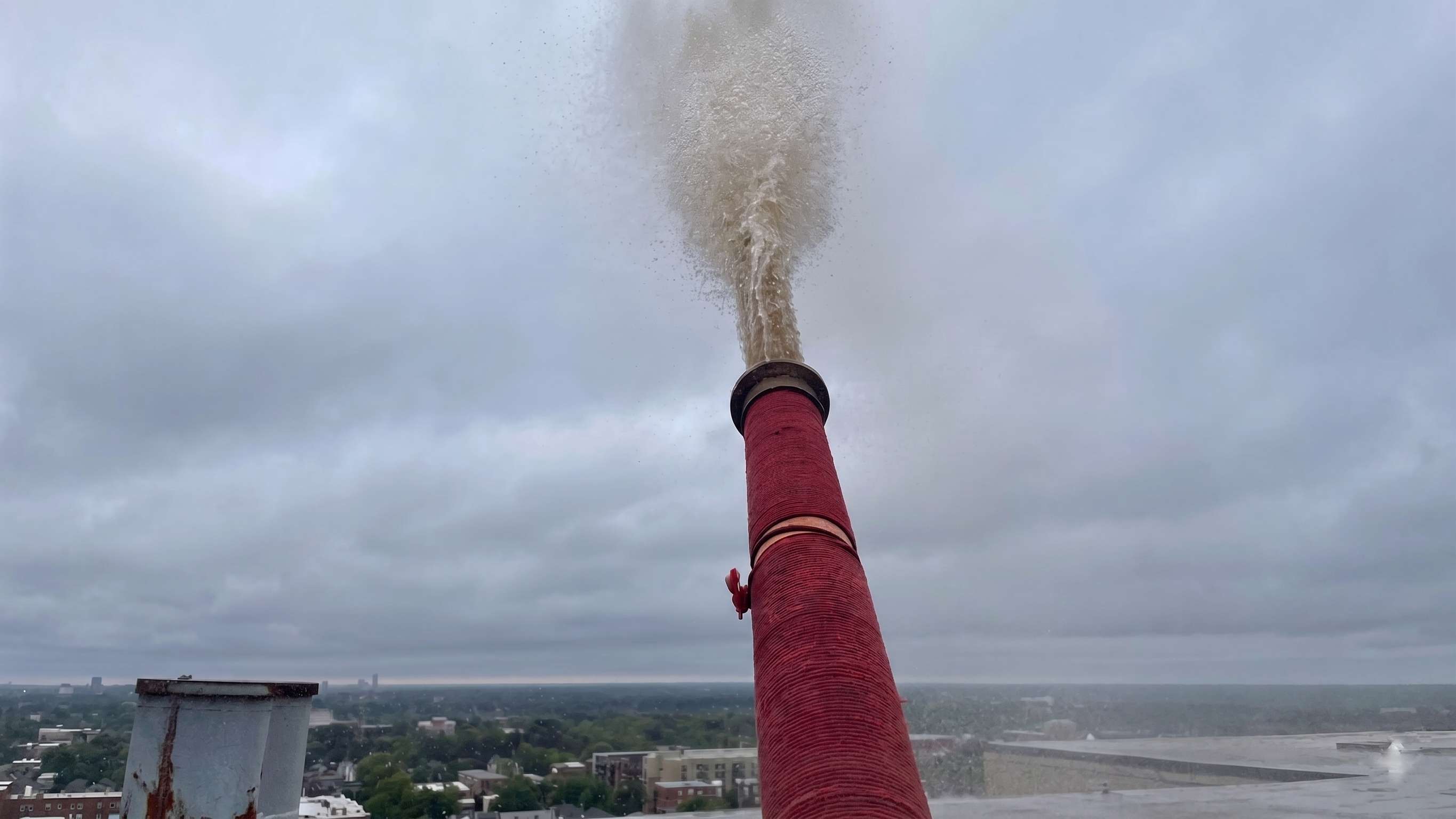

Roof Manifold / Test Connection
Some newer buildings are designed with a dedicated test connection or roof manifold specifically for the 5-year flow test. Water flows from the most remote hose connection through a short hose to the manifold, which discharges to a roof drain or exterior downspout. A flow meter or Pitot gauge measures at the manifold.
Cleanest method — designed into the building. Minimal water damage risk. Fast setup.
Only available if the building was designed with it. Rare in older construction. Must verify the test connection piping does not add significant friction loss.

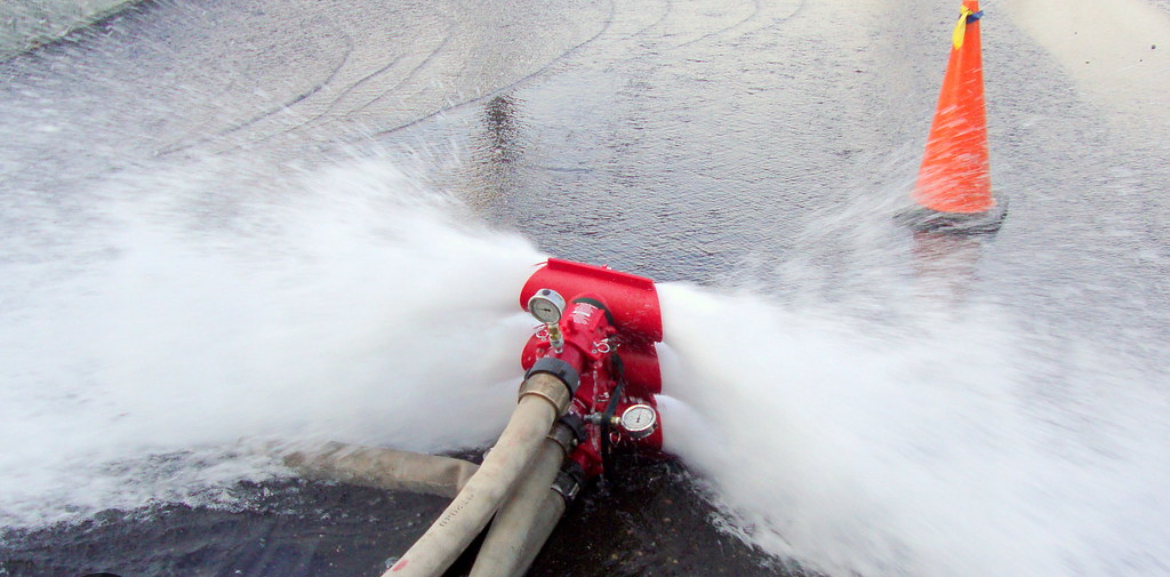

What About "Hose Monster" and Large Diameter Hose (LDH)?
Some contractors use large diameter hose (LDH) — 4-inch or 5-inch supply hose — to minimize friction loss in the test hose itself. At 500 GPM through 200 feet of 2½-inch hose, friction loss is approximately 50 PSI — that is pressure lost in the test hose, not in the standpipe. Using 4-inch or 5-inch LDH cuts that loss to under 10 PSI, giving a more accurate reading of the standpipe's actual delivery pressure. NFPA 25 does not require a specific hose size, but using undersized hose can make a passing system appear to fail because the friction loss is in the test equipment, not the building piping. The key is to measure residual pressure at the hose valve outlet (before the test hose), not at the nozzle end — this eliminates test-hose friction from the measurement entirely.
⚠ AHJ Acceptance Varies
Different Authorities Having Jurisdiction (AHJs) may prefer or require specific methods. Some fire departments want to see the test performed with their own equipment. Some insurers (FM Global, Hartford) have their own testing protocols. Always confirm the acceptable method with your AHJ before scheduling the test. Showing up with the wrong equipment on test day wastes everyone's time and money.
Pressure-Reducing Valves (PRVs) — The Hidden Failure Point
In buildings taller than approximately 7–8 stories, the standpipe pressure at lower floors can exceed 175 PSI — too high for firefighter hand-held hose lines. NFPA 14 requires pressure-reducing valves (PRVs) at these connections to limit outlet pressure to a safe, usable range (typically 100–125 PSI) NFPA 14, §7.2.3.
PRVs are the number one failure point in 5-year standpipe flow tests. Here is why:
Diaphragm Deterioration
The rubber diaphragm inside the PRV controls the outlet pressure. Over time, the diaphragm hardens, cracks, or develops creep. A deteriorated diaphragm cannot maintain the set pressure under flow — the outlet pressure drops far below the setting, sometimes to 40-50 PSI.
Spring Fatigue
The adjusting spring that sets the outlet pressure loses tension over years of constant load. Spring fatigue causes the set point to drift downward — a PRV set at 100 PSI may deliver only 75 PSI after 8-10 years without recalibration.
Sediment and Scale Buildup
Rust, scale, and sediment from aging standpipe piping accumulates inside the PRV body. Buildup restricts the waterway and changes the flow characteristics — the PRV may deliver correct pressure at low flow but drop dramatically at full 500-GPM flow.
Incorrect Settings After Maintenance
PRVs are sometimes adjusted or replaced during repairs and set incorrectly. A PRV set too low starves the nozzle team. A PRV set too high delivers dangerously high pressure that can injure firefighters and burst hose couplings. The only way to verify is the flow test.
⚠ PRV Testing Is Required Annually AND at 5 Years
NFPA 25 §6.3.1.1 requires annual full-flow testing of each PRV to verify outlet pressure at design flow. The 5-year flow test adds the dimension of testing the entire system simultaneously — pump, piping, and PRVs under full-system demand. A PRV that passes its individual annual test may still contribute to system failure during the 5-year test because the combined friction loss and pump performance under full flow changes the inlet pressure at each PRV.
Common 5-Year Standpipe Flow Test Failures
Inadequate Pressure at Top Floor
CriticalThe most common failure. Friction loss through aged piping, partially closed valves, or pump degradation results in pressure below 100 PSI at the top-floor hose connection. Root cause is usually a combination of factors — no single issue but cumulative system aging.
PRV Outlet Too Low
CriticalPRVs delivering 40-60 PSI instead of the designed 100 PSI. Diaphragm deterioration and spring fatigue are the typical causes. Every PRV in the building must be tested individually AND as part of the system flow test.
Fire Pump Cannot Deliver Design Flow
CriticalThe fire pump has degraded since installation — impeller wear, bearing issues, or internal clearance loss means it can no longer produce rated pressure at rated flow. Revealed when the 5-year test demands full system flow that the pump cannot support.
Partially Closed Valve Somewhere in the System
HighAn OS&Y or butterfly valve that is 80% open looks normal on a visual inspection. But at 500 GPM, a 20% obstruction creates massive friction loss. The 5-year flow test exposes hidden partially closed valves that visual inspections miss.
Pipe Obstruction or Tuberculation
HighInternal pipe corrosion narrows the effective pipe diameter. A 6-inch standpipe riser with heavy tuberculation may have the effective flow area of a 4-inch pipe. Low flow: no problem. Full 500-GPM flow: catastrophic pressure drop.
FDC Check Valve Failure
Medium-HighIf the test involves flowing through the FDC (required for systems that depend on FDC supplementation), a stuck or leaking FDC check valve can prevent adequate pressure from reaching the system. Check valves corrode because the FDC is exposed to weather.
Things You Might Not Know
The Test Can Cost $5,000–$25,000+
A 5-year standpipe flow test on a 20-story building requires a crew of 3-4 technicians for a full day, calibrated test equipment, fire department coordination, water utility permits, and sometimes hose runs from upper floors to exterior discharge points. For large campuses with multiple risers, budgets can reach $25,000+. This is why some building owners skip it — until the AHJ or insurer catches them.
You Cannot Test From the FDC Alone
The flow test must be performed at the hydraulically most remote hose connection — the outlet that is farthest from the water supply and highest in the building. Testing at the FDC only proves the FDC connection works, not that the entire system delivers. The fire department pumps through the FDC during a fire; the flow test simulates what happens when they open the hose valve upstairs.
Manual-Dry Standpipes Get a Hydrostatic Test Instead
Manual-dry and semi-automatic dry standpipes are not flow-tested (they have no permanent water supply). Instead, they are hydrostatically tested at 200 PSI (or 50 PSI above normal working pressure) for 2 hours per NFPA 25 §6.3.3. This pressure test finds leaks in joints, couplings, and corroded pipe sections.
New York City Tests Every 5 Years AND After Every Fire
NYC Local Law 26 requires standpipe flow testing every 5 years, plus a re-test after any fire event where the standpipe was used. NYC also requires a licensed master fire suppression piping contractor to perform the test — not just any sprinkler company. Several other major cities have similar enhanced requirements.
PRVs Are the Most Common Reason Buildings Fail
In buildings with pressure-reducing valves, over 60% of 5-year flow test failures are PRV-related. The PRV diaphragm is a rubber component under constant pressure — it was never designed to last forever. Many PRV manufacturers recommend a 5-year rebuild cycle that coincides with the NFPA 25 flow test. Replacing the diaphragm and spring proactively is far cheaper than failing the flow test.
The Fire Department Cannot Fix a Bad Standpipe
If the standpipe system cannot deliver 100 PSI at the top floor, the fire department cannot compensate by pumping harder through the FDC. The FDC feeds into the same system — friction loss, PRV problems, and pipe obstructions still limit what reaches the hose connection. The only fix is correcting the underlying system problem. The 5-year flow test finds these problems when there is still time to fix them.
▶ Watch: 5-Year Standpipe Flow Test
Source: What The Fire Code · Open on YouTube ↗
References
1. NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems, 2023 Edition, Chapter 6.
2. NFPA 14: Standard for the Installation of Standpipe and Hose Systems, 2024 Edition.
3. NFPA 20: Standard for the Installation of Stationary Pumps for Fire Protection, 2022 Edition.
4. FM Global Data Sheet 3-0: Hydraulics of Fire Protection Systems.
