Hose Connections & Standpipes
Manual Attack

The manual-attack half of a building's fire protection. Three classes, six types, two FDCs (if high-rise), and a 500-gpm-at-100-psi number that every firefighter checks before going upstairs. Here's what the three classes actually mean, why there are six types (not four), the pre-1993 vs post-1993 pressure split that matters for older buildings, and why pressure-regulating valves drift silently until the 5-year flow test catches them.

By Stanislav Samek, Samektra · 14 min read · Last updated April 17, 2026

The Three Classes

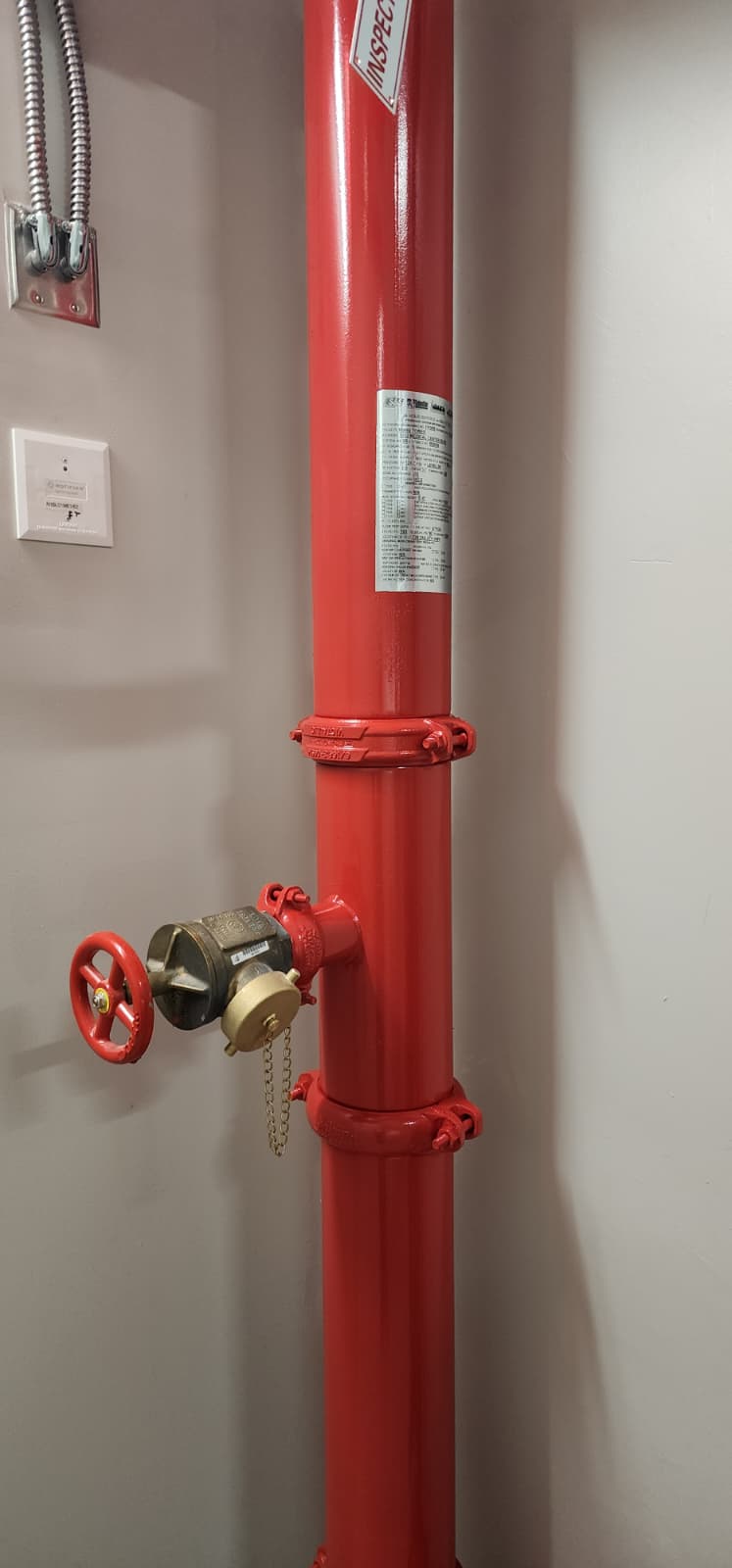

A 2½-inch Class I hose connection on a building standpipe riser — brass hose valve body with red handwheel and chained cap, red-painted riser with visible grooved couplings and the manufacturer/FM label above.

Class I

Fire department only

2½-inch hose valves at each floor for use by trained firefighters. No hose is stored on the building side — fire department brings their own. Minimum 500 gpm at 100 psi residual at the topmost outlet.

Class II

Occupants (where approved)

1½-inch hose valves with occupant-use hose in a cabinet. Intended for incipient-fire attack by trained building occupants. Largely being phased out of new construction — studies showed untrained occupants rarely used them effectively.

Class III

Either

Both 2½-inch and 1½-inch connections. Combination system — firefighter and occupant use at each location. Common in older buildings and public assembly occupancies.

BONUS VIDEO

▶ Standpipe field operation — second angle

Additional field demonstration showing hose valve operation and typical standpipe connection. Watch for the mechanical opening of the handwheel, the gasket seat at the coupling, and the pressure response.

The Six Types of Standpipe Systems

Class (I/II/III) tells you who uses it. Type tells you how it delivers water. Per NFPA 14 §7.3 and the NFSA ITM reference Source 4, there are six distinct types:

Automatic Wet

Permanent water supply. Pipe is always full of water. Opening the hose valve immediately delivers water at system pressure. Most common type in modern fully-sprinklered buildings.

Automatic Dry

Permanent water supply. Pipe contains air or nitrogen under pressure. Opening the hose valve releases the air, which automatically admits water to the system. Common in cold climates where the standpipe can't be kept wet.

Semi-Automatic Dry

Pressurized air/nitrogen with a deluge valve controlling water admission. Requires a remote-control device to admit water — typically a pull station or electric actuation at each hose connection.

Manual Wet

Pipe contains water (often shared with a combined sprinkler system) but the standpipe demand itself relies entirely on the fire department pumping through the FDC. Sprinklers get one pressure regime; the standpipe hose outlet only works when an engine is on scene.

Manual Dry

No permanent water supply at all. Pipe is empty. Fire department must pump through the FDC to deliver water. Allowed only in specific low-hazard situations (unheated parking structures, some open-air occupancies).

Combined System

Supplies both hose connections AND automatic sprinklers from the same riser. Can be manual wet or automatic wet. Simplifies piping in buildings where both systems are present.

Important: In high-rise buildings, NFPA 14 requires automatic standpipes for all Class I and III systems — manual types are only allowed in specific low-hazard situations. The rationale: during a fire in a high-rise, the time the fire department spends waiting for water (manual fill through FDC) is time the fire keeps growing.

What “500 GPM” Really Means — The Flow Math

The number every firefighter checks before going upstairs is 500 gpm at 100 psi residual at the hydraulically most remote hose connection. But that's only the starting flow — NFPA 14 scales up for larger buildings Source 4.

ScenarioRequired flowNotes
Single standpipe500 gpmMost remote hose connection at 100 psi residual
Each additional standpipe+250 gpmSimultaneously, until total system demand is reached
Fully sprinklered building (NFPA 13)1,000 gpm maxCap on total standpipe demand
Building NOT fully sprinklered1,250 gpm maxHigher cap because sprinklers aren't helping control the fire

Example: a fully-sprinklered 3-standpipe high-rise needs to deliver 500 + 250 + 250 = 1,000 gpm total flowing simultaneously (caps at 1,000 for sprinklered, so the fourth standpipe doesn't add more required flow). The 5-year full flow test proves this delivery using the inspector's test and flow measurement at the topmost hose outlet.

Pressure at the Nozzle — the 1993 Split

NFPA 14 changed its outlet-pressure rules in 1993. Buildings designed before vs after that year have very different hose-outlet pressures — and firefighter tactics differ accordingly Source 4.

Pre-1993 NFPA 14 buildings

65 psi minimum, 100 psi maximum at the hose outlet. Firefighters attack with smoothbore nozzles or adjustable fog nozzles at low pressure. Stream reach is shorter; technique relies on closer approach to the fire and more reliance on the standpipe than on the building's pump. Still common in older high-rises.

1993+ NFPA 14 buildings

100 psi minimum, 175 psi maximum at the hose outlet. Automatic fog nozzles at 100 psi are the standard. Longer reach, more flexibility in stream pattern. The 175 psi cap is what triggers pressure-regulating valves in tall buildings (see next section).

Why this matters to building managers: know which era your building was designed under. A responding fire department will bring tactics matched to the newer 100-psi baseline by default. If your building is pre-1993 (65 psi), flag that to the local fire department — it changes their attack strategy.

Pressure-Regulating Valves (PRV) & Pressure-Restricting Devices (PRD)

In tall buildings, the static pressure at lower-floor hose outlets can exceed the 175-psi maximum allowed by post-1993 NFPA 14. Example: a 20-story high-rise with static pressure at the top of 150 psi will have roughly 150 + (0.434 × 240 ft) = 254 psi at the ground floor — way over the limit. A hose coupling at 254 psi is dangerous to the firefighter operating it.

The solution: Pressure-Regulating Valves (PRV) and Pressure-Restricting Devices (PRD) installed on each hose outlet where outlet pressure would otherwise exceed 175 psi. Both are direct-acting — no external power, no electronic controls — and they reduce outlet pressure to a safe range for manual hose operation.

⚠️ The silent-drift problem

PRVs and PRDs drift over years of service with no external indication. A PRV delivering 100 psi at commissioning can drift to 50 psi (under-delivery — weak fire stream) or 130 psi (over-delivery — dangerous) 10 years later. Nobody knows until somebody actually tests it. Per NFPA 25 §6.3.2, every PRV and PRD must be flow-tested every 5 years, with the test results compared to previous records. A tag on the valve must show the test date, flow rate, inlet pressure, and outlet pressure. Adjustments are made per the manufacturer's instructions when drift is found.

For building managers: the PRV/PRD 5-year test is typically part of the same contractor visit as the standpipe full flow test. Verify the tags on every PRV/PRD after the test — missing tags are an easy fire marshal citation.

What “System Working Pressure” Actually Means

Per the NFSA ITM reference Source 4:

“System Working Pressure is the maximum anticipated static (non-flowing) or residual (flowing) pressure applied to the standpipe system, exclusive of surge pressures but inclusive of the system design/demand pressure from the fire department connection (FDC).”

Translation: working pressure is the normal operating envelope, including the pressure boost a fire department pumper can add via the FDC. Surge pressures (water hammer from valve closure, pump starts) are handled separately. This definition matters for hydrostatic testing — the test pressure is set relative to working pressure, not surge pressure.

NFPA 25 Test Schedule (Expanded)

QuarterlyInspect hose connections, caps, gaskets, valves. Verify accessibility, signage, no obstructions.§6.2.1
AnnualOperate each hose valve through its full range of motion on Class I and III systems. Verify smooth operation, no binding, no leaks.§6.3.1.1
5-YearFull flow test — prove 500 gpm at 100 psi residual at most remote outlet, + 250 gpm per additional standpipe up to system demand cap (1,000 gpm sprinklered / 1,250 unsprinklered).§6.3.1
5-YearPRV / PRD flow test — every pressure-regulating valve and pressure-restricting device. Compare to previous results, tag with date/flow/inlet/outlet pressures, adjust per manufacturer.§6.3.2
5-YearHydrostatic test of manual-dry and semi-automatic-dry standpipes: 200 psi for 2 hours, OR 50 psi above maximum working pressure if max > 150 psi.§6.3.3
5-YearFDC piping hydrostatic test (from the FDC to the check valve): 150 psi for 2 hours.§13.8.5
NoteManual WET standpipes in combined sprinkler/standpipe systems are NOT subject to the 5-year flow test — they rely on the FDC for standpipe demand. Other inspections still apply.NFPA 25

▶ Watch: Standpipe hose connection — operation

Source: Field walkthrough · Open on YouTube ↗

Frequently Asked Questions

What is the difference between Class I, II, and III standpipes?
Class I = 2½" hose valves only, used by trained firefighters with their own hose. Minimum 500 gpm at 100 psi residual at the topmost remote outlet. Class II = 1½" hose valves with occupant-use hose in a cabinet — intended for incipient-fire attack by trained building occupants. Largely being phased out of new construction. Class III = both 2½" and 1½" connections at each location, usable by firefighters OR occupants. The class determines who uses the system and at what flow.
How many types of standpipe systems are there?
Six types per NFPA 14 §7.3: (1) Automatic-Wet — pipe always full of water, opens hose valve = water flows. (2) Automatic-Dry — pipe full of air/nitrogen, permanent water supply automatically floods on valve opening. (3) Semi-Automatic Dry — pressurized air/nitrogen with a deluge valve; requires remote-control activation. (4) Manual Wet — pipe contains water (often combined with sprinkler system) but relies on the FDC for standpipe demand pressure. (5) Manual Dry — no permanent water supply at all; requires fire department to pump through FDC. (6) Combined System — supplies both hose connections AND automatic sprinklers from the same riser.
What flow does a standpipe have to deliver?
NFPA 14: 500 gpm minimum at the hydraulically most remote hose connection, + 250 gpm per additional standpipe in the building until total system demand is reached. System demand caps at 1,000 gpm for buildings fully sprinklered per NFPA 13, or 1,250 gpm for buildings NOT fully sprinklered. Large campuses or complex high-rises may approach the cap across multiple standpipes flowing simultaneously. This is what the 5-year full flow test proves.
What pressure does a standpipe hose outlet deliver?
Depends on the NFPA 14 edition the building was designed under: (a) Buildings designed per the 1993 or later edition of NFPA 14 — minimum 100 psi, maximum 175 psi at the hose outlet. (b) Buildings designed before 1993 — minimum 65 psi, maximum 100 psi at the outlet. This pre/post-1993 split matters because firefighter tactics at 65 psi differ significantly from tactics at 100 psi — older buildings often require different nozzles and fog-pattern techniques. Know which era your building was designed for.
What are PRVs and PRDs and why do they matter?
Pressure-Regulating Valve (PRV) and Pressure-Restricting Device (PRD) — both are direct-acting valves installed on hose outlets in tall buildings where the static pressure at lower floors exceeds 175 psi (the max allowed by NFPA 14 post-1993). They reduce the outlet pressure to a safe range for manual hose operation. They can DRIFT over years of service — a PRV that was delivering 100 psi at commissioning can drift to 50 psi or 130 psi over 10 years with no external indication. NFPA 25 §6.3.2 requires a 5-year flow test on every PRV/PRD with a tag showing date, flow, inlet pressure, and outlet pressure. Miss this test and the building may have outlets that either under-deliver (ineffective fire attack) or over-deliver (dangerous to firefighters).
Do manual wet standpipes get flow tested?
No — per NFPA 25, manual wet standpipes that are part of combined sprinkler/standpipe systems are NOT subject to flow testing requirements. The rationale: they rely entirely on the FDC for standpipe demand, so the 5-year flow test isn't applicable. They still need quarterly visual, annual hose valve operation tests, and the FDC piping hydrostatic test. Automatic and semi-automatic standpipes DO require the full 5-year flow test.
What is the hydrostatic test pressure for a manual dry standpipe?
Per NFPA 25, manual dry standpipes must be hydrostatically tested every 5 years to at least 200 psi for 2 hours, or 50 psi above the maximum working pressure if that maximum exceeds 150 psi — whichever is greater. Separately, the FDC piping from the fire department connection to the check valve is hydro-tested at 150 psi for 2 hours, also every 5 years. Two different tests, two different pressures, same 5-year interval.
Why is a missing hose valve gasket such a big deal?
A 2½" hose valve with a missing or degraded gasket can leak enough to drop usable pressure by 15–20 psi at the nozzle. In a high-rise where the hose outlet is already at the low end of the allowable pressure range (65–100 psi on pre-1993 buildings), that leak can take the attack line from effective to useless. It's also a hazard to the firefighter — a leaking coupling under 175 psi can detach mid-operation. Quarterly inspection of caps, gaskets, and valves (NFPA 25 §6.2.1) is what catches these before game day.
