Fire Hydrant
The Water Supply Interface
The fire hydrant is where the municipal water main meets the fire apparatus. Every engine company in America plans its attack around one. Inside: dry-barrel vs wet-barrel construction, NFPA 24 installation, NFPA 25 ITM, the 5-year flow test, color codes, and the private-hydrant compliance traps that catch property owners every year.

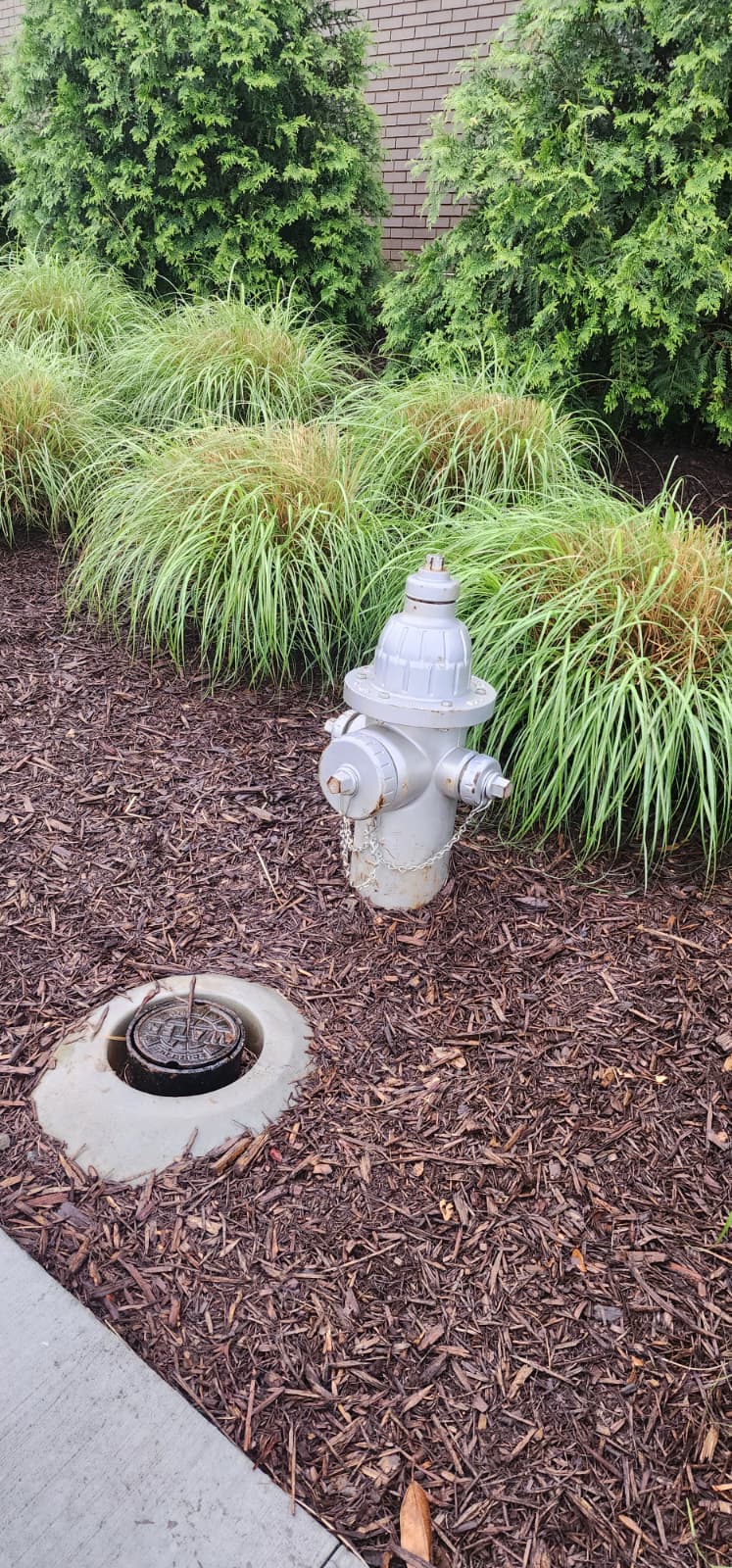

Standard dry-barrel hydrant (AWWA C502) on private property. NFPA 25 §7 requires annual inspection + annual full-flow operation by the property owner.
What Is a Fire Hydrant?
A fire hydrant is an above-ground outlet connected to a pressurized water main that allows fire apparatus to draw water for firefighting operations. Hydrants are the primary interface between the water supply infrastructure and the fire department, and they exist in two constructionally distinct families — dry-barrel and wet-barrel — governed by separate AWWA standards and suited to different climates.
Every building in a fire protection jurisdiction is served by one or more hydrants, and the spacing, flow capacity, and condition of those hydrants directly drive the building's Needed Fire Flow (NFF), insurance rating (ISO PPC), and the fire department's tactical plan. On private property, hydrants downstream of the water meter become the property owner's responsibility under NFPA 24 and NFPA 25.

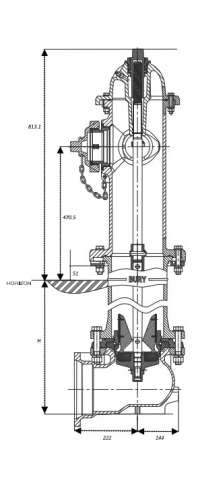

Cross-section reference. The breakable flange at the ground line lets a struck hydrant snap off cleanly without rupturing the underground main.
Dry-Barrel vs Wet-Barrel Hydrants
The single most important construction distinction is whether water sits in the hydrant barrel at rest.
Dry-Barrel (AWWA C502)
- Main valve at the bottom, below the frost line, at the shoe
- Barrel is empty at rest — drained through a drain port when closed
- Used in freezing climates (most of the US)
- Operating nut at the top turns a stem that drives the main valve up/down
- Frangible traffic flange (breakaway) just above grade — car-strike protection
- Drain valve at the shoe automatically opens when hydrant is closed
- More complex — more parts that can fail
Wet-Barrel (AWWA C503)
- Valve at each outlet — the barrel is always full of water
- Each outlet opens independently with its own stem
- Used only in non-freezing climates (California, Gulf Coast, Hawaii, Florida)
- Simpler construction — fewer moving parts
- Instant water at the outlet when operated — no barrel to fill
- Cannot tolerate any freezing — will split the barrel
Quick Test: Which One Is It?
Close all the outlets and listen after operating the hydrant. If the barrel drains (you hear a gurgle and the water stops at the caps), it is dry-barrel. If water is present at every outlet as soon as you crack a cap even without turning the operating nut, it is wet-barrel.
Parts of a Fire Hydrant
A modern dry-barrel hydrant has 40+ machined and cast parts. These are the ones that matter for ITM and field inspection:
Installation, Pressure Ratings & Thrust Restraint
The pieces you see above grade are only a fraction of a hydrant installation. Below grade, every hydrant sits on a concrete pad with a gravel drainage pocket, ties into the lateral through an isolation valve, and is anchored against thrust loads that would otherwise push the elbow backwards every time water flows. Missing any of these pieces makes a hydrant a future repair, not a reliable water supply.
Pressure Ratings (AWWA C502 & C503)
Every hydrant is stamped with its manufacturer, model, and rated working pressure. The AWWA standards require two pressure ratings on every production unit:
AWWA C502 minimum. The maximum sustained water-main pressure the hydrant is designed to hold without leakage or deformation. Some high-pressure models are rated 350 PSI.
2× the rated working pressure. Applied at the factory with the main valve closed and all outlets capped, then again in the field per NFPA 24 §10.10 after the lateral is installed.
Outside the US, hydrants to BS EN 14384 or ISO 28765 carry lower ratings (typical 100 PSI working / 175 PSI test) — see the rating on the hydrant body before assuming AWWA values on an imported unit.
Per-Outlet Flow Capacity
The three outlets on a standard three-way hydrant have very different flow capacities. Knowing the per-outlet flow at 20 PSI residual is useful when sizing a fire-flow plan or deciding which outlet to use for a pump draft:
Actual flow depends on barrel friction loss, the water-main static and residual pressures, and the orifice coefficient of the outlet. A properly-fed hydrant tied to a well-gridded water main often exceeds the values above; a hydrant at the end of a long dead-end lateral can fall well short.
Thrust Restraint — NFPA 24 §10.7
When water flows through a 90° elbow at the hydrant shoe, it generates a thrust load along the axis of the feed lateral. At 200 PSI and an 8" lateral, that load exceeds 10,000 lb. Unrestrained, the shoe walks backwards every operation — loosening joints, cracking the lateral, and eventually unseating the hydrant. NFPA 24 §10.7.2 requires one of two restraint methods on every hydrant installation:
Thrust Blocks (Traditional)
- Poured-in-place concrete pads bearing against undisturbed native soil
- Sized per the thrust load, soil bearing value, and pipe pressure — NFPA 24 Annex A, AWWA M17 Ch. 4
- Placed at every 90° bend, tee, and the hydrant shoe
- Concrete must cure before the system is pressurized; joints must remain accessible for repair
- Fails if the soil is re-excavated (utility work) or if the pour runs over the joint bolts
Mechanically Restrained Joints (Modern)
- Restraint retainer glands (MJ-style) or restrained-joint fittings replace thrust blocks
- Restrained length calculated per AWWA C600 / manufacturer tables based on pressure + soil type
- No cure time — the system can be pressurized immediately
- Cleaner for tight excavations and easier to repair or extend
- Requires manufacturer-listed retainer glands at every joint in the restrained length
Below-Grade Installation Details
A properly bedded hydrant looks unremarkable on the surface but has four distinct zones below grade:
Frost line controls lower barrel length. AWWA C502 hydrants are specified by bury depth — the distance from grade to the bottom of the shoe — and must place the main valve and drainage pocket below the local frost line. In Atlanta that is roughly 30 inches; in Minneapolis closer to 60 inches. A dry-barrel hydrant with an incorrect bury depth will freeze even if everything else is installed perfectly.
NFPA 291 Hydrant Color Code
NFPA 291 §4.15 assigns a bonnet/cap color based on the hydrant's tested available flow at 20 PSI residual. The color is a visual signal to arriving apparatus about how much water they will get from that hydrant before they even pull up.
Private hydrants (on private property, downstream of the meter) are usually painted a different body color (red, yellow, or custom) to distinguish them from public hydrants. The bonnet and outlet caps must still carry the NFPA 291 flow color. Painting the bonnet to match the landscaping is not permitted when the hydrant is intended for fire service use.
Hydrant Spacing & Location
Hydrant spacing is set by the adopted fire code and the required fire flow for the occupancy and construction type. The IFC and NFPA 1 give guidance in their appendices, but the final call is the local Fire Marshal.
- Maximum spacing between hydrants — IFC Appendix C table based on required fire flow. Typical values: 500 ft for small residential buildings, 300 ft for commercial, 100 ft on the approach to an FDC.
- Maximum distance from any point on the building — typically 400 ft for non-sprinklered buildings, 600 ft for fully sprinklered buildings (measured along the fire apparatus travel path, not straight-line).
- FDC-to-hydrant distance — within 100 ft of the FDC per NFPA 13 §16.12.2, so the engine company can supply the FDC with a short supply line.
- Clear setback — 3 ft on all sides of the hydrant per IFC §507.5.5. No parking, landscaping, dumpsters, or stored material within the 3-ft envelope.
- Pumper nozzle orientation — must face the street/access road so the pumper can connect its suction hose without repositioning the engine.
- Nozzle height — AWWA M17 recommends the 4-1/2" pumper nozzle centerline be 18" above finished grade. Hydrants buried by regraded landscaping are a common deficiency.
NFPA 25 ITM — What the Facility Owner Must Do
Private hydrants on the owner's side of the meter fall under NFPA 25 Ch. 7. The owner is responsible for the following schedule:
The annual operation is not optional. A hydrant that is "visually inspected" for 10 years without being operated is a hydrant with a frozen stem, rotted seat ring, or plugged drain valve waiting to surprise the fire department at the worst possible moment.
The 5-Year Flow Test
NFPA 25 §7.3.1 requires a flow test of the private fire service main every 5 years. This is the same test that originally established the hydrant's color code — and it must be repeated to verify the water supply has not deteriorated.
Procedure (two-hydrant method)
- Select two hydrants in series. The upstream hydrant reads residual pressure; the downstream hydrant flows.
- Record static pressure on the upstream (residual) hydrant with all outlets closed — attach a cap gauge to a 2-1/2" outlet and crack the main valve.
- Open the flow hydrant one 2-1/2" outlet (or the pumper nozzle, per the test plan). Attach a pitot gauge to read the velocity pressure at the outlet.
- Read residual pressure on the upstream hydrant while the flow hydrant is discharging.
- Calculate flow from the pitot reading: Q (GPM) = 29.83 × c × d² × √p, where d is the orifice diameter in inches, p is the pitot pressure in PSI, and c is the coefficient of discharge (0.9 for a smooth outlet with rounded corners).
- Calculate available flow at 20 PSI residual using the Hazen-Williams rearrangement: Q₂₀ = Q₁ × [(H₁ − 20) / (H₁ − H₂)]^0.54.
- Update color code on the bonnet and caps per NFPA 291 based on the calculated Q at 20 PSI.
- Compare to baseline — a drop of more than 10% from the original test indicates a deteriorating water supply that must be investigated.
Notify Before You Flow
Flow testing dumps thousands of gallons of water and can stir up sediment that discolors water downstream for hours. Always coordinate with the water utility and notify adjacent buildings (especially hospitals and dialysis facilities) before testing. Schedule tests for daylight, ideally before 10 a.m., and discharge into a storm drain or vegetated area that can absorb the flow.
Common Field Deficiencies
- Missing caps — allows insects, debris, and (in dry-barrel) rainwater to enter the barrel. Single most common finding.
- Stuck operating nut — lack of annual operation allows internal corrosion to seize the stem. Often the hydrant cannot be operated without a breaker bar, which risks stem damage.
- Landscape encroachment — shrubs, mulch berms, and flower beds planted within the 3-ft clear zone. IFC §507.5.5 violation.
- Buried barrel — regraded landscaping or new sidewalk installation raises grade above the breakaway flange, defeating the frangible design.
- Wrong color code — old flow test result; color does not match the current water supply capacity.
- Drain valve not draining (dry-barrel) — water remains in the barrel after closing. Freezes in winter, splits the barrel. Usually caused by a plugged gravel pocket or a failed drain valve.
- Wet barrel after closing (dry-barrel) — indicates the main valve is not fully seating. Check the seat ring.
- Leaking packing — water weeping from the operating nut during operation. Packing needs adjustment or replacement.
- Isolation valve closed — the gate valve feeding the hydrant lateral is closed. Hydrant looks fine but will not flow. Can only be caught by annual operation.
- Broken reflector/marker — in snow areas, the reflective flag or marker used to locate hydrants under snow is missing or bent.
Public vs Private Hydrants — Who Owns What?
The ownership line is the water meter or the property boundary, whichever is farther upstream. Downstream of that line, the facility owner owns the fire service main, the isolation valves (including PIVs), and every hydrant.
Public Hydrants
- Located in the public right-of-way, connected to the municipal main
- Owned, maintained, tested, and color-coded by the water utility
- Flow test data usually published by the utility or fire department
- Fire department has full authority to operate at any time
Private Hydrants
- On private property, downstream of the meter
- Owner pays for installation, maintenance, testing, and repair
- Subject to NFPA 25 Ch. 7 ITM by a licensed contractor
- Records must be retained and available on the premises
- Fire marshal can cite the owner for deficient private hydrants
Fun Facts
The first pressurized fire hydrant in North America was installed in Philadelphia in 1803 by Frederick Graff — he was the engineer of the city waterworks and, in a legendary bureaucratic quirk, never patented the design so it could spread freely.
A pentagon-shaped operating nut exists specifically to discourage casual opening — a standard crescent wrench or socket will not grip it. Cities lose thousands of gallons every summer to kids opening hydrants with square-nut wrenches they buy at hardware stores.
A fully-open 4-1/2" pumper nozzle at 60 PSI residual discharges roughly 1,500 GPM — enough to empty a standard backyard pool in about 12 minutes.
The "dry-barrel" design was patented in 1869 by Birdsill Holly of Lockport, NY — the same inventor also designed the first modern steam heating system. Every frost-line hydrant in the US descends from his patent.
NFPA 291 flow colors (blue, green, orange, red) are mnemonic: follow the traffic-light logic and you get Blue → Green → Orange → Red. More water = cooler color.
The breakaway flange was not part of the original design — it was added after 1930s studies found that vehicle strikes on rigid hydrants caused massive water main ruptures. Now a legal requirement in most jurisdictions.
Some wet-barrel hydrants in California date from the 1920s — still in service, still passing annual flow tests. AWWA C503 construction is that durable in a non-freezing climate.
Snow markers (tall fiberglass rods with reflectors) came from a 1978 Boston blizzard where FDNY companies lost 6 minutes per alarm searching for buried hydrants. Now mandatory in every serious snow state.
Watch: Why Fire Hydrants Are Shaped the Way They Are
History of Simple Things on the design history of the fire hydrant — why the bonnet, the operating-nut shape, the breakaway flange, the multiple nozzles, and the squat pillar form all evolved into the canonical shape you see on every American street.
History of Simple Things — design-history overview. Pairs well with the AWWA C502 / C503 spec material above.
▶ Watch on YouTube
See sprinkler system inspections and maintenance on What The Fire Code.
Watch on YouTube →Frequently Asked Questions
How often do fire hydrants need to be tested?
What do the hydrant color codes mean?
What is the difference between a wet-barrel and dry-barrel hydrant?
Who owns private fire hydrants — the city or the property owner?
How far apart should fire hydrants be spaced?
References
1. NFPA 24 (2022): Standard for the Installation of Private Fire Service Mains and Their Appurtenances.
2. NFPA 25 (2023): Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems — §7 Private Fire Service Mains.
3. NFPA 291 (2022): Recommended Practice for Water Flow Testing and Marking of Hydrants.
4. AWWA C502: Standard for Dry-Barrel Fire Hydrants.
5. AWWA C503: Standard for Wet-Barrel Fire Hydrants.
6. IFC (2021): §507 Fire Protection Water Supplies — §507.5 Fire Hydrant Systems.
7. IFC Appendix C: Fire Hydrant Locations and Distribution.
8. AWWA Manual M17: Installation, Field Testing, and Maintenance of Fire Hydrants.
