Post Indicator Valve
The Outdoor Sentinel
The large, freestanding outdoor valve that controls water to entire fire protection systems — and the one inspectors love to find turned in the wrong direction.
What It Is

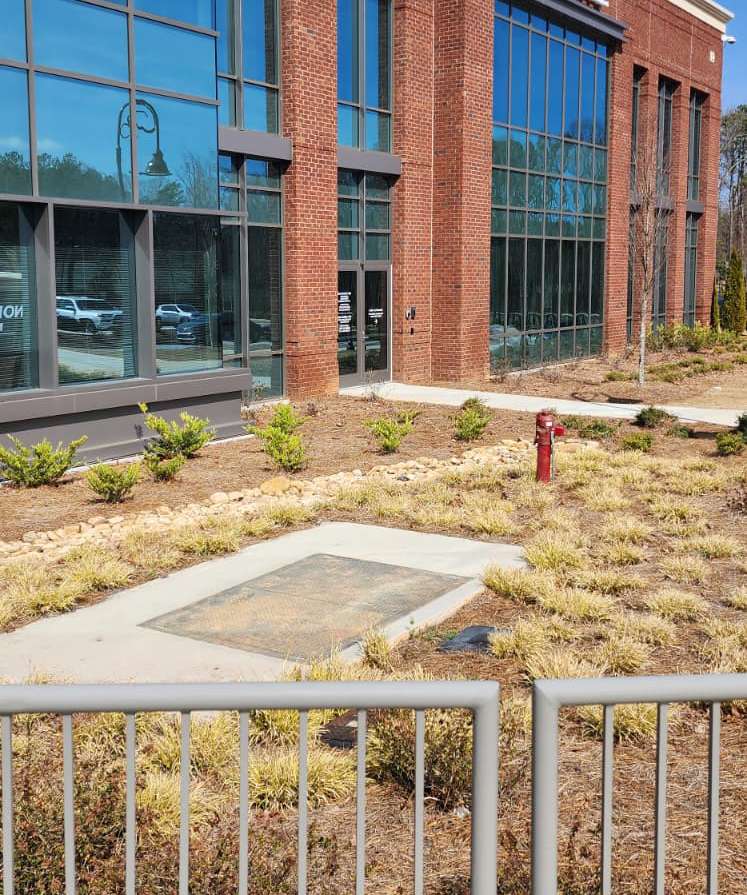

Post indicator valve in front of a commercial building.

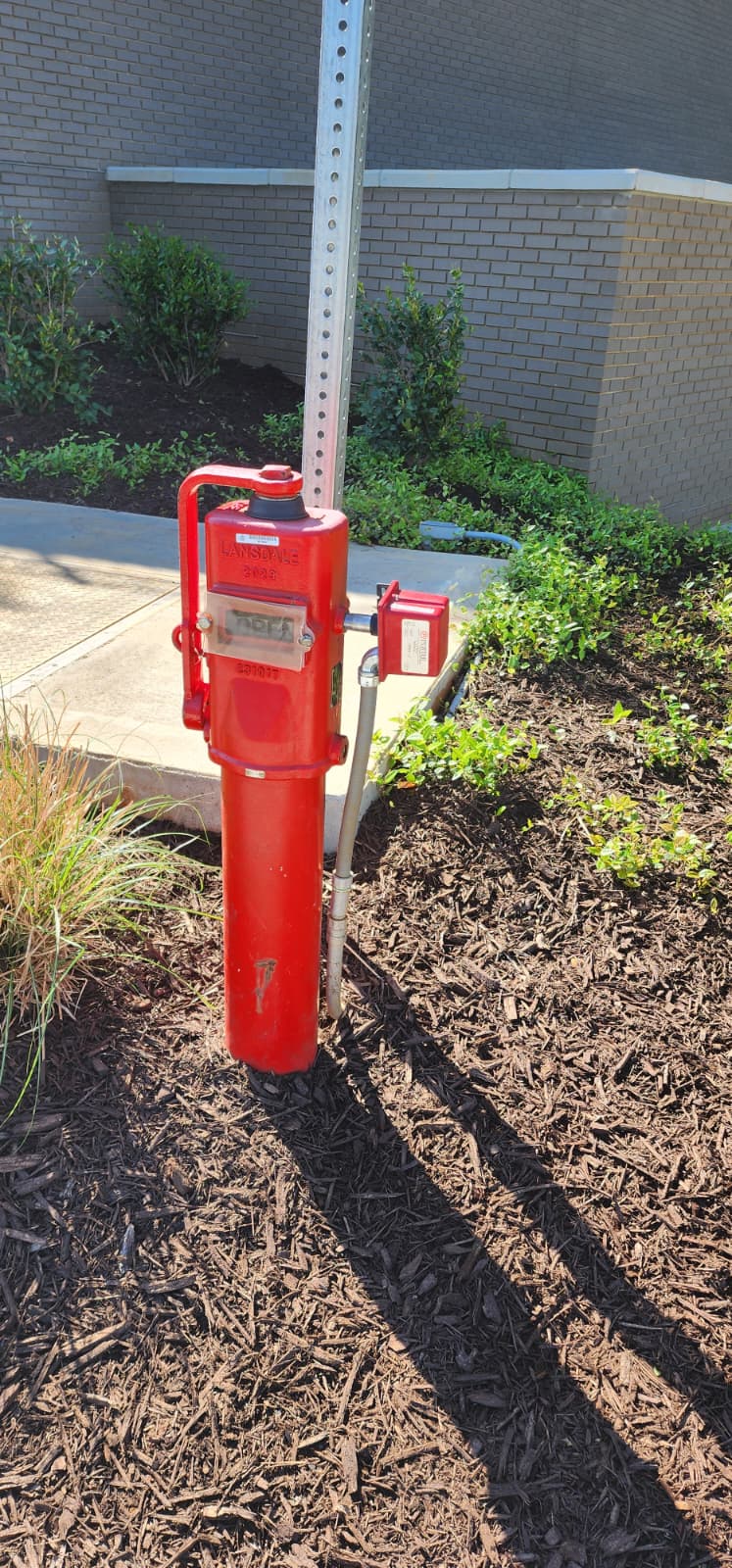

PIV tamper-switch detail. Any rotation of the handwheel signals the FACP.
A Post Indicator Valve (PIV) is an above-ground, manually operated gate valve mounted on a vertical steel post outdoors. It controls water flow to an underground fire service main or standpipe riser — typically on the water supply side of the building, before the backflow preventer or fire pump. The top of the post has a rectangular window labeled either OPEN or SHUT, so anyone walking by can confirm the valve's position at a glance.
PIVs exist because control valves buried in a vault or hidden in a mechanical room can be accidentally left closed after maintenance — and nothing kills a sprinkler system faster than a closed control valve. Putting the valve outside, above ground, with a visible target flag, makes it obvious.
Two install styles: freestanding PIV vs Wall PIV (WPIV)
The same building can have both — and often does. Freestanding PIVs go outside on the private fire service main; wall-mounted PIVs (WPIVs) go where the underground main enters the building and a vertical post would obstruct egress, parking, or landscaping. The example below is from a single property: the primary fire-pump supply runs through a freestanding PIV outside, and the secondary feed enters through a WPIV on the side of the building.

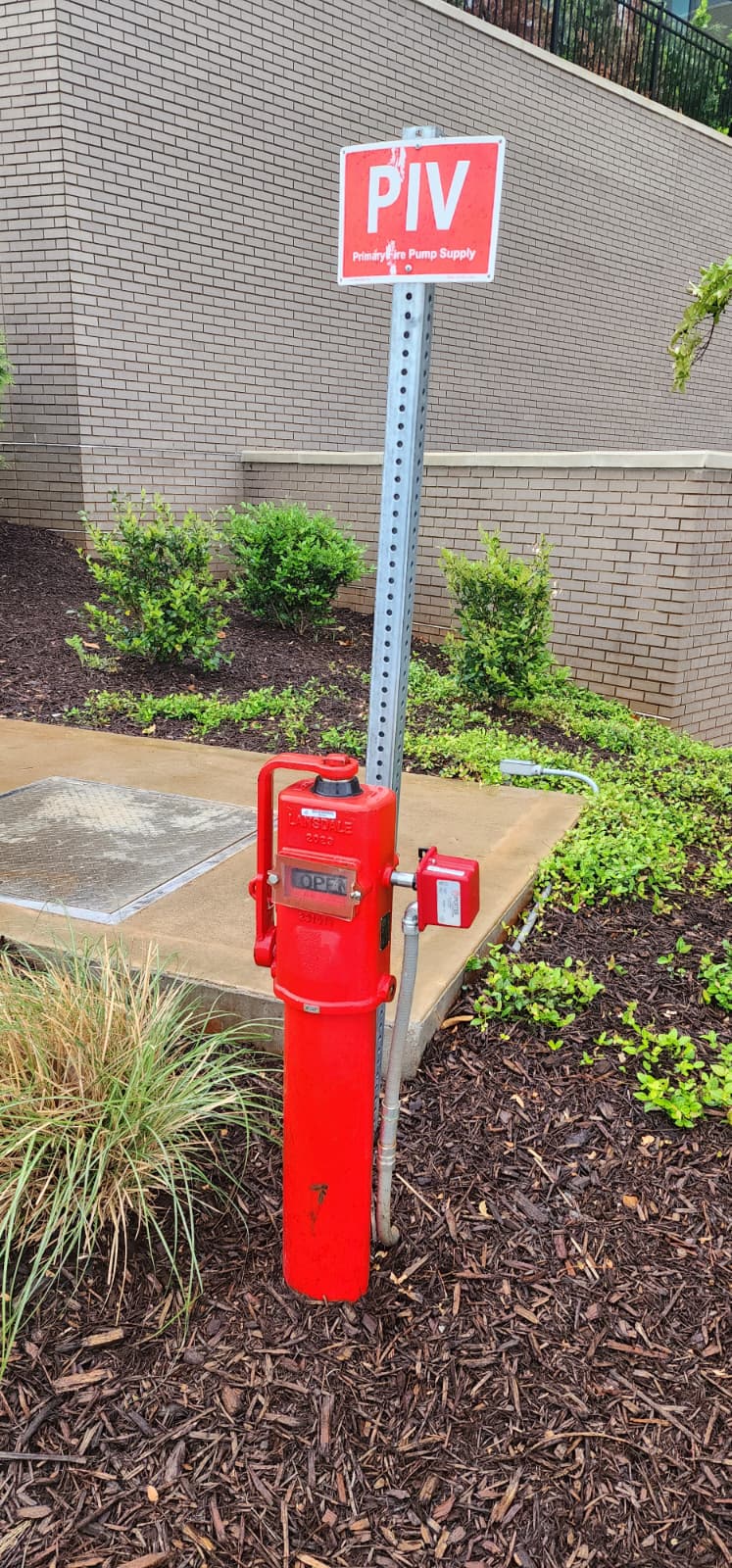

Freestanding PIV. Mueller-style post with OPEN window indicator + tamper switch. Used on private fire service mains where the main runs underground.

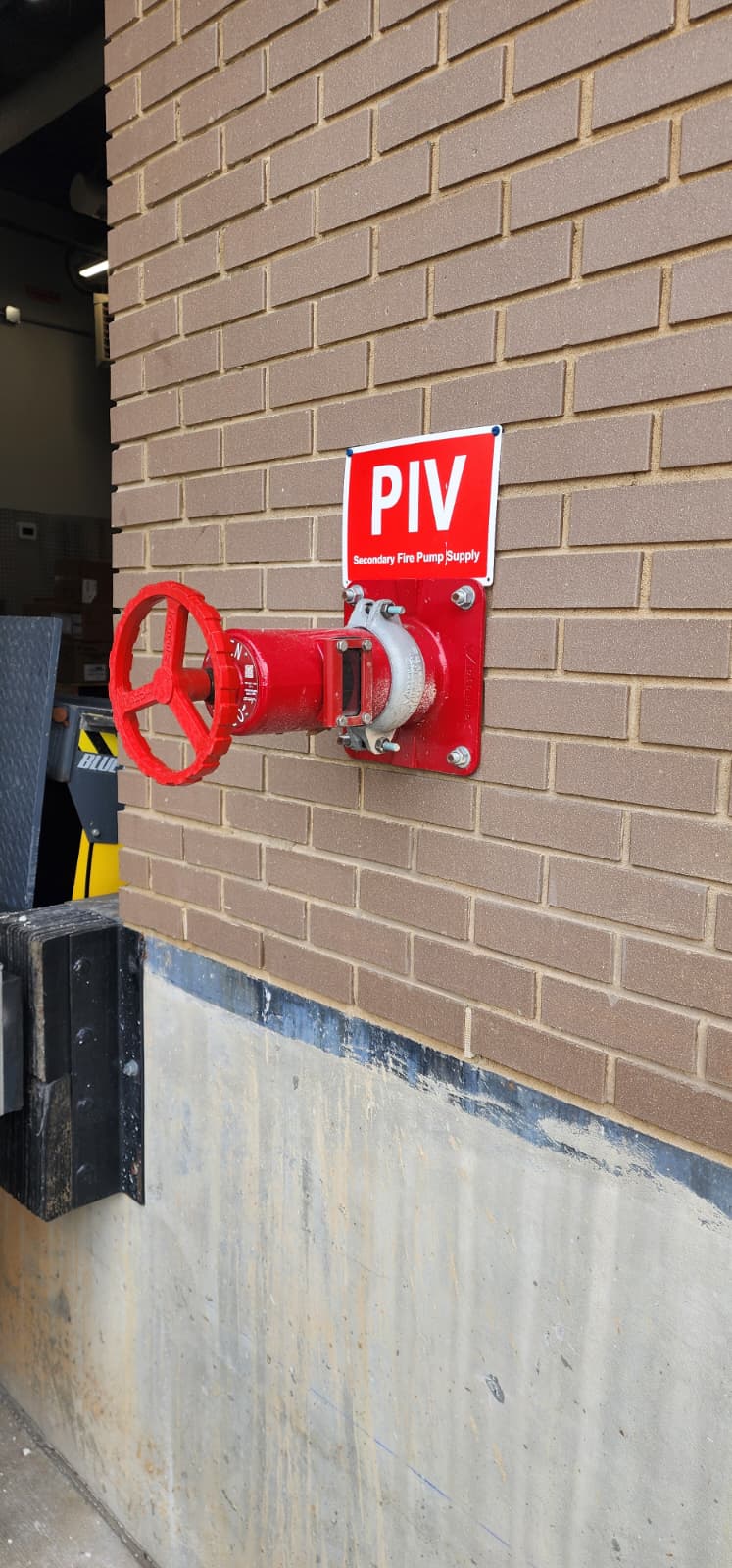

Wall PIV (WPIV). Used where the underground main enters the building face and a freestanding post would conflict with parking or pedestrian routes. The valve body penetrates the wall horizontally; the indicator window + handwheel are on the exterior face.
Both configurations carry the same NFPA 25 ITM cadence — quarterly visual, annual full operation, electric supervision via tamper switch (the small box adjacent to each valve in both photos). And both follow the same one-quarter-turn back-off rule from full open per NFPA 13 + manufacturer instructions, to prevent jamming.
Where It Lives
When a PIV Is NOT Required
A PIV is not a universal requirement for every sprinkler system. It is required specifically by NFPA 24 (Standard for the Installation of Private Fire Service Mains and Their Appurtenances) when a building is served by a private underground fire service main — a dedicated pipe running from the utility tap across the property to the building. When no private yard main exists, no PIV is needed.
The decision rule is straightforward: NFPA 13 §6.9 requires a listed indicating control valve on every sprinkler system — but that valve can be an indoor OS&Y gate valve or a butterfly valve at the riser. The PIV itself is an NFPA 24 appurtenance, not an NFPA 13 universal mandate.
PIV Required vs. Not Required
Bottom line
If the fire service water enters your property through an underground private main before reaching the building, you need a PIV (or equivalent above-ground indicating valve) per NFPA 24. If the city main feeds directly into an indoor riser with no yard piping, an indoor listed control valve per NFPA 13 §6.9 is sufficient. Always verify with your local AHJ — they can require an outdoor valve regardless.
How It Works

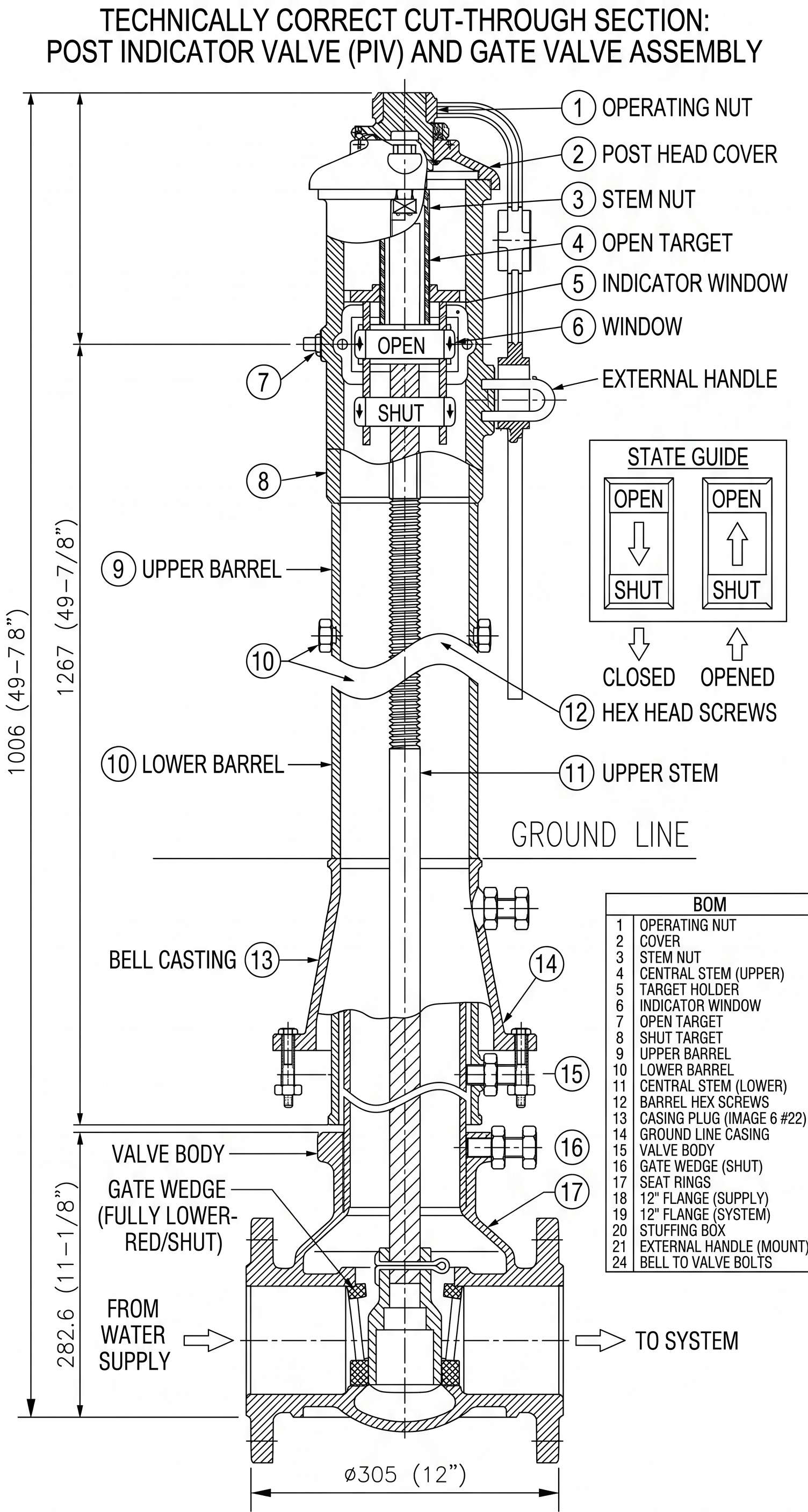

Full cut-through section of a PIV and its underground gate valve assembly — every numbered component from the operating nut at the top to the 12-inch flanges at the bottom. The indicator window shows the OPEN/SHUT target flag position; the gate wedge is drawn in the fully-lowered (SHUT) position.
Inside the post, a vertical operating rod connects the handwheel (or wrench socket) to a gate or butterfly valve buried in the ground. As you turn the handwheel, the rod lifts or lowers the gate. A small mechanical linkage pushes a painted target — usually yellow or red — up and down inside the window, displaying OPEN or SHUT.
Most PIVs also have a tamper switch wired back to the fire alarm panel. The instant the valve moves off its normal (open) position, the panel generates a supervisory signal. That switch is mandatory for systems serving life safety occupancies NFPA 72 §17.16.
NFPA 25 Compliance
Common finding: PIV target shows OPEN but the valve is actually partially closed. Always verify by attempting to turn the handwheel further in the open direction — if it moves more than a fraction of a turn, the valve was not fully open.
PIV vs. Wall PIV vs. Key Valve — The Family Tree
The standard freestanding PIV is only one member of a wider valve family. Depending on the site constraints, you'll encounter these variants — all serving the same function (visual position indication for an underground valve) but mounted differently:
Standard PIV
Freestanding post bolted to its own pad in the yard. The gate valve is buried underground at the base of the post. Most common type — the one in the photo above.
Wall PIV (WPIV)
Same mechanism, but the post is mounted flush to an exterior building wall instead of freestanding. Used where site layout doesn't allow a post in the yard — the valve body sits inside the wall at the fire-service-main entry point.
Key-Operated Valve (KOV)
A short, below-grade stem topped with a pentagonal nut or a special wrench fitting, typically behind a flush-mount curb box. No target flag — the fire department carries the key wrench. Common in sidewalk easements and urban sites where a freestanding post would block the right-of-way.
Underground Gate Valve (UGV)
A gate valve in an underground vault with a surface-level access lid. No built-in indicator window — position is confirmed by operating the valve with a valve wrench through the access opening. This is the "ancestor" that PIVs were designed to replace.

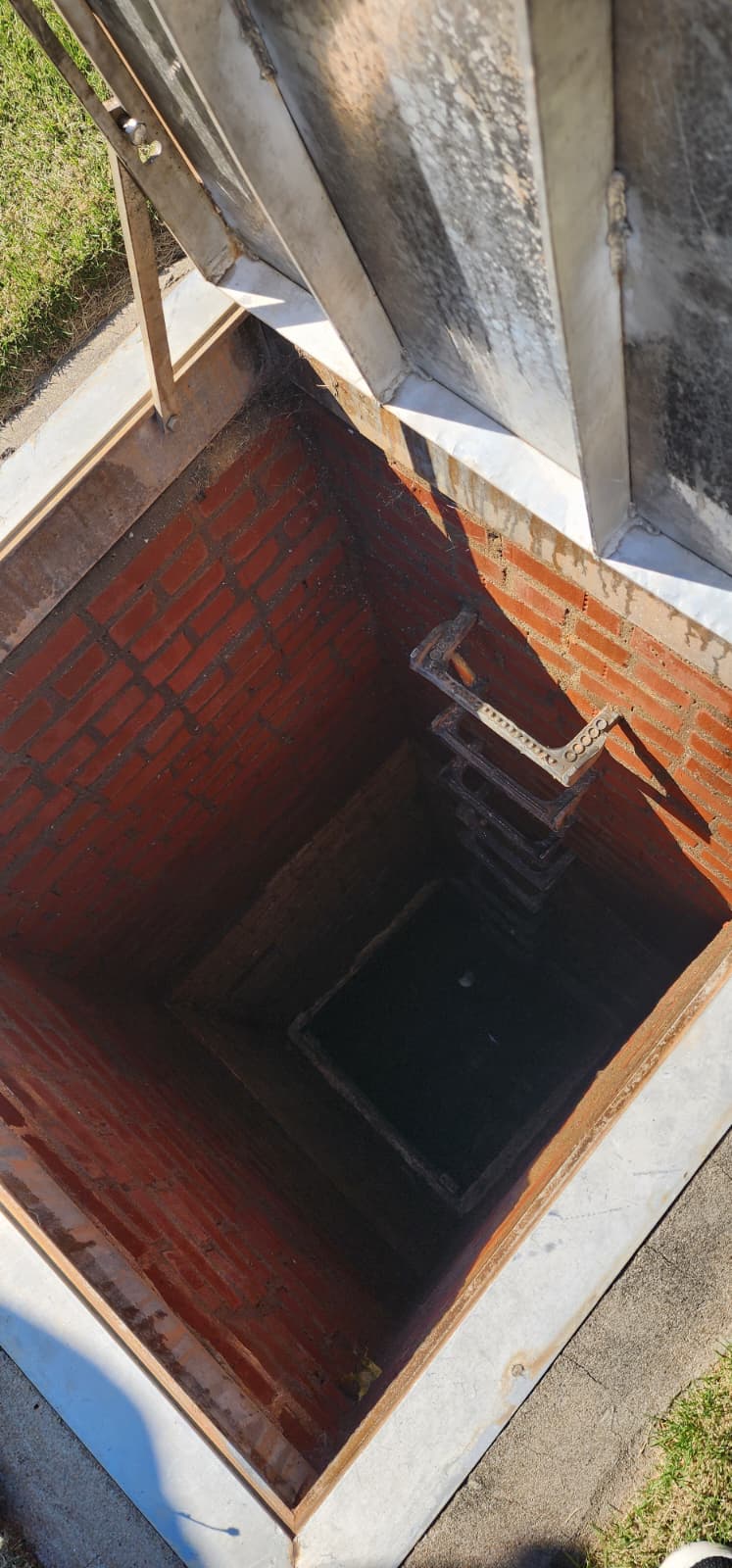

Valve pit access. PIVs were designed specifically to eliminate the need to descend into spaces like this for routine operation.
Things You Might Not Know About PIVs
The quarter-turn-back rule
NFPA 25 §13.3.3.2 says to open the valve fully, then back it off one-quarter turn. This prevents the stem from jamming in the fully-open position due to corrosion or debris in the underground nut assembly — a jammed-open PIV is as bad as a closed one because it can't be operated in an emergency.
It takes 10–30+ full turns to open
A PIV gate valve is a rising-stem type underground — it requires many turns of the wrench to lift the gate fully off the seat. A 6" PIV commonly needs 25+ full rotations. If someone is in a hurry and stops after 5 turns, the valve is only 20% open and the system will be hydraulically starved during a fire.
The wrench is part of the system
Every PIV installation should include a dedicated wrench box mounted near the post. If the wrench goes missing, nobody can operate the valve — and a fire crew arriving at 3 AM isn't bringing their own PIV wrench. A missing wrench box is a write-up on any FM or TJC survey.
PIVs freeze if the weep hole clogs
Most PIVs have a small drain (weep) hole at the base of the post that lets ground water drain out. If the weep hole clogs with dirt or debris, water sits in the post and freezes in winter — locking the handwheel solid and potentially cracking the post housing. A frozen PIV is a system impairment.
Landscaping is the #1 accessibility problem
Building owners love to plant shrubs and lay mulch beds right up against the PIV. Within a few growing seasons the post is hidden in a hedge and inaccessible for monthly inspection. NFPA 24 §6.3 requires "unobstructed access" — and inspectors will flag an overgrown PIV every time.
The target flag can lie
The OPEN/SHUT flag is mechanically linked to the stem by a pin. If the pin shears or the flag slips off its track, the window displays a false reading. That's why the annual full-operation test exists: it's the only inspection that verifies the flag tracks correctly with the actual gate position.
FM Global requires weekly, not monthly
NFPA 25 says monthly visual inspection for locked PIVs. FM Global Data Sheet 2-81 says weekly for any valve that isn't electronically supervised — and many PIVs only have a padlock, no tamper switch. If you're FM-insured, check your DS 2-81 obligations; you may be under-inspecting.
Vandalism and theft are real threats
In some areas, PIVs are targets for copper/brass scrappers or just random vandalism. A padlock deters casual tampering but a determined thief with bolt cutters can shut a building's water supply in 30 seconds. Electronic tamper switches that report to a 24/7-monitored panel are the real protection — the padlock is the visual deterrent.
The 79% Connection — Why One Valve Matters
of sprinkler system failures where the system did not operate are attributed to the system being shut off. A single closed PIV on the fire service main takes the entire building offline. That's not one floor, not one zone — the whole building. Unlike an indoor OS&Y that controls one riser, a PIV often controls every drop of water entering the property. Monthly inspection, annual operation, and electronic supervision aren't overkill — they're the minimum prudent defense against a single-point-of-failure that costs $0 to create and can cost lives to discover.
▶ Watch: Post Indicator Valve — Inspection & Operation
Frequently Asked Questions
How can I tell if a PIV is open or closed without operating it?
Why do PIVs have an electric tamper switch on top of being visually-indicating?
How often does NFPA 25 require PIV operation?
How is a PIV different from a wall PIV (WPIV)?
What "open" feels like — is one extra turn a good idea?
References
1. NFPA 13 (2022), §6.9.2 — Control valve requirements.
2. NFPA 24 (2022), §6.3 — Installation of private service mains and their appurtenances.
3. NFPA 25 (2023), §13.3.2.1 and §13.3.3.1 — Valve inspection and operation.
