Fire Department Connection
The Lifeline
The FDC is the fire department's direct line into your fire protection system — when their pumper connects, they become your secondary water supply. Here's why there are usually two connectors (and when one big one is better), the flow math a pumper has to overcome, what changes in a high-rise with multiple pressure zones, and the scenario nobody talks about: how long water takes to reach the top floor when your fire pump fails and the only supply is an engine at the curb.
What Is a Fire Department Connection?
A Fire Department Connection (FDC) — historically called a "siamese" connection — is an exterior fitting that allows the fire department to pump supplemental water directly into a building's sprinkler system, standpipe system, or both. The FDC does not supply water on its own; it is a one-way intake point protected by a check valve that prevents system water from flowing back out NFPA 13, §8.17.
When a fire department engine connects to the FDC, it can boost system pressure and supplement the water supply, especially important when the fire has overwhelmed the building's primary supply or when the fire pump has failed. In standpipe systems, the FDC may be the sole water supply for hose connections on upper floors.
The FDC is required by NFPA 13 for most sprinkler systems and by NFPA 14 for all standpipe systems. Its location, visibility, and accessibility are critical — if the fire department cannot find or connect to the FDC quickly, the supplemental supply is worthless.
▶ West Metro Fire Rescue — Connecting to an FDC
60-second field demonstration of an engine company making the FDC connection on arrival. Watch the time from engine stop to water flowing — this is the window that FDC accessibility (caps, signage, clear landscaping) directly affects.
How the FDC Works
The operational sequence during a fire event:
Types of FDC Configurations
FDCs come in several physical configurations depending on building type, local fire department preference, and AHJ requirements NFPA 13, §8.17.2.
Wall-Mount (Flush)
Recessed into the building exterior wall. Most common in commercial buildings. Two or more 2½" female couplings with a check valve assembly behind the wall. Protected from vehicle damage.
Freestanding (Post)
Mounted on a standalone post or pedestal in the yard, away from the building. Used when the building is set back from the street or when the AHJ requires proximity to the fire lane.
Projecting (Exposed Siamese)
Traditional two-inlet "Y" fitting that projects from the building face. Visible and quick to identify. Common on older buildings and in dense urban environments.
Storz / Quick-Connect
Large-diameter single-inlet connection (typically 4" or 5") using a quarter-turn Storz coupling. Faster connection time. Increasingly required by modern fire departments.
Why Are There Usually Two Connectors?
The classic twin 2½" “siamese” FDC has been the North American standard since the 1880s, and its two-port design solves three specific problems:
Flow capacity
A single 2½" fire hose delivers about 250 gpm at practical friction loss. A typical engine pumper can discharge 1,000–1,500 gpm. Two 2½" couplings let the pumper push ~500 gpm into the building — the maximum practical through the siamese design.
Redundancy
If one coupling is fouled, damaged, or missing a gasket, the other still works. A single-inlet FDC is an immediate critical failure; a twin-inlet FDC degrades gracefully — the pumper loses half its flow, not all of it.
Historical convention
The "siamese" twin-port design is a century-plus standard. Every engine compartment in North America carries two lengths of 2½" hose specifically for FDC connections. Replacing it everywhere at once is impractical, so the convention persists.
The modern alternative is the Storz quick-connect — a single 4" or 5" sexless quarter-turn coupling matched to the engine's large-diameter supply hose (LDH). One Storz delivers 1,000+ gpm (twice the flow of twin 2½") and connects in under 3 seconds versus 30+ seconds for threaded couplings. Many modern fire departments retrofit existing buildings by adding a Storz adapter plate over the old twin 2½" inlets so they can use either connection type.
FDC Flow Math — What the Pumper Can Actually Deliver
The practical flow through an FDC is capped by the smallest restriction in the path. Fire protection hydraulics get interesting quickly:
💡 Why the check valve matters here
Behind the FDC, the check valve is typically 4" or 6" — same as or larger than the system riser. A stuck-open check valve bleeds the FDC water supply back out to the street; a stuck-closed check valve blocks fire department supply entirely. This is why NFPA 25 §13.4.2 requires a 5-year internal inspection of the FDC check valve: you can't tell externally which failure mode is lurking.
High-Rise Zones — The Pressure Problem That Builds Upward
A single standpipe system can't serve a 60-story building. The reason is physics: every foot of vertical elevation costs 0.434 psi of static pressure — that's just the weight of the water column pushing back against the pump. Add friction loss in the piping, and the math gets brutal quickly:
NFPA 14 solves this by zoning. A zone is the vertical range a single standpipe system serves — typically 275 ft max per zone (roughly 22–25 stories). A 40-story building has two zones; a 60-story building has three. Each zone gets its own FDC, labeled with the maximum pressure the pumper must supply to reach the top of that zone.

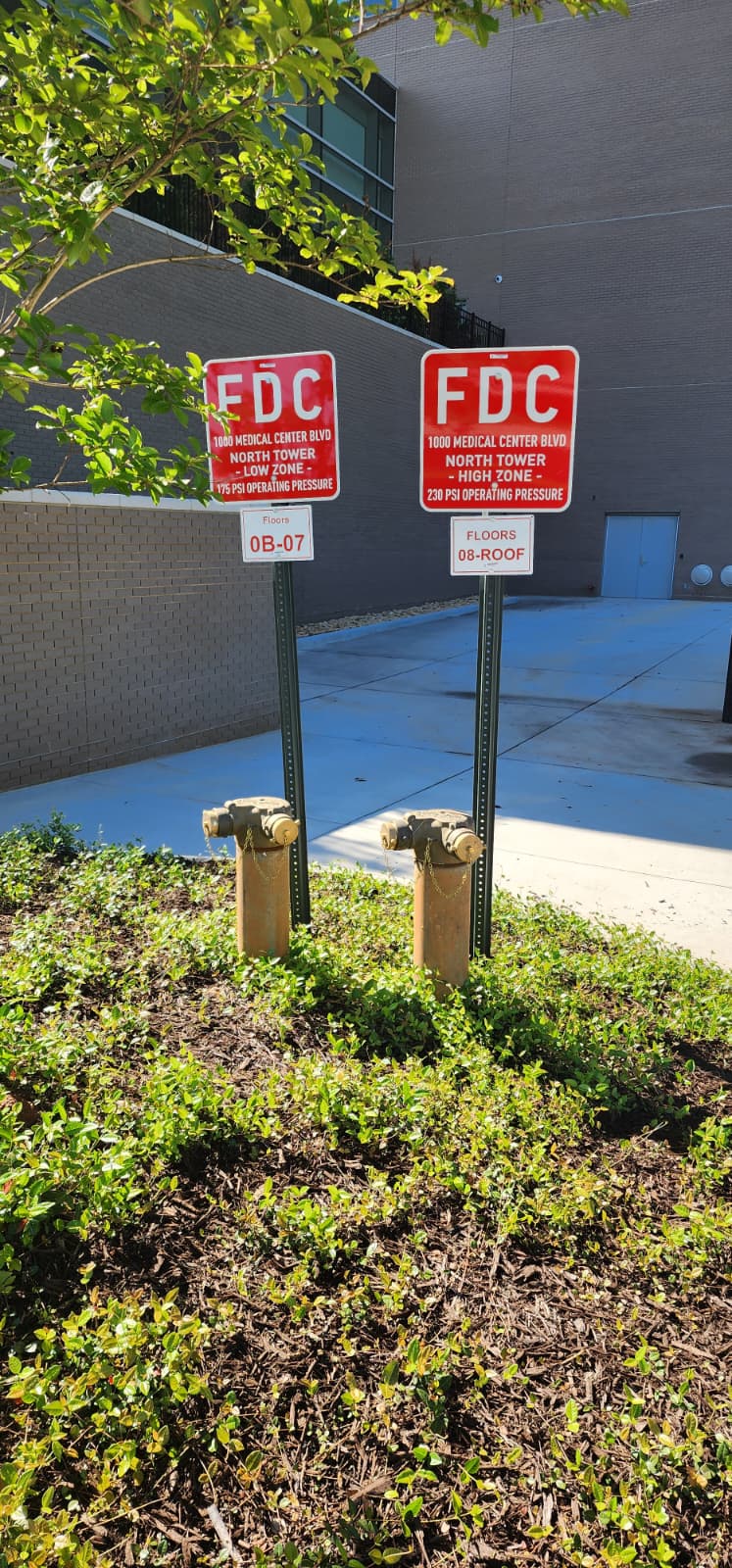

Low-Zone FDC (floors 1–7 or 1–22)
Sign typically reads “150–200 PSI”. The pumper connects here for fires in lower floors. Static loss is modest; most modern engine pumpers handle this routinely.
High-Zone FDC (top third of the building)
Sign typically reads “238–300+ PSI”. At these pressures, pumper discharge hoses become stiff and dangerous (pressure safety limits). Multiple engines may be needed in relay, or an in-building fire pump is relied upon while the FDC supplements.
⚠️ What engine operators watch for
If an operator connects to a high-zone FDC without noticing the pressure rating sign, they may under-pressurize — water reaches the third floor but dribbles at the top. The opposite error (over-pressurizing a low-zone FDC at high-zone pressure) can burst the piping or blow a sprinkler head. The zone sign is not decoration. NFPA 14 requires it on every high-rise FDC, and arriving engines check it before setting pumper discharge pressure.
The Fire-Truck-Only Scenario — When Your Pump Fails
The scenario nobody wants to talk about: your fire pump fails during a fire (power outage, mechanical failure, impairment during maintenance), and the FDC becomes the sole water supply to the system. An engine at the curb pumping through the FDC is now all you have. How does that play out?
Filling an empty system
If the system is dry (pre-action that tripped, or a wet system drained for maintenance), the pumper has to physically push water up the riser and through thousands of feet of piping before it reaches the first sprinkler. The math:
Estimates for a cold-start (empty) system. System volume = pipe internal volume + tank reserve, if any. Pumper flow at high-zone is often pressure-limited — the engine can push 1,000+ gpm at 150 psi but only 500 gpm when it has to overcome 250 psi of elevation plus friction.
The charged-system reality
In a real fire, the system is already charged with water — sprinklers are flowing, pressure is dropping, and the fire pump (if working) is trying to maintain it. When the pumper connects to the FDC, it isn't filling an empty system; it's supplementing a discharging one. The pressure boost typically reaches the top floor within 1–2 minutes of engine connection, assuming the FDC check valve is functional and system piping is intact.
Why building owners should care
Every minute the fire department spends getting water to the fire is a minute the fire keeps growing. A reliable fire pump, jockey pump, and backup power arrangement mean the FDC's role stays as a supplemental supply, not the primary one. The math above tells you what happens when that arrangement breaks down — and why NFPA 25 §8 fire pump maintenance is not optional paperwork. The alternative is firefighters delivering water to a top-floor fire in 14 minutes instead of 1.
Signage & System Identification
The FDC must be clearly marked so the fire department knows which system it feeds. Buildings may have separate FDCs for the sprinkler system and the standpipe system, or a single combined connection NFPA 13, §8.17.2.4.
Required Signage
- "AUTO SPKR" — serves the automatic sprinkler system only
- "STANDPIPE" — serves the standpipe system only
- "AUTO SPKR & STANDPIPE" — combined connection
- "DRY" or "PRE-ACTION" — identifies the system type where multiple exist
- Signs must be permanent, weather-resistant, and visible from the fire lane
- Many AHJs require the building address or system zone number on or near the FDC
Installation Requirements
NFPA 13 and local codes specify where and how the FDC must be installed. These requirements exist to ensure rapid, unobstructed access during an emergency NFPA 13, §8.17.2.
- Location: On the street side of the building, visible and accessible from the fire department access road
- Height: Inlets between 18" and 48" above grade (varies by AHJ — most prefer 36")
- Distance: Within 100 feet of a fire hydrant where possible
- Clear access: No landscaping, fencing, vehicles, or dumpsters blocking the FDC
- Check valve: Required between the FDC and the system to prevent backflow
- Drain: A ball drip or automatic drain between the check valve and the FDC inlets prevents freezing
- Caps: Each inlet must have a cap (breakable or threaded) to keep debris out
- Pipe size: FDC piping must match the size required by the system demand — minimum 4" for sprinkler systems
NFPA 25: FDC Inspection & Testing Schedule
5-Year Hydrostatic Test on an FDC
Walkthrough of the NFPA 25 §13.8.5 five-year hydrostatic test on an FDC. The FDC piping is isolated from the system, filled with water, and pressurized to 200 psi (or 50 psi above system working pressure, whichever is greater) for a full 2 hours. Any drop in pressure beyond the allowable rate indicates a failed check valve, cracked fitting, or leaking coupling that must be repaired before the test passes.
Common Field Issues
FDC deficiencies are among the most frequently cited findings in fire inspections because the FDC is exposed to weather, vandalism, and neglect.
Missing or Damaged Caps
Caps prevent debris, insects, and trash from entering the piping. Missing caps allow obstructions that can block water flow when the fire department connects. Vandalism and weathering are the primary causes.
Obstructed Access
Landscaping grown over the FDC, vehicles parked in front, dumpsters blocking access, construction materials stacked nearby. The fire department has seconds, not minutes, to connect.
No Signage or Wrong Signage
FDC not labeled, labeled incorrectly (says "SPKR" but feeds standpipe), or signage faded beyond legibility. Firefighters connecting to the wrong system delays water delivery.
Leaking Check Valve
Water dripping from the FDC inlets indicates the check valve is not seating properly. This can also cause the ball drip to run continuously, wasting water and creating ice in winter.
Painted Over or Hidden
Renovation work sometimes covers the FDC with siding, stucco, or paint that blends it into the wall. The fire department cannot use what they cannot find.
Incompatible Couplings
FDC thread type must match the local fire department's hose couplings. NH (National Hose) thread is standard, but some older systems have non-standard threads. Storz adapters may be required.
Broken Ball Drip
The automatic drain between the check valve and inlets prevents trapped water from freezing and cracking the FDC body. A broken drip leads to ice damage in cold climates.
Interior Obstruction
Rocks, dirt, plastic bags, or even animal nests found inside FDC piping. Discovered during 5-year internal inspection or when fire department flow meets unexpected resistance.
Related System Components
The FDC is connected to and dependent on several other system components:
▶ Watch: Fire Department Connection — how it works
Source: Field walkthrough · Open on YouTube ↗
Frequently Asked Questions
Why do fire department connections have two connectors?
What's the difference between a Storz connection and a traditional FDC?
How much water can an FDC deliver?
Why do high-rise buildings have multiple FDCs?
What happens if the fire pump fails during a fire?
What FDC issues cause real-world firefighting problems?
What is the fire-truck-only scenario and why should building owners care?
