SYSTEM COMPONENTS

Sprinkler System Piping
The Arteries

Steel, CPVC, or copper — the pipe carrying water (or air) from the riser to every sprinkler head, plus the corrosion, freezing, and loading problems that quietly destroy it from the inside.

By Stanislav Samek, Samektra · 12 min read · Last updated April 18, 2026

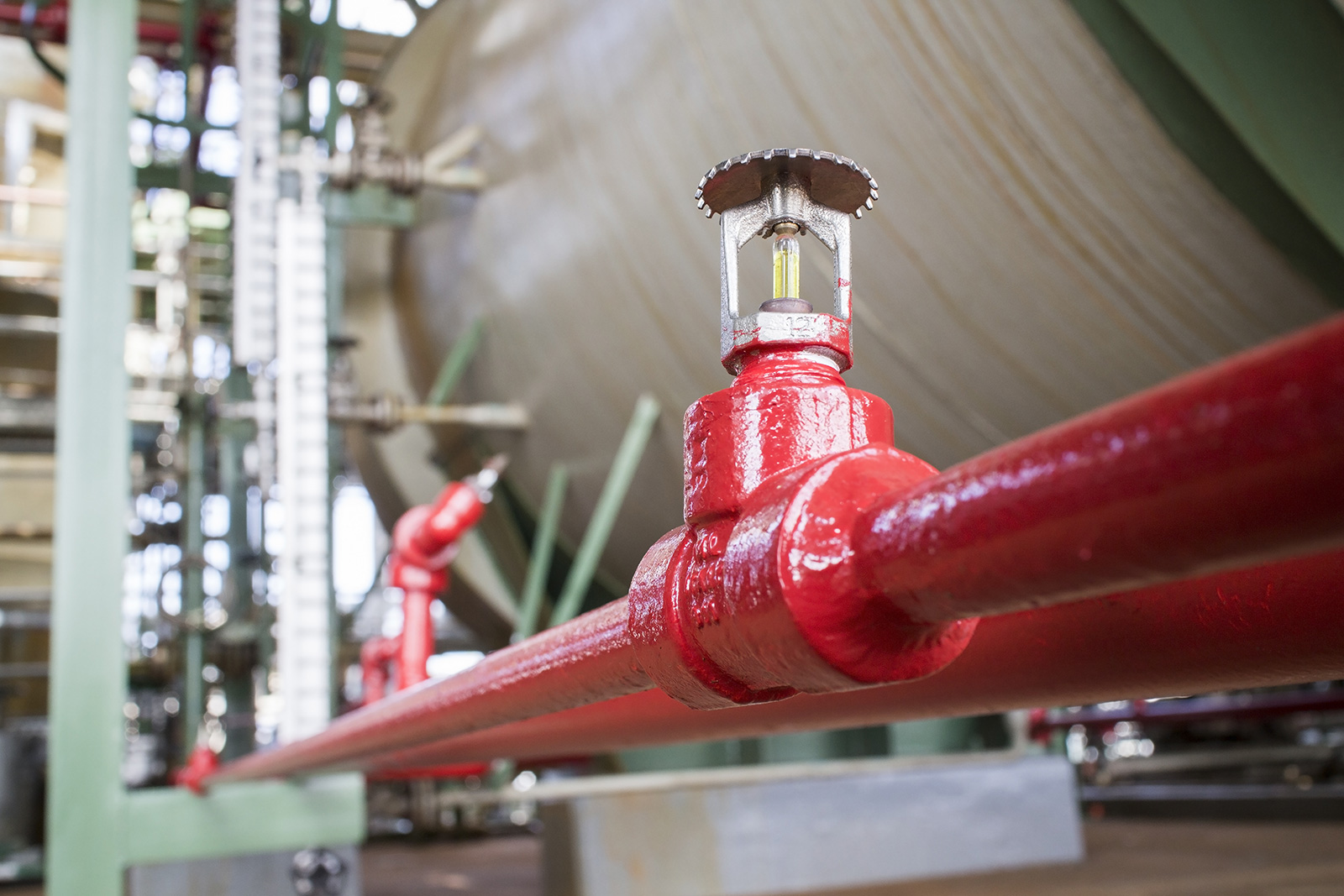

Classic fire-protection red: an upright sprinkler on a red-painted branch line, connected by a grooved tee fitting. The yellow glass bulb rates this head at 212°F (100°C) — intermediate temperature. In the background, additional painted branch lines feed the rest of the facility. Every sprinkler system's piping is the physical path from the supply through the riser, out across the mains, down the branches, and ultimately to this head.

The Four Allowed Materials

NFPA 13 Chapter 6 permits only specific listed pipe materials. "Listed" means tested and approved by a nationally recognized testing laboratory (typically UL or FM) specifically for fire protection service. In practice you will see four materials in the field:

Black steel (Schedule 10 or 40)

The traditional standard. Durable, inexpensive, welds and grooves well. Schedule 40 is the thick-wall default; Schedule 10 is a thinner-wall option that saves weight but is limited to certain sizes and joining methods. Vulnerable to MIC in wet and dry systems.

+ Cheap · Strong · Universal fittings− Heavy · Corrosion-prone

Galvanized steel

Historically specified for dry and pre-action systems to resist atmospheric corrosion. Now known to actually accelerate MIC under certain conditions — the zinc coating becomes food for sulfate-reducing bacteria. Still listed but no longer recommended for new dry systems.

+ Legacy compatibility− MIC-accelerating in dry · Zinc flakes can plug heads

CPVC (listed)

Chlorinated polyvinyl chloride. Used in light-hazard occupancies only (apartments, offices, hotels). Must be protected from freezing, UV, solvent exposure, and above-ceiling temperatures over its listing limit. Cannot be used in dry, pre-action, or deluge systems. Extremely sensitive to chemical exposure — even expanding foam insulation can cause stress cracking.

+ Light · No corrosion · Solvent-weld joints · No hot-work permit− Wet-system only · Chemical-sensitive · Fragile during installation

Listed copper tube (Types K, L, M)

Hard-tempered copper meeting ASTM B88. Occasional retrofit use in architecturally exposed installations. Excellent corrosion resistance but expensive. Must be brazed, not soldered, at pipe-to-pipe joints.

+ Corrosion-resistant · Architectural · Long service life− Expensive · Theft target · Requires brazing skill

Schedule 10 vs Schedule 40 — Pick Your Wall Thickness

Black steel sprinkler pipe comes in two wall-thickness "schedules." The number describes the ratio of the wall thickness to the pipe diameter. Schedule 40 is the thick-wall standard; Schedule 10 is a reduced-weight option that NFPA 13 added to save material cost and make overhead installation easier.

Schedule 40 (thick wall)

Traditional default for all sizes
Can be threaded at any size (within size limits)
Heavy — more labor to install
Longer life under corrosion attack
Required for high-pressure applications

Schedule 10 (thin wall)

Lighter — faster overhead installation
Cannot be threaded — must be grooved or welded
Typically 2-1/2" and larger only
Thinner wall — less corrosion tolerance
Lower material cost than Schedule 40

The threading catch: Schedule 10 cannot be threaded because the wall is too thin to hold full-depth pipe threads. Any branch line that needs to end at a sprinkler head with a threaded outlet must use Schedule 40 at that fitting — or you use a grooved coupling with a reducing outlet. Mixing the two is common; so is getting it wrong on a first-time install.

Joining Methods — Threaded, Grooved, Welded, Solvent Weld

How the pipe is joined is just as code-regulated as the pipe itself. Four joining methods dominate fire protection:

Threaded

Traditional method for Schedule 40 steel 2" and smaller. Pipe is cut, threaded with a die, sealed with pipe dope or PTFE tape, and hand-tightened into a fitting. Reliable, repairable, universal. Limited to smaller sizes because large threaded joints are hard to tighten properly.

Grooved (Victaulic-style)

Pipe ends are cold-rolled or cut with a groove near the end. A rubber gasket slides over both pipe ends, a two-piece segmented coupling locks into the grooves, and bolts tighten the coupling. Fast, clean, no hot work, allows slight flex. Dominant method for 2-1/2" and larger. Requires listed groove depths and gasket types.

Welded

Butt-welded or socket-welded joints. Requires a hot-work permit, a certified welder, and post-weld inspection. Slower and more expensive than grooved, but produces the strongest, most durable joint. Common on large riser mains, fire pump discharge, and concealed work where service access is never expected.

Solvent weld (CPVC only)

CPVC pipe and fittings are joined with a two-step primer-and-cement process. Primer softens the surface; cement creates a chemical fusion as it cures. Must use listed CPVC cement (not standard PVC cement). Cure time depends on temperature and pipe size — a joint that is disturbed too early will leak under system pressure.

Hanger Spacing — NFPA 13 Table 17.1.2

Pipe that is not properly supported sags, strains fittings, and eventually fails. NFPA 13 Chapter 17 sets a maximum hanger spacing based on pipe size and material. Exceeding these spacings is one of the most common failures at final inspection.

MAXIMUM HANGER SPACING (NFPA 13 Table 17.1.2, abridged)

Pipe size	Steel Sch. 40	Steel Sch. 10	Copper	CPVC
3/4"	12 ft	—	8 ft	5.5 ft
1"	12 ft	—	8 ft	6 ft
1-1/4"	12 ft	—	10 ft	6.5 ft
1-1/2"	12 ft	—	10 ft	7 ft
2"	15 ft	12 ft	12 ft	8 ft
2-1/2"	15 ft	15 ft	12 ft	9 ft
3"	15 ft	15 ft	12 ft	9 ft
4" +	15 ft	15 ft	12 ft	9 ft

Abridged values — always verify against the current NFPA 13 edition your AHJ has adopted. Additional rules apply for branch lines with end-of-line sprinklers (hanger within 3 feet of the last head) and for pipes that change direction (hanger within 1 foot of the fitting).

Additional hanger rules from NFPA 13 Chapter 17:

A hanger must be located within 1 foot of every change of direction in the piping.
On branch lines, a hanger must be placed within 3 feet of the end sprinkler to prevent pipe whip when that head opens.
Hangers must be listed for fire protection use (UL or FM). Generic plumbing hangers are not acceptable.
Seismic bracing is required per NFPA 13 Chapter 18 in seismic zones — lateral braces every 40 feet of pipe, longitudinal braces every 80 feet, plus 4-way braces at system risers.

The 18-Inch Rule — Loading and Obstructions

NFPA 13 §13.2.1 requires a minimum 18-inch clear space below every sprinkler deflector. Storage, wiring, HVAC equipment, light fixtures, decorations, signage, shelving — nothing may intrude into that 18-inch zone. This is one of the most commonly cited deficiencies in warehouses, retail stores, and healthcare occupancies where space gets tight and items creep upward.

Why 18 Inches?

The hydraulic design of the sprinkler assumes an unobstructed spray pattern. A box, shelf, sign, or decoration within 18 inches of the deflector physically blocks water from reaching its intended coverage area. The fire develops in the shadow below the obstruction, and the sprinkler cannot suppress it. This rule is not arbitrary — it is exactly the dimension where spray pattern degradation begins to matter hydraulically.

Separately, NFPA 13 prohibits hanging anything from the sprinkler piping itself. No decorations, no wiring, no small fixtures. The pipe is a fire protection asset, not a storage rail. Inspectors will cite any load on the pipe — even a zip-tied cable run.

MIC — The Hidden Killer

Microbiologically Influenced Corrosion is the number-one cause of unexpected dry-system failures. A colony of anaerobic bacteria establishes itself in stagnant, low-oxygen pools of water inside the pipe and releases acidic metabolites that attack the steel from the inside out. The pipe exterior looks perfectly fine; the interior has pinhole leaks, tubercles, and flow restriction.

Indicators that MIC is happening

Pinhole leaks in a system less than 10 years old
Dry systems losing air pressure with no visible cause
Black nodules or orange slime on internal surfaces
Reduced flow test results vs the original hydraulic calc
Discolored water when the system is drained

Mitigation strategies

Nitrogen inerting per NFPA 13 §24.1.1.1 (strongly preferred for new dry)
Corrosion inhibitor injection on monitored wet systems
Regular air venting at dry-system auxiliary drains
5-year internal inspection per NFPA 25 §14
Replacement of the most-affected runs when tubercles exceed listing tolerance

NFPA 25 §14 requires an obstruction investigation whenever any of those indicators appear. This is a formal procedure — partial pipe disassembly, visual inspection, flow testing, and documented corrective action — not a quick walk-around.

Freeze Protection

Water-filled sprinkler pipe that drops below 32°F will freeze, expand, and burst. NFPA 13 §8.1.5 requires freeze protection for any wet-system piping exposed to freezing temperatures — typically areas like unheated parking garages, loading dock ceilings, canopies, and unfinished attics.

Heat-trace + insulation

Self-regulating electric heating cable wrapped around the pipe under closed-cell insulation. Common on FDCs, exterior standpipe risers, and short runs into unheated spaces. Must be on emergency power if the space it protects is life-safety critical.

Convert to dry system

The cleanest answer for large unheated areas. Replace the wet system (water-filled) with a dry system (air-supervised) and run a dry pipe valve at the boundary between heated and unheated space. Adds air compressor, nitrogen, low-air supervisory switch, inspector's test, and main drain — substantial infrastructure.

Antifreeze loop

NFPA 13 §7.6 severely restricts antifreeze since the 2011 Reno propylene-glycol ignition incidents. New antifreeze solutions must be listed glycerin or propylene-glycol mixtures at specific concentrations, and existing systems are being phased out. Dry systems and heat trace have largely replaced antifreeze.

Dry drop / dry pendent sprinklers

Specialty sprinkler heads with a dry barrel between the wet system above and the pendant head below. Water is held above the freezing zone by a seal inside the head. Common solution for an isolated exterior canopy or a small unheated room served by a wet system.

NFPA 25 ITM — What Inspectors Look For

AnnualExternal inspection from floor level — pipe and fittings in good condition and free of mechanical damage, leakage, and corrosion.NFPA 25 §5.2.2

AnnualLoading check — sprinkler piping not subjected to external loads by materials resting on the pipe or hung from the pipe. Nothing within 18" of sprinkler deflectors.NFPA 25 §5.2.2 – §5.2.2.2

AnnualHanger and support check — visible hangers secure, no missing or damaged hardware.NFPA 25 §5.2

5-YearInternal inspection — open a flushing connection at the end of one main AND remove one sprinkler toward the end of one branch line. Inspect the opened main and the end-of-branch for the presence of foreign organic and inorganic material.NFPA 25 §14.2.1

As NeededObstruction investigation — triggered by any MIC indicator: pinhole leaks, air-pressure loss, unexplained flow drop, discolored drain water.NFPA 25 §14

TJC / CMS HEALTHCARE — SURVEYOR-CITED TEXT

PE.03.01.01, EP 03 — The Physical Environment Standard

“The hospital designs and manages the physical environment to comply with the Life Safety Code. The hospital meets the applicable provisions of the Life Safety Code NFPA 101-2012. Sprinkler pipe and fittings shall be inspected annually from the floor level. Pipe and fittings shall be in good condition and free of mechanical damage, leakage, and corrosion. Sprinkler piping shall not be subjected to external loads by materials either resting on the pipe or hung from the pipe. An inspection of piping and branch line conditions shall be conducted every 5 years by opening a flushing connection at the end of one main and by removing a sprinkler toward the end of one branch line for the purpose of inspecting for the presence of foreign organic and inorganic material.”

Code referenced: NFPA 25 §5.2.2 through §5.2.2.2 and §14.2.1 (2011 edition, per CMS-adopted NFPA 101-2012). Private-sector jurisdictions typically enforce the current edition, but the substance of these sections is unchanged.

Things You Might Not Know

Galvanized pipe can fail faster than black steel

The zinc coating on galvanized pipe was supposed to prevent corrosion. In dry systems, the opposite happens — the zinc becomes a food source for sulfate-reducing bacteria, creating aggressive MIC tubercles that can restrict flow by 40% or more. Modern practice is black steel with nitrogen inerting, not galvanized.

CPVC hates expanding foam

Spray-foam insulation chemistry attacks CPVC and causes stress cracking. NFPA 13 and the manufacturer listings specifically prohibit contact with any petroleum-based sealant, solvent, or foam insulation. A contractor who insulates a ceiling without knowing this can kill a CPVC system within two years.

Sprinkler pipe can't hold decorations

Even a single zip tie or picture wire hung from the pipe is a citable NFPA 25 finding. The pipe is a fire protection asset, not a support rail. Inspectors catch this in offices, gyms, and retail stores where tenants have improvised storage or decoration.

Schedule 10 can't be threaded

Thin-wall Schedule 10 steel is too thin to hold full-depth pipe threads. It must be grooved or welded. Transitioning from Schedule 10 to a threaded branch requires a reducing grooved coupling or a welded outlet — not a simple threaded reducer.

Nitrogen is now the industry best practice for new dry

NFPA 13 §24.1.1.1 recognizes nitrogen inerting as a compliant supervisory medium. A nitrogen generator replaces the traditional air compressor, and the piping is filled with N₂ instead of atmospheric air. Since MIC bacteria need oxygen, nitrogen dramatically extends pipe service life.

Hanger spacing is size-dependent

NFPA 13 Table 17.1.2 sets different spacings for each pipe size and material. The most common error: using 15-foot spacing on 1-1/4" steel because "it worked for the 2-inch run." 1-1/4" tops out at 12 feet. Always check the table, not your memory.

Freeze damage is always the same pattern

Frozen pipe ruptures at a split along the top of the pipe, typically at the thinnest wall location. The split occurs because expanding ice forces outward; the pipe fails at its weakest cross-section. An annual walk-through in late fall of every unheated space is cheap insurance.

CPVC can't go above a certain ceiling temperature

CPVC listings specify a maximum ambient operating temperature — typically around 150°F. In unconditioned attics and above non-sprinklered ceilings, summer temperatures can approach or exceed this. That rules CPVC out for many above-ceiling applications even in light-hazard buildings.

▶ Watch: Fire Sprinkler Piping — Field Walkthrough

Frequently Asked Questions

What pipe materials are allowed for fire sprinkler systems?

NFPA 13 Chapter 6 permits four listed materials: black steel (Schedule 10 or 40), galvanized steel, listed CPVC, and listed copper tube (Types K, L, and M). Black steel is the traditional standard for wet and dry systems. CPVC is restricted to light-hazard wet systems only. Copper is occasional retrofit use. Galvanized is still listed but no longer recommended for dry systems because it accelerates MIC under certain conditions.

Can CPVC pipe be used in a dry sprinkler system?

No. CPVC is listed only for wet systems in light-hazard occupancies (apartments, offices, hotels). It cannot be used in dry, pre-action, or deluge systems because the material is not rated for the compressed-air pressures, the mechanical stress of the trip event, or the elevated temperatures that sometimes occur after a trip. CPVC also cannot be used above non-sprinklered ceilings where the ambient temperature might exceed the listing.

What is MIC and why does it matter?

Microbiologically Influenced Corrosion is caused by anaerobic bacteria that establish themselves in stagnant, low-oxygen pools of water inside the pipe. The bacteria release acidic metabolites that attack the steel from the inside. MIC is the #1 cause of unexpected dry-system failures — pinhole leaks appear in systems less than 10 years old, and internal inspection reveals black nodules or orange slime. NFPA 25 §14 requires an obstruction investigation whenever any of those indicators appear.

How often should the piping be inspected internally?

NFPA 25 §14.2 requires internal inspection at five-year intervals as part of the system's obstruction investigation program. Additional inspection is required if any MIC indicator is found: pinhole leaks in a system less than 10 years old, inability to maintain dry-system air pressure, or visible internal deposits during other maintenance.

What is the 18-inch rule?

NFPA 13 §13.2.1 requires a minimum 18-inch clear space below any sprinkler deflector. Nothing — storage, wiring, decorations, ducts, light fixtures, or equipment — may be hung from the sprinkler pipe or placed within 18 inches below the deflector. Loaded sprinklers create spray-pattern obstructions that defeat the hydraulic design. This is one of the most commonly cited NFPA 25 inspection findings.

How is nitrogen used in dry sprinkler systems?

Nitrogen inerting — introduced in NFPA 13 §24.1.1.1 — displaces atmospheric oxygen from inside the pipe. Since MIC bacteria need oxygen and moisture to thrive, removing the oxygen dramatically reduces corrosion. Nitrogen generators or bottled supply replace the traditional air compressor on the dry-pipe valve. The payoff: internal inspections of nitrogen-protected systems show dramatically cleaner pipe 5-10 years after installation compared to air-supervised equivalents.

How far apart can sprinkler pipe hangers be?

NFPA 13 Table 17.1.2 sets maximum hanger spacing by pipe size and material. For Schedule 40 black steel: 12 feet for 1" through 1-1/2" pipe, 15 feet for 2" through 10" pipe. For CPVC: 5-1/2 feet for 3/4", stepping up to 9 feet for 2" and larger. Copper and Schedule 10 steel have intermediate values. Exceeding these spacings is a common failure at final inspection.

References

1. NFPA 13 (2022), Chapter 6 — Pipes, tube, and fittings; listing requirements.

2. NFPA 13 (2022), Chapter 17 — Hangers, restraints, and supports.

3. NFPA 13 (2022), §13.2.1 — 18-inch obstruction rule below sprinkler deflectors.

4. NFPA 13 (2022), §24.1.1.1 — Nitrogen inerting of dry systems.

5. NFPA 25, §5.2.2 through §5.2.2.2 — Annual pipe and fittings inspection from floor level (2011 edition enforced by CMS / TJC in healthcare; 2023 edition for most other adopters).

6. NFPA 25, §14.2.1 — 5-year internal inspection via flushing connection at end of one main and sprinkler removal toward end of one branch line.

7. The Joint Commission, PE.03.01.01 EP 03 — Physical Environment standard citing NFPA 101-2012 and the NFPA 25 sections above.
