Hydraulic Calculations
The Math Behind Every Sprinkler System
Every pipe diameter, every sprinkler head selection, and every fire pump in a sprinkler system exists because a hydraulic calculation said it had to. This is how engineers prove a system will deliver water where it matters.
What Are Hydraulic Calculations?
Hydraulic calculations are the mathematical proof that a fire sprinkler system will deliver the required water flow (GPM) at the required pressure (PSI) to every sprinkler head in the design area. They are the engineering foundation of every sprinkler system designed under NFPA 13 NFPA 13, Ch. 23.
In simple terms: the hydraulic calculation starts at the most remote sprinkler head — the one farthest from the water supply — and works backward through every pipe, fitting, valve, and elevation change, adding up all the friction losses and pressure demands until it reaches the water supply. If the water supply can meet or exceed the total demand, the system works. If not, the designer must increase pipe sizes, change the layout, or add a fire pump.
Every sprinkler system installed since the 1970s has hydraulic calculations on file. Before that, systems were designed using pipe schedule methods (fixed pipe sizes based on head count), which are less efficient and no longer permitted for new installations NFPA 13, §23.1.
The Density/Area Method — Where It All Starts
The density/area method is the standard approach for determining sprinkler system demand. It answers two questions: how much water per square foot (density) and over how large an area (design area) must the system deliver?
Step 1: Classify the Occupancy Hazard
NFPA 13 classifies all occupancies into hazard groups that determine the minimum design criteria:
Step 2: Calculate System Demand
The system demand is calculated by multiplying density × area. For example, an Ordinary Hazard Group 1 occupancy:
0.15 GPM/ft² × 1,500 ft² = 225 GPM
Plus hose stream allowance (typically 250 GPM for OH1) = 475 GPM total demand
Step 3: Determine Pressure Required
The designer then calculates friction loss through every pipe segment from the most remote sprinkler head back to the water supply, adding elevation head (0.433 PSI per foot of rise) and fitting losses. The total is the system demand pressure. If the water supply cannot provide this pressure at the required flow, a fire pump is needed to make up the difference.
Key Formulas Every Inspector Should Know
Sprinkler Discharge
Q = K × √PQ = flow (GPM), K = K-factor of the sprinkler head, P = pressure at the head (PSI). A K-5.6 head at 7 PSI minimum flows: 5.6 × √7 = 14.8 GPM. This is the fundamental equation — it connects head selection to system performance.
Hazen-Williams Friction Loss
p = 4.52 × Q^1.85 / (C^1.85 × d^4.87)p = friction loss per foot of pipe (PSI/ft), Q = flow (GPM), C = pipe roughness factor (120 for new steel, 100 for old), d = internal pipe diameter (inches). This determines pipe sizing — larger pipe = less friction = lower pump requirements.
Elevation Pressure
P_elev = 0.433 × hP_elev = pressure gained or lost (PSI), h = height difference (feet). Water column exerts 0.433 PSI per vertical foot. Going UP adds to demand; going DOWN subtracts. A 10-story building (120 ft) adds 52 PSI of elevation head.
Velocity Limit
v = Q / (2.448 × d²)v = velocity (ft/sec), Q = flow (GPM), d = internal diameter (inches). NFPA 13 does not set a hard velocity limit, but industry practice caps velocity at 20-25 ft/sec to prevent water hammer, erosion, and excessive friction loss.

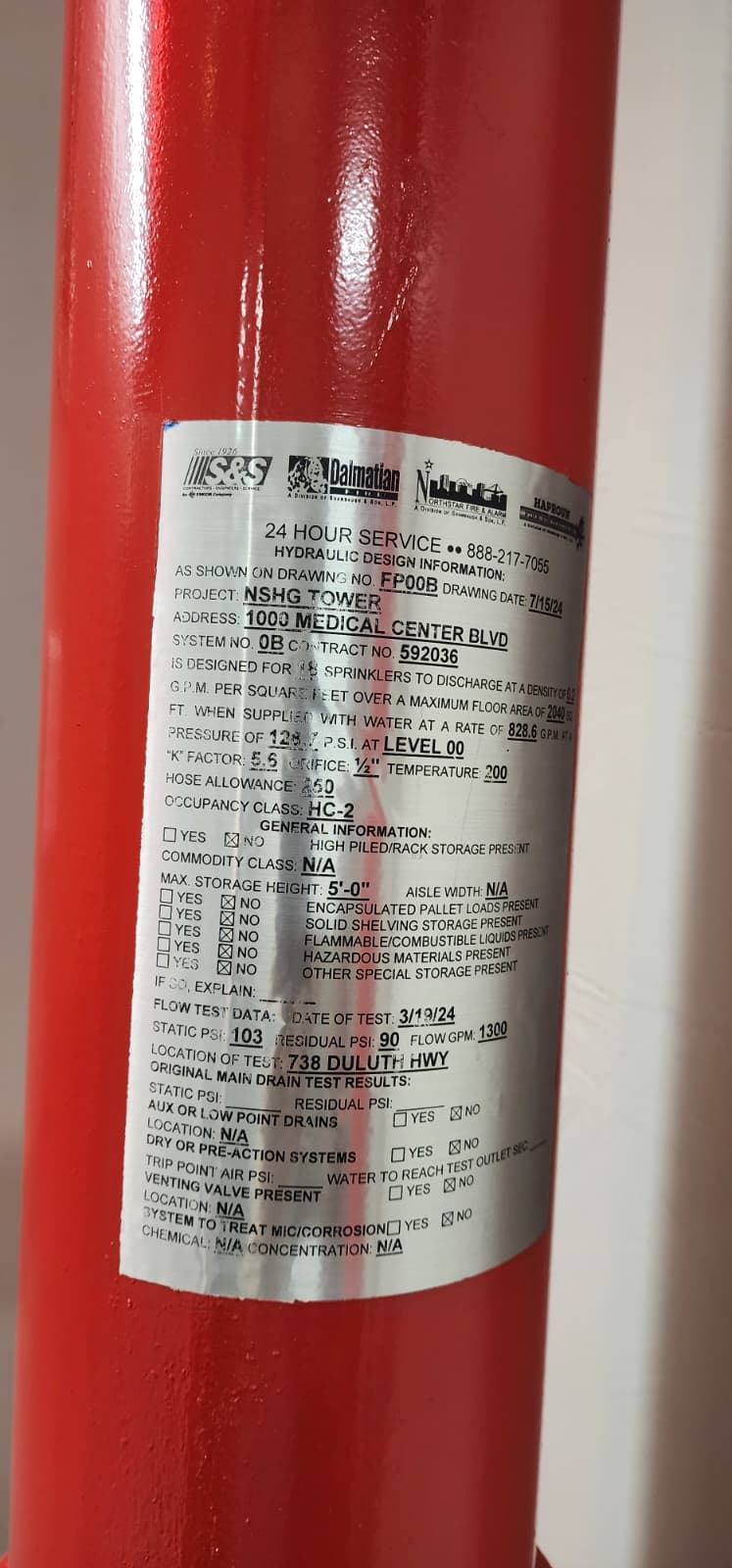

The Hydraulic Design Information Placard

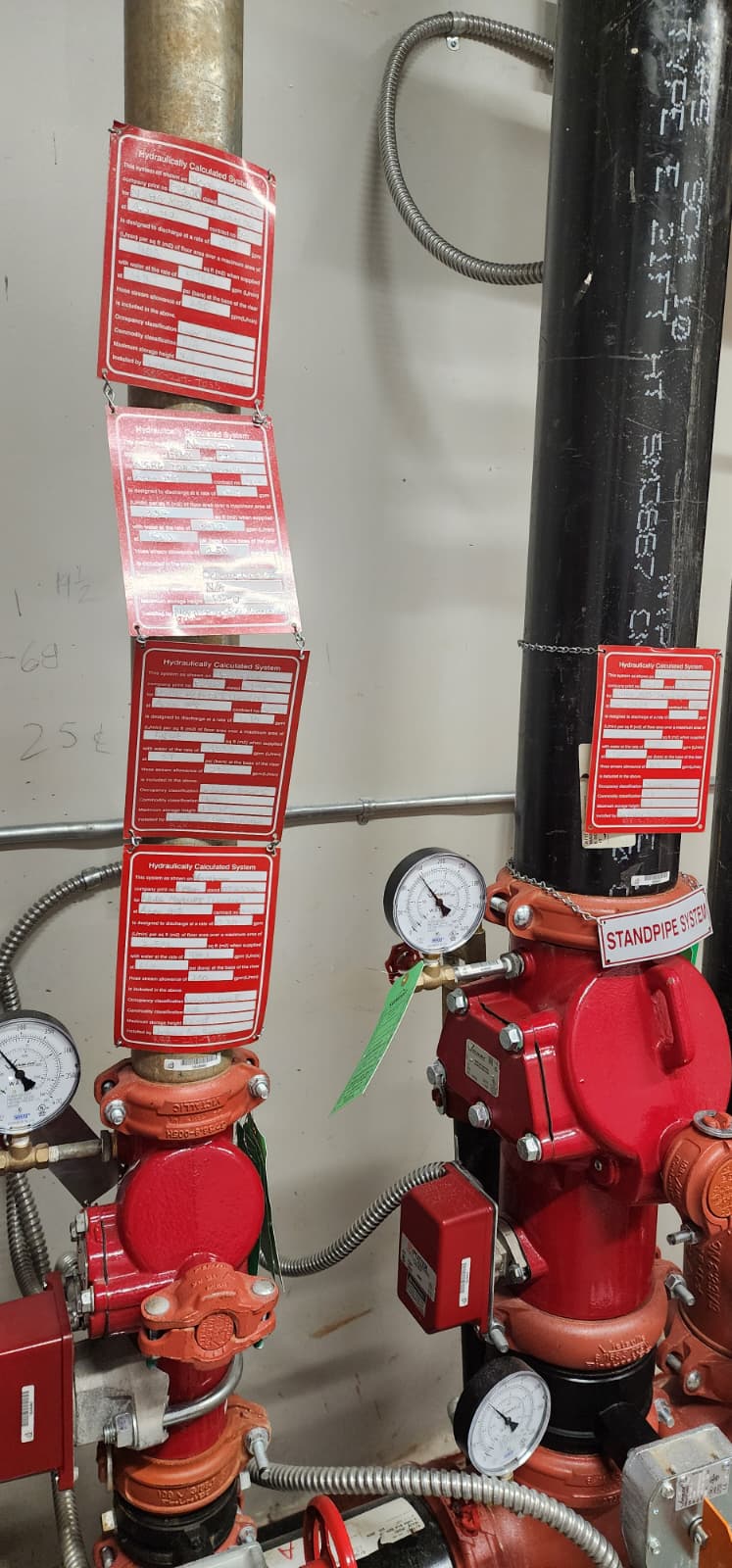

Every hydraulically calculated sprinkler system must have a hydraulic design information sign permanently attached to the riser. This placard is the summary of the entire hydraulic calculation — it tells anyone inspecting the system exactly what it was designed to do NFPA 13, §27.1.
What Each Field on the Placard Means
NFPA 25 §5.2.7 — Inspect the Placard Annually
The hydraulic design information sign must be inspected annually to verify it is provided, securely attached, and legible. A missing or illegible placard means the inspector has no way to verify the system's design parameters without requesting the original calculation documents. Replace damaged or faded placards immediately.
Water Supply Analysis — Can the Supply Meet the Demand?
The hydraulic calculation is only half the equation. The other half is the water supply analysis — plotting the available water supply curve and comparing it to the system demand point NFPA 13, §23.4.
Flow Test
A fire hydrant flow test is performed near the building to establish the water supply characteristics. The test records: static pressure (no flow), residual pressure (at a known flow), and the flow rate. These three data points define the supply curve. Flow tests must be conducted during periods of normal water demand — not at 3 AM when usage is zero and pressure is artificially high.
Supply vs Demand
The supply curve and the demand point are plotted on the same graph. If the supply curve is above and to the right of the demand point, the water supply is adequate. If the demand point falls above the supply curve, the system needs a fire pump to boost pressure, or the designer must reduce demand by using larger pipe, fewer heads in the design area, or different sprinkler types.
Safety Margin
Good design practice includes a 10-15% safety margin between the supply and demand. A system designed right at the supply limit will fail if the city water pressure drops even slightly — during peak summer usage, a water main break, or municipal system maintenance. The margin protects against real-world supply variability.
Fire Pump Boost
When the supply curve falls below the demand point, a fire pump adds the missing pressure. The pump curve is added to the supply curve, shifting the combined supply up and to the right. The designer selects a pump whose curve bridges the gap between the raw supply and the system demand with adequate margin.
Common Hydraulic Calculation Mistakes
Wrong C-Factor for Pipe Age
Using C=120 (new steel) when the pipe is 30 years old and should use C=100 or lower. This underestimates friction loss by 15-20%, making the system appear adequate when it is actually undersized. For existing systems, a flow test is the best way to establish actual friction characteristics.
Ignoring Elevation Changes
Forgetting to add 0.433 PSI per foot of elevation between the riser and the highest sprinkler head. In a 10-story building, this is 52 PSI — enough to make the difference between a system that works and one that starves the top floor.
Stale Flow Test Data
Using a water supply flow test from 5+ years ago. Municipal water systems change — new developments, water main replacements, pump station upgrades, or declining aquifer levels can dramatically alter the supply. NFPA 13 §24.1 requires a current flow test within 12 months for new designs.
Wrong Occupancy Classification
Classifying a warehouse as Ordinary Hazard when the storage height and commodity type require Extra Hazard. This is the most dangerous mistake — the entire system is undersized from the starting assumption. Storage occupancies per NFPA 13 Chapters 12-20 have their own design criteria separate from the density/area curves.
Missing Hose Stream Allowance
Calculating sprinkler demand only and forgetting to add the hose stream allowance (100-500 GPM depending on hazard). The hose allowance is added to the sprinkler demand at the water supply — it represents the water the fire department needs for manual firefighting in addition to the automatic sprinkler operation.
Undersized Branch Lines
Using 1" pipe on branch lines that carry flow to multiple heads. At high flow rates, 1" pipe creates excessive velocity (>20 ft/sec) and friction loss. The calculation might balance on paper, but the real-world system surges, hammers, and delivers less water than calculated due to turbulence effects not captured in Hazen-Williams.
Things You Might Not Know About Hydraulic Calculations
Every Sprinkler System Has a "Weakest Point"
The hydraulic calculation identifies the hydraulically most remote area — the area that is hardest to supply with water due to distance, elevation, pipe sizing, and friction loss. This is the design area. If the system can serve the weakest point, it can serve everywhere else. But if anything changes (pipe corrosion, valve partially closed, supply pressure drops), the weakest point is the first to fail.
Computer Software Does the Math, But Engineers Make the Decisions
Modern hydraulic calculations are performed by software (AutoSPRINK, SprinkCAD, HydraCAD). The software solves simultaneous equations for every pipe segment in seconds. But the software does not choose the occupancy classification, decide the pipe layout, select the sprinkler type, or interpret the flow test. Those decisions — which determine whether the system protects lives — are made by the designer.
The Placard Is a Legal Document
The hydraulic design information sign on the riser is not just informational — it is a permanent record of the system's design basis. If a fire occurs and the system fails, investigators will compare the placard to the actual conditions. If the placard says the system was designed for Ordinary Hazard but the building is now storing high-piled combustibles, the building owner has a significant liability problem.
Pipe Schedule Systems Still Exist (and Are Problematic)
Before hydraulic calculations became standard in the 1970s, sprinkler systems were designed using pipe schedules — fixed tables that specified pipe size based on head count. Pipe schedule systems are less efficient (use more material) and cannot be verified against the water supply without a full hydraulic analysis. NFPA 13 still permits pipe schedule for Light Hazard occupancies with limited head counts, but hydraulic design is required for everything else.
A 1-Inch Pipe Size Change Can Save $50,000 in Pump Cost
Increasing a main riser from 4" to 6" pipe dramatically reduces friction loss. That reduction might be enough to eliminate the need for a fire pump entirely — saving $50,000-100,000 in pump, controller, and electrical installation costs. This is why good hydraulic design is an optimization problem, not just a compliance exercise. The best designers balance pipe cost against pump cost to find the most economical solution.
ESFR Sprinklers Changed the Game
Early Suppression Fast Response (ESFR) sprinklers are designed to suppress a fire (not just control it) without the need for in-rack sprinklers in high-piled storage. But ESFR heads require very high pressure (up to 75 PSI at the head) and very specific spacing. The hydraulic calculations for ESFR systems are significantly more demanding than standard systems — and a single blocked deflector or storage change can invalidate the entire design.
▶ Watch on YouTube
See sprinkler system inspections and maintenance on What The Fire Code.
Watch on YouTube →References
1. NFPA 13: Standard for the Installation of Sprinkler Systems, 2022 Edition, Chapter 23.
2. NFPA 13: Table 11.2.3.1.1 — Density/Area Design Curves.
3. NFPA 13: Table 27.2.3.1 — Hazen-Williams C Values.
4. NFPA 25: Standard for ITM of Water-Based Fire Protection Systems, 2023 Edition, §5.2.7.
5. SFPE Handbook of Fire Protection Engineering, 5th Edition, Chapter 40.
6. FM Global Data Sheet 2-0: Installation Guidelines for Automatic Sprinklers.
