SYSTEM COMPONENTSNFPA 13 §16.10NFPA 25 §13.2.3

System Drains & Drum Drips
The Unsung Heroes

Main drains, auxiliary drains, and drum drips — the fittings that make the difference between a healthy system and a frozen, burst riser. Every sprinkler system has them. Most of them are neglected. Here's the NFPA 13 sizing rules, the dual-valve drum drip trick, why interior discharge floods buildings, and the winter-drainage routine that prevents 2 AM emergency calls.

By Stanislav Samek, Samektra · 12 min read · Last updated April 23, 2026

Why Every System Needs to Be Drainable

Per NFPA 13 §16.10.1: “All sprinkler pipe and fittings shall be installed so that the system can be drained.” Not “should” — “shall.” You cannot have a section of your fire sprinkler system that physically cannot be emptied. Four scenarios force the issue:

1. Repairs

Corrosion, storm or seismic damage, vandalism, or hardware replacement anywhere in the system requires drain-down before work starts.

2. Trip recovery

Dry or preaction system activation fills the pipes with water. After the incident or trip test, the system must be drained to restore it to dry/air-charged state.

3. System extension

Building addition, new floor area, or zone expansion requires draining existing piping before tie-in work.

4. Cleaning / flushing

Sediment, MIC biological growth, or scale discovered during the 5-year internal inspection may require a flush and drain to remediate.

Four Kinds of Drain

Main drain

A 2-inch drain line on the system side of the main control valve. Used for the annual main drain test, system draining for repairs, and as the drop line for the alarm test connection. The central point of discharge — all piping in the system should flow to it "where practicable" per NFPA 13 §16.10.

Auxiliary drains (drum drips)

Small drip traps at low points in a dry or preaction system. Collect condensation that would otherwise freeze and burst the pipe. A drum drip uses a dual-valve arrangement that lets you drain the trap without losing system air pressure. Required at every point where a pipe direction change traps water (NFPA 13 §16.10.5).

Sectional drains

Drains between the floor control valve and the cross main on each floor of a multi-floor system. Allow isolation and drainage of a single floor without shutting down the entire riser. Required per NFPA 13 §16.10.4.3.

Test and drain valves

Combined-function valves used primarily for the inspector's test at the end-of-line location, and also for periodic drainage. Typically ball-valve design with a built-in orifice that mimics a single open sprinkler head for alarm testing.

Drain Sizing — the NFPA 13 Rules

Drain size scales with riser size to handle practical flow (roughly 100 gpm for a typical main drain). Undersized drains either can't discharge fast enough (slows maintenance to a crawl) or cannot properly perform the main drain test.

Main drain sizing (NFPA 13 §16.10)

Riser sizeMinimum main drain size
2"3/4" minimum
2½" or 3"1¼" minimum
4"2" minimum
6"+Sized for practical discharge; typically 2" or larger

Auxiliary drain sizing (NFPA 13 §16.10.5)

Auxiliary drain sizing depends on trapped water volume AND whether the space is freezing-exposed:

System typeTrapped volumeRequired drain
Wet / preaction (no freeze)> 50 gal1" valve minimum
Wet / preaction (no freeze)5–50 gal3/4" valve + nipple with cap/plug
Wet / preaction (no freeze)< 5 gal½" nipple with cap/plug (or omit if drainable by disconnecting a sprinkler head)
Dry / preaction (freezing)5–50 galTWO 1" valves separated by a 2" × 12" condensate nipple (classic drum drip)
Dry / preaction (freezing)< 5 gal½" valve + plug or nipple-and-cap

The Drum Drip — How the Dual-Valve Trick Works

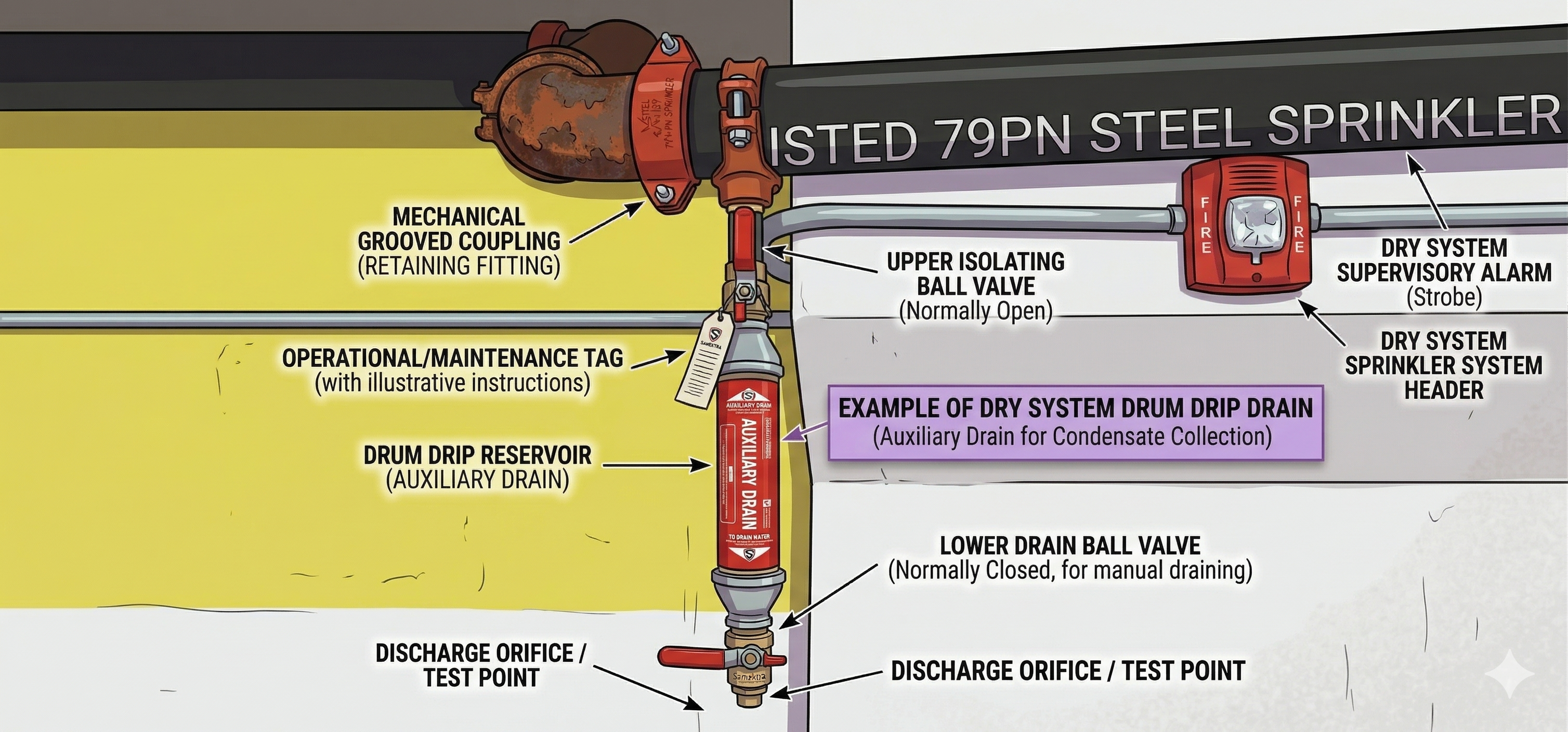

What each labeled component does

Listed 79PN Steel Sprinkler Header — the dry-system main pipe the drum drip taps into
Mechanical Grooved Coupling — Victaulic-style retaining fitting; attaches the drop-leg to the header
Upper Isolating Ball Valve (normally OPEN) — isolates the drum from system air pressure during draining
Drum Drip Reservoir (Auxiliary Drain) — the “drum” that collects condensate between drains; typically a 2" × 12" condensate nipple
Operational / Maintenance Tag — labels the valve as an auxiliary drain with drain instructions; NFPA 13 §16.9.11.1 required
Lower Drain Ball Valve (normally CLOSED) — opened manually to discharge the drum contents
Discharge Orifice / Test Point — where water exits the assembly; positioned so discharge doesn't land on walkways or electrical equipment
Dry System Supervisory Alarm (Strobe) — nearby FACP-supervised device; signals low air, tamper, or trouble on the dry system

The drum drip is the single most elegant fitting in fire protection. A short section of larger pipe (the “drum,” typically a 2" × 12" condensate nipple) sits between two valves. Condensate trickles down from the system and collects in the drum. When it's time to drain:

  1. Close the upstream valve — isolates the drum from the system air pressure. The drum is now a small isolated pressure chamber.
  2. Open the downstream valve — condensate drains to atmosphere. System pressure is unaffected because the upstream valve is still closed.
  3. Close the downstream valve — seals the drum again.
  4. Open the upstream valve — the drum reconnects to the system and refills with air at supervisory pressure. Zero loss of system pressure.

The only way to drain a dry or preaction system's low points without dumping system air. Watch the short walkthrough below:

▶ DRY DRUM DRIP

Drum drip operation — dry-system low-point drain

Field Examples — Drain Installations in the Wild

Two field photos from Gwinnett County commercial sites. Both show code-compliant drain installations but on different system types. The anatomy is different because the design intent is different: one drains pressurized water without losing supervisory air; the other drains water that is already sitting in a wet pipe that rarely sees flow.

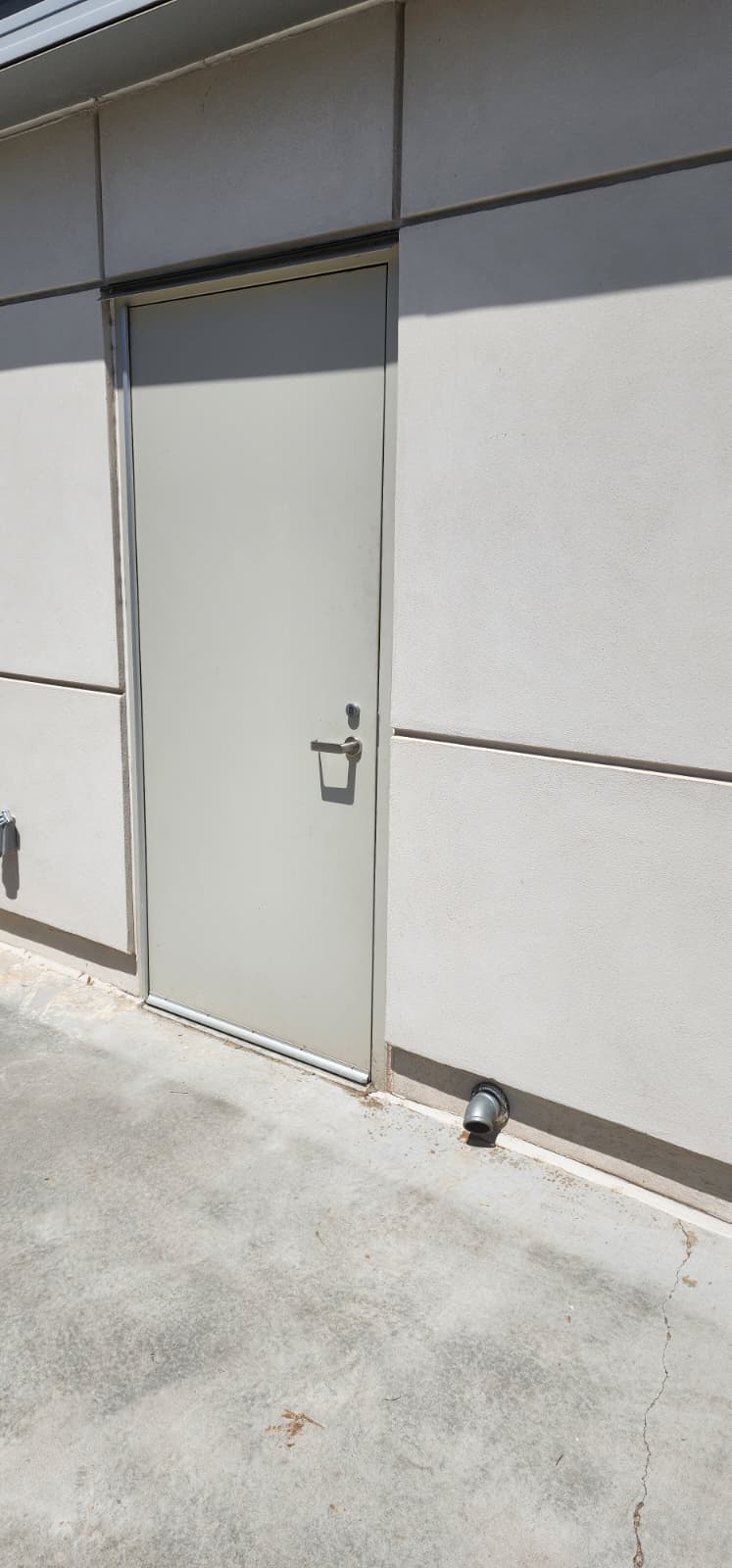

Dry-system drum drip in the field. Compare with the labeled sketch above.

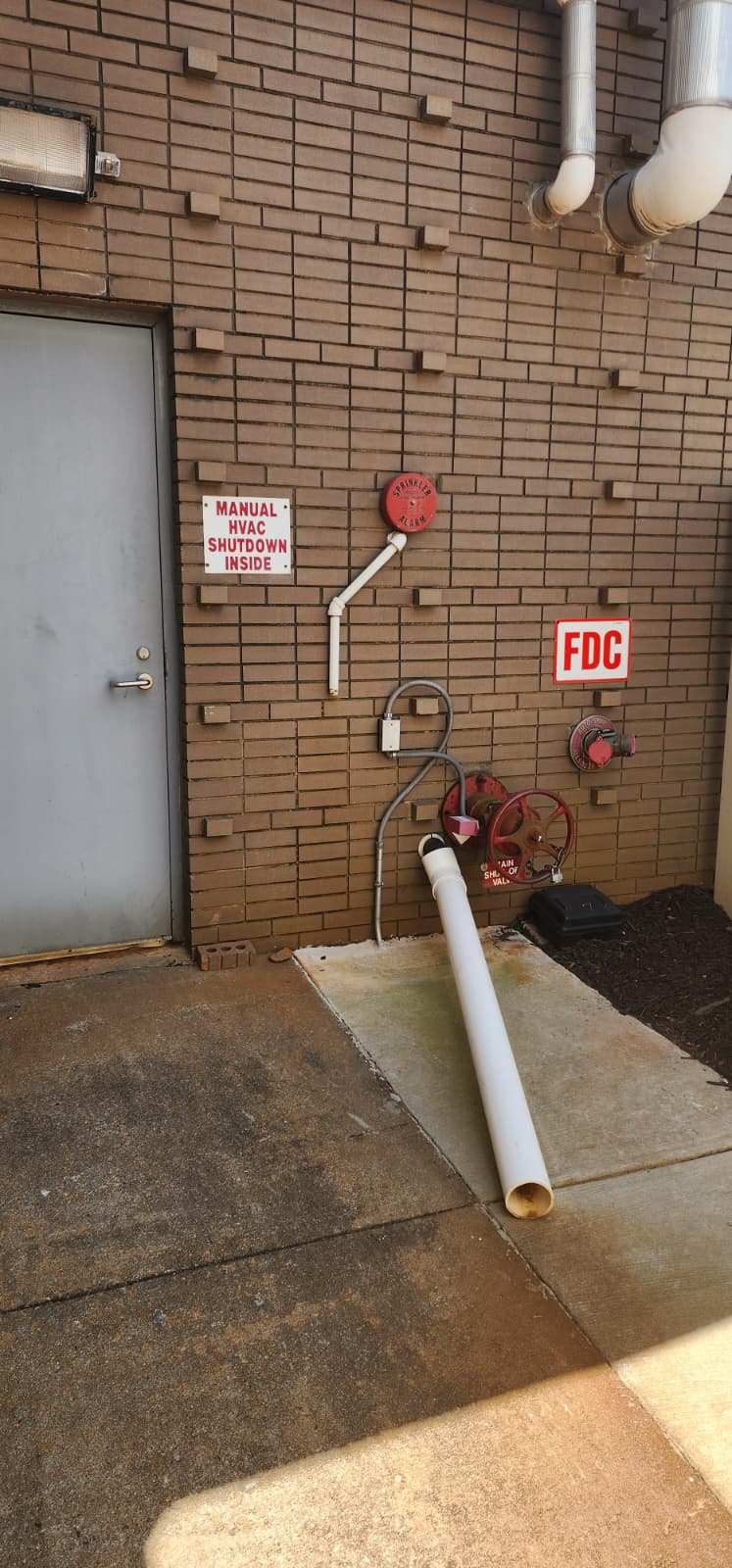

Main drain with proper exterior discharge.

Where the Drain Water Goes — Exterior Discharge Rules

The single most common drain-installation mistake is piping the main drain to an interior floor drain. Typical main drain flow is ~100 gpm. A standard 3-inch floor drain sized for mop-water flow handles maybe 20–30 gpm before backing up. Open the main drain for the annual test and you flood the pump room.

Exterior discharge rules (NFPA 13 §16.10)

  • Discharge to atmosphere outside the building — never to an interior drain unless that drain is specifically sized to handle 100+ gpm.
  • Turned-down elbow at the exterior termination — prevents debris, insects, and vandalism from entering the drain.
  • Minimum 4 ft of exposed pipe inside a heated space before penetrating the exterior wall — prevents freeze-up of the discharge line.
  • Protection from elements — the discharge should not pool against the foundation, freeze onto a walkway, or cross a vehicle path.
  • Air gap if discharging near potable water fixtures — prevents cross-contamination.
  • Grade the concrete sidewalk / pavement so the 100-gpm discharge flows away from the building, not toward it.

Signage Requirements (NFPA 13 §16.9.11.1)

Every drain valve needs identification signage. The rules are specific:

  • Weatherproof metal or plastic identification sign permanently attached.
  • Secured to the pipe below the valve with non-corrosive wire or chain — not adhesive, not zip ties.
  • Separate means of indicating valve position (open/closed) — typically a position flag or tag on the valve handle itself.
  • For auxiliary drains: an additional sign near the main control valve listing the total number and locations of every auxiliary drain in the system. Without this list, a quarterly inspector hunting for undocumented low-point drains can easily miss one.
  • Signs must specify drain type: “MAIN DRAIN,” “AUXILIARY DRAIN,” “SECTIONAL DRAIN,” etc.

Missing or illegible signage is one of the most frequently cited findings on NFPA 25 inspections. Weatherproof metal tags are cheap; citations are not.

Winter Procedures for Dry Systems

Winter drum-drip drain routine

  1. Before the onset of freezing weather: drain every drum drip in the system. Document date, technician, and condensate volume collected at each drip.
  2. After every trip test: drain every drum drip again. The trip test fills the system with water; when that water is drained and the system returns to air, condensate accumulates rapidly.
  3. Quarterly visual: inspect every drum drip per NFPA 25 §13.2.5. Look for drum drips that produce significantly more condensate than baseline — indicates a pipe sag or humid air infiltration.
  4. Emergency drain: if a cold snap is forecast and it's been a while since the last drain, drain drum drips preemptively. A 2 AM burst-pipe call costs far more than an afternoon of preventive maintenance.
  5. Tag and number every drum drip so quarterly inspectors and service crews can confirm all were accessed. Brass numbered tags on non-corrosive wire last the life of the system.
📥 SAMEKTRA PRESENTATIONPPTX · ~58 MB

Winter Maintenance of Dry Sprinkler Systems

Full Samektra training deck covering pre-freeze drum-drip drainage, post-trip-test procedures, compressor and air supply checks, common winter failure modes in unheated spaces, and the facility-walkthrough checklist we use for customer prep each October. Download the PPTX for your own facility training.

Download presentation ↓

Common Field Issues

Interior drain discharge (~100 gpm flood)

Main drain piped to an undersized interior floor drain. Opens during annual test, floods the room. Retrofit to exterior turned-down elbow.

Undocumented low-point drains

Building renovation added a pipe run with a sag, but the auxiliary drain wasn't added (or was added without signage). Discovered during a winter burst-pipe investigation. Field-trace every new piping addition.

Frozen drum drip

Drum drip valves or the trap chamber itself freeze solid in an unheated space. Cannot be drained. Typically a sign the drain routine was skipped before the cold snap.

Clogged turned-down elbow

Bird nest, mud-dauber wasps, insect nest, or leaves block the exterior discharge. The drain cannot handle flow during the test. Annual visual inspection of every exterior drain termination.

Missing signage

Drain has no ID tag, or the tag is illegible/broken off. Quarterly inspection citation, and the inspector may miss the drain entirely.

Sagged piping creating unmapped water traps

Original installation was straight but 20 years later the pipe has sagged. Water now traps where there's no drain. Discovered on obstruction investigation or burst pipe.

Drum drip drained but main pressure lost

Installer or operator opens the downstream valve before closing the upstream valve. System air dumps to atmosphere instead of staying in the piping. Results in dry pipe valve trip.

Drain discharge freezing on walkway

Exterior discharge creates an ice sheet on a pedestrian walkway after the test. Liability issue. Reroute discharge away from pedestrian paths; provide drainage channel.

Main Drain Testing — See Dedicated Article

🔸 PROCEDURE ARTICLE

Main Drain Test — NFPA 25 §13.2.3

The annual main drain test procedure (with quarterly variant when a backflow preventer or PRV is present), the 10%-drop rule, main drain vs. main drain TEST connection distinction, and troubleshooting failed tests — all covered in a dedicated procedure article.

Read the Main Drain Test procedure →

▶ Watch: Fire sprinkler system drains — field walkthrough

Source: Field technique · Open on YouTube ↗

Frequently Asked Questions

What are the main types of drains in a fire sprinkler system?
Four distinct drain types: (1) Main drain — 2-inch drain line on the system side of the main control valve; used for the annual main drain test and system draining. (2) Auxiliary drains (drum drips) — small drip traps at low points in dry/preaction systems that collect condensation before it can freeze. (3) Sectional drains — between the floor control valve and cross main on each floor of a multi-floor system, allowing single-floor drain without shutting down the whole riser. (4) Test and drain valves — combined-function valves used for alarm testing AND drainage at inspector's test stations. All four are required in appropriate locations by NFPA 13 §16.10.
Why would you need to drain a fire sprinkler system?
Four common reasons, per QRFS: (1) Repairs — corrosion, storm damage, vandalism, or any hardware replacement. (2) Restoring an activated dry or preaction system after a trip. (3) Extending an existing system when a building adds floor area or new zones. (4) Cleaning — flushing out sediment, scale, or biological growth discovered during the 5-year internal inspection. Per NFPA 13 §16.10.1, every sprinkler system MUST be installable so it can be drained — you cannot have a section that physically cannot be emptied.
What size does the main drain need to be?
Per NFPA 13, the main drain size is proportional to the riser size: (a) 2-inch riser → 3/4-inch drain minimum. (b) 2½" or 3" riser → 1¼" drain minimum. (c) 4" riser → 2" drain minimum. (d) 6"+ riser → sized for practical discharge capacity, typically 2-inch or larger. Drain pipe runs to the valve, then to exterior discharge. A mismatched drain size can't handle the ~100 gpm typical main drain flow and will cause interior flooding if discharged indoors.
Why should the main drain discharge outside the building?
Because typical drain flow is about 100 gpm. No interior floor drain, janitor sink, or shop drain can handle 100 gpm without backing up — the floor drain is sized for mop-water flow (5–10 gpm), not fire-system flow. NFPA 13 and most AHJs require exterior discharge via a turned-down elbow to prevent debris entry. The turned-down elbow also discourages pranksters from stuffing things into a visible drain opening. For freezing climates, at least 4 feet of drain pipe must be in a heated area before it penetrates the exterior wall.
How do drum drips work?
A drum drip is a dual-valve low-point drain on a dry or preaction system. It uses two valves with a trap chamber between them. To drain condensate, you close the upstream valve (isolating the chamber from system air pressure), open the downstream valve to drain the chamber, close the downstream valve, then reopen the upstream valve — the system never loses air pressure because only the trap chamber drains. For dry systems in unheated spaces (parking garages, attics, freezers), drum drips are what prevent winter pipe bursts from accumulated condensation.
How often do drum drips need to be drained?
Per NFPA 25 §13.4.4.3 and good practice: (1) Before the onset of freezing weather each year. (2) After every trip test on the dry pipe valve (air is lost and refilled — more condensate forms). (3) Any time the auxiliary drain produces noticeably more water than baseline, which indicates a pipe sag or a slow air leak letting humid air in. Quarterly visual inspection of every drum drip per NFPA 25 §13.2.5. Tag every drum drip with a numbered brass tag so the inspector can verify all were serviced.
What are the auxiliary drain sizing rules for freezing environments?
Per NFPA 13 §16.10.5 for dry pipe / preaction systems in freezing conditions: (1) 5–50 gallons trapped = two 1-inch valves separated by a 2" × 12" condensate nipple (the classic drum drip). (2) Less than 5 gallons trapped = at least a ½-inch valve PLUS a plug or nipple-and-cap. For wet systems or preaction in non-freezing spaces: (1) More than 50 gallons trapped = 1-inch valve minimum. (2) 5–50 gallons = 3/4-inch valve with a nipple-and-cap. (3) Less than 5 gallons = ½-inch nipple with cap/plug OR omit the aux drain entirely if trapped water can be drained by disconnecting a sprinkler head.
What signage is required for drains?
Per NFPA 13 §16.9.11.1, every drain valve requires: (1) A weatherproof metal or plastic identification sign permanently attached, (2) secured to the pipe below the valve with non-corrosive wire or chain, (3) a separate means to indicate open/closed valve position, (4) for auxiliary drains: an additional sign near the control valve indicating the total number and locations of every auxiliary drain in the system. Missing signage is a common NFPA 25 citation and makes quarterly inspections much harder when the technician has to hunt for undocumented low-point drains.

References

1. NFPA 13 (2022): Standard for the Installation of Sprinkler Systems, §16.10 (drains), §16.9.11.1 (signage).

2. NFPA 25 (2023): Standard for ITM of Water-Based Fire Protection Systems, §13.2.3 (main drain test — see dedicated procedure article), §13.4.4.3 (dry system low-point drains).

3. QRFS: Draining a Fire Sprinkler System: Key Parts and NFPA Rules — authoritative guide to main/auxiliary/sectional drains, valve sizing, and signage.

4. AIG: Procedures for Draining Sprinkler Systems (PDF).

5. NFPA Fire Protection Handbook, 21st Edition, Section 16 — Sprinkler System Design and Installation.
