Spare Sprinkler Cabinet
The Emergency Reserve
The small metal box bolted to the riser room wall — and one of the easiest ways an inspector will write a deficiency in 30 seconds. The NFPA 13 quantity rules (6/12/24), the must-match-by-type rule, the inventory list that CMS and TJC surveyors WILL count, and the wrench discipline that trips up facility managers every annual inspection.
Why the Cabinet Exists
When a sprinkler head activates — or gets clocked by a forklift, or needs to be replaced during 5-year internal — the fire protection system is impaired the moment that head comes out. NFPA 25 §15 requires the building owner to restore the system to full function as quickly as possible. The spare sprinkler cabinet is the mechanism that makes that possible: a pre-staged inventory of matching replacement heads, the correct wrenches, and a documented list, all in a controlled-temperature location next to the riser.
Every sprinkler system must have one (NFPA 13 §16.2.7). The cabinet itself is trivially cheap; the violations you rack up when it's stocked wrong are not.
The 6/12/24 Rule — NFPA 13 Quantity Tiers
Per NFPA 13 §16.2.7.1, minimum spare head count scales with total installed heads Source 5:
⚠️ The “per type” trap
These quantities are per distinct head type + temperature rating, not a grand total. A 500-head building using both standard 155°F pendent AND 200°F intermediate upright needs 12 spares of each = 24 total, not 12. A mixed-head facility with 4 different types can easily need 48+ spares. The minimum is a per-category floor, not a building ceiling.
The CMS / TJC List-Matching Rule
If you post a list, the numbers MUST match what's in the cabinet.
CMS surveyors (under K-291 — Automatic Sprinkler Systems) and TJC Physical Environment surveyors don't just glance at the cabinet — they open it, count each type of head, and cross-check against the posted inventory list. A list that shows 4 pendent 155°F but the cabinet contains 3 = K-tag finding. The NFPA 13 §16.2.7 minimum can be satisfied while the posted-list count still fails — both are separate compliance requirements.
Pull a head?
Update the list before you leave the cabinet. A one-line pencil strike is better than a perfectly typed list that doesn't match.
Add new heads?
Update the list. Add the new SIN, manufacturer, temperature, and quantity. Include photocopy of the sprinkler data sheet if possible.
Quarterly self-check
Open the cabinet. Count each type. Compare to the list. Reconcile before the next inspection.
Post-activation
After any impairment or activation, the list MUST be updated once the replacement head is installed and a new spare is ordered.
What the Inventory List Must Document
A proper posted list contains — per row, for every distinct spare type:
- Manufacturer (Tyco, Viking, Victaulic, Reliable, Globe, etc.)
- Model number (TY-FRB, V34, SS4451, etc.)
- SIN — Sprinkler Identification Number printed on the frame
- Orientation — pendent, upright, sidewall, horizontal/vertical sidewall
- Temperature rating — 135°F, 155°F, 175°F, 200°F, 286°F, etc.
- K-factor — 5.6, 8.0, 11.2, 14.0, 16.8, 25.2 (larger = higher flow)
- Quantity currently in cabinet — the number that must match the physical count
- Area served — which part of the building this head type is installed in (optional but useful for the replacement technician)

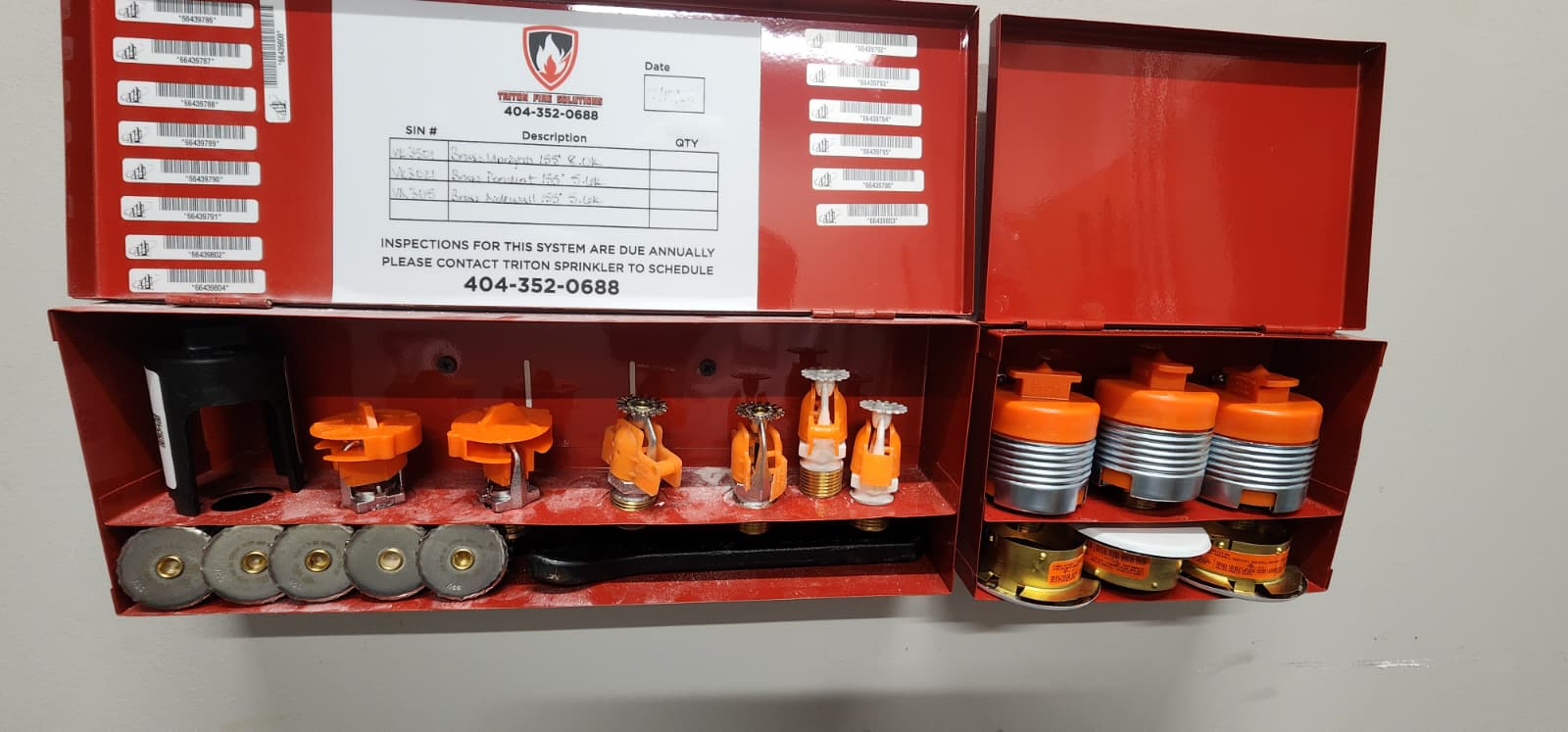

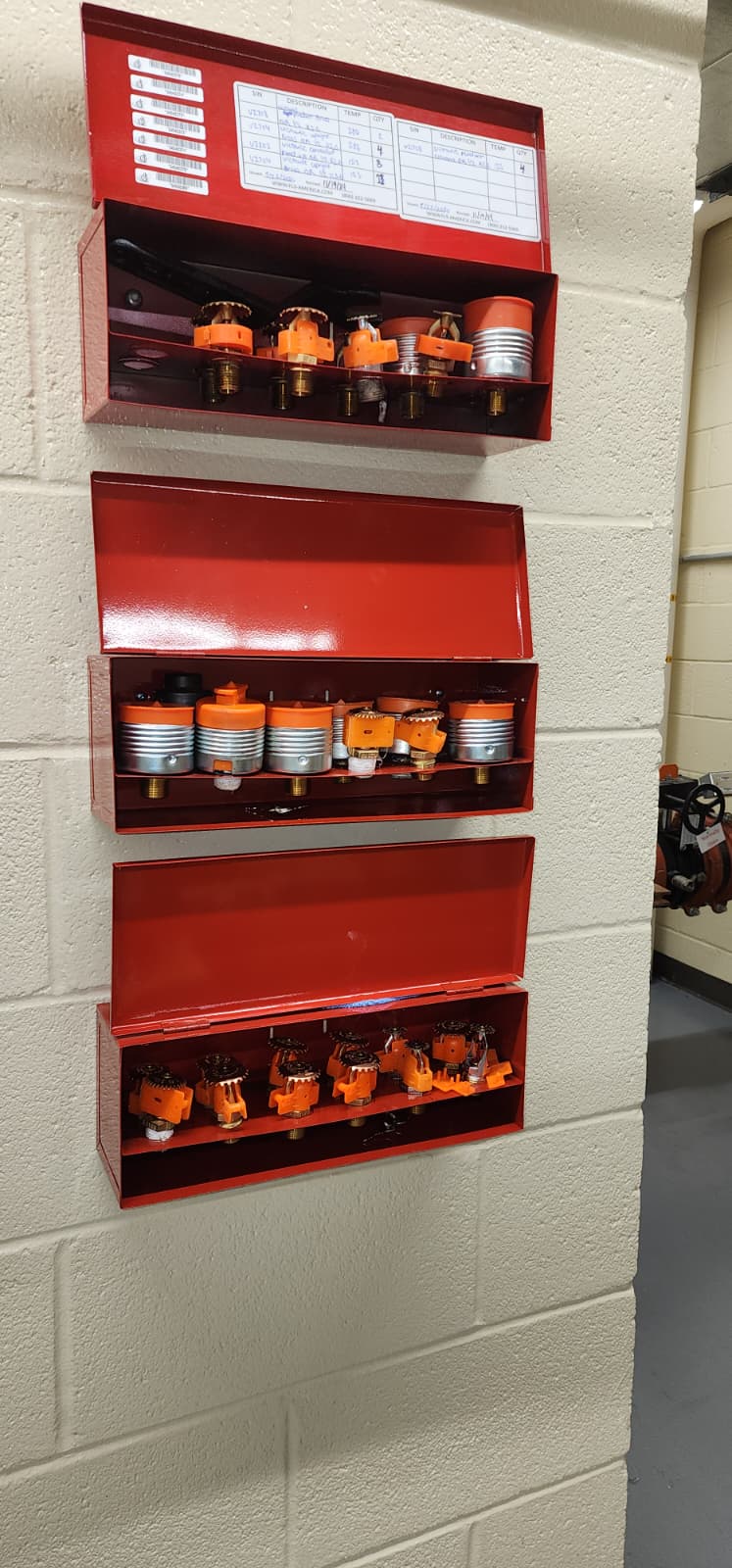

Best practice: laminate the list, mount it on the inside of the cabinet door, and update with a non-permanent marker so changes are easy to track. Or use a barcoded inventory system like Triton cabinets (see the second photo above) where each head is scanned and counted electronically.
Temperature Rating Matters — Match or Fail
Different areas of a building use different sprinkler temperature ratings. Replacing a 200°F head with a 155°F head in a high-temperature area causes the replacement to activate from normal ambient heat — false water discharge during routine HVAC cycling. Replacing a 155°F head with a 200°F head in an office area delays activation during an actual fire.
The frame color is your fastest visual check in the field. When pulling a head for replacement, note the frame color and match the spare before you install. A glass-bulb head is even easier — the fluid color in the bulb itself indicates the temperature.
What the Cabinet Must Contain — Full Checklist
NFPA 13 §16.2.7 and NFPA 25 §5.4.1.5 together spell out the required contents:
- ✅ At least 6 / 12 / 24 spare heads per the system-size tier, per distinct type + temperature rating.
- ✅ One manufacturer-listed wrench per head type. Tyco wrench for Tyco heads, Viking for Viking, etc. Universal wrenches do NOT satisfy the listing.
- ✅ Inventory list — manufacturer, model, SIN, orientation, temperature, K-factor, quantity, area served.
- ✅ Cover plates (escutcheons) for concealed heads — one per spare head, ideally.
- ✅ Cabinet in a temperature-controlled location — ≤100°F for ordinary-temp spares, below the lowest activation rating of any head stored.
- ✅ Cabinet clearly labeled “SPARE SPRINKLERS” and its location noted on the fire protection drawings for the building.
- ✅ Accessible — not blocked by storage, not locked, not above reach.
- ✅ Near the system riser in most installations (convention for inspector access).
Replacing a Head — the Correct Procedure
- Identify the removed head. Note the manufacturer, SIN, temperature, K-factor, and orientation from the damaged unit. Take a photo of the frame stamp before it goes in the trash.
- Match from cabinet inventory. Cross-check against the posted list. If an exact match isn't in stock, order it before proceeding — do NOT substitute a different SIN.
- Isolate the system. Close the riser control valve. For a small localized repair on a large system, use the nearest sectional control valve to minimize impairment scope.
- Drain the affected section through the appropriate drain. Verify zero pressure on the system gauge before breaking the joint.
- Use the correct listed wrench for the head being installed. Engage at the manufacturer-designated contact points only.
- Apply pipe sealant per the manufacturer's instructions — typically PTFE tape or a UL-listed pipe sealant. Do NOT over-tighten; the head is hand-tight plus 1.5 turns with the wrench typical.
- Refill and pressurize. Slowly open the control valve, monitor for leaks at the new head, verify system pressure returns to supervisory.
- Reset any affected alarms at the FACP. Notify the monitoring center that impairment is cleared.
- UPDATE THE CABINET INVENTORY LIST. Decrement the quantity for the type just used. Order a replacement spare to restore the count.
- Document the replacement in the ITM records per NFPA 25 §15 impairment procedures.
Common Deficiencies at Inspection
Wrong wrench / missing wrenches
Top finding. One wrench per head TYPE. Different manufacturers require different wrenches.
List doesn't match contents
Classic CMS/TJC K-291 finding. Fix by updating the list every time a head is pulled or added.
Missing type / temperature rating
Only wet-system spares in a wet+dry mixed building. Only ordinary-temp spares when the kitchen has high-temp heads.
Overheated cabinet location
Cabinet in an unheated attic, on an exterior sun-exposed wall, or next to a boiler. Stored heads can degrade or activate.
Missing cover plates (concealed)
Spare concealed heads without matching cover plates — maintenance can't complete the install.
Expired heads in stock
Spare heads more than ~20 years old should be replaced. Some manufacturers have specific shelf-life ratings.
Cabinet blocked / not labeled
Storage in front of the cabinet, or no “SPARE SPRINKLERS” label. Inspector citation in seconds.
Wrong quantities for system size
Building grew from 280 to 400 heads but the cabinet still has only 6 spares. Re-count the total system heads and update quantity.
Wrench Discipline
Manufacturers ship a specific listed wrench for each sprinkler family (concealed, pendent, sidewall, ESFR). Using the wrong wrench — even one that physically fits — applies force to the wrong surfaces of the frame or deflector, can damage the heat-sensitive element, and voids the UL listing for that head. If your replacement is a different brand or SIN than what came out, you need that brand's wrench. The wrenches are cheap; the citations and the void-listing liability are not.
▶ Watch: Spare sprinkler cabinet — what's inside and why
Source: Field walkthrough · Open on YouTube ↗
Frequently Asked Questions
How many spare sprinkler heads does NFPA 13 require?
What must be inside the spare sprinkler cabinet?
Why does CMS look at spare sprinkler cabinet inventory?
Do spare heads need to match temperature ratings?
What is a SIN and why does it matter?
Why is the wrench so important?
Why does the cabinet need to be below 100°F?
Do I need more spares if my building has concealed heads?
What gets cited most often on spare cabinet inspections?
