Clean Agent Fire Suppression
FM-200, Novec 1230 & NFPA 2001

What Are Clean Agent Systems

A clean agent fire suppression system is a gaseous extinguishing system that floods a sealed enclosure with an electrically non-conductive gas or chemical vapor, suppresses the fire, and then vents away leaving zero residue. The word “clean” is literal: after discharge you can wipe your hand across a server motherboard and find nothing — no powder, no water, no foam. That property makes clean agents the standard of care for spaces where the contents are more valuable than the room itself: data centers, server closets, telecom switching facilities, museum archives, rare-book vaults, clean rooms, control rooms, and medical imaging suites.

Clean agent systems are governed by NFPA 2001 (Standard on Clean Agent Fire Extinguishing Systems). A separate standard, NFPA 12, covers carbon dioxide systems — CO₂ is sometimes grouped with “gaseous” suppression but is not a clean agent because it is lethal to occupants at extinguishing concentrations.

Common Clean Agents

How Clean Agents Extinguish Fire

FM-200 and Novec 1230 work primarily through heat absorption. When the liquid agent is discharged through nozzles, it vaporizes instantly and absorbs enormous amounts of energy from the fire. The fire triangle loses its heat leg and the combustion reaction collapses. Contrary to a common misconception, these agents do not significantly displace oxygen — design concentrations typically reduce O₂ by only 1–3%, well within safe breathing limits.

Inert gas agents (Inergen, Argonite, Nitrogen) work by oxygen displacement. They flood the enclosure and reduce the O₂ concentration from a normal 21% down to approximately 12–14%, which is below the combustion threshold for most fuels. Humans can tolerate 12.5% O₂ for a limited time — Inergen adds 8% CO₂ specifically to stimulate deeper breathing and maintain blood oxygen saturation during the brief evacuation window.

Regardless of agent type, NFPA 2001 requires discharge to reach design concentration within 10 seconds. Speed matters: the faster the fire is knocked down, the less decomposition product is generated.

NFPA 2001 — The Governing Standard

NFPA 2001 (Standard on Clean Agent Fire Extinguishing Systems) covers design, installation, inspection, testing, and maintenance. Key requirements include:

• Minimum design concentration — varies by agent and fuel class. For FM-200 on a Class A surface fire, the minimum is 6.25% by volume; for Novec 1230 it is 4.2%.
• Maximum exposure limits — NFPA 2001 references NOAEL (No Observed Adverse Effect Level) and LOAEL (Lowest Observed Adverse Effect Level) for each agent. The design concentration must not exceed the LOAEL for occupied spaces, and the standard recommends staying at or below the NOAEL where possible.
• 10-second discharge time — the agent must achieve 95% of design concentration within 10 seconds of discharge initiation.
• Room integrity — the enclosure must be sealed sufficiently to maintain design concentration for the specified hold time (typically 10 minutes).
• Pre-discharge warning — audible and visible notification devices must operate for a time delay (typically 30–60 seconds) before agent release, giving occupants time to evacuate.

Room Integrity — The Critical Requirement

A clean agent only works if the protected enclosure holds it long enough to suppress the fire completely. NFPA 2001 Annex C defines the door fan test (also called a room integrity test or enclosure integrity test): a calibrated fan is mounted in a doorway, the room is pressurized and depressurized, and the equivalent leakage area is measured. From that data, the test calculates whether the room can hold the agent above its minimum design concentration for the required hold time — typically 10 minutes.

Common leak paths that fail a door fan test include: gaps around raised-floor tiles, unsealed cable and conduit penetrations through walls and floors, gaps above drop ceilings, HVAC dampers that do not fully close on agent discharge, and door undercuts or missing door sweeps. Any construction change to a protected enclosure — a new cable run, a removed ceiling tile, a relocated wall — requires a new room integrity test before the system can be considered functional.

System Components

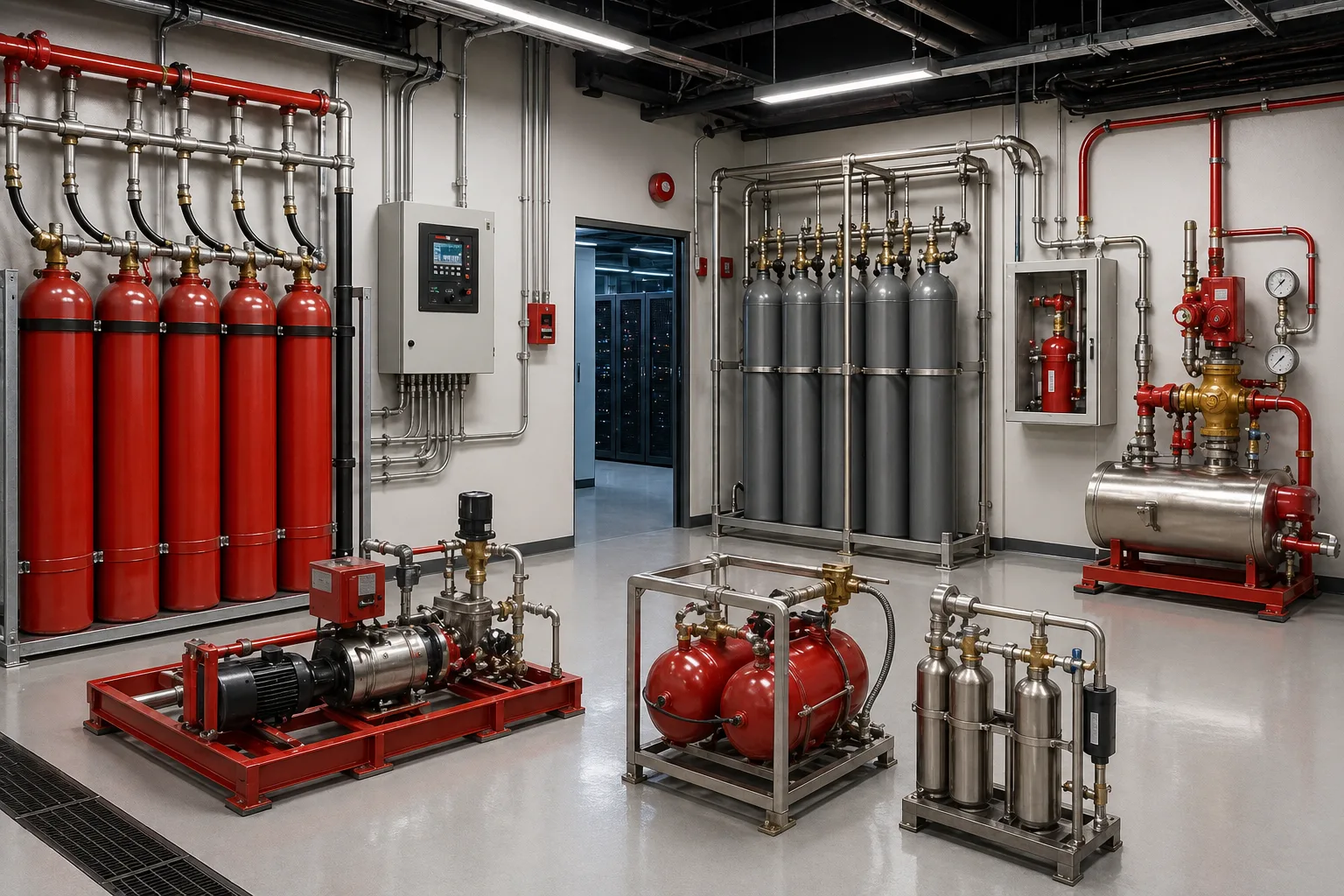

• Agent storage cylinders — steel containers holding the agent under pressure (typically nitrogen-superpressurized to 360 psi for FM-200 or 600 psi for Novec 1230). Manifolded together for larger enclosures.
• Piping network — schedule 40 steel pipe with calculated nozzle orifice sizing to ensure even distribution and 10-second discharge.
• Discharge nozzles — engineered to distribute the agent evenly throughout the enclosure volume, including under raised floors and above drop ceilings.
• Detection system — cross-zoned smoke detectors are the standard configuration. Two independent detection zones must alarm before the system initiates automatic discharge. A single-zone alarm triggers the pre-discharge warning but does not release agent, preventing accidental discharge from a single nuisance alarm. Detectors are usually very early smoke detection apparatus (VESDA) or spot-type photoelectric. NFPA 2001 §4.3
• Pre-discharge warning devices — horns and strobes inside the protected space that activate during the countdown delay (30–60 seconds), giving occupants time to exit before the agent fills the room.
• Abort station — a clearly marked button inside or near the protected space that halts the countdown and prevents discharge if personnel determine the alarm is false.
• Manual release station — a pull station, typically at the exit door, that bypasses the countdown and initiates immediate discharge for confirmed fires.

Safety Considerations

FM-200 and Novec 1230 are safe for occupied spaces at their listed design concentrations. The NOAEL for FM-200 is 9.0% (design concentration for most Class A fires is 6.25–7.0%). Novec 1230's NOAEL is 10.0% against a design concentration of 4.2–5.3%. Occupants can breathe normally for the duration of the hold time at these concentrations.

However, when the agent passes through an active flame, thermal decomposition produces hydrogen fluoride (HF), a corrosive, acrid gas. This is why speed matters: the faster the system detects and discharges, the smaller the flame, the less HF is generated. In a well-designed system with fast detection, HF concentrations stay well below hazardous levels. In a slow-responding or undersized system, decomposition products can make the room temporarily uninhabitable even after the fire is out.

Inert gas agents (Inergen, Argonite) produce zero decomposition products because they are simple atmospheric gases. They are the safest agents for occupied spaces.

Inspection, Testing & Maintenance

NFPA 2001 Chapter 9 outlines the ITM program for clean agent systems:

Environmental Impact & the HFC Phase-Down

FM-200 is an HFC (hydrofluorocarbon) with a Global Warming Potential (GWP) of 3,220 — meaning one kilogram of FM-200 released to the atmosphere traps as much heat as 3,220 kilograms of CO₂ over 100 years. Under the AIM Act (American Innovation and Manufacturing Act, 2020) and the Kigali Amendment to the Montreal Protocol, HFCs are being phased down globally. FM-200 is not banned for fire suppression use, but manufacturers are steering new installations toward lower-GWP alternatives.

Novec 1230 has a GWP of 1 and an atmospheric lifetime of only 5 days, making it functionally carbon-neutral. It is the most common replacement agent for new installations that previously would have specified FM-200. Inert gas systems (Inergen, Argonite, pure nitrogen) have a GWP of 0 and use atmospheric gases that are already present in the air — they are the ultimate zero-impact option, though they require significantly more cylinder storage space.

Common Deficiencies Found in the Field
