Fire Alarm Systems
The Nervous System of the Building

What a Fire Alarm System Actually Does

A fire alarm system has three jobs, in order: detect a fire condition, notify occupants, and communicate the event to responders. Everything else — supervision, elevator recall, HVAC shutdown, door release, smoke control — is layered onto those three fundamentals. NFPA 72 (National Fire Alarm and Signaling Code) is the governing standard in the United States and Canada, and it defines every piece of hardware and every sequence of operation that a system performs.

The code draws a sharp distinction between alarm, supervisory, and trouble signals. Each has a different sound, a different icon on the panel, and a different consequence. Mixing them up is the fastest way to render a system untrustworthy to the people it serves.

The Three Signal Types

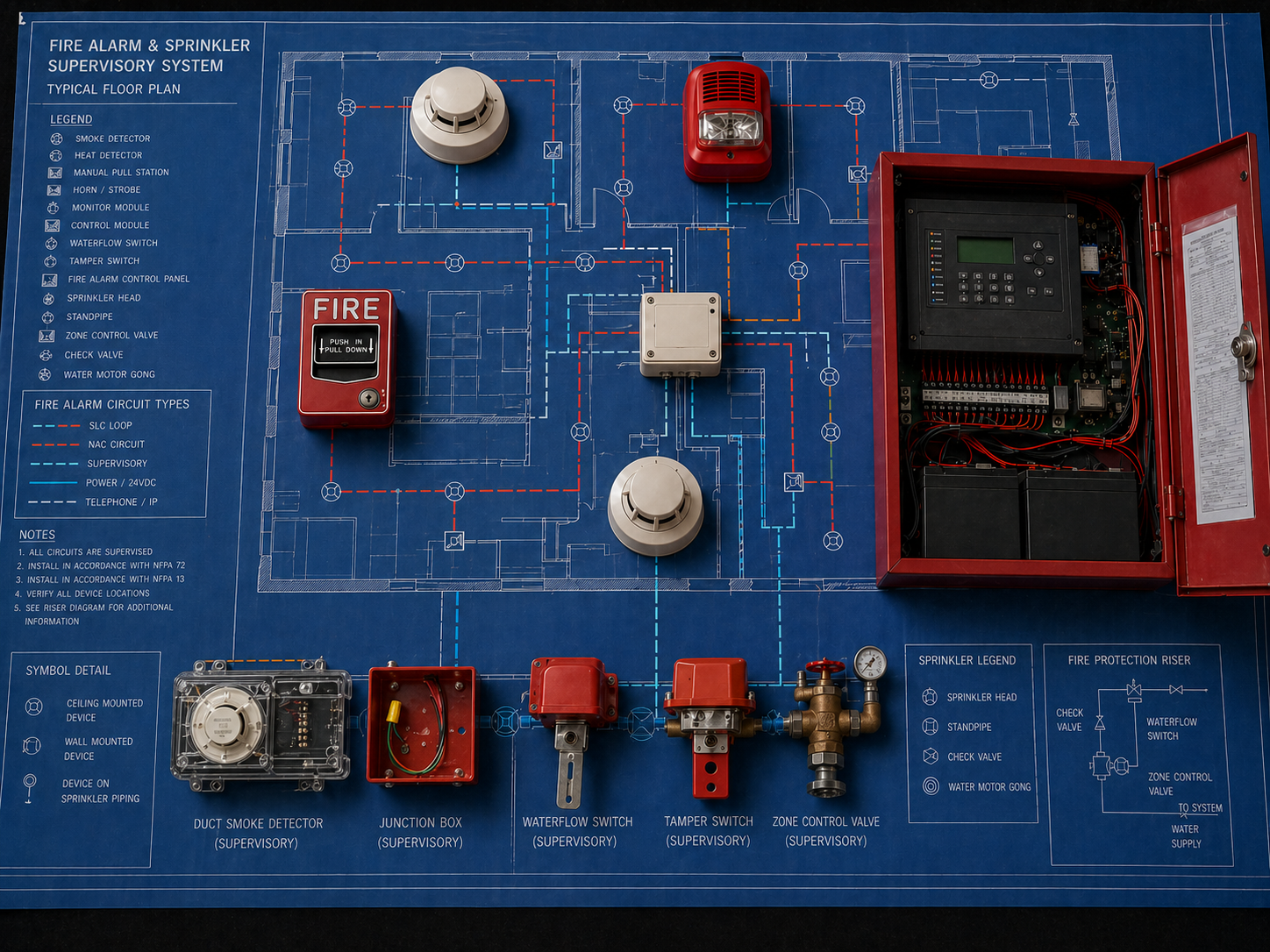

How the Pieces Fit Together

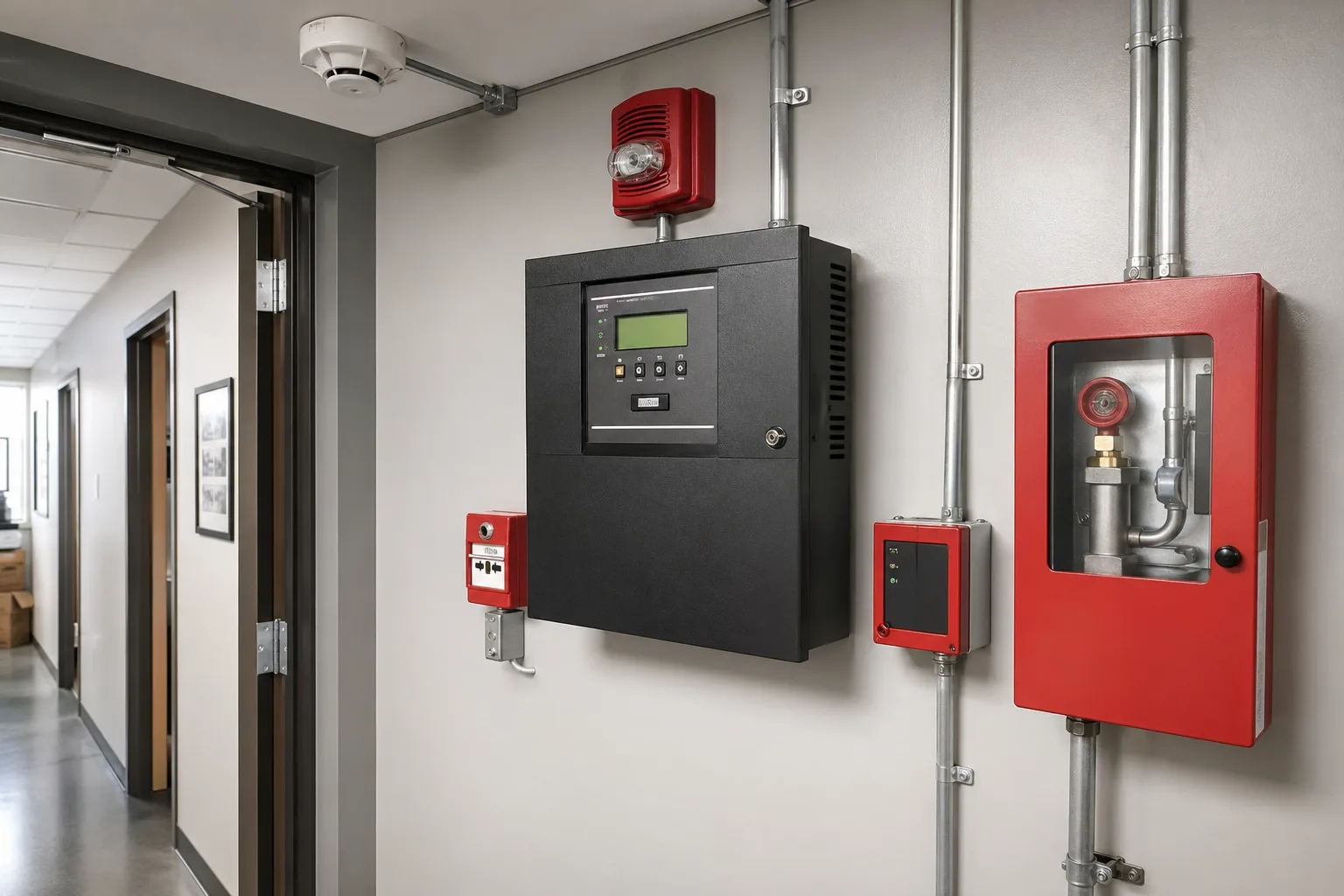

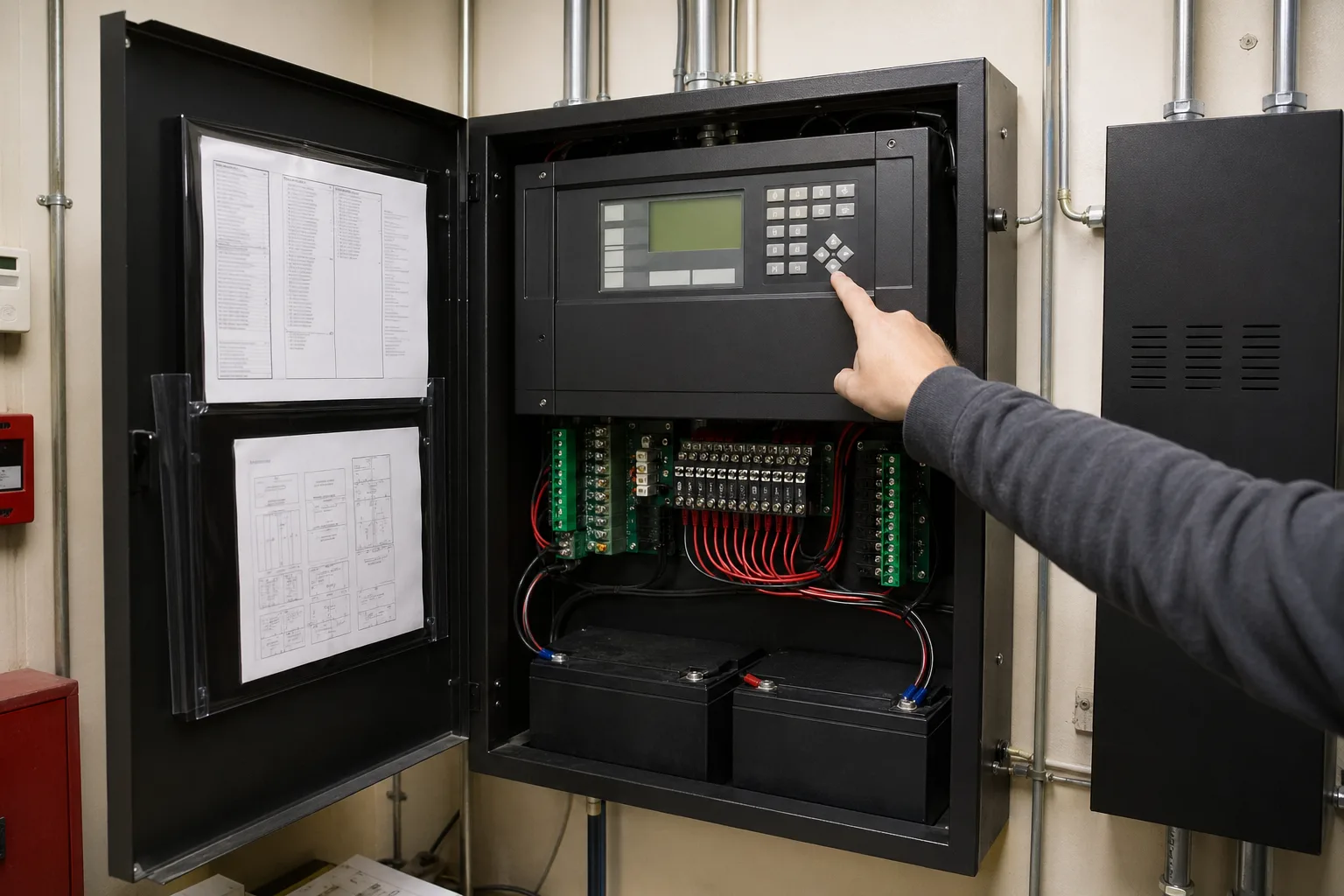

At the center of the system is the Fire Alarm Control Panel (FACP), which continuously supervises its field wiring and decides how to respond to each input. On its input side are initiating devices (anything that creates an alarm, supervisory, or trouble signal): smoke and heat detectors, manual pull stations, waterflow and tamper switches, duct detectors, and sprinkler pressure switches. On its output side are notification appliances (horns, strobes, speakers, mini-horns, bed shakers in sleeping areas) and control outputs to elevators, HVAC, magnetic door holders, and smoke management fans.

Beyond the panel is the supervising station. Most commercial systems transmit every alarm, supervisory, and trouble signal to a listed central station via cellular, IP, or DACT over phone lines. NFPA 72 §26 governs the quality and redundancy of that communication path.

Addressable vs. Conventional

A conventional system divides the building into zones, with all initiating devices on each zone sharing a single circuit. A zone in alarm means “one of the devices in this area went into alarm” — you don't know which one. Conventional systems are cheap, reliable, and still common in small buildings.

An addressable system puts a unique electronic address on every device and runs a digital loop (Signaling Line Circuit, SLC) between the panel and the field. The panel polls each device and receives its exact status. When a device goes into alarm, the panel displays the device name, its custom label, and its location. Addressable systems are universal in new commercial construction because they cut response time, simplify troubleshooting, and enable per-device sensitivity adjustment NFPA 72 §23.

ITM Basics

NFPA 72 Chapter 14 prescribes the ITM schedule. Core requirements:

• Daily: Visual check that the panel shows normal (no trouble, no supervisory, no alarm).
• Monthly: Verify the standby battery charger and battery are in service.
• Quarterly: Test supervisory signal devices (tamper, low-air) and waterflow devices.
• Annual: Functional test of every initiating device, notification appliance, battery load test, and panel sequence of operations.
