Fire Alarm Control Panel
The Brain of the Building

The FACP supervises every initiating device, runs every notification appliance, and decides what the building does in a fire condition. Here's what lives inside and why it matters.

By Stanislav Samek, Samektra · 22 min read · Last updated April 26, 2026

What the FACP Is

The Fire Alarm Control Panel (FACP), sometimes called the Fire Alarm Control Unit (FACU), is the central processor of the fire alarm system. It is listed to UL 864 or ULC-S527 and is the only component in the system that is permitted to initiate alarm, supervisory, or trouble output signals on its own judgment. Everything else in the system — every detector, pull station, horn, strobe, relay — either reports to or is controlled by the FACP.

NFPA 72 §10 requires the FACP to be installed in a normally attended location or a location accessible to the fire department, typically just inside the main entrance or in a fire command center. It must be clearly labeled with the building address, the phone number of the servicing company, and the zone/device map that allows responding firefighters to quickly locate an alarm.

The FACP is not optional in most commercial buildings. Building codes (IBC, IFC) and NFPA standards require fire alarm systems in assembly, educational, healthcare, high-rise, and institutional occupancies. The size and complexity of the panel varies from a small 2-zone conventional panel in a strip mall to a network of 50+ addressable nodes spanning a hospital campus — but the fundamental purpose is the same: detect fire, alert occupants, notify authorities, and control building systems.

▶ Watch: Fire Alarm Panel Tutorial

Courtesy of ORR Protection · Open on YouTube ↑

Panel Types: Conventional vs. Addressable vs. Analog-Addressable

Fire alarm panels fall into three major categories based on how they communicate with field devices. The type of panel determines the granularity of information available during an alarm and directly affects system cost, maintenance, and troubleshooting efficiency.

Conventional (Hardwired)

  • Each zone is a separate pair of wires with multiple devices wired in parallel
  • Panel knows WHICH ZONE is in alarm — but not which specific device
  • Simple and inexpensive for small buildings (< 50 devices)
  • Each initiating device circuit (IDC) can have 10-20 devices
  • Troubleshooting requires walking the zone to find the active device
  • Limited to basic alarm/trouble/supervisory per zone
  • Still common in small retail, restaurants, and older buildings
  • Maximum practical size: ~10-20 zones

Addressable

  • Each device has a unique address on a Signaling Line Circuit (SLC)
  • Panel identifies the EXACT DEVICE in alarm by address and label
  • SLC loop can support 127-318 devices depending on manufacturer
  • Devices communicate digitally with the panel via polling
  • Faster troubleshooting — panel display shows "Smoke Detector, Room 302"
  • Supports intelligent device types (duct detectors, waterflow, tamper)
  • Standard for mid-size to large commercial buildings
  • Typical: 1-8 SLC loops per panel, expandable via network nodes

Analog-Addressable (Intelligent)

  • Each device reports its ANALOG VALUE (smoke density, heat level) to the panel
  • The PANEL makes the alarm decision — not the device
  • Enables drift compensation: panel adjusts sensitivity as detectors age
  • Dramatically reduces false/nuisance alarms vs. conventional
  • Pre-alarm warnings when a detector approaches threshold
  • Day/night sensitivity scheduling (lower threshold when unoccupied)
  • Required for most healthcare, high-rise, and large commercial systems
  • Industry standard for new construction — virtually all major brands

The Trend: Everything Is Analog-Addressable

New installations in 2024+ are almost exclusively analog-addressable. Conventional panels are still sold for small, simple systems, but the price gap has narrowed significantly. The reduction in false alarms alone — through drift compensation and intelligent sensitivity — pays for the additional cost in most commercial buildings within the first year.

Key Circuits: SLC, NAC, IDC, and Power Supervision

The FACP manages several distinct circuit types, each with a specific purpose and supervision method. Understanding these circuits is essential for installation, troubleshooting, and NFPA 72 compliance.

Signaling Line Circuit (SLC)The digital data loop connecting addressable initiating devices (smoke detectors, heat detectors, pull stations, monitor modules) and control modules to the FACP. Modern SLCs are Class A (Style 6/7) with redundant paths — if the loop is cut at any point, all devices remain in communication via the alternate path. A single SLC can support 127-318 addresses depending on the protocol (CLIP, FlashScan, SWIFT, etc.).
Notification Appliance Circuit (NAC)The output circuits that power horns, strobes, horn/strobes, and speakers during an alarm condition. NACs are typically 24 VDC power-limited circuits, supervised for opens and ground faults. Each NAC has a maximum current rating (typically 2.5-3.0 amps) — exceeding it will cause insufficient candela output and potential circuit failure. NACs can be Class A (redundant) or Class B (single path with end-of-line resistor).
Initiating Device Circuit (IDC)Used in conventional (non-addressable) panels — a pair of wires with multiple initiating devices wired in parallel, supervised by an end-of-line resistor. When a device activates, it changes the circuit resistance, and the panel detects the change. IDCs cannot identify which specific device activated — only that the zone is in alarm. Each IDC typically supports 10-20 devices.
Power Supervision CircuitsThe FACP continuously monitors its own power sources: AC mains power, battery voltage and condition, battery charger output, and ground fault detection on all circuits. Loss of AC power triggers a trouble signal. Battery voltage below threshold triggers a trouble signal. Ground faults on any circuit must be detected and annunciated per NFPA 72 §10.6.
Auxiliary Relay CircuitsOutput circuits that control building systems during alarm or supervisory conditions: elevator recall, HVAC shutdown, magnetic door holder release, stairwell pressurization fans, smoke damper closure, and interface to sprinkler system monitoring. Each relay output can be programmed via the panel's sequence of operations matrix.

Class A vs. Class B Wiring

Class B circuits have a single path with an end-of-line resistor — a wire break disables all devices beyond the break. Class A circuits have a redundant return path — a single wire break leaves all devices operational. NFPA 72 does not mandate Class A for all circuits, but it is required in high-rise buildings and is best practice for any system where reliability is critical. Healthcare facilities (CMS/TJC) increasingly require Class A SLC and NAC wiring.

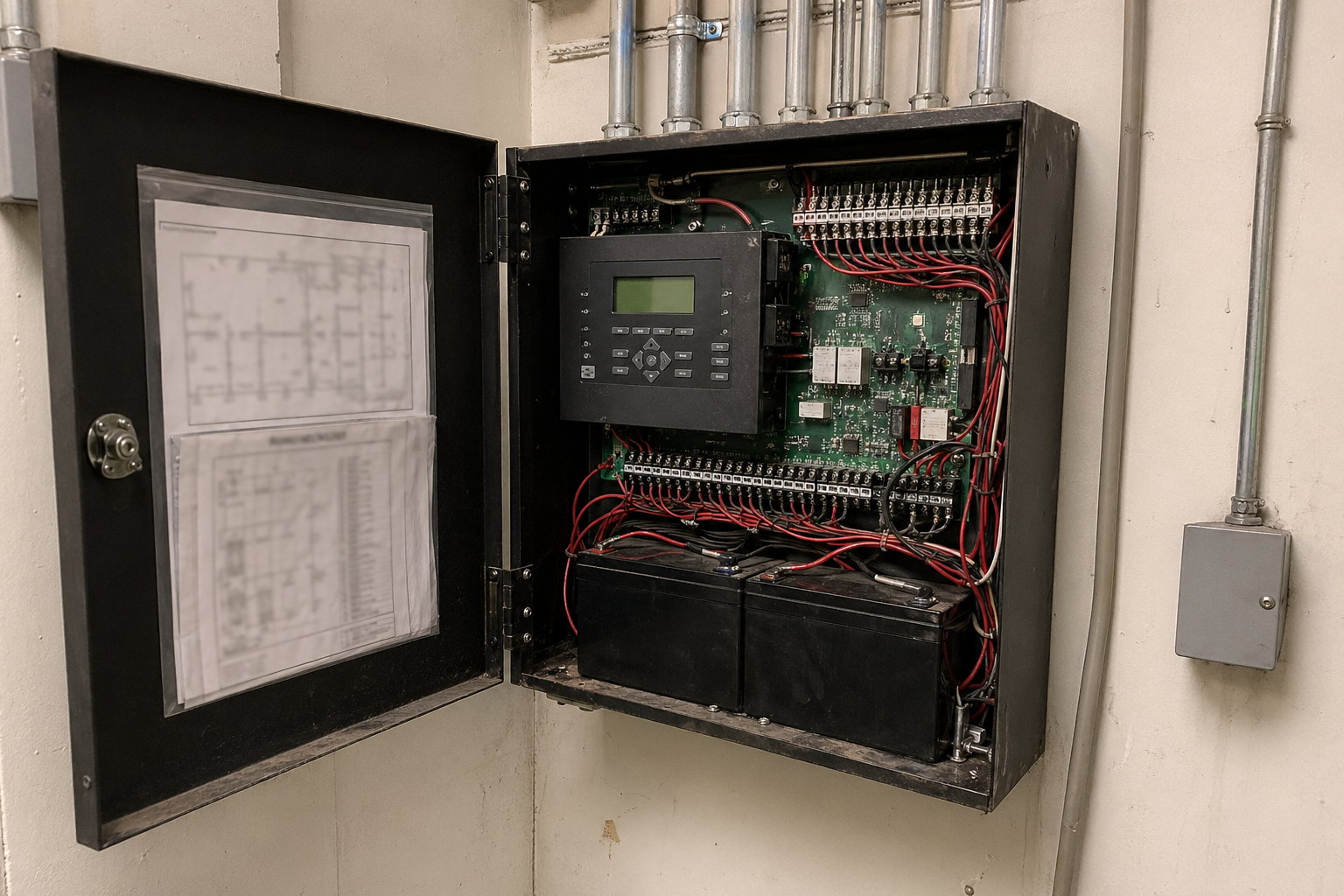

What Lives Inside the Panel

Main CPU Board
The processor running the panel firmware, the event history (thousands of events), the sequence-of-operations programming, and all zone/device label definitions. CPU boards are manufacturer-specific and firmware updates may be required to address bugs or add features.
Power Supply
Typically a listed 24 VDC supply rated for the connected notification load plus supervisory current. Backed by sealed lead-acid standby batteries sized per NFPA 72 §10.6.7. The power supply includes a battery charger that automatically maintains the batteries and reports charger failure.
SLC Cards
The digital loop interface cards that addressable smoke detectors, pull stations, and modules connect to. One card typically handles one or two SLC loops of up to 127 or 159 addresses depending on the manufacturer and protocol. Each card is a replaceable module.
NAC Cards / NAC Power Expanders
The output circuit boards that drive horns, strobes, and speakers. Each card provides 2-8 NAC circuits. For large buildings, external NAC power expanders (booster panels) are mounted near the notification appliances to reduce wire runs and voltage drop.
Relay / Auxiliary Output Modules
For elevator recall, HVAC shutdown, magnetic door holder release, stairwell pressurization, and interface to third-party smoke control equipment. Form-C relay contacts (normally open + normally closed) allow flexible integration.
Annunciator Connection
A remote LED or LCD display at the main entrance for responding firefighters. On larger systems this is a full graphic annunciator showing building floor plans with LED indicators for each zone. Remote annunciators connect via RS-485 or proprietary network wiring.
Communicator (DACT / IP / Cellular)
The Digital Alarm Communicator Transmitter (DACT) or IP/cellular communicator that transmits signals to the central station. NFPA 72 §26 requires at least two independent means of communication on most installations — typically IP primary with cellular backup, or dual phone lines (legacy).
Programmer / Keypad
The interface for authorized personnel to program the panel, view event history, silence alarms, acknowledge troubles, and perform system resets. Most modern panels also offer PC-based programming via laptop connection or network-based configuration tools.

Signal Types: Alarm, Supervisory, and Trouble

At any moment, the panel is in one or more of these conditions. Understanding the hierarchy and meaning of each signal type is critical for anyone who responds to fire alarm conditions — from facility staff to fire departments.

ALARM

Highest priority. Indicates a fire condition or potential fire has been detected.

Common triggers:

  • Smoke detector activation
  • Heat detector activation
  • Manual pull station activation
  • Waterflow switch activation (sprinkler system flowing)
  • Duct detector activation

Panel response:

Activates NACs (horns/strobes), transmits to central station, initiates elevator recall, HVAC shutdown, door holder release, and all programmed fire safety functions.

SUPERVISORY

Medium priority. Indicates an abnormal condition in a supervised system that is not a fire.

Common triggers:

  • Sprinkler valve tamper switch (valve not fully open)
  • Fire pump running signal
  • Low building temperature (freeze protection)
  • Low water level in gravity tank
  • Gate valve not fully open on standpipe

Panel response:

Audible signal at the panel (different sound from alarm). Transmitted to central station. Does NOT activate building notification appliances. Requires investigation within a defined timeframe.

TROUBLE

Lowest priority of the three. Indicates a fault in the fire alarm system itself.

Common triggers:

  • Open circuit on any SLC, NAC, or IDC
  • Ground fault on any circuit
  • Loss of AC power to the panel
  • Low battery voltage
  • Communicator failure (cannot reach central station)

Panel response:

Audible trouble buzzer at the panel. Transmitted to central station. Does NOT activate building notification appliances. Must be corrected promptly — the system may not function properly during a trouble condition.

Priority hierarchy: Alarm overrides supervisory display. Supervisory overrides trouble display. But all conditions are logged and reported regardless of display priority. An alarm condition in Zone 1 does not suppress the trouble condition in Zone 5 — both are transmitted to central station and recorded in the event log.

Battery Backup Requirements

NFPA 72 §10.6.7 sets the minimum standby battery requirement for the FACP. Battery sizing is one of the most commonly failed inspection items — undersized batteries cannot support the system through a prolonged power outage.

RequirementDuration
Standby (supervisory) — non-central station24 hours minimum
Standby (supervisory) — central station service24 hours minimum (some AHJs require 60 hours)
Alarm load — standard notification5 minutes at the end of the standby period
Alarm load — emergency voice/alarm15 minutes at the end of the standby period

Battery Sizing Calculation

The battery calculation is straightforward but must account for every device on the system:

  • Step 1: Calculate total supervisory current draw (panel + all SLC devices + communicator + annunciator) in amps
  • Step 2: Multiply by standby hours (24 or 60) = standby amp-hours
  • Step 3: Calculate total alarm current draw (all NAC circuits at full load + panel alarm current) in amps
  • Step 4: Multiply by alarm duration (5 or 15 minutes, converted to hours) = alarm amp-hours
  • Step 5: Add standby amp-hours + alarm amp-hours = minimum battery capacity
  • Step 6: Apply a 20% safety factor (multiply by 1.2) to account for battery aging
  • Step 7: Select battery size from available standard sizes (7 AH, 12 AH, 18 AH, 26 AH, 33 AH, 55 AH, etc.)

Common Battery Mistakes

Undersizing: Installers calculate based on initial device count but forget to update when devices are added during tenant buildout. Old batteries: Sealed lead-acid batteries have a 5-year service life — many panels have batteries well past this. Wrong type: Only sealed lead-acid (SLA/VRLA) batteries listed for fire alarm service are permitted. Automotive or lithium batteries are never acceptable. Failed charger: A failed charger means the panel is running on battery alone — a trouble signal should appear, but is often silenced and ignored.

NFPA 72 Chapter 14: Testing Requirements

NFPA 72 Chapter 14 and Table 14.3.1 specify the inspection, testing, and maintenance frequencies for every component of the fire alarm system. The FACP itself has specific test requirements, and it is also the platform from which all other device tests are verified.

WeeklyVisual inspection of the panel — verify normal condition (no alarm, trouble, or supervisory signals outstanding). Confirm panel is receiving AC power. Note any silenced or disabled conditions.NFPA 72, §14.3.1
MonthlyTest central station communication — verify alarm and trouble signals transmit to the monitoring company. Test one initiating zone and one NAC circuit (rotating schedule).NFPA 72, §14.3.1
Semi-AnnualBattery load test — apply supervisory load for 24 hours, then alarm load for 5 minutes. Voltage must not drop below 20.4V during alarm load. If voltage drops below threshold, replace batteries.NFPA 72, §14.4.3.2
AnnualTest EVERY initiating device on the system: every smoke detector (with listed aerosol or magnet), every heat detector (with listed heat source), every pull station, every waterflow switch, every tamper switch, every duct detector. Verify correct annunciation at the panel for each device.NFPA 72, §14.3.1
AnnualTest EVERY notification appliance circuit: verify all horns sound, all strobes flash, all speakers produce intelligible audio. Verify candela settings match the approved drawings.NFPA 72, §14.3.1
AnnualTest all auxiliary functions: elevator recall (Phase I), HVAC shutdown, door holder release, stairwell pressurization, smoke damper closure. Each function must activate at the correct alarm point.NFPA 72, §14.3.1
AnnualPrint or download the complete event history log. Review for patterns — frequent troubles in one zone, recurring nuisance alarms from a specific detector, or communication failures.NFPA 72, §14.2.2
5-YearSensitivity testing for all smoke detectors — verify each detector reads within its listed sensitivity range. Detectors outside the range must be cleaned or replaced. Most addressable panels can read sensitivity values directly.NFPA 72, §14.4.5.3

The Annual Test Is Not Optional

Building owners are required by code to have the fire alarm system tested annually by qualified personnel. "Qualified" means a technician who holds a current NICET Level II (minimum) certification or equivalent state license. The test must be documented on an NFPA 72 Inspection and Testing Form (ITM report) and a copy retained by the building owner and the AHJ NFPA 72, §14.2.1.

Common Deficiencies & Troubleshooting

These are the issues most frequently found during annual inspections, AHJ walk-throughs, TJC surveys (healthcare), and insurance audits. Knowing them helps facility managers prepare and helps technicians focus their troubleshooting.

Trouble Signals Silenced and Ignored

The most common finding: one or more trouble conditions have been silenced at the panel and never resolved. A trouble signal means part of the system is not functioning — ground faults, open circuits, communication failures. Every silenced trouble must be investigated and corrected within 24 hours.

Devices Disabled / Zones Bypassed

Detectors taken out of service during construction or renovation and never returned. Panels show "X devices disabled" — each one is a gap in protection. The ITM report must document every disabled point with a reason and timeline for restoration.

Expired Batteries

Sealed lead-acid batteries older than 5 years, or batteries that fail the semi-annual load test. Expired batteries may not support the panel through a 24-hour power outage followed by 5 minutes of alarm. Replace batteries on a 4-year preventive cycle.

Communicator Failure

The DACT, IP, or cellular communicator cannot reach the central station. Causes: phone line disconnected, ISP changed, cellular modem out of coverage, expired SIM card, or monitoring account lapsed. The panel should show a communicator trouble — but if both paths fail, the building is unmonitored.

Missing Smoke Detectors

Detectors removed during renovation and never replaced, or empty bases left in the ceiling from a system modification. An empty base looks like a working detector from below but provides zero protection. Annual testing catches this — if the test is actually performed on every point.

NAC Circuit Overloaded

More notification appliances added to a circuit than its current rating allows. During an alarm, the NAC fuse blows or the regulator drops voltage, resulting in strobes that are dim or do not flash and horns that are weak or silent. Verify total connected load against the NAC card rating.

Incorrect Sequence of Operations

The panel programming does not match the approved fire alarm drawings. Example: elevator recall is supposed to activate on any alarm on floors 1-5 but is only programmed for the lobby smoke detector. This is a commissioning error that persists until someone tests the full sequence.

Ground Fault on SLC

A persistent ground fault reduces the integrity of the SLC loop and can cause phantom alarms or missed alarms. Common causes: damaged wire insulation (especially in wet locations), deteriorated junction boxes, rodent damage, or a device installed in a flooded location.

Nuisance Alarms

Repeated false alarms from specific detectors — cooking smoke near a kitchen, steam from a shower, dust from construction, or HVAC airflow blowing directly on a detector. The correct response is to relocate or reclassify the detector, NOT to disable it. Analog-addressable panels can adjust sensitivity.

Outdated Panel / No Parts Available

The panel is so old that replacement parts (SLC cards, NAC cards, CPU boards) are no longer manufactured. A single board failure takes the entire system offline with no path to repair except full panel replacement. Plan for panel replacement before parts become unavailable.

Understanding the Sequence of Operations

The sequence of operations (also called the cause-and-effect matrix) is the programming document that defines what the FACP does for every possible input condition. It is the most important document in any fire alarm system — and the one most often missing or outdated.

A typical sequence of operations defines:

  • First alarm from any smoke detector → Sound all horns/strobes on that floor + floor above + floor below. Transmit alarm to central station. Recall elevators to lobby (Phase I). Release magnetic door holders. Activate stairwell pressurization.
  • Second alarm from a different zone (General Alarm) → Sound all notification appliances throughout the entire building. Additional HVAC shutdown. Notify central station of general alarm.
  • Waterflow switch alarm → Sound all horns/strobes on the affected floor. Transmit alarm to central station. Display "SPRINKLER FLOW — ZONE XX" at the FACP and remote annunciators.
  • Pull station alarm → Immediate General Alarm — all notification appliances building-wide. Elevator recall. HVAC shutdown. Full central station transmission.
  • Duct detector activation → Shut down the associated HVAC unit. Display supervisory signal. May or may not activate building notification (per AHJ requirements).
  • Tamper switch supervisory → Display supervisory signal at panel and remote annunciator. Transmit supervisory to central station. No building notification.

The sequence of operations must be verified during annual testing by activating each input type and confirming that every programmed output actually occurs. This is the most time-consuming part of the annual test — and the most important.

Panel Lifecycle & Replacement Planning

Fire alarm panels do not last forever. While NFPA 72 does not specify a hard replacement age, practical factors drive replacement decisions:

0-10 YearsFull manufacturer support, parts readily available, firmware updates available. Optimal condition.
10-15 YearsParts still available but may require longer lead times. Some peripheral devices (annunciators, communicators) may be discontinued. Consider budgeting for replacement.
15-20 YearsCritical parts (CPU boards, SLC cards) becoming scarce. A board failure may require weeks to source. Technology is 2+ generations behind. Replacement should be planned and funded.
20+ YearsParts unavailable. A failure means emergency replacement at premium cost. The panel cannot accept modern devices or communication methods. Replacement is overdue.

Budget Tip

Full fire alarm panel replacement (panel + rewiring + new devices) in a typical 100,000 sq ft commercial building costs $150,000-$400,000 depending on device count and complexity. Planning this 3-5 years in advance allows capital budgeting, phased implementation, and competitive bidding — rather than an emergency replacement at 2x cost when a critical board fails without warning.

Frequently Asked Questions

What does UL 864 mean for a fire alarm panel?
UL 864 is the listing standard for fire alarm control units and accessories. Every FACP in commercial use must be UL 864 listed (or ULC-S527 in Canada). The listing covers circuit supervision, fault tolerance, operational sequence, battery backup performance, and documented test results — a non-listed panel is unacceptable to virtually every AHJ.
Where should the FACP be located?
NFPA 72 §10.18.2: a normally attended location, OR a location accessible to the fire department, with a remote annunciator in the other. In practice this means most commercial buildings have the FACP in a mechanical room or back office plus an annunciator at the main entrance. High-rises have a dedicated fire command center per IBC §911.
How long do fire alarm panels last?
Typical service life is 15–20 years. The real limiter is parts availability: once the manufacturer discontinues the panel and SLC cards become unavailable on the used market, the building is one failure away from a full replacement. Start planning for panel replacement at year 15 — do not wait for a catastrophic failure.
What is the 2–3 zone rule?
A common misconception: there is no NFPA rule that requires 2 or 3 zones. Zoning is driven by building size, compartmentalization, and first-responder needs. A small strip-mall building may have a single zone; a hospital campus has hundreds. The zoning layout is part of the design submittal and is approved by the AHJ.
What is the difference between alarm silence and alarm reset?
Silence — stops the horns/strobes but keeps the panel in alarm state; used while investigating. Reset — returns the panel to normal (requires all alarm conditions to be clear first). Resetting before clearing the initiating condition just causes the panel to re-alarm immediately. Both operations require authorized credentials.
Can I network multiple FACPs?
Yes — most modern addressable panels support peer-to-peer networking (NFPA 72 §10.18.1 compliant) allowing a campus or high-rise to be a single logical system with many panels. Each panel handles its local SLC and NACs; the network synchronizes status, alarm routing, and central-station reporting.

References

1. NFPA 72 (2022), §10 — Fundamentals of fire alarm and signaling systems.

2. NFPA 72 (2022), §10.6.7 — Secondary power supply capacity.

3. NFPA 72 (2022), §14 — Inspection, testing, and maintenance.

4. NFPA 72 (2022), §26 — Supervising station alarm systems.

5. NFPA 72 (2022), §23 — Protected premises fire alarm systems.

6. UL 864 — Control Units and Accessories for Fire Alarm Systems.

7. NFPA 72 (2022), Table 14.3.1 — Testing frequencies for fire alarm equipment.

8. NFPA Fire Protection Handbook, 21st Edition, Section 14 — Detection and Alarm.
