Field Observation #002: A Smoke Detector Is Present — But Is It Compliant?
A field inspection lesson on smoke detector placement near HVAC vents, airflow effects on detection, and the one-ceiling-tile rule of thumb

Sheff's Field Observations returns with a condition that passes almost every casual glance: the smoke detector is installed, powered, and reporting. But during a recent inspection, this detector was identified too close to an HVAC vent/plenum opening — and air movement can affect how smoke reaches a detector and how fast it responds. Present is not the same as positioned to perform.

By Jarell Sheffield · edited by Stanislav Samek · 7 min read · Last updated July 10, 2026(Today)
Sheff’s Field Observations — Observe. Question. Improve.
See the whole series →
Headshot of Jarell Sheffield, Healthcare Life Safety and Construction Compliance
AUTHOR · FIELD OBSERVATION #002

Jarell Sheffield

Healthcare Life Safety | Construction Compliance. Jarell helps build safer healthcare environments through code knowledge and practical solutions — ensuring projects are built right, applying code to real-world conditions, and protecting occupants today and every day. Field Observation #002 is his: he spotted the detector, made the call, and wrote the observation that anchors this article.

CONSTRUCTION EXPERTISECODE KNOWLEDGEHEALTHCARE FOCUSEDLIFE SAFETY DRIVEN
✎ Editorial formatting & review: Stanislav Samek, Samektra. The observation, the call, and the credit are Jarell’s.

Stop and study the ceiling

A smoke detector being present does not always mean it is compliant.

On a walkthrough, a smoke detector is one of the easiest devices to check off. It is on the ceiling, its LED blinks, it shows up on the fire alarm panel, and it probably passed its last functional test. Every one of those facts can be true — and the detector can still be in the wrong place.

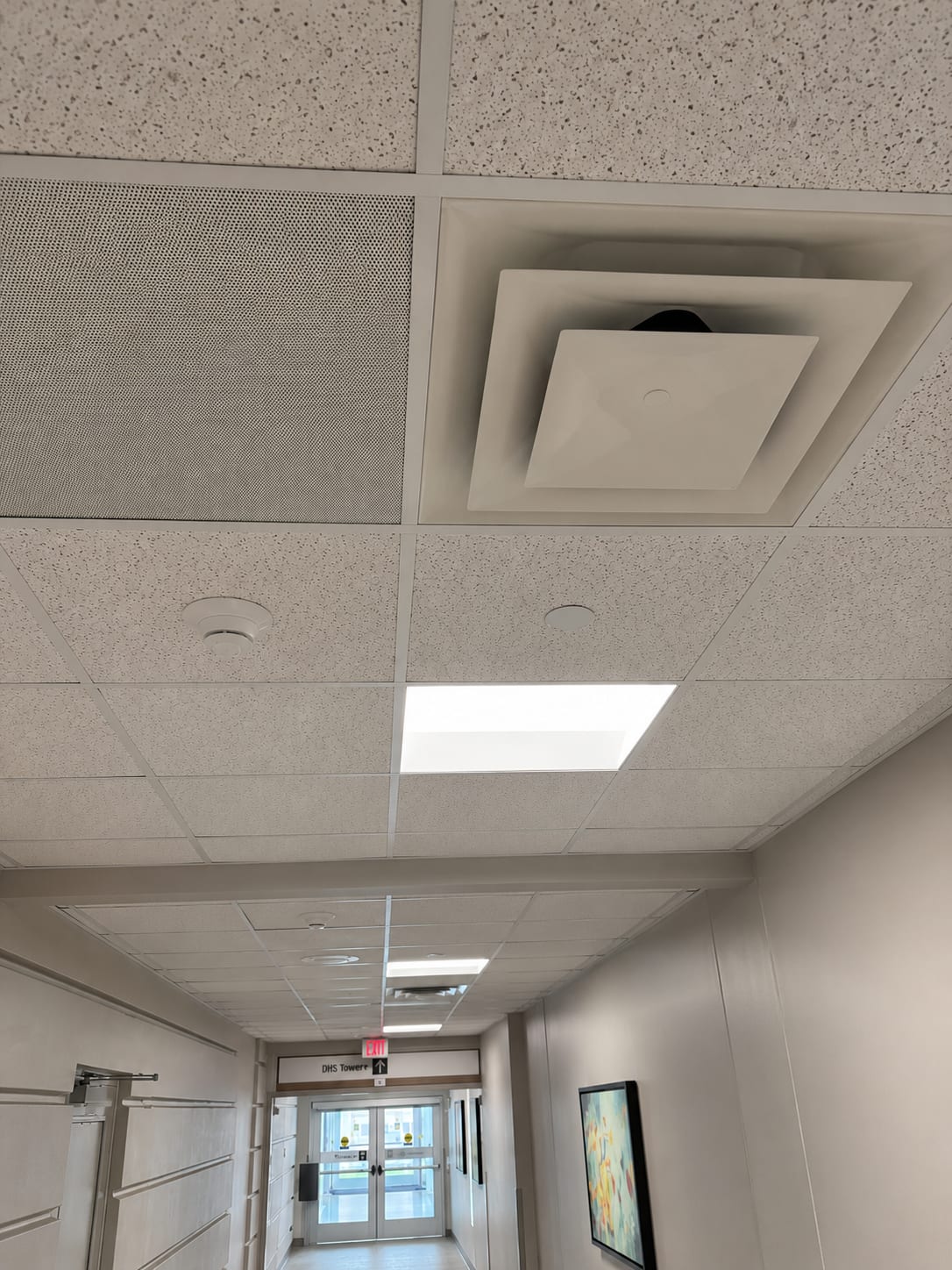

During a recent inspection, the ceiling in the photo above produced exactly that finding: a smoke detector identified too close to an HVAC vent/plenum opening. Nothing about the device itself was wrong. The problem was where it was positioned relative to moving air.

So the question is: before reading further, look at the photo again. The tile grid is your ruler. How far is the detector from the supply diffuser — and when you walk a ceiling, do you check that the detector is installed, or that it is positioned to perform? Those are two different inspections.

What was observed

A spot-type smoke detector was identified too close to an HVAC vent/plenum opening — in the field photo, the detector sits within about one ceiling tile of the supply diffuser, inside the roughly 3 ft clearance benchmark.

This matters because air movement can affect how smoke reaches the detector and may impact response time. Supply air blowing across or past a detector can dilute smoke, deflect it away from the sensing chamber, or create an air curtain that smoke has to fight through. Return and plenum openings can distort how smoke travels through the space before it ever reaches the device.

The result is a detector that looks fine, tests fine with canned smoke applied directly at the unit, and may still respond late to a real fire — because the room’s airflow never lets smoke build at that location.

The one-ceiling-tile rule of thumb

A practical field reminder from the observation: most lay-in ceiling tiles are 2 ft × 2 ft, and spot-type smoke detectors generally need a minimum of about 3 ft of clearance from air supply diffusers, return openings, and similar vent or plenum openings.

So one full ceiling tile of separation is a helpful rule of thumb — a quick visual screen you can run from the floor while walking a corridor or a patient room. If a detector sits within about one tile of a diffuser or vent opening, that is a candidate for a tape measure, not an automatic write-up. The rule of thumb flags the condition; the actual clearance still needs to be verified against the adopted code edition and the manufacturer’s installation instructions.

verify actual clearance (≈ 3 ft minimum)SUPPLY DIFFUSERTOO CLOSECLEARLay-in grid: each tile = 2 ft × 2 ft · dashed circle = airflow clearance zone around the diffuserA detector within about one ceiling tile of a diffuser is a candidate for a tape measure — not automatically a violation.
Plan view of the one-ceiling-tile screen. Most lay-in tiles are 2 ft × 2 ft, and spot-type smoke detectors generally need about 3 ft of clearance from supply diffusers, return openings, and similar vent or plenum openings — so a detector sitting within a tile of a diffuser deserves a measurement before the space is accepted. The rule of thumb flags the candidates; the tape measure and the adopted code edition make the call. Diagram: LifeSafetyWiki editorial illustration.

Why the screen works: you cannot carry a tape measure to every ceiling tile in a hospital, but you can scan every ceiling you walk under. The tile grid is already a built-in ruler. Use it to find the detectors worth measuring — then measure them.

Why this matters in healthcare

Healthcare buildings are dense with both detection and air handling. Patient rooms, corridors, and support spaces carry high air-change rates, pressure relationships that must be maintained, and ceilings crowded with diffusers, returns, lights, and devices. That combination produces exactly this condition:

  • Renovations relocate diffusers after the detector layout was designed
  • Above-ceiling work shifts devices a tile over to clear new duct or pipe
  • Detector replacements land on the nearest convenient tile rather than the designed tile
  • Coordination drawings resolve a clash by moving whichever trade got there last

Each of those changes can be individually reasonable and still leave a detector inside the airflow of a vent it was never designed to sit next to. In an occupancy where the population includes patients who cannot self-evacuate, seconds of detection delay carry more weight than almost anywhere else.

Key lesson: confirm it is positioned to perform

Don’t just confirm that the device is installed. Confirm that it is positioned to perform. When reviewing spot-type smoke detectors near air handling, the check should include:

  • Distance from air supply diffusers
  • Distance from return and exhaust openings
  • Distance from plenum openings and transfer grilles
  • Whether the detector sits directly in a supply airstream
  • Manufacturer’s published clearance and placement instructions
  • The adopted NFPA 72 edition’s location and spacing provisions
  • Whether recent renovation or above-ceiling work moved either the detector or the diffuser

The finding in this observation was not a missing device or a failed test. It was a working detector in a compromised location — the kind of deficiency that only gets caught by someone who looks at the ceiling as a system, not as a checklist of installed equipment.

Code note

Spot-type smoke detector placement near air movement is governed by the adopted edition of NFPA 72 — its location and spacing provisions, the annex guidance that accompanies them, and the manufacturer’s published installation instructions, which apply as part of the equipment listing NFPA 72 · manufacturer listing instructions. The widely used 3 ft clearance from diffusers, returns, and similar openings is a sound field benchmark, but how each edition words the requirement — and how much lives in enforceable body text versus annex guidance — shifts between editions. Verify against the edition adopted in your jurisdiction and the listed instructions for the specific detector rather than quoting a number out of context.

Detector placement review checklist

When reviewing spot-type smoke detectors during an inspection, turnover walk, or post-renovation survey, consider checking the following:

  • ☐ Is the detector within about one ceiling tile of a supply diffuser, return, or vent opening? (Screen from the floor.)
  • ☐ If flagged by the screen, what is the measured clearance from the opening?
  • ☐ Does the measured clearance satisfy the adopted NFPA 72 edition and its guidance?
  • ☐ Does it satisfy the manufacturer’s published installation instructions for the listed detector?
  • ☐ Is the detector sitting directly in a supply airstream?
  • ☐ Has renovation or above-ceiling work moved the detector or the diffuser since original acceptance?
  • ☐ Do the as-built fire alarm drawings match what is actually on the ceiling?
  • ☐ If the detector must move, is the relocation captured on the drawings and retested?
  • ☐ Is the final condition documented?

Inspection report language

When you find a detector positioned too close to an air handling opening, write the finding so it survives review — observation, basis, risk, and corrective action. Copy/paste starting language:

OBSERVATION: Spot-type smoke detector installed and operational, but positioned too close to an HVAC supply/return/plenum opening (measured clearance less than the approximately 3 ft benchmark for separation from air movement sources). FIELD BASIS: Spot-type smoke detector location and spacing provisions of the adopted NFPA 72 edition, associated annex guidance on airflow from supply diffusers and return openings, and the manufacturer's published installation instructions (enforceable per the equipment listing). Verify the governing clearance against the adopted edition and the listed instructions. RISK: Air movement at the detector location can dilute or deflect smoke away from the sensing chamber and delay detector response. The device may pass functional testing at the unit while still responding late to a developing fire — reducing the early-warning margin the detection layout was designed to provide. RECOMMENDED CORRECTIVE ACTION: Relocate the detector (or coordinate relocation of the diffuser/opening) to achieve the clearance required by the adopted NFPA 72 edition and the manufacturer's instructions; update the fire alarm as-built drawings; retest the relocated device; and document the final condition. If relocation requires design input, route through the fire alarm contractor of record and the AHJ as applicable.

Same call, different ceiling

Once you start running the one-tile screen, this condition shows up everywhere. Here is the same finding on a different ceiling — this time next to a four-way cassette unit instead of a square diffuser.

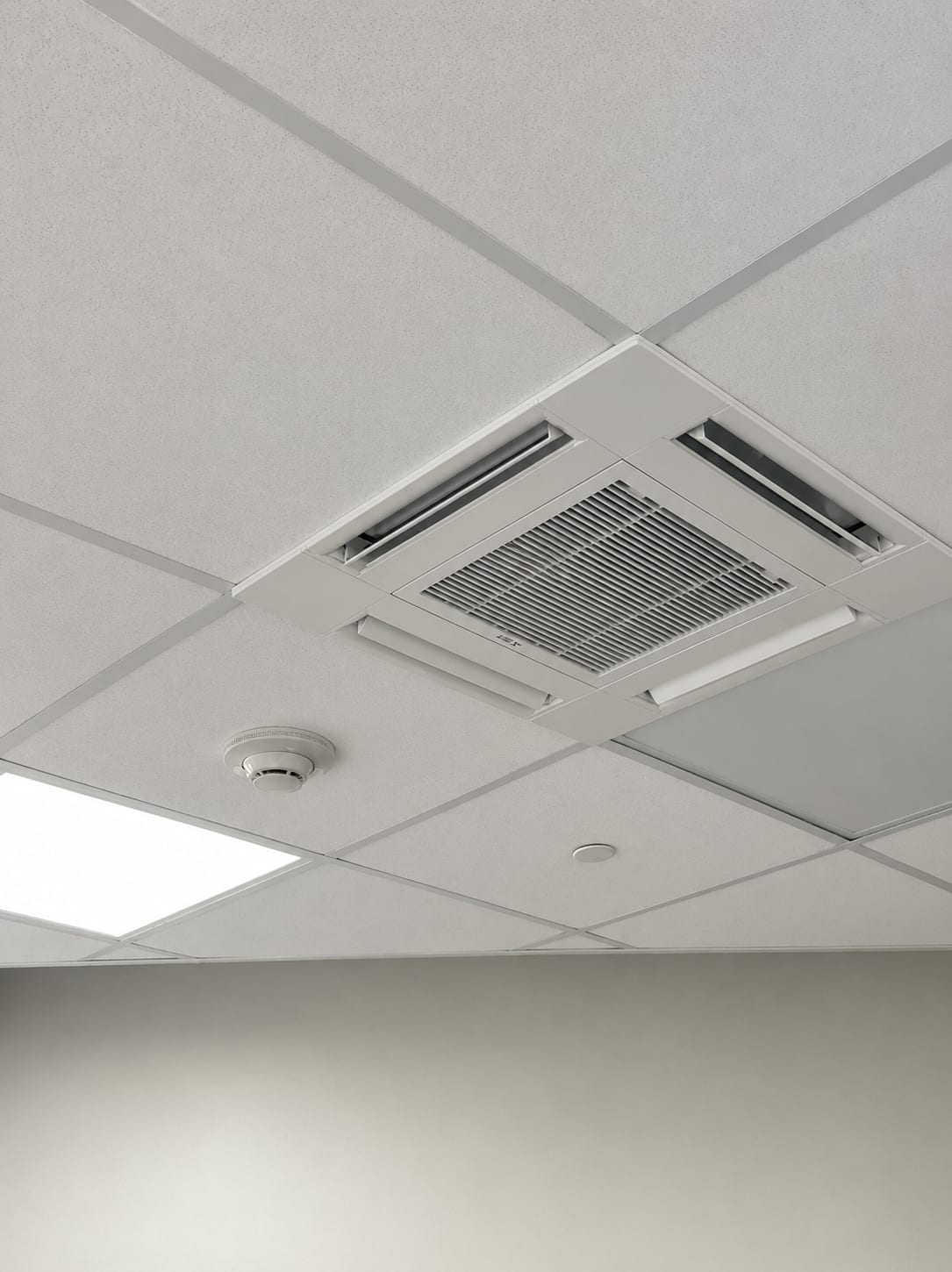

Detector beside a four-way cassette unit.A cassette unit is a harder airflow neighbor than a plain diffuser: it discharges supply air from slots on all four sides and pulls return air through the center grille, so the detector on the adjacent tile sits in a constant wash of moving air whenever the unit runs. The clearance is measured from the supply slots — and here the detector is well inside the benchmark. Tap or click to enlarge.

Worth noting: cassette units, linear slot diffusers, and plain square diffusers all count as air movement sources for the clearance check. The device type changes; the screen does not.

Field observation takeaway

This detector is a reminder that fire alarm compliance is not only a device inventory. A detector can be present, powered, addressed, and tested — and still be positioned where moving air undermines the one thing it exists to do: notice smoke early.

The lesson: don’t just confirm that the device is installed. Confirm that it is positioned to perform.

Discussion question

When you walk a space, do you screen detector placement against the ceiling grid? What is your own field benchmark for detectors near diffusers, returns, or plenum openings — and have you ever caught one that moved during a renovation? Join the discussion in the community →

Ask Clara

Reviewing detector placement on a project or after a renovation? Clara — the site’s assistant — can help you walk the airflow-clearance check, pull the related standards, and write the finding.

SUGGESTED PROMPT

“I found a spot-type smoke detector installed close to an HVAC supply diffuser. Walk me through how to evaluate the clearance — the one-ceiling-tile screen, what NFPA 72 and the manufacturer's instructions govern, and how to write up the finding if it fails.”

Frequently Asked Questions

What was wrong with the smoke detector in Field Observation #002?
The detector itself was installed and appeared functional, but it was identified too close to an HVAC vent/plenum opening. Air movement from supply diffusers, return openings, and similar vent or plenum openings can affect how smoke reaches a detector and may impact response time. A detector that is present but sitting in a compromised airflow location is not automatically providing the protection the design intended.
How far does a smoke detector need to be from an air supply diffuser or return opening?
As a field benchmark, spot-type smoke detectors generally need a minimum of about 3 feet of clearance from air supply diffusers, return openings, and similar vent or plenum openings. The exact requirement depends on the adopted edition of NFPA 72, the annex guidance that accompanies it, and the manufacturer’s published installation instructions — which are enforceable as part of the equipment listing. Verify the actual clearance against those sources rather than relying on the benchmark alone.
What is the one-ceiling-tile rule of thumb?
Most lay-in ceiling tiles are 2 ft × 2 ft, so one full ceiling tile of separation between a spot-type smoke detector and a diffuser or vent opening is a helpful visual screen when walking a space. It is a screening tool, not a compliance determination: a detector within about one tile of a diffuser is a candidate for a tape measure, and the actual clearance still needs to be verified against the adopted code edition and the manufacturer’s instructions.
Why does airflow matter to smoke detector performance?
Spot-type smoke detectors work by smoke entering the sensing chamber. Supply air blowing across or past a detector can dilute smoke, deflect it away from the chamber, or create an air curtain the smoke has to fight through — all of which can delay response. Return openings can also distort how smoke travels through a space. The detector may test fine with canned smoke applied directly at the unit and still respond late to a real fire because the room’s airflow never lets smoke build at that location.
Does this article cite the exact NFPA 72 section for detector clearance from diffusers?
Intentionally not. Detector location and spacing requirements — including how each edition treats airflow from supply diffusers and return openings, and how much of the guidance lives in the annex versus the enforceable body text — shift between editions of NFPA 72, and the manufacturer’s published instructions add listing-based requirements on top. The correct move on any specific project is to verify the requirement against the adopted edition, the equipment listing, and the local AHJ rather than quote a section number out of context. The lesson here is the review discipline, not a citation.

References

1. NFPA 72: National Fire Alarm and Signaling Code — spot-type smoke detector location and spacing, including provisions and annex guidance addressing airflow from supply diffusers, return openings, and high air-movement spaces. Verify section numbers and requirements against the adopted edition for your jurisdiction.

2. Manufacturer published installation instructions for the listed detector — clearance and placement requirements that apply as part of the equipment listing.

3. NFPA 101: Life Safety Code — occupancy chapters establishing where smoke detection is required. Edition adoption varies by state and AHJ.

4. Author: Jarell Sheffield — Healthcare Life Safety | Construction Compliance (field observation, field photo, and original LinkedIn post ↗). Editorial formatting and review by Stanislav Samek, Samektra.
