Field Observation #001: Is This Delayed Egress Stair Door Compliant?
A healthcare construction-turnover lesson on delayed egress signage, occupant understanding, and complete-system review

Sheff's Field Observations starts with a real-world condition and one simple question: what would you identify? This stair door looked finished — exit sign, access control, fire alarm pull station, panic hardware, stair ID, rated door. But a complete-looking installation is not the same as a compliant one, and one required piece of the delayed egress system had been missed.

By Jarell Sheffield · edited by Stanislav Samek · 8 min read · Last updated June 26, 2026(Today)
Sheff’s Field Observations — Observe. Question. Improve.
See the whole series →
Headshot of Jarell Sheffield, Healthcare Life Safety and Construction Compliance
AUTHOR · FIELD OBSERVATION #001

Jarell Sheffield

Healthcare Life Safety | Construction Compliance. Jarell helps build safer healthcare environments through code knowledge and practical solutions — ensuring projects are built right, applying code to real-world conditions, and protecting occupants today and every day. Field Observation #001 is his: he spotted the door, asked the question, created the graphic, and wrote the observation that anchors this article.

CONSTRUCTION EXPERTISECODE KNOWLEDGEHEALTHCARE FOCUSEDLIFE SAFETY DRIVEN
Headshot of Stanislav Samek, founder of Samektra Safety Management & Training
EDITOR · LIFESAFETYWIKI

Stanislav Samek

Founder of Samektra Safety Management & Training in Gwinnett County, Georgia, and the editor behind LifeSafetyWiki. Editorial role on this piece only: formatting and review — citing the standard by name, flagging where exact code sections must be verified against the adopted edition, and keeping every constraint pointed the right direction. The observation, the call, and the credit are Jarell’s.

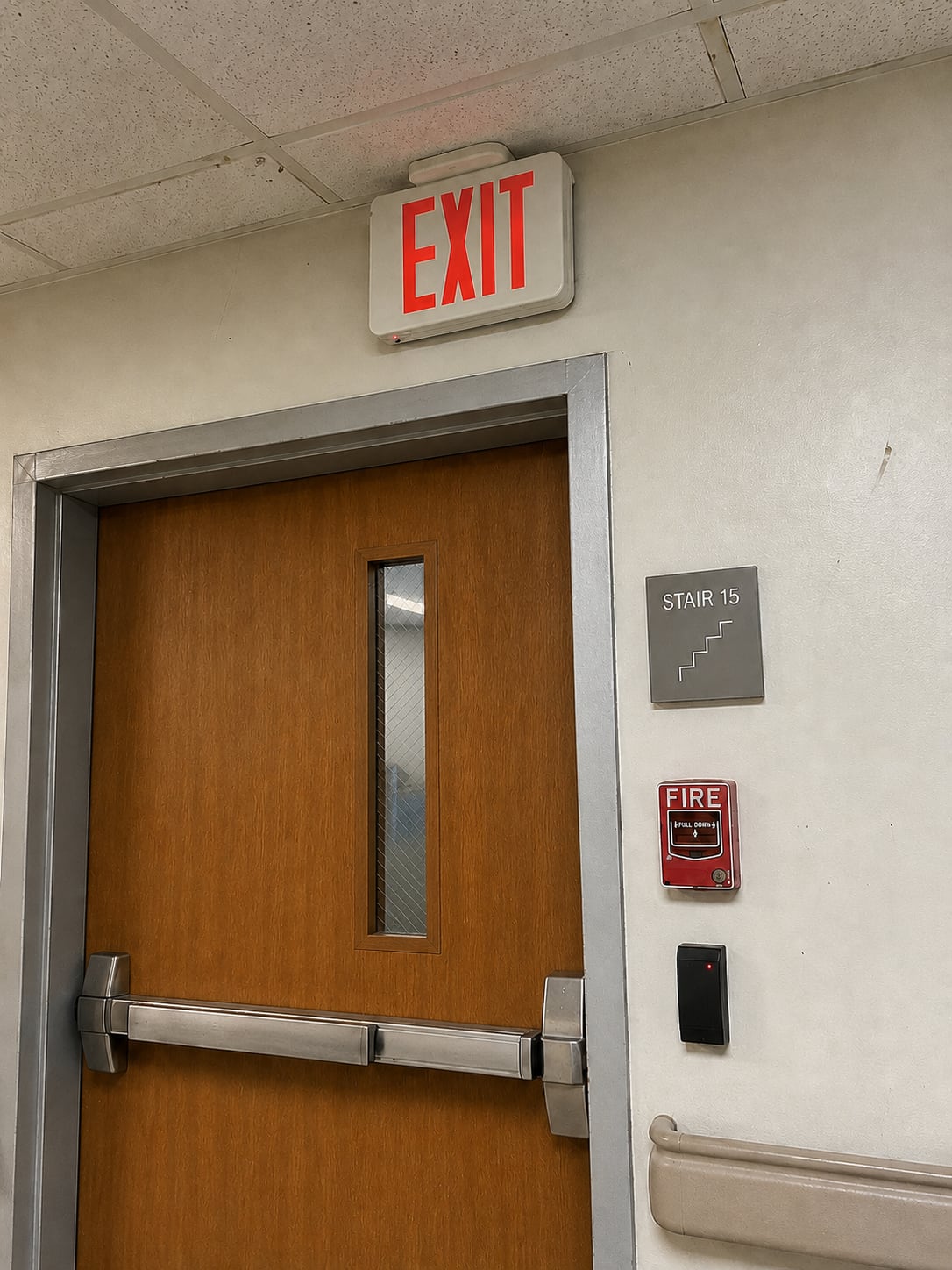

Stop and study the photo

One of the most valuable parts of healthcare construction turnover is not simply finding deficiencies after the work is complete. It is asking the right questions before the space is handed to operations.

During turnover inspections, many items look complete at first glance. Doors are installed, hardware is mounted, access control is functional, signage is present, fire alarm devices are in place. But in healthcare occupancies, a “complete-looking” installation is not always the same as a compliant installation. This door is a good example.

At first glance, this stair door appears to include several important life safety components:

  • Exit sign
  • Fire alarm pull station
  • Access control device
  • Panic hardware
  • Stair identification signage
  • Rated stair enclosure door

So the question is: would you consider this door compliant? Before reading further, stop and look at the photo carefully. What would you identify during a construction turnover inspection?

What was observed

The hardware and access control equipment appeared to function as intended. However, one required component of the delayed egress system had been missed during installation:

The delayed egress signage was missing on the egress side of the door.

This is a critical detail. Delayed egress systems are not only about the locking hardware — they also depend on proper occupant notification and instruction. During an emergency or attempted egress, the occupant must be able to understand what is happening and how to proceed.

Without the required delayed egress signage, a person approaching the door may not know that continued pressure on the door hardware will initiate the release sequence. That can create confusion, hesitation, or the appearance that the door is simply locked.

Why this matters in healthcare

Healthcare facilities are unique because occupants may include:

  • Patients with limited mobility
  • Visitors unfamiliar with the building
  • Staff responding under stress
  • Contractors or vendors working after hours
  • Individuals who may not understand delayed egress operation

In these environments, small missing details can have a much larger impact. A delayed egress door may be properly wired, programmed, and installed from a hardware standpoint, but still be incomplete if the required instructional signage is missing.

That is why construction turnover inspections are so important. They give the life safety, facilities, construction, and security teams a chance to review the installation from the perspective of real-world use — not just from the perspective of installation completion.

Key lesson: review the whole system

A delayed egress opening should be reviewed as a complete system, not just as a door with special hardware. During turnover, the review should include:

  • Correct door and frame condition
  • Proper latching
  • Panic or fire exit hardware operation
  • Delayed egress function
  • Fire alarm interface
  • Access control interface
  • Power-loss behavior
  • Required signage
  • Door release timing
  • Staff understanding of operation
  • Stair identification and wayfinding

The missing item in this observation was simple, but important: delayed egress signage is part of the system. If it is missing, the installation may not be ready for turnover.

Code note

Delayed egress locking arrangements require more than hardware installation. The adopted code edition, local AHJ requirements, and the project specifications should be reviewed for signage wording, signage location, door release timing, fire alarm interface, sprinkler/fire detection conditions, and approved use of delayed egress in the specific occupancy NFPA 101 · IBC §1010. Exact section numbers shift between editions — verify them against the code adopted in your jurisdiction rather than quoting a number out of context.

Turnover review checklist

When reviewing delayed egress or access-controlled egress doors during construction turnover, consider checking the following:

  • ☐ Is the door installed in a location where delayed egress is permitted?
  • ☐ Is the door equipped with the correct listed hardware?
  • ☐ Does the door latch properly?
  • ☐ Does the door release within the required time sequence?
  • ☐ Is the fire alarm interface verified?
  • ☐ Does loss of power release the locking arrangement as required?
  • ☐ Is the required delayed egress signage installed?
  • ☐ Is the signage located on the correct side of the opening?
  • ☐ Is the signage visible and readable to the occupant approaching the door?
  • ☐ Is the sequence of operation documented?
  • ☐ Has staff been trained on how the door operates?
  • ☐ Is the final condition documented before turnover?

Inspection report language

When you find a delayed egress opening missing its required signage at turnover, write the finding so it survives review — observation, basis, risk, and corrective action. Copy/paste starting language:

OBSERVATION: Delayed egress locking arrangement installed and functional at the stair door, but the required delayed egress instructional signage is missing on the egress side of the opening. FIELD BASIS: Delayed egress locking arrangements require occupant instructional signage in addition to functional hardware (NFPA 101 / adopted building code — verify signage wording, location, and release timing against the adopted edition and the project specifications). RISK: Occupants approaching the door may not understand that continued pressure initiates the release sequence, and may read the door as simply locked — creating hesitation or confusion during egress. The opening cannot be considered a complete, ready-for-turnover delayed egress system without it. RECOMMENDED CORRECTIVE ACTION: Install the required delayed egress signage on the egress side per the listed hardware instructions and the adopted code edition; confirm wording, location, and readability for the approaching occupant. Verify the full sequence of operation (release timing, fire alarm interface, power-loss behavior) and document the final condition before turnover.

Field observation takeaway

This door is a reminder that healthcare construction compliance often comes down to details that are easy to overlook. A door can look finished. The hardware can look correct. The access control can work. The fire alarm device can be installed nearby. But if the required occupant instruction is missing, the system may still be incomplete.

Construction turnover inspections help catch these details before they become operational problems, survey findings, or emergency confusion.

Discussion question

When you review delayed egress or access-controlled egress doors during construction turnover, what is the first item you look for? Do you start with the hardware? The signage? The fire alarm interface? The sequence of operation? Or the occupant’s experience at the door? Join the discussion in the community →

Ask Clara

Reviewing a delayed egress or access-controlled door at turnover? Clara — the site’s assistant — can help you walk the full system, build the review checklist for your occupancy, and write the finding.

SUGGESTED PROMPT

“I'm reviewing a delayed egress stair door during a healthcare construction turnover. Walk me through the complete system to verify — hardware, release timing, fire alarm interface, power-loss behavior, and the required signage — and help me write up anything that's missing.”

This was Field Observation #001. More observations are on the way.
Back to Sheff’s Field Observations →

Frequently Asked Questions

What was wrong with the door in Field Observation #001?
The hardware and access control functioned as intended, but a required component of the delayed egress system had been missed during installation: the delayed egress instructional signage was missing on the egress side of the door. Delayed egress arrangements are not only about the locking hardware — they depend on occupant notification and instruction so a person approaching the door understands that continued pressure on the hardware initiates the release sequence. Without that signage, the door can read as simply locked, creating confusion or hesitation in an emergency.
Is a delayed egress door just a door with special hardware?
No. A delayed egress opening should be reviewed as a complete system: the door and frame, latching, panic/fire-exit hardware operation, the delayed egress release function and timing, the fire alarm interface, the access control interface, behavior on loss of power, the required signage, staff understanding of operation, and stair identification and wayfinding. If any one of those is missing or unverified — including the signage — the installation may not be ready for turnover even when the hardware works.
Why does missing delayed egress signage matter so much in healthcare?
Healthcare occupants include patients with limited mobility, visitors unfamiliar with the building, staff responding under stress, and after-hours contractors — people who may not understand how a delayed egress door operates. In that environment a door that is mechanically correct but missing its occupant instruction can still produce hesitation, confusion, or the appearance of a locked exit. Small missing details carry a much larger impact where the occupant load is vulnerable.
Does this article cite the exact NFPA 101 section for delayed egress?
Intentionally not. Delayed egress locking requirements — signage wording and location, release timing, fire alarm and sprinkler/detection interface conditions, and where the arrangement is even permitted by occupancy — live in NFPA 101 and the adopted building code, and the exact section numbers shift between editions. The correct move on any specific project is to verify the requirements against the adopted code edition and the local AHJ rather than rely on a number quoted out of context. The lesson here is the review discipline, not a section citation.
What is the first thing to check on a delayed egress door at turnover?
There is no single right answer, and that is the point of the discussion. Some practitioners start with the hardware, some with the signage, some with the fire alarm interface or the sequence of operation, and some with the occupant experience standing at the door. The strongest turnover reviews walk the whole system rather than stopping at the first item that looks finished — because the deficiency in this observation was not in the hardware, it was in the part everyone assumed was already done.

References

1. NFPA 101: Life Safety Code — means of egress, door hardware, and delayed-egress locking arrangements (signage, release timing, alarm/detection interface). Verify section numbers and requirements against the adopted edition for your jurisdiction.

2. International Building Code (IBC), Chapter 10 — Means of Egress, §1010 door operations including delayed-egress locking provisions. Edition adoption varies by state and AHJ.

3. Author: Jarell Sheffield — Healthcare Life Safety | Construction Compliance (field observation, original post, and graphic). Editorial formatting and review by Stanislav Samek, Samektra.
