Life Safety Plans
What a Life Safety Plan is, who draws it, how to read it — and how to keep it from becoming a coloring book

A Life Safety Plan (LSP) is the single drawing every surveyor, fire marshal, and AHJ asks for first — and the one most facilities show as a stale, overcomplicated mess. This is the practitioner-side guide to what an LSP should actually contain, how often it should be reviewed, the standards governing it, and the legend conventions that keep it readable.

By Stanislav Samek, Samektra · 14 min read · Last updated May 26, 2026(Yesterday)

What a Life Safety Plan actually is

A Life Safety Plan (LSP) is an annotated set of architectural floor plans that documents every life-safety feature in the building. It is the single drawing your AHJ, your CMS surveyor, your TJC surveyor, your state fire marshal, and your insurance adjuster all ask for first. Done well, it answers their questions before they ask them. Done badly — or left to age unmaintained — it becomes the first finding in their report.

The LSP is not the same as the architectural floor plan, the fire protection drawings, or the egress plan posted at the elevators for occupants. The LSP is a specialized analytical drawing that overlays every code-relevant feature onto the building’s footprint so the AHJ can verify, in one look, that the design intent matches the as-built construction IBC §107.

The information a properly-drawn LSP carries — and ONLY this information — is the passive life-safety side of the building: rated wall assemblies and their hourly ratings (1 / 2 / 3 / 4 hour fire + 1-hour smoke barrier); smoke compartment boundaries with square footage; horizontal exits; suite definitions (sleeping vs non-sleeping in healthcare); hazardous areas with an “H” symbol; fire-rated doors with NFPA 80 class ratings (45 / 90 / 180 min); exit signage and required egress paths with travel-distance measurements; and any equivalency or waiver in effect. Active fire protection equipment (extinguishers, sprinkler valves, individual detectors, standpipe hose connections) lives on its own drawings and inventories — see “What belongs on OTHER drawings” below.

The standards that govern Life Safety Plans

No single standard owns LSPs end-to-end. The drawing satisfies overlapping requirements from several authorities at once, which is part of why facilities get confused about who’s in charge.

Building-side standards

  • IBC §107 + IFC §107 — construction documents must show life safety features for AHJ approval before permit.
  • NFPA 101 Chapter 4 — general requirements that life-safety features be documented and maintained. §4.6.4 specifically covers equivalency documentation.
  • NFPA 1 §1.7.8 — fire code submittal rules for plans, specifications, and shop drawings.
  • State amendments — Georgia, Florida, California, New York, and most other states publish amendments to IBC/NFPA that affect LSP content requirements. Check your AHJ before relying on the unamended national edition.

Healthcare-specific standards

  • CMS Conditions of Participation (42 CFR §482.41) — physical environment must comply with NFPA 101 (2012). The LSP is the document surveyors use to verify compliance.
  • CMS K-tags — K-101 (fundamentals), K-321 (hazardous areas), K-371 (smoke compartments), K-372 (smoke barrier construction), K-211 (egress). Every K-tag has a corresponding LSP element.
  • The Joint Commission (TJC) — EC.02.03.05 (fire safety systems maintenance), PE.02.06.05 (building & fire protection features), LS standards (Life Safety chapter).
  • Other deeming authorities — DNV-GL, HFAP, AAAHC each survey to slightly different standards but all expect the same core LSP content.

Who draws the plan, who maintains it

The original LSP comes out of the design phase, drawn by the project architect. In jurisdictions where life-safety analysis requires it (most of them, for any project above a certain size or occupancy classification), a fire protection engineer (FPE) performs the life-safety analysis and stamps the LSP sheets. Without that stamp, the AHJ typically won’t approve the permit state PE statutes.

After occupancy, the LSP becomes the facility’s responsibility to maintain. This is where most facilities lose the thread. The architect moves on, the FPE’s engagement ends, and the LSP that lived in the construction binder migrates to a wall in the engineering office where it slowly ages out of relevance.

Who actually keeps the LSP current depends on the facility type:

  • Hospitals + large healthcare — the Certified Healthcare Facility Manager (CHFM) or designated life safety officer owns LSP maintenance. Larger systems retain a life safety consultant on contract for plan-update work.
  • Long-term care, skilled nursing, ambulatory healthcare — typically the facility administrator or maintenance director owns it; in practice, it’s often updated only when CMS schedules the next survey.
  • Commercial / industrial — facility manager or EHS director. In many smaller properties no one owns it explicitly, which is why the AHJ inspection finding lands.
  • Educational + assembly — usually the school district or venue facilities team, again often updated only when the local fire marshal asks for it.
Field reality: The most reliable LSP maintenance pattern is a small in-house team that updates the plan AS PART OF the renovation closeout, before signing off on the work. Treating LSP updates as a separate annual task means they never happen because no one’s budget owns them.

How the plan is used in practice

  1. AHJ plan review — before any construction permit issues, the AHJ reviews the LSP against the adopted code. The LSP is the primary deliverable, not the architectural drawings.
  2. Final inspection / Certificate of Occupancy — the AHJ verifies as-built construction matches the approved LSP. Deviations require either revised drawings or an equivalency.
  3. CMS triennial survey + TJC survey — the surveyor uses the LSP to verify every K-tag element. Wrong rating on a wall, missing smoke compartment, undocumented hazardous area — each becomes a separate finding.
  4. State fire marshal annual / biennial inspection — same idea at a lighter cadence. The LSP is the reference document.
  5. Construction + renovation reference — design teams for future projects start by reading the existing LSP to understand the constraints. A stale LSP cascades into worse design downstream.
  6. Emergency response — in many jurisdictions, a copy of the LSP lives in the fire command center or with the building emergency action plan. Responders use it during incidents.
  7. ILSM baseline — when an LSRA identifies a temporary deficiency (sprinkler down, fire barrier breached during renovation), the ILSM plan references the LSP as the baseline being temporarily compromised. See LSRA & ILSM.

How often the plan should be reviewed

There is no single code-mandated review cadence. What there IS, is a clear set of triggers that require an LSP update. Best-practice facilities review the plan at every trigger, plus an annual sanity check. Most facilities update only when forced — usually after a finding.

LSP-update triggers (any of these = review required)

  • Renovation touching a rated assembly — wall added, removed, or relocated; rating changed; door replaced or removed; penetration installed.
  • Change of occupancy / change of use — per NFPA 101 Chapter 43, the entire chapter governing the work area may shift. See Fire Wall vs Fire Barrier for the Chapter 43 walk-through.
  • Code edition update — when the AHJ adopts a new edition of IBC, IFC, NFPA 101, NFPA 1, the LSP may need section-reference updates.
  • Pre-survey audit — every CMS triennial in healthcare; every fire marshal cycle elsewhere.
  • System replacement — fire alarm panel relocated, sprinkler riser moved, new generator installed, new kitchen suppression system.
  • Annual lifecycle review — CHFM-driven; even with no triggers, walk the building once a year and confirm the LSP still matches.
  • Post-incident — if a fire, smoke event, or near-miss revealed an LSP-vs-reality mismatch, the document needs to be reconciled before the post-incident report closes.

What it looks like in practice — good vs. not-so-good

Before getting into what the legend should contain, two real-world examples. Looking at these side-by-side answers most of the “what should an LSP look like?” question in about ten seconds.

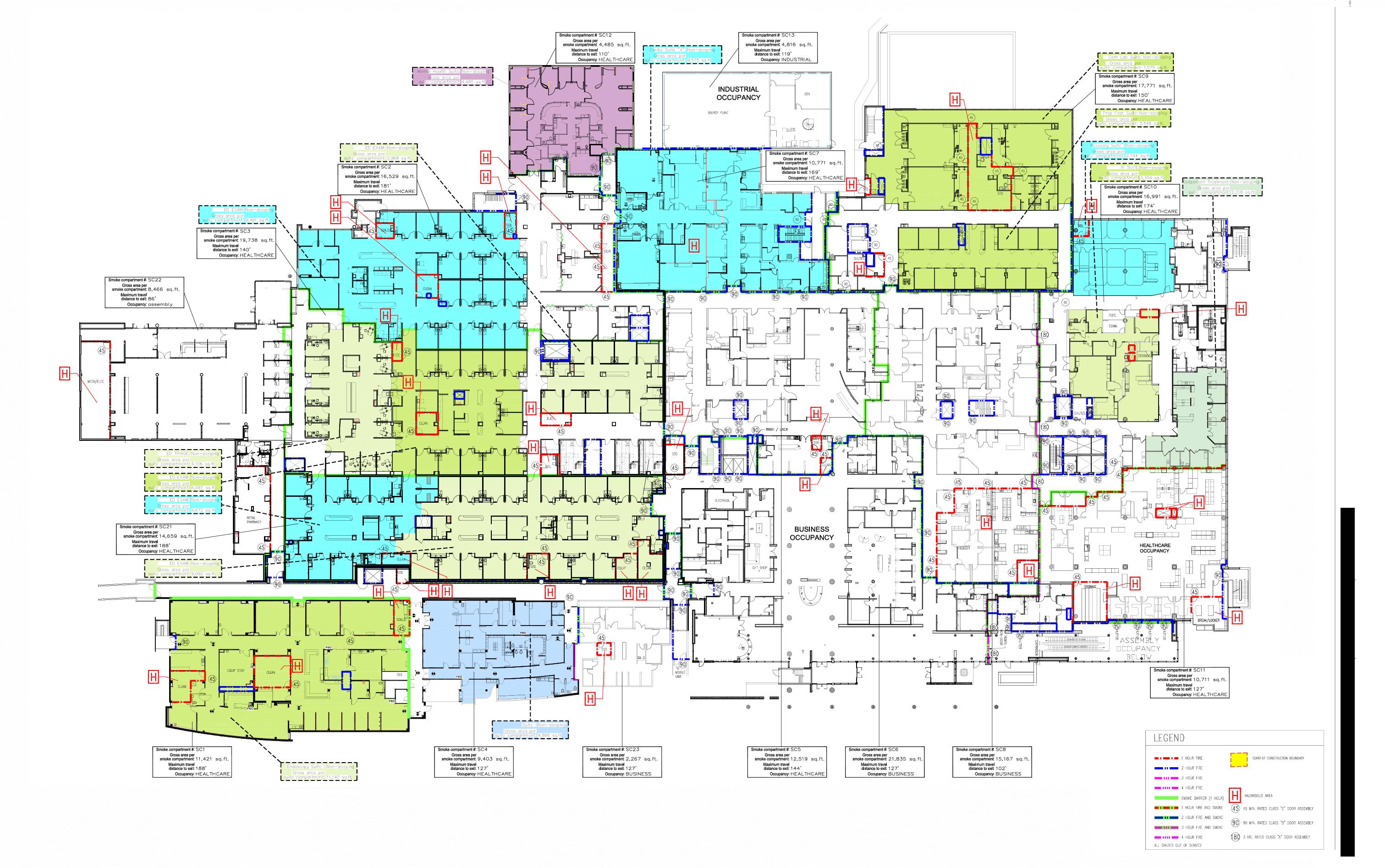

✓ EXAMPLE OF A WELL-DRAWN LIFE SAFETY PLAN

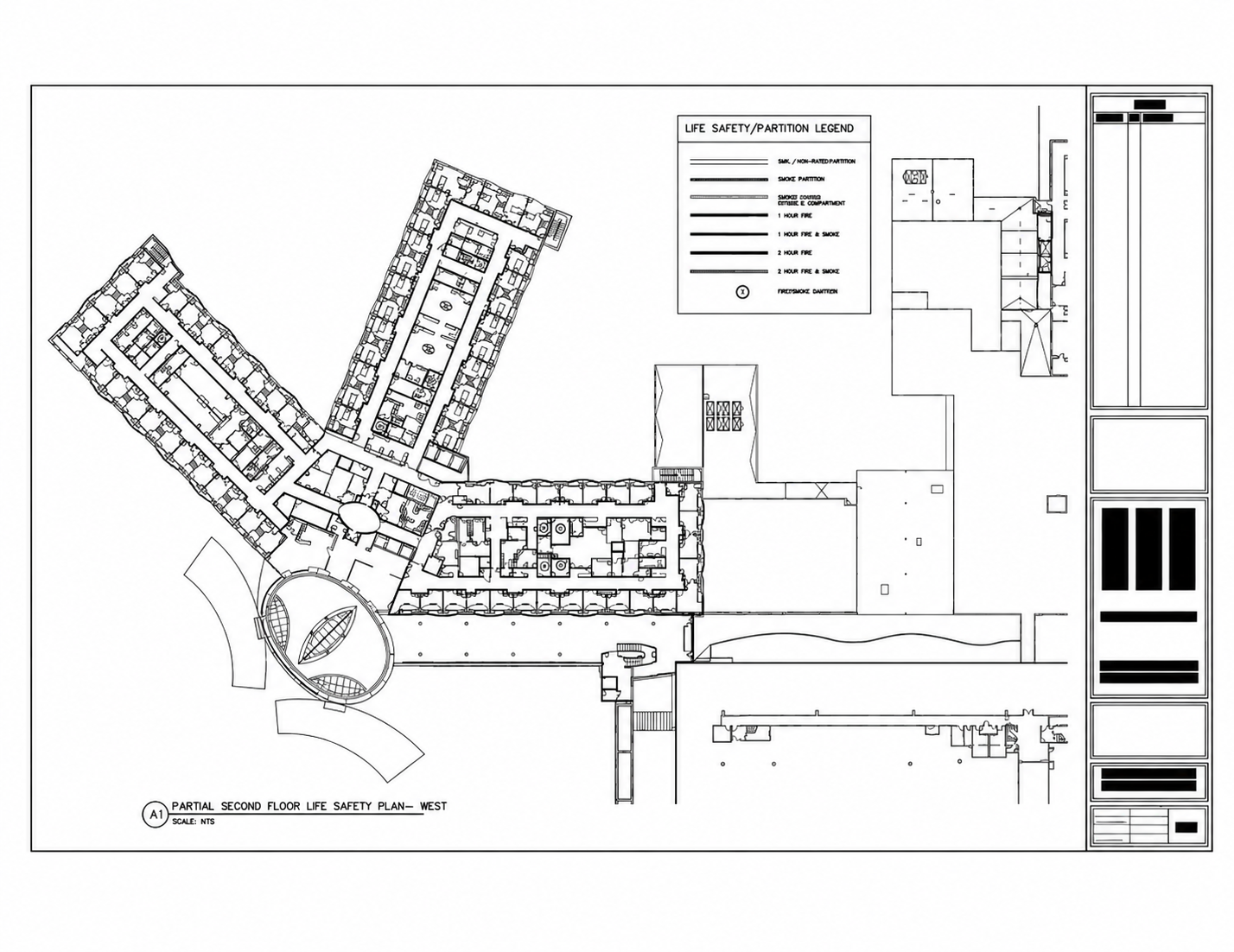

✗ INSUFFICIENT — BLACK-AND-WHITE LSP WITH NO COLOR CODING

Both plans may carry the same underlying data — wall locations, ratings, smoke compartment boundaries — but the color-coded version answers the surveyor’s question in one look while the black-and-white version requires a label-by-label read. The difference shows up in survey duration, in the number of clarification questions, and in the citation count. The good plan is the goal. The legend that produces it is below.

What actually goes on the plan

A Life Safety Plan documents the passive life-safety features of a building — the walls, doors, smoke compartments, hazardous areas, suite definitions, and egress. The goal is to give a surveyor walking the building a 90-second visual answer to “is this assembly rated, and to what?” The plan is not the place to inventory every fire extinguisher, every sprinkler valve, or every smoke detector — those live on their own drawings + inventories.

What does NOT belong on a Life Safety Plan (and why): Active fire protection equipment — fire extinguishers, sprinkler valves, individual detectors, standpipe hose connections, pull stations — does not belong on the LSP in practice. In an evolving facility, that equipment moves. Extinguishers get relocated when a department reconfigures; sprinkler valves get re-tagged; smoke detectors get repositioned during ceiling work. If you put it on the LSP, you commit to keeping the LSP synchronized with every minor field change, which never happens. The result is a plan that contradicts the field condition the moment a surveyor walks the building. Keep active fire protection on its own drawings (fire alarm shop drawings, sprinkler shop drawings) and inventories (extinguisher log, ITM records) where it’s expected to update frequently. The LSP shows what doesn’t move — the building.

The legend — Stanley’s convention

There is no nationally mandated color palette for LSPs. NFPA 101, IBC, IFC, CMS, and TJC all require that life-safety features be documented and clearly identifiable, but none specifies which color means what. What matters is consistency across every sheet and a legend printed on every sheet. The convention below is the one I (Samektra) use in the field, and it’s widely adopted by Georgia FPEs + healthcare facilities. If your firm or facility uses a different palette, stay with it — but document it in your legend and don’t mix conventions on the same project.

Rated walls — fire

1-hour fireRed. Most healthcare corridor walls (§18.3.6) and many incidental-use separations (storage, soiled-utility) per IBC §509.
2-hour fireDark blue. Horizontal exits, hazardous-area separations rated 2-hr, exit-stair enclosures over 3 stories, fire barriers between dissimilar occupancies.
3-hour fireMagenta. Fire walls separating buildings (NFPA 221 / IBC §706), high-rise vertical openings, certain occupancy separations.
4-hour fireLighter magenta / pink. High-challenge fire walls per NFPA 221 — uncommon, but used at major building separations or high-piled storage interfaces.

Smoke barriers (smoke-tight, with fire rating)

Smoke barrier (1-hour)Green. The most common compartmentation wall in healthcare. Smoke-tight construction with a 1-hour fire-resistance rating. Required between smoke compartments (≤22,500 sf each in healthcare per §18/19.3.7).

Combined fire + smoke barriers

When a wall functions as BOTH a fire barrier and a smoke barrier — e.g. a smoke compartment boundary that is also a 2-hour fire barrier separating two units — show it with the combined color notation so the dual role is unambiguous.

1-hr fire + smokeAlternating red and green segments. The wall is rated 1-hour AND smoke-tight.
2-hr fire + smokeAlternating dark-blue and green segments. 2-hour fire-resistance rating, also smoke-tight. Common at horizontal-exit boundaries that double as smoke compartment lines.
3-hr fire + smokeAlternating magenta and green segments. Less common; used where a high-rated fire wall also functions as a smoke barrier.

Doors — NFPA 80 classes

Show each fire-rated door with its rating inside a circle/oval, placed at the door location. NFPA 80 classifies opening protectives by the assembly they protect:

45Class C — 45 minCorridor walls in fully sprinklered occupancies, 1-hr smoke barriers (sprinklered exception path).
90Class B — 90 min (1.5-hr)2-hour fire barriers — horizontal exits, hazardous-area separations rated 2-hr, exit-stair enclosures.
180Class A — 180 min (3-hr)3-hour fire walls separating buildings (NFPA 221). The highest-rated standard door listing in NFPA 80.

Smoke doors without a fire rating (e.g. 20-minute smoke doors at sprinklered §18.3.6.1 corridors) are typically annotated with an “S” symbol or a smoke-door schedule callout rather than a minutes oval. Self-closer + hold-open notation belongs in the door schedule, not on the plan — the plan stays readable.

Hazardous areas

Hazardous areas per §18.3.2 / §19.3.2 are marked with an H in a red box placed inside the room outline. The enclosing wall is drawn in the appropriate rating color (red 1-hr or dark-blue 2-hr depending on the protection scheme). The H symbol makes the room’s hazardous status unambiguous — the surveyor sees H first, then looks at the wall rating.

HHazardous areaRoom contains a hazard requiring rated enclosure per §18.3.2.

Common rooms marked H in healthcare: soiled-utility (over 100 sf), soiled-linen, laundry (over 100 sf), trash collection (over 50 sf), bulk storage (over 50 sf combustible), boiler / mechanical / generator rooms (NFPA 110 + IBC §509 hybrid), fuel storage. Each requires its enclosing wall rating to match the §18.3.2 protection scheme — typically 1-hr fire barrier, or sprinkler + smoke partition under the sprinklered exception path.

Smoke compartments + suites

  • Each smoke compartment outlined heavily by its smoke-barrier wall (green) with the area in square feet labeled inside the compartment.
  • Compartment area limit in healthcare: 22,500 sf per §18/19.3.7.
  • Travel distance from the most remote point in each compartment to a smoke-barrier door — labeled.
  • Suite boundaries clearly drawn. Distinguish sleeping suites (max 7,500 sf, max 16 patients per §18.2.5.7.2) from non-sleeping suites (max 10,000 sf per §18.2.5.7.3).
  • Refuge area calculation if defend-in-place strategy applies (typically healthcare).

Egress

  • Egress paths arrowed showing direction to the nearest exit.
  • Travel distance measurements from worst-case points to nearest exit per occupancy chapter limits.
  • Required egress width at each exit door (occupant load × clear-width factor).
  • Horizontal exits clearly identified as a complete 2-hr fire wall (or 2-hr fire + smoke when applicable) — not just a passage between compartments.
  • Stair enclosure labels with stair number and stair pressurization notation if present.
  • Exit discharge — where does each stair empty? Annotate.

Facility-wide notes (when applicable)

Some conditions affect the whole building and belong as a plain-text note on the plan rather than as a discrete symbol. Examples seen in healthcare LSPs:

  • “All chutes out of service” — when laundry or trash chutes have been decommissioned but the openings remain visible.
  • “Building fully sprinklered per NFPA 13” — the assumption under §18.3.6.1 corridor-wall exceptions and many §18.3.5 sprinkler-protected hazardous-area scenarios.
  • “Equivalency on file: [date / AHJ reference]” — flags any approved equivalency or waiver under NFPA 101 §1.4 so surveyors know to ask for the documentation.
  • “Construction type: [II-B / I-A / etc.]” — per IBC + the §18.1.6 healthcare construction-type table.

What belongs on OTHER drawings (not the LSP)

Stanley’s rule: “If it moves more than once a year, it doesn’t belong on the Life Safety Plan.” The features below have their own dedicated drawings or inventories — keep them there.

  • Portable fire extinguishers → extinguisher inventory + monthly inspection log. NFPA 10 travel-distance compliance is verified on the floor plan AT THE TIME OF INSPECTION, not on a permanent LSP.
  • Sprinkler control valves, fire pump, riser locations → sprinkler shop drawings + NFPA 25 ITM records.
  • Individual smoke detectors, pull stations, NACs, FACP zone layout → fire alarm shop drawings + NFPA 72 ITM records.
  • Standpipe hose connections → standpipe shop drawings + NFPA 25 records.
  • Kitchen hood suppression, clean-agent, CO₂ systems → system-specific shop drawings + NFPA 17A / 12 / 2001 records.
  • FACP + annunciator location — borderline. Some facilities show these on the LSP for emergency-responder convenience. Defensible either way; if you show them, you commit to updating when they move.

The Goldilocks problem — too much vs not enough

The LSP is supposed to be the answer to a question the surveyor is about to ask. Too much information buries the answer; too little leaves it unanswerable.

Symptoms of "too much"

  • Eight or more colors with no consistent semantic meaning across sheets.
  • Every fire extinguisher, sprinkler valve, and smoke detector plotted on the LSP. (Those belong on their own drawings + inventories — they move too often to keep in sync.)
  • Existing non-rated walls drawn in a separate color “for completeness.” Now every wall is a colored line and the rated walls don’t stand out.
  • Multiple overlapping shaded zones — sprinkler coverage, alarm coverage, smoke compartment, suite, hazardous area — all on one sheet. The eye can’t parse the layers.
  • Door schedule + hardware notation on the plan itself instead of in a keyed schedule. The plan should show the rating in an oval and refer to a schedule for everything else.

Symptoms of "not enough"

  • No legend on the sheet — symbology is "obvious to the architect" but invisible to the surveyor.
  • Walls drawn but no rating noted. Was that 1-hr or 2-hr? The plan doesn’t say.
  • Doors shown but no rating annotation. Is that 20-min or 90-min? The plan doesn’t say.
  • Smoke compartments outlined but no square footage shown. Are you under 22,500 sf? Surveyor has to scale the drawing to find out.
  • Hazardous areas not identified as hazardous. Soiled-utility room shown as "STORAGE" with no separation noted.
  • No travel-distance dimensions to nearest exit.
  • No horizontal-exit identification when one exists. (The wall is drawn red but no callout says "HORIZONTAL EXIT — 2-HR FIRE WALL.")

The color trap — a field story

FIELD STORY · STANISLAV SAMEK, SAMEKTRA

A 200-bed hospital I consulted with had an LSP that used red, green, blue, teal, orange, yellow, plus two different dash patterns and three line weights. The intent was thorough — every variant of every wall type got its own color. The architect was proud of it. The CHFM had been the one to approve the design and didn’t want to push back.

The CMS surveyor walked in, looked at the plan binder, and said: “I can’t read this.” He spent the next two hours of his visit trying to verify rated assemblies against the plan and failing repeatedly. Every interpretation question became a tour of the building. The survey ran an extra day. We caught the documentation citation but barely.

We rebuilt the LSP with a tight convention that maps one color to one rating, with combined colors for combined ratings: red for 1-hour fire, dark blue for 2-hour fire, magenta for 3-hour fire (and the lighter pink variant for 4-hour where it appeared), green for 1-hour smoke barrier, and alternating red+green / dark-blue+green / magenta+green segments wherever a wall functioned as BOTH fire barrier and smoke barrier. Doors got rating numbers in ovals — 45 for Class C, 90 for Class B, 180 for Class A. Hazardous rooms got an “H” in a red box. Existing non-rated walls stayed black. A printed legend went on every sheet — not on a separate legend sheet that lived in a different binder.

The next CMS survey ran without a documentation citation in the LSP area. The surveyor commented that the plan was “the cleanest one he’d seen in months.” That’s the lesson: the LSP is for the surveyor walking the building — not for the architect proving how thorough they were. One color per rating, combined colors for combined ratings, a legend on every sheet, nothing on the plan that needs to be re-drawn when an extinguisher gets moved. Stay disciplined and the survey runs clean.

Common mistakes

The mistakes below are what I see in the field most frequently. Each one becomes a finding when surveyors notice it — and surveyors do notice.

Stale plans. The drawing was approved at construction and hasn’t been updated through three renovations since. New walls aren’t shown; modified smoke compartment boundaries aren’t shown; door replacements with non-rated doors aren’t shown. This is the #1 finding category.
Confusing smoke barriers with smoke partitions. A smoke barrier has both smoke-tightness AND a fire-resistance rating (typically 1-hour). A smoke partition has smoke-tightness only. Drawing them with the same color and weight conflates two different code requirements. See Fire Wall vs Fire Barrier for the full taxonomy.
Missing door rating annotation. The wall is drawn red as 2-hr fire barrier. The door in the wall is shown but not labeled. Is it 90-min? 60-min? Did somebody swap it during a renovation? The plan doesn’t say.
Same color, different ratings. Existing 2-hr walls shown in red AND new 1-hr smoke barriers shown in red. The surveyor reads "red = rated" but can’t tell what rating without going field-to-plan-to-field.
Hazardous areas drawn but not identified. A soiled-utility room sits behind a 1-hr fire barrier with a 45-min door. The plan shows the rated wall but doesn’t note that the room is hazardous per §18.3.2. K-322 finding.
Smoke compartments outlined but not measured. The compartment boundary is on the plan but no square footage is labeled. Is it under the 22,500 sf limit? You don’t know without scaling. The surveyor doesn’t either, so they ask — and your answer better be ready.
No horizontal exit identification. A 2-hr wall on the plan is actually a horizontal exit, used by half the building’s occupants for egress, but no callout identifies it as such. The wall’s rating is shown — its FUNCTION as horizontal exit is not.
Suite vs corridor confusion. Patient sleeping suite shown as if it were a corridor; non-sleeping suite shown as if it were a sleeping suite. Each has different rules in §18.2.5.7. Surveyors will count beds, measure areas, and check signage against your plan’s designation.
Plan legend on a separate sheet. The LSP sheet itself doesn’t have a legend. The legend is on a "general notes / legends" sheet that lives in a different part of the binder. Surveyors flip back and forth until they give up.
Equivalency or waiver not noted. An approved equivalency (per NFPA 101 §1.4) is in effect for a non-compliant condition — but the plan doesn’t show it. Surveyors find the condition, write the finding, and you spend the rest of the survey explaining a waiver that should have been documented on the drawing.

Commonly missed items

These are the things that should be on the plan but routinely aren’t — usually because they weren’t obvious at design time or because they got added during a renovation that didn’t update the LSP.

  • Hazardous areas added by use — a "storage room" that became a soiled-linen room when nursing operations changed. Now it’s hazardous per §18.3.2 but the LSP shows the original use.
  • Smoke compartment splits — a renovation added a new smoke barrier mid-floor; the new compartment is correctly built but never appeared on the drawing.
  • Soiled-utility rooms in healthcare — clinical operations create one every time a unit gets converted; surveyors find them; LSP doesn’t show them.
  • Generator + fuel storage rooms — added later for a new wing; the NFPA 110 separation requirement doesn’t appear on the LSP.
  • Suite definitions — sleeping suite vs non-sleeping; required for §18.2.5.7 compliance. Often missing entirely because the architect didn’t classify suites in the original drawings.
  • Self-closer / hold-open hardware — door is shown rated but hardware notation is missing. Surveyors check the hardware against your plan and ask why it doesn’t match the spec.
  • Construction-type designation — IBC + §18.1.6 construction type (II-B, I-A, etc.) should appear on the LSP as a header note. Surveyors check this against the structural drawings; if it’s missing they have to dig.
  • Building fully-sprinklered note — when §18.3.6.1 corridor-wall exceptions or §18.3.5 sprinkler-protected hazardous-area paths are being relied on, the LSP needs a plain-text “Building fully sprinklered per NFPA 13” note. Without it, the surveyor may apply the non-sprinklered ratings.
  • Out-of-service decommissioned features — chutes, dumbwaiters, atriums sealed off, etc. The opening is still visible to the surveyor but the LSP doesn’t flag it as decommissioned. A simple plan-wide note (“All chutes out of service”) clears this up.
  • ILSM-temporary barriers during construction — these are NOT permanent LSP entries. The temporary barriers belong on the ILSM plan, not the LSP — but the permanent walls they’ll become DO need to be on the LSP once the construction closes out.

Practitioner’s pre-survey LSP checklist

Run this list before any CMS survey, TJC visit, or state fire marshal inspection. If you can answer YES to every item, your plan is ready.

  • Is the LSP date stamp within the last 12 months?
  • Has every renovation in the last review cycle been reflected on the drawing?
  • Is the legend printed on every LSP sheet (not just one master legend sheet)?
  • Are colors limited to 4-6, with consistent semantic meaning across sheets?
  • Is every fire-rated wall labeled with its hourly rating?
  • Is every fire-rated door labeled with its UL listing rating in minutes?
  • Is every smoke compartment outlined AND labeled with square footage?
  • Are travel-distance measurements shown from the worst-case point in each compartment?
  • Are sleeping suites distinguished from non-sleeping suites with area + occupant load?
  • Are all hazardous areas identified by name AND separation rating?
  • Are horizontal exits labeled as horizontal exits (not just "2-hr wall")?
  • Is the construction type designated (II-B, I-A, etc.) per IBC + §18.1.6?
  • Is the “Building fully sprinklered per NFPA 13” note present if you’re relying on §18.3.6.1 or §18.3.5 sprinklered exceptions?
  • Are all out-of-service features (chutes, dumbwaiters, sealed atriums) flagged as decommissioned?
  • Are any equivalencies, waivers, or alternative-protection arrangements documented on the drawing with the AHJ approval reference?
  • Does the FPE stamp + date on the LSP match the version your survey package will present?

The single most important sentence

A Life Safety Plan is for the person reading it on a 90-second site visit — not for the person drawing it across a six-month design phase. Everything on the plan should reduce ambiguity for the reader. Everything that doesn’t serve that goal belongs on a different drawing.

When you reach the point of adding a seventh color or a third dash pattern, stop. Move that information to a different sheet, a different drawing, or a callout table. The LSP that gets cited is almost never the LSP that’s missing information — it’s the LSP that has so much information the surveyor can’t find what they need. Don’t be that plan.

Frequently Asked Questions

What is a Life Safety Plan, exactly?
A Life Safety Plan (LSP) is a set of architectural floor plans annotated to show the PASSIVE life-safety features of the building: rated wall assemblies with their hourly ratings, smoke compartment boundaries with square footage, fire-rated doors with their NFPA 80 class listings (45 / 90 / 180 min), hazardous areas, suite definitions (sleeping vs non-sleeping in healthcare), exit signage and egress paths, and travel-distance measurements. It is NOT the place to inventory portable fire extinguishers, sprinkler valves, individual detectors, or standpipe hose connections — those live on their own drawings + inventories because they move too often to keep in sync with the LSP. The LSP is the document an AHJ, CMS surveyor, TJC surveyor, or state fire marshal consults to verify that the as-built passive construction matches the approved design intent.
What standard governs Life Safety Plans?
No single standard owns LSPs end-to-end. NFPA 101 (Life Safety Code) requires that life safety features be documented and maintained per chapter 4. IBC §107 + IFC §107 require submission of construction documents that show life safety features. NFPA 1 §1.7.8 covers AHJ submittals. In healthcare, TJC PE / EC standards and CMS K-tags (K-101 fundamentals; K-371 smoke compartments; K-372 smoke barrier construction; K-322 hazardous areas) drive what surveyors expect to see. The LSP is the document that satisfies all of them at once.
How often should a Life Safety Plan be reviewed?
The honest answer is "more often than most facilities do." Best-practice review triggers: (1) after any renovation that touches a rated assembly, smoke compartment boundary, hazardous area, exit, or sprinkler/alarm coverage; (2) after a change of occupancy or change of use per NFPA 101 Chapter 43; (3) when the AHJ adopts a new code edition; (4) before every CMS triennial survey in healthcare; (5) annually as part of the facility-lifecycle audit (CHFM-driven); (6) immediately after any incident that revealed a plan-vs-reality mismatch. Treating the LSP as a one-and-done construction deliverable is the most common failure mode.
Who draws and maintains the Life Safety Plan?
The design-phase LSP is drawn by the project architect, often with a fire protection engineer (FPE) stamping the life-safety analysis. AHJ approval is conditional on this drawing matching the as-built construction. After occupancy, maintenance falls to the facility — typically the Certified Healthcare Facility Manager (CHFM) in hospitals, the safety officer in industrial/commercial occupancies, or a contracted life safety consultant. The original architect is rarely available years later when a renovation triggers an update; relying on them is a planning mistake.
How many colors should I use on a Life Safety Plan?
There is no nationally mandated palette — NFPA 101, IBC, IFC, CMS, and TJC all require that life-safety features be clearly identifiable but none specifies which color means what. Conventions vary by firm and by region. A widely-used and defensible palette (the one Samektra recommends): RED for 1-hour fire; DARK BLUE for 2-hour fire; MAGENTA for 3-hour fire (lighter pink variant for 4-hour); GREEN for 1-hour smoke barrier; ALTERNATING SEGMENTS (red+green, blue+green, magenta+green) for walls that are BOTH fire-rated AND smoke-tight; BLACK for existing non-rated walls. Doors get their rating in an oval (45 / 90 / 180 min for NFPA 80 Class C / B / A). Hazardous rooms get an “H” in a red box. Whatever palette you adopt, the rules are: keep it to ~6 distinct colors max, document it in a legend printed on EVERY sheet, and stay consistent across all sheets.
What is the most common Life Safety Plan mistake?
Stale plans. The drawing approved at construction is still hanging on the wall five years later, after three renovations modified rated assemblies, added a new smoke compartment, and changed two suite boundaries — none of which are reflected. The second most common: confusing fire walls / fire barriers / fire partitions / smoke barriers / smoke partitions as if they were the same thing. They are not — each has its own continuity rule, its own rating logic, and its own surveyor-citation potential. See /wiki/fire-wall-vs-fire-barrier for the taxonomy.
What should a surveyor see on the plan during a CMS or TJC visit?
In priority order: (1) clearly delineated smoke compartments with square footage labels (≤22,500 sf for healthcare per §18/19.3.7); (2) rated wall types with hourly ratings legibly noted (1 / 2 / 3 / 4 hour fire + smoke barriers); (3) every fire-rated door with its NFPA 80 class rating (45 / 90 / 180 min in an oval); (4) hazardous areas per §18.3.2 / §19.3.2 (laundry, storage, soiled-utility, etc.) marked with an "H" symbol and the enclosing wall's rating; (5) horizontal exits clearly labeled (not just shown as a rated wall); (6) suite boundaries with sleeping vs non-sleeping designations; (7) exit paths and travel distances; (8) any equivalency or waiver in effect; (9) construction type designation; (10) the plan legend printed on every sheet. Surveyors do NOT expect to see individual fire extinguishers, sprinkler valves, or detectors on the LSP — those are verified against their own drawings + inventories.
Does the Life Safety Plan need to be PE-stamped?
It depends on the jurisdiction and the project scope. Initial construction documents almost always require a PE seal on the fire protection sheets, which include the LSP. Maintenance updates (a minor renovation, a corridor reconfiguration) may not require a fresh seal in every jurisdiction — but if the update changes ratings, smoke compartment boundaries, or egress paths, most AHJs expect either a re-stamp or a documented equivalency analysis by a qualified FPE. When in doubt, ask the AHJ before the design phase; redrawing later is more expensive than asking early.
How do I keep the Life Safety Plan from becoming overcrowded?
Don't solve it by adding more sheets — solve it by removing what doesn't belong. The single most common cause of overcrowded LSPs is loading active fire protection equipment (extinguishers, sprinkler valves, individual detectors, standpipe hose connections) onto the plan. That equipment moves around in evolving facilities; keep it on dedicated fire alarm and sprinkler shop drawings + inventory logs where frequent updates are expected. The LSP should show ONLY passive features (walls, doors, compartments, hazardous areas, suite boundaries, egress) — those rarely move. If your single LSP sheet is still cluttered after stripping the active-equipment overlay, then go multi-sheet: a base plan + a separate sheet for hazardous areas / special-protection rooms.

References

1. NFPA 101: Life Safety Code, Chapter 4 (general) + §18/19.3 (healthcare-occupancy specifics). CMS enforces the 2012 edition for Medicare/Medicaid facilities.

2. NFPA 1: Fire Code, §1.7.8 — Plans, specifications, and shop drawings.

3. International Building Code (IBC), §107 — Construction Documents. International Fire Code (IFC), §107 — Plans + emergency response information.

4. CMS State Operations Manual, Appendix A — LSC K-tags. K-101 (fundamentals), K-321 (hazardous areas), K-371 (smoke compartments), K-372 (smoke barrier construction).

5. The Joint Commission: EC.02.03.05 (fire safety systems), PE standards (physical environment).

6. ASHE: American Society for Health Care Engineering — operational guidance for healthcare LSPs.

DISCUSSION
Be the first to contribute.

Open the discussion panel to comment, flag an inaccuracy, add field experience, or ask a question. Approved contributions earn SRP and may be incorporated into the article.
