Duct Detectors
Smoke Detection in HVAC Systems
How duct smoke detectors prevent HVAC systems from spreading smoke through a building, where NFPA 72 and NFPA 90A require them, and what ITM looks like in practice.
What Is a Duct Smoke Detector?
A duct smoke detector is a specialized fire alarm initiating device mounted on or inside an HVAC duct to detect the presence of smoke in the air handling system. Unlike area smoke detectors that protect a single room, duct detectors serve a fundamentally different purpose: they prevent the air handling unit from circulating smoke throughout a building by triggering fan shutdown and, in many cases, activating smoke dampers. NFPA 90A and the International Mechanical Code both mandate duct smoke detectors as a key part of the building’s HVAC fire safety strategy NFPA 90A, §6.4.
It is a common misconception that duct detectors replace area detectors. They do not. NFPA 72 is explicit: duct smoke detectors are not a substitute for open-area detection, and area detectors are not a substitute for duct detection NFPA 72, §17.7.1. Each serves a distinct function within the fire protection design.
Where Are Duct Detectors Required?
NFPA 90A and the IMC establish the primary triggers for duct smoke detection installation:
Supply ducts: A duct smoke detector is required downstream of the air handler and upstream of any branch connections on systems with an airflow capacity greater than 2,000 CFM NFPA 90A, §6.4.1. The detector must be installed to sample air flowing through the duct before it enters occupied spaces.
Return air systems: For systems serving more than one floor or with a return air capacity exceeding 15,000 CFM, a return air duct detector is required at each story before the recirculated air enters the air handler NFPA 90A, §6.4.2. The goal is to detect smoke being drawn back from occupied spaces before it gets redistributed.
Local amendments may modify these thresholds. Some jurisdictions, including healthcare facilities governed by CMS and The Joint Commission, apply more stringent requirements, mandating duct detectors on systems well below the 2,000 CFM threshold.
How Duct Detectors Work
Duct smoke detectors come in two main configurations, both of which must be listed to UL 268A:

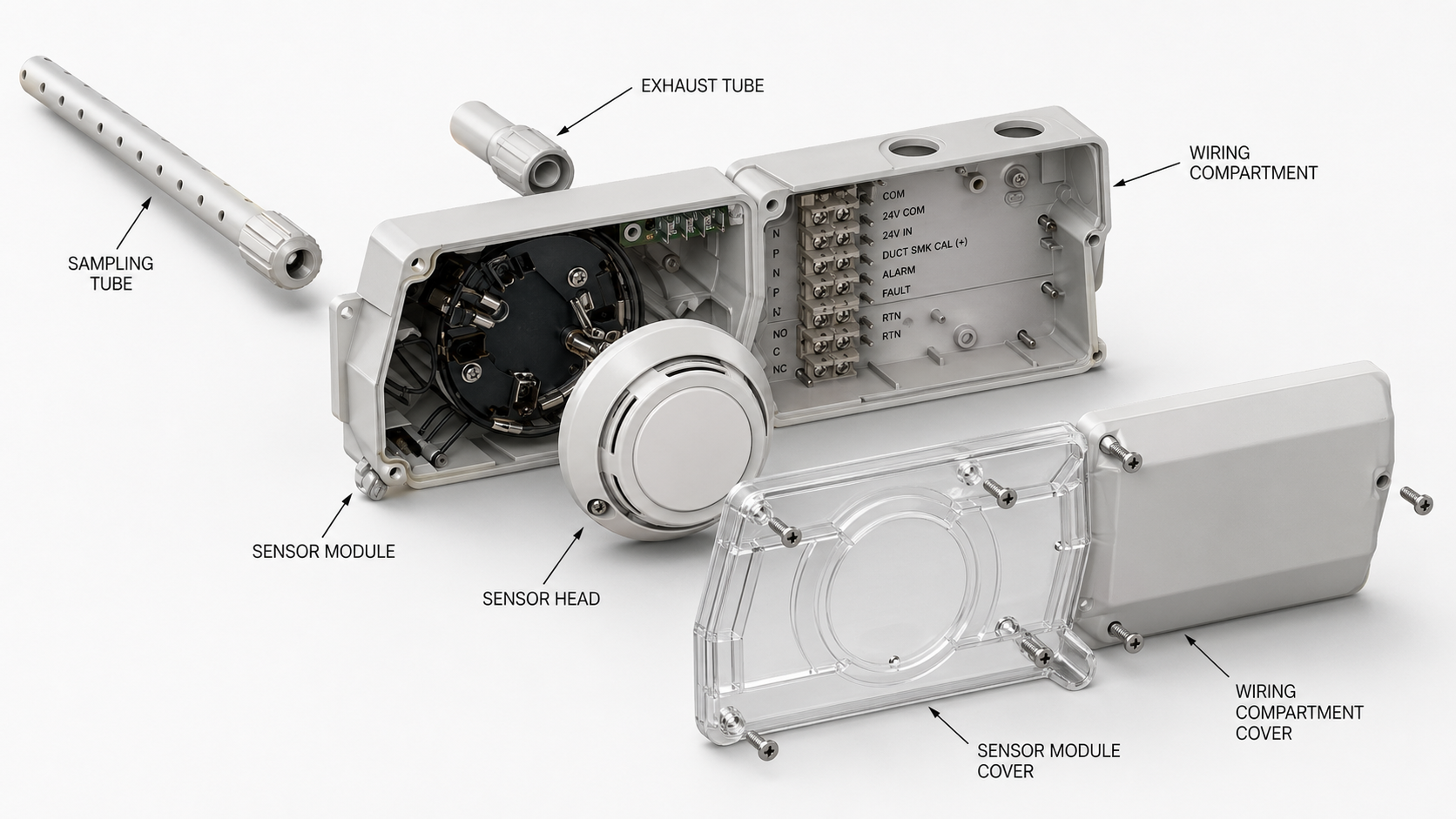

Sampling-tube type: The most common design. A metal housing mounts on the outside of the duct, and two tubes penetrate the duct wall. One tube has inlet holes facing upstream to capture air samples; the second tube returns air to the duct downstream. A small pressure differential caused by the moving air draws a sample through the detector’s sensing chamber. The sensing element itself is typically photoelectric, which is well suited to the slow, smoldering smoke particles most likely to enter the HVAC system.
In-duct (probe) type: A detector head extends directly into the duct airstream on a rigid probe. This design is simpler to install but less common in modern construction because it exposes the sensing chamber to higher velocities and potential debris accumulation.
In both configurations, the detector must operate reliably across the full range of air velocities encountered in the duct — typically 100 to 4,000 feet per minute. Below 100 ft/min, there may not be enough airflow to transport smoke particles to the sensing chamber; above 4,000 ft/min, smoke may be diluted below the detection threshold. Manufacturers specify velocity ranges on the detector’s listing sheet UL 268A.
Installation Requirements
Proper installation is the single most important factor in duct detector reliability. NFPA 72 and manufacturer installation sheets provide the following guidance:
Accessibility: Detectors must be installed where they can be reached for maintenance and testing without requiring scaffolding or demolition of building finishes. A remote test station is required when the detector is mounted above an inaccessible ceiling or inside a mechanical penthouse NFPA 72, §17.7.5.
Orientation: Sampling tubes must be installed perpendicular to the airflow direction, with inlet holes facing upstream. The housing must be sealed to the duct surface to prevent ambient air from contaminating the sample.
Indicators: Because the detector is often hidden in a mechanical space, an alarm LED indicator must be visible at an accessible location. Many installations include a remote indicator lamp outside the mechanical room door. Additionally, the detector should indicate a trouble condition if the sampling tube becomes obstructed or if the HVAC unit is not running.
Wiring: Duct detectors connect to the fire alarm control panel as an initiating device. They also require auxiliary contacts for HVAC shutdown. Most modern units have three sets of contacts: one for alarm initiation, one for fan shutdown, and one for trouble supervision.
What Happens When a Duct Detector Activates?
Upon detecting smoke, the duct detector initiates a sequence that varies by jurisdiction and system design:
HVAC shutdown: The detector’s auxiliary contact stops the fan to prevent further smoke distribution. NFPA 90A requires the air handler to shut down upon duct detector activation NFPA 90A, §6.4.3.
Smoke damper closure: In buildings with automatic smoke dampers, the system may close dampers to isolate the affected zone.
Fire alarm notification: Depending on system programming and the authority having jurisdiction, duct detector activation may or may not trigger building-wide notification appliances. In many jurisdictions, a duct detector alarm produces a supervisory signal rather than a general alarm, because the presence of smoke in a duct does not necessarily indicate a fire in a specific area. The AHJ determines the required response.
Manual reset: Duct detectors latch in alarm until manually reset. The HVAC system cannot restart until the detector is cleared, which prevents re-circulation of smoke before the source has been identified.
Inspection, Testing & Maintenance
NFPA 72 Chapter 14 governs ITM for all fire alarm devices, including duct detectors:
| Task | Frequency | Reference |
|---|---|---|
| Visual inspection | Semiannually | Table 14.3.1 |
| Functional test (apply smoke) | Annually | Table 14.4.3.2 |
| Sensitivity test | Annually (after 2nd year) | 14.4.3.3 |
| Cleaning / recalibration | Per manufacturer | 14.4.3.3 |
| Verify HVAC shutdown | Annually | Table 14.4.3.2 |
Functional testing requires introducing smoke (or a listed aerosol) into the sampling tube inlet to confirm the detector responds and triggers both the alarm signal and HVAC shutdown. Simply pressing a magnet against the test switch is not an acceptable substitute for a full functional test NFPA 72, §14.4.3.2.
Sensitivity testing must be performed within one year after installation and every alternate year thereafter, or more frequently if drift is observed. Many duct detectors support a self-diagnostic mode that reports sensitivity levels to the panel.
Common Deficiencies
Inspectors and fire marshals frequently cite the following duct detector deficiencies:
Inaccessible detectors: Detectors installed in locked mechanical penthouses or above hard-lid ceilings without a remote test station. If the detector cannot be tested, it cannot be verified as operational.
Disconnected shutdown contacts: HVAC contractors sometimes bypass the shutdown wiring during renovation or commissioning, leaving the detector connected to the alarm panel but unable to stop the fan. This defeats the primary purpose of the device.
Missing sampling tubes: Tubes fall out during duct cleaning or renovation and are never replaced. Without the tubes, the detector samples ambient air from the mechanical room instead of duct air.
Incorrect orientation: Inlet holes must face upstream. A reversed tube will not draw an adequate sample, resulting in delayed or missed detection.
HVAC off = detector off: When the fan is not running, there is no airflow to carry smoke to the detector. This is expected and not a deficiency, but facility managers should understand that duct detection only works when the system is operating.
Practical Inspection Tips
Follow the tubes: During a walkaround, verify that both sampling tubes penetrate the duct and that the housing is sealed. Gaps around the tube penetrations allow ambient air to dilute the sample.
Check the remote indicator: If a remote test/reset station is installed, confirm the LED illuminates when the detector is in alarm and that the reset button clears the latched condition.
Confirm the HVAC response: During annual testing, have the HVAC technician on site to verify fan shutdown occurs within the time frame required by the system design. Document the fan designation and the time to shutdown.
Look at the maintenance log: Duct detectors in dirty environments (kitchens, woodshops, manufacturing) accumulate particulates faster and may need more frequent cleaning than the minimum NFPA 72 interval. Check whether the facility has adjusted its maintenance schedule accordingly.
References
1. NFPA 72 (2022): National Fire Alarm and Signaling Code, Chapters 14 and 17.
2. NFPA 90A (2021): Standard for the Installation of Air-Conditioning and Ventilating Systems.
3. UL 268A: Smoke Detectors for Duct Application.
4. International Mechanical Code (IMC), Section 607: Duct Smoke Detection.
