Field Observation #003: This Hatch Is Fire Rated… Will It Perform?
A field inspection lesson on fire-rated access hatches — why the rating label identifies the assembly, but only the self-closing and latching test confirms the protection
Sheff's Field Observations continues with a condition that passes the label check and fails the performance check. At first glance, this access hatch appears compliant — it carries a fire-resistance rating. But a fire-rated hatch does more than carry a label: it must perform as part of the complete fire-rated assembly. During inspection, this hatch did not return to the fully closed position on its own. And it wasn't alone — multiple hatches were observed in the same condition.
Jarell Sheffield
Healthcare Life Safety | Construction Compliance. Jarell helps build safer healthcare environments through code knowledge and practical solutions — ensuring projects are built right, applying code to real-world conditions, and protecting occupants today and every day. Field Observation #003 is his: he released the hatch, watched it stop short, and wrote the observation that anchors this article.
The label check passes. Now release the hatch.
At first glance, this hatch appears compliant. It carries a fire-resistance rating.
That sentence is where a lot of inspections stop — and it is exactly where this one got interesting. An access hatch in a rated wall or ceiling is an opening protective: a deliberate hole in a fire-rated assembly, protected by a listed closure the same way a fire door protects a corridor opening. The rating label on the leaf identifies what the assembly was built and tested to do. It says nothing about whether the assembly, on this wall, on this day, still does it.
A fire-rated hatch does more than carry a label. It must perform as part of the complete fire-rated assembly — leaf, frame, hinges, closer, and latch working together to return the opening to a closed, positively latched condition every time someone lets go of it.
So the question is: will this hatch fully close and positively latch on its own? Open it, let it go, and watch. That thirty-second test is the difference between verifying a label and verifying protection.
What was observed

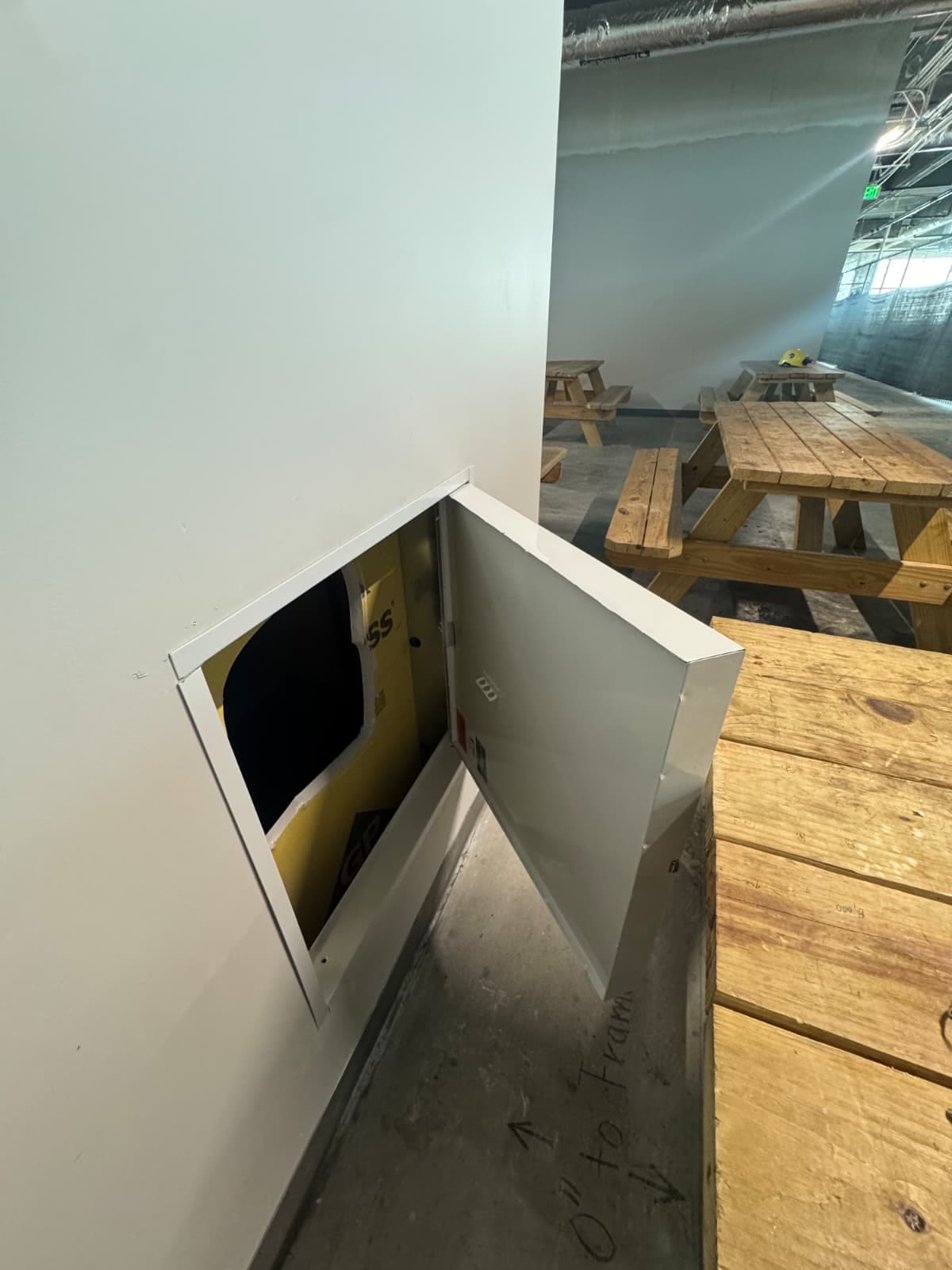

During inspection, this fire-rated hatch did not return to the fully closed position on its own. Released from open, the leaf stopped short of the frame — never re-seating, never latching. And it was not an isolated unit: multiple hatches were observed in the same condition.
Nothing about the label was wrong. The rating was appropriate for the assembly it served. The failure was mechanical and quiet: a self-closing device that no longer finished the job. From across the room the hatch looks installed, labeled, and fine — the deficiency only shows itself when someone operates the leaf and watches what it does.
That is what makes this class of finding easy to miss. An open sprinkler head or a missing extinguisher announces itself. A hatch that almost closes announces nothing — until the day the rated barrier is asked to hold fire, and the opening in it is standing ajar.
Why closed-and-latched is the whole point
A rated opening protective performs only in the closed and positively latched position. Both halves of that condition are load-bearing:
- Self-closing exists because people leave things open. The assembly cannot depend on the last technician remembering to push the leaf shut — the closer or spring has to bring it home every time, from any angle it was left at.
- Positive latching exists because fire pushes. A developing fire builds positive pressure against the barrier, and an unlatched leaf — even one resting fully closed — can be pushed open by that pressure. The latch is what holds the protective in place when the assembly is doing its job.
A hatch that fails either function has effectively downgraded the rated wall or ceiling around it. The barrier is only as good as the openings in it — which is the same lesson that fire doors, fire dampers, and firestopping all teach from different angles.
The five-checkpoint assembly review
The observation distills into a five-point field check that works on any rated access hatch — wall-mounted or ceiling-mounted:
- ① Required rating — does the hatch match the protection the wall or ceiling requires? A labeled hatch with the wrong rating is still a deficiency.
- ② Self-closing — open the leaf and release it. Does it return to the fully closed position on its own, from a full-open position and from a barely-open one?
- ③ Positive latching — when it closes, does the latch engage without manual assistance? "Closed but resting" is not latched.
- ④ Hardware — are the hinges, closer or spring, and latch all present, functional, and unmodified? A disconnected closer arm or a taped-back latch voids the function even when every part is technically still there.
- ⑤ Frame and opening — is the complete assembly intact and the opening unobstructed? Storage pushed against the leaf, conduit run through the opening, or a bent frame all defeat a healthy leaf.
The habit that catches it: operate the protective, don’t just look at it. Every rated hatch you walk past is a ten-second test — open, release, watch, confirm the click. The label check happens with your eyes; the performance check happens with your hands.
Why this matters in healthcare
Healthcare buildings run on rated barriers — smoke compartments, hazardous-area enclosures, shaft walls — and those barriers are full of access hatches serving valves, dampers, ducts, and equipment behind them. Every one of those hatches is a hole in a barrier that a surveyor, and more importantly a fire, will find. The population on the other side of those barriers includes patients who cannot self-evacuate, which is exactly why healthcare compartmentation exists.
The same forces that produced this finding are constant in healthcare facilities: trades opening hatches for above-ceiling and in-wall access, closers drifting out of adjustment with use, and hardware quietly aging while every walkthrough confirms only that the hatch is present. In an occupancy where fire door assemblies are already on a documented periodic inspection cycle, the defensible move is to inventory rated hatches as opening protectives and put them on the same operate-and-document cycle — not to discover them one at a time during a survey.
The finding in this observation was not a missing label or a wrong assembly. It was a labeled, correctly specified hatch that quietly stopped finishing its close — the kind of deficiency that is only caught by someone who operates the assembly instead of reading it. Multiple hatches in the same condition means it was a maintenance pattern, not a one-off.
Same call, different hatch

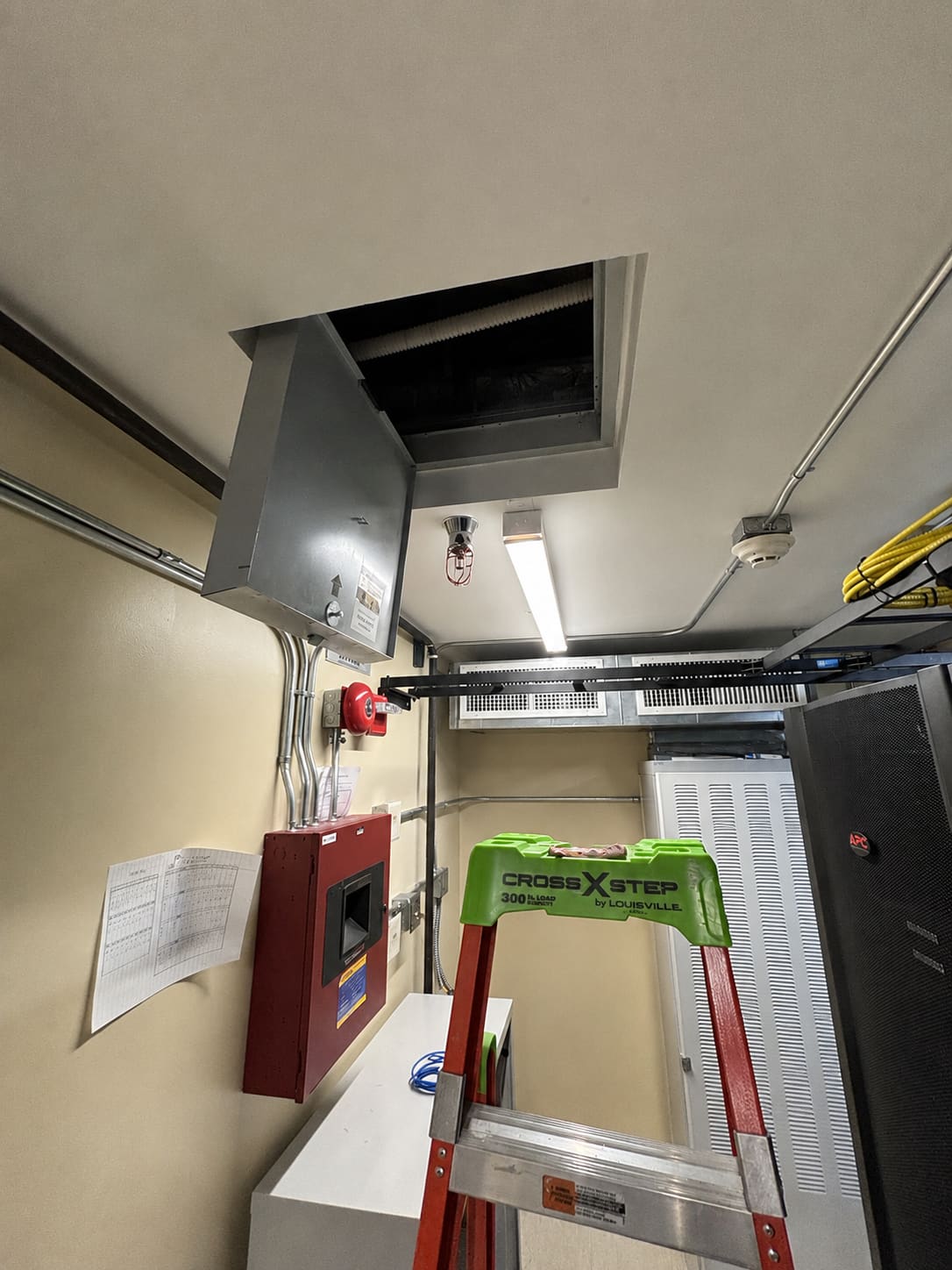

“Multiple hatches observed in the same condition” wasn’t a figure of speech. Here is another one from the same inspection — this time a ceiling hatch, standing open above an equipment room with the fire alarm control panel on the wall below it.
Worth noting: wall hatches, ceiling hatches, and floor hatches all count as opening protectives for the assembly review. The plane changes; the five checkpoints do not.
Code note
Fire-rated access hatches are opening protectives governed by the adopted edition of NFPA 80 — its self-closing and positive-latching requirements and its periodic inspection provisions for fire door and opening-protective assemblies NFPA 80 · manufacturer listing — alongside the opening-protective provisions of the adopted building code and NFPA 101 Chapter 8. How each edition scopes access doors and hatches into the inspection program, and what the assembly’s listing requires, varies — verify against the adopted editions in your jurisdiction and the manufacturer’s published instructions rather than assuming a hatch is exempt because it is small.
Rated-hatch review checklist
When reviewing fire-rated access hatches during an inspection, turnover walk, or barrier survey, consider checking the following:
- ☐ Is the hatch labeled, and does the rating match what the wall or ceiling assembly requires?
- ☐ Released from full open, does the leaf return to the fully closed position on its own?
- ☐ Released from barely open, does it still fully close? (Weak closers fail this one first.)
- ☐ Does the latch engage positively without pushing, holding, or lifting the leaf?
- ☐ Are hinges, closer/spring, and latch present, functional, and unmodified?
- ☐ Is the frame intact, and the opening free of storage, conduit, or other obstructions?
- ☐ Are the other hatches in the same barrier in the same condition? (One failed closer is rarely alone.)
- ☐ Are rated hatches captured in the facility’s opening-protective inspection inventory?
- ☐ Is the finding — and the repair — documented?
Inspection report language
When you find a rated hatch that does not self-close or latch, write the finding so it survives review — observation, basis, risk, and corrective action. Copy/paste starting language:
Field observation takeaway
This hatch is a reminder that passive fire protection is not a labeling exercise. An assembly can be listed, labeled, and correctly specified — and still fail the one mechanical act it exists to perform.
The lesson: inspections shouldn’t stop at verifying a label. Confirm the assembly will operate as intended when it’s needed most.
Observe. Question. Improve.
Discussion question
What do you see? Will the hatches in your building fully close and positively latch on their own — and when was the last time anyone operated one to find out? Are rated hatches even on your opening-protective inspection inventory, or only the swinging doors? Join the discussion in the community →
Ask Clara
Reviewing opening protectives on a project or building an inspection inventory? Clara — the site’s assistant — can help you walk the five-checkpoint assembly review, pull the related standards, and write the finding.
SUGGESTED PROMPT
“I found a fire-rated access hatch that doesn't return to the fully closed position on its own. Walk me through evaluating it as an opening protective — the self-closing and positive-latching checks, what NFPA 80 and the assembly listing govern, and how to write up the finding.”
Frequently Asked Questions
What was wrong with the fire-rated hatch in Field Observation #003?
Does a fire-resistance rating label mean an access hatch is compliant?
Why do fire-rated hatches need to be self-closing and self-latching?
What should an inspection of a fire-rated access hatch include?
Are access hatches covered by the same annual inspection as fire doors?
References
1. NFPA 80: Standard for Fire Doors and Other Opening Protectives — self-closing and positive-latching requirements and periodic inspection of fire door and opening-protective assemblies. Verify section numbers and inspection scoping against the adopted edition for your jurisdiction.
2. NFPA 101: Life Safety Code — Chapter 8 features of fire protection, including opening protectives in fire barriers. Edition adoption varies by state and AHJ; CMS enforces the 2012 edition for certified healthcare occupancies.
3. IBC: International Building Code — opening protectives in rated construction, including fire door and access door assemblies.
4. Manufacturer listing and published installation instructions for the specific hatch assembly — enforceable as part of the listing.
5. Author: Jarell Sheffield — Healthcare Life Safety | Construction Compliance (field observation, field photos, and original LinkedIn post). Editorial formatting and review by Stanislav Samek, Samektra.
