Firestopping & Penetration Seals
Maintaining fire-rated assemblies where pipes, cables, and ducts pass through barriers

What Is Firestopping

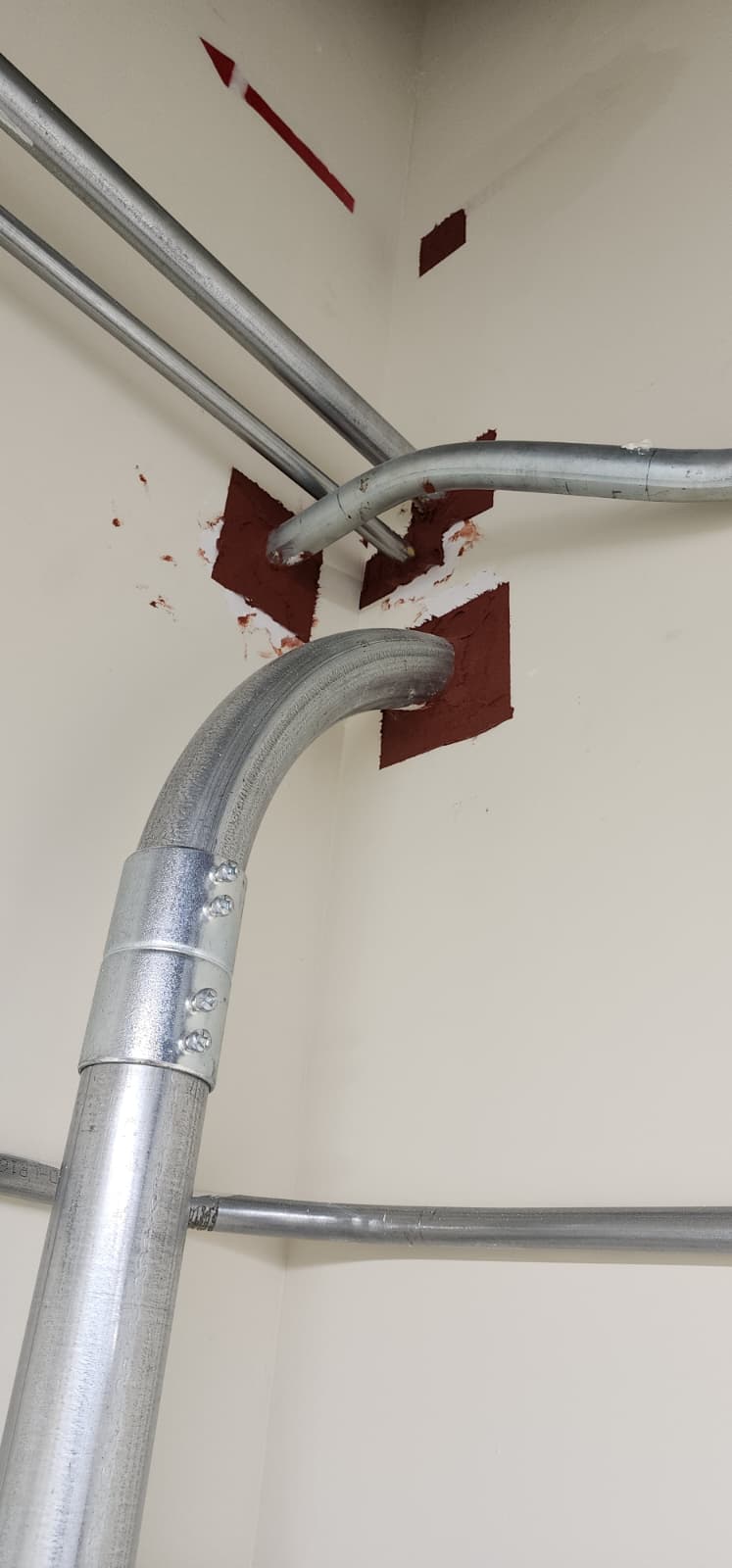

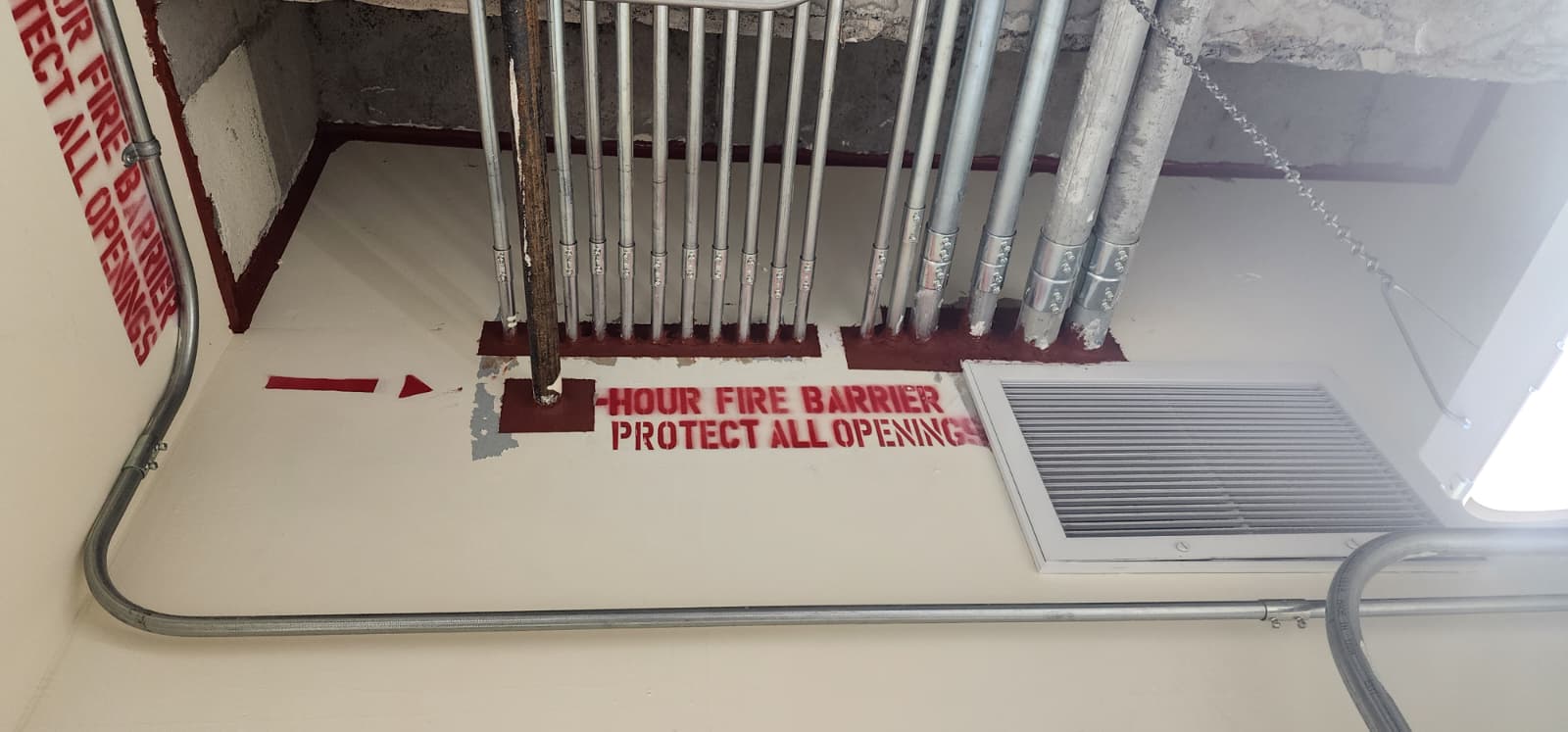

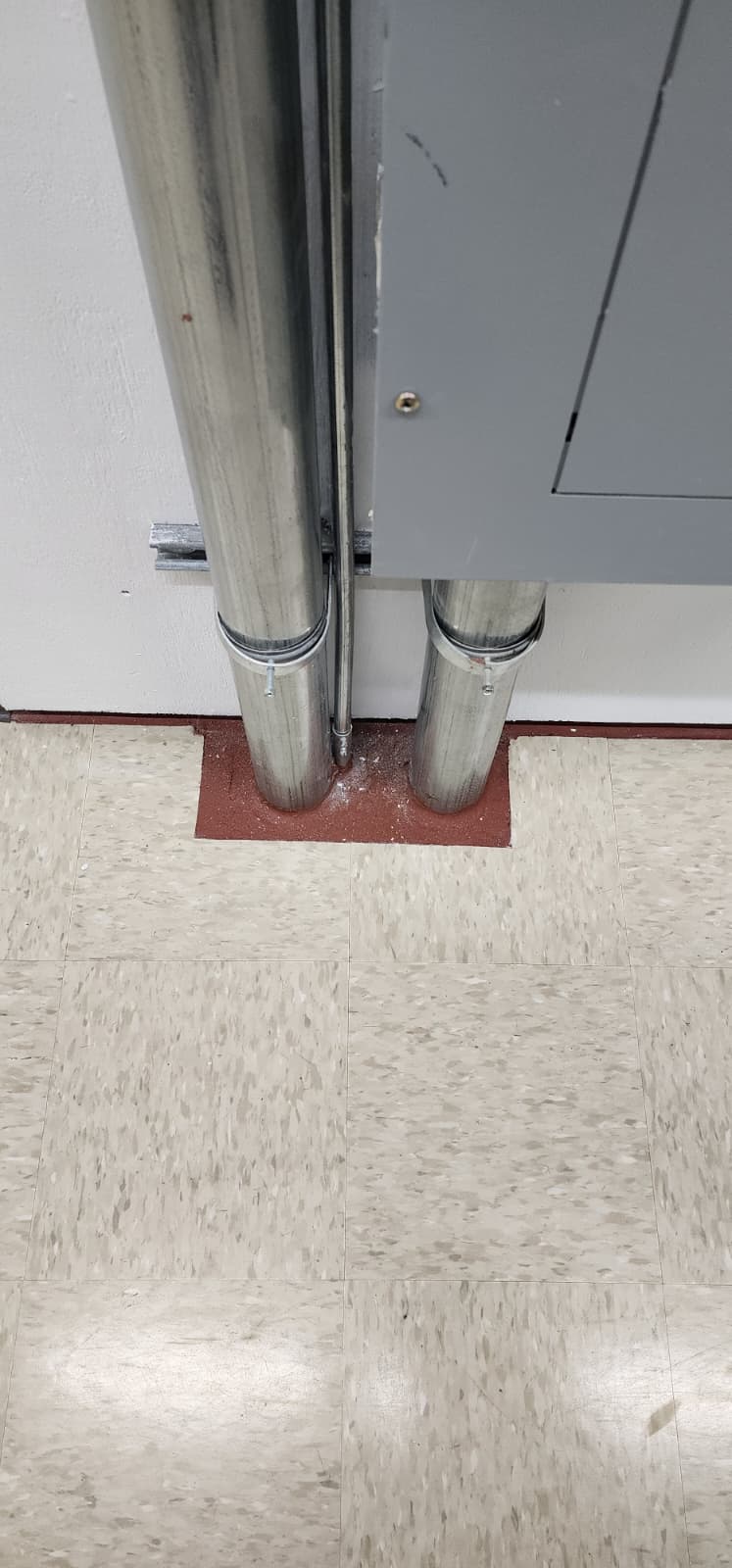

A fire-rated wall or floor assembly is only as strong as its weakest point. Every time a pipe, cable, conduit, or duct passes through that barrier, the penetration creates an opening that fire and smoke can exploit. Firestopping is the use of listed materials and systems to seal those openings and restore the original fire resistance rating of the assembly. Without firestopping, a two-hour fire wall with a single unsealed cable penetration is effectively a zero-hour wall at that point.

Firestopping is not optional. It is required by the International Building Code IBC §714, referenced by NFPA 101, enforced by CMS surveyors in healthcare, and consistently ranks among the most commonly cited code violations during building inspections and fire marshal walkthroughs. The fundamental rule is simple: if you punch a hole through a fire barrier, you must seal it back to its original rating with a listed firestop system.

Why Firestopping Matters

Fire-rated assemblies — walls, floors, and floor-ceiling assemblies — are designed to compartmentalize a building and confine fire to the area of origin. A single unsealed penetration can allow flames, superheated gases, and toxic smoke to bypass an otherwise intact barrier, spreading fire to adjacent compartments, stairwells, and floors. In healthcare occupancies, this can mean the difference between a manageable incident and a catastrophic one where patients cannot be moved.

Smoke is the primary killer in building fires. Even small gaps around pipes or cables can channel smoke through a structure long before flames reach the barrier. Firestop systems with an L-rating (air leakage rating) are specifically tested to limit smoke migration, making them critical in smoke compartments and healthcare facilities where defend-in-place strategies depend on compartmentalization.

Types of Penetrations and Joints

Not all openings are the same, and the IBC distinguishes between several categories, each with its own testing standard and installation requirements:

Firestop Materials

Firestopping is not a single product — it is a system. The correct material depends on the type of penetrating item, the size of the opening, the type of barrier (concrete, gypsum, CMU), and the required rating. Common firestop materials include:

UL Systems, Listings, and Hourly Ratings

Firestop systems are not generic. Every combination of barrier type, penetrating item, annular space, and firestop material must be tested and listed as a complete system. The primary test standards are ASTM E814 (internationally recognized) and UL 1479 (the US standard for through-penetrations). Joint systems are tested per ASTM E1966 or UL 2079, and perimeter joints per ASTM E2307.

Test results produce three ratings that define the system's performance:

The firestop system installed must match or exceed the hourly rating of the barrier it penetrates. A 2-hour fire wall requires a firestop system with at least a 2-hour F-rating. Installing a 1-hour firestop in a 2-hour wall is a code violation, full stop.

Code Requirements: IBC and NFPA 101

The International Building Code addresses firestopping primarily in two sections. IBC §714 covers through-penetrations and membrane penetrations, requiring that all penetrations of fire-resistance-rated assemblies be protected by an approved firestop system installed and tested in accordance with ASTM E814 or UL 1479. IBC §715 addresses fire-resistant joint systems between rated assemblies.

Both sections require that firestop systems be listed and labeled. The system must be installed per the manufacturer's published instructions and must match a specific UL system number. When field conditions do not exactly match any tested system, a third-party Engineering Judgment (EJ) is required. An EJ is a documented evaluation by a qualified professional engineer or a testing laboratory that extends a tested system to cover the specific field condition. EJs are not opinions — they follow a formal process and reference tested data.

NFPA 101 (Life Safety Code) references the IBC provisions and adds enforcement teeth in healthcare occupancies. CMS surveyors inspect firestopping during hospital and nursing home surveys, and missing or deficient firestop is a frequent finding. Healthcare facilities operating under a defend-in-place strategy depend on compartmentalization, making firestopping a patient safety issue, not just a code compliance exercise.

Inspection and Common Deficiencies

Unlike fire sprinklers or fire alarms, there is no prescriptive ITM (inspection, testing, maintenance) cycle for firestopping in NFPA standards. Firestopping is typically inspected during building commissioning, renovation projects, fire marshal surveys, and CMS/TJC healthcare surveys. Visual inspection is the primary method: check that firestop is present at every penetration, that the installed system matches the listed design (correct materials, correct thickness, correct fill ratio), and that the seal is intact with no visible gaps or damage.

Who Installs Firestopping

Firestopping is a specialty trade. While general contractors and electricians sometimes install firestop in simple conditions, best practice — and an increasing number of jurisdictions — requires installation by trained and certified firestop contractors. Major firestop manufacturers including Hilti, Specified Technologies Inc. (STI), 3M Fire Protection, and Tremco operate contractor certification programs that include classroom training, hands-on installation, and annual renewal. Certified contractors are trained to read UL system details, select the correct materials, and document installations properly.

For facility managers and building owners, the key takeaway is that firestopping is not a “just caulk it” task. Using the wrong product, the wrong thickness, or the wrong fill configuration can render the firestop ineffective even if it looks correct to an untrained eye. Insist on documentation: the UL system number, the materials used, and photographs of the completed installation.
