Fast-Response vs Standard-Response Sprinklers
The RTI Decision You Can’t Mix

This is one of the most misunderstood topics in fire protection — partly because the two heads can look identical, and partly because the rule that governs them lives in a single short paragraph of NFPA 13 that is easy to miss. A QR and an SR sprinkler can share the same temperature rating, the same orange-or-red bulb color, the same K-5.6 orifice, the same chrome finish, and the same pendant body. Drop one of each into your palm and most people cannot tell them apart. Yet installing them together in one room is a code violation and a genuine life-safety hazard.

If you inspect, design, manage, or maintain sprinkler systems, response type is something you have to be able to see, verify, and defend. This article walks the whole picture: the physics of RTI, the three field methods to tell QR from SR apart, the occupancy-by-occupancy rules for where each is required or prohibited, the “never mix them in a compartment” rule and exactly why it exists, the narrow cases where they can legitimately coexist, the healthcare angle that CMS and the Joint Commission actually survey, and the replacement-age differences that bite facilities decades later.

What RTI Actually Measures

Response Time Index (RTI) is the single number that separates fast-response from standard-response. It quantifies how quickly a sprinkler's thermal element absorbs heat from the hot gas layer rising off a fire. It is expressed in the slightly odd unit of (meters · seconds)^½, and the rule is simple: lower RTI = faster activation NFPA 13, §3.3.205.

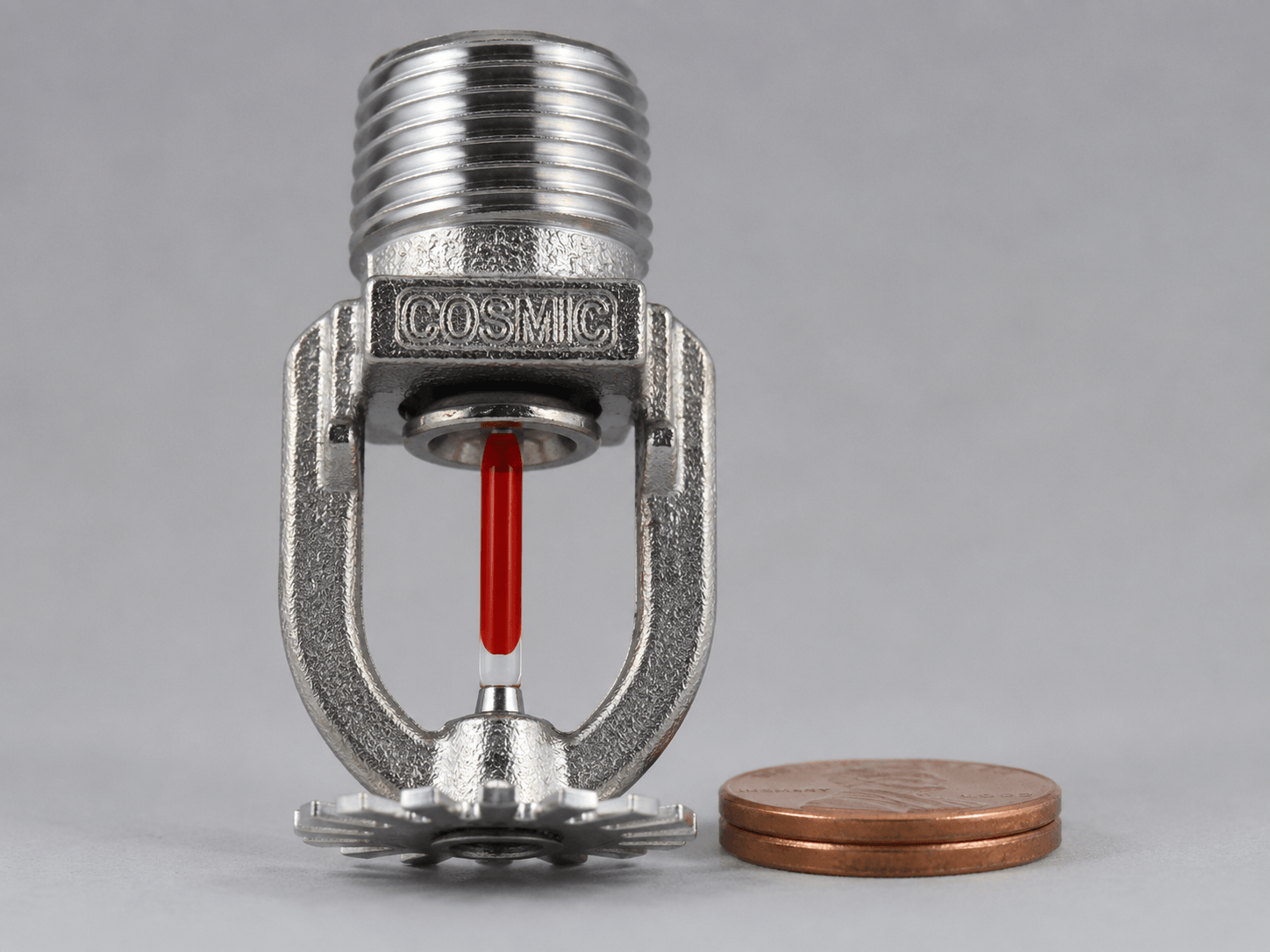

The physics is thermal lag. A glass bulb or a fusible link does not instantly take on the temperature of the air around it — it has mass, and mass takes time to heat up. A thin 3mm bulb has far less glass and liquid to warm than a chunky 5mm bulb, so it reaches its burst point sooner under the same fire exposure. RTI bundles that thermal mass, the surface area, and the heat-transfer characteristics into one listed value that the manufacturer measures in a calibrated plunge-test oven during UL/FM listing. It cannot be changed in the field, and it is independent of the head's temperature rating.

The two RTI thresholds

The band between 50 and 80 is “special response” in European practice (VdS 2160, ISO 6182-1) but is not a design category you choose from in NFPA/UL work — for NFPA 13, every listed head is either fast-response or standard-response.

What proves response type — and what does not

↔ Swipe to see all columns

The Response-Type Family Tree

“Fast-response” is not one product — it is a thermal-sensitivity class that several listed sprinkler categories belong to. Understanding the family prevents the classic mistake of treating a residential sprinkler and a commercial QR sprinkler as the same thing (they are both fast-response, but they are listed differently and are not substitutes).

How to Tell QR from SR in the Field

This is the practical skill. You are standing under a ceiling, you need to know whether a head is fast- or standard-response, and you cannot send it to a lab. Here is the order of reliability.

Decoding the SIN by manufacturer

The leading letters of the SIN identify the manufacturer; pair that with the model digits and the data sheet tells you everything else, including response type:

The SIN is imprinted on the deflector — the flat metal piece farthest from the threaded inlet. If you can read it, you can identify the head and pull its response type from the listing.

Reading real heads — a field gallery

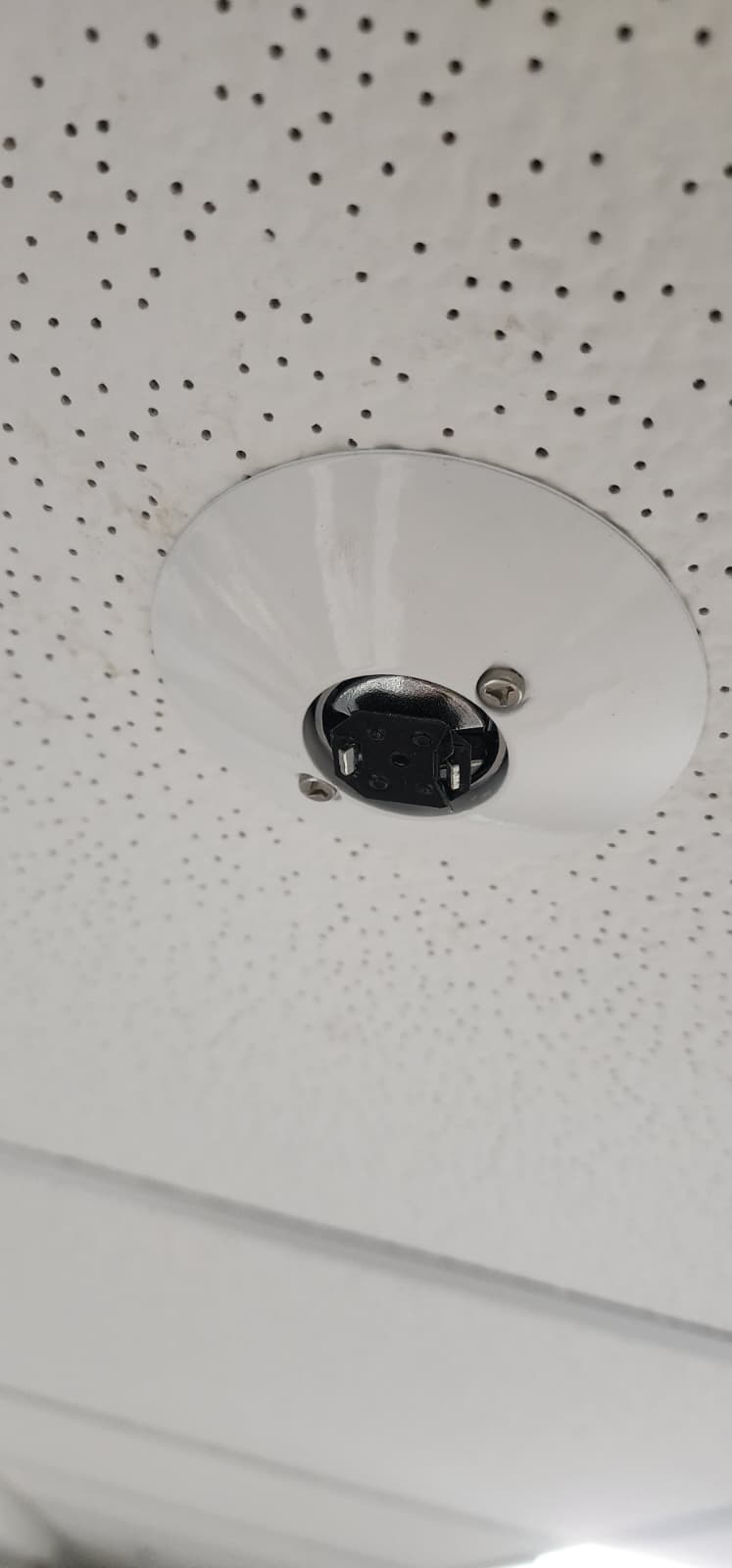

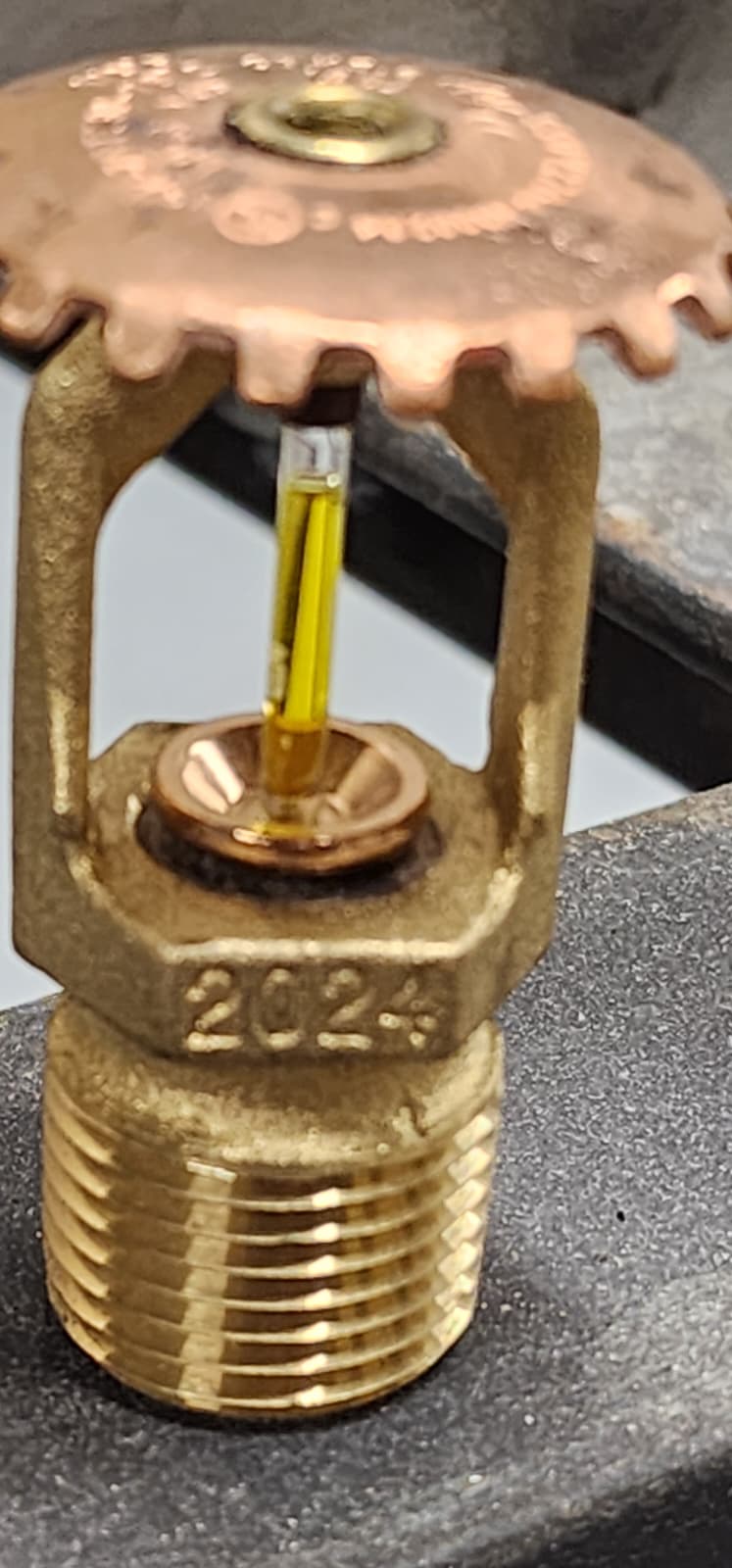

These are heads photographed in the field. Walk them in the order below and notice the pattern: bulb color, orientation, K-factor, and year of manufacture are all readable by eye — but response type is only readable when the maker chose to stamp it. When they didn’t, you decode the SIN against the data sheet.

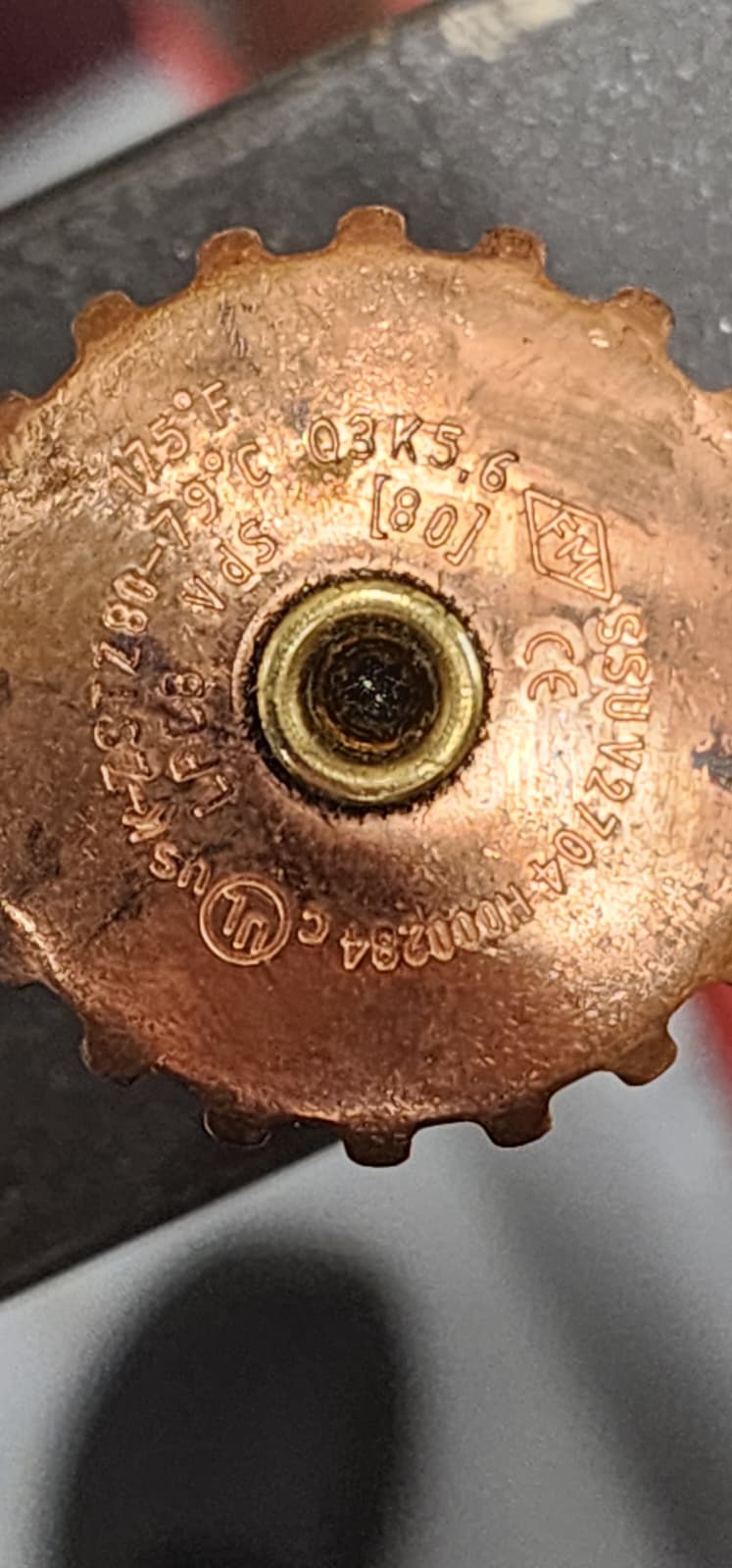

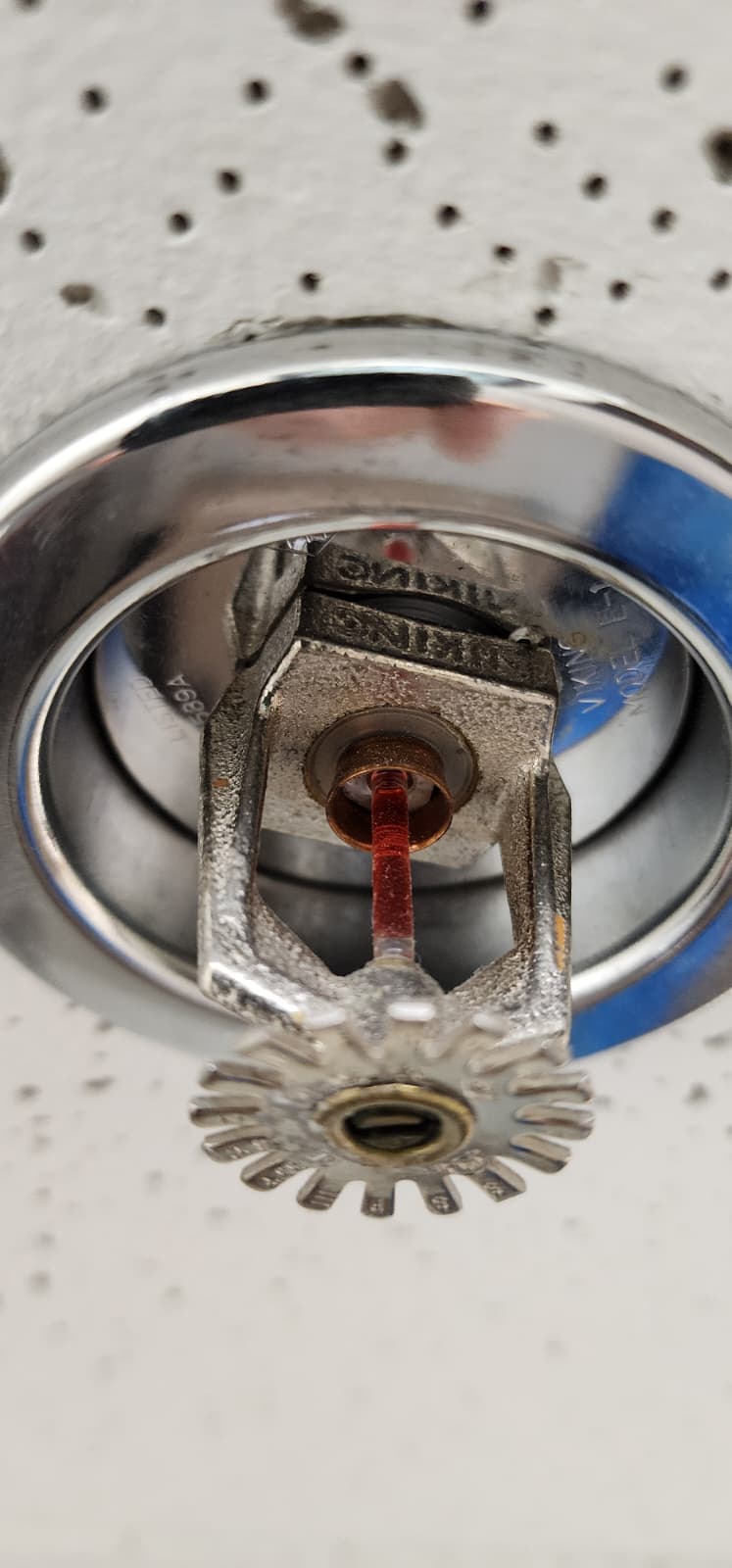

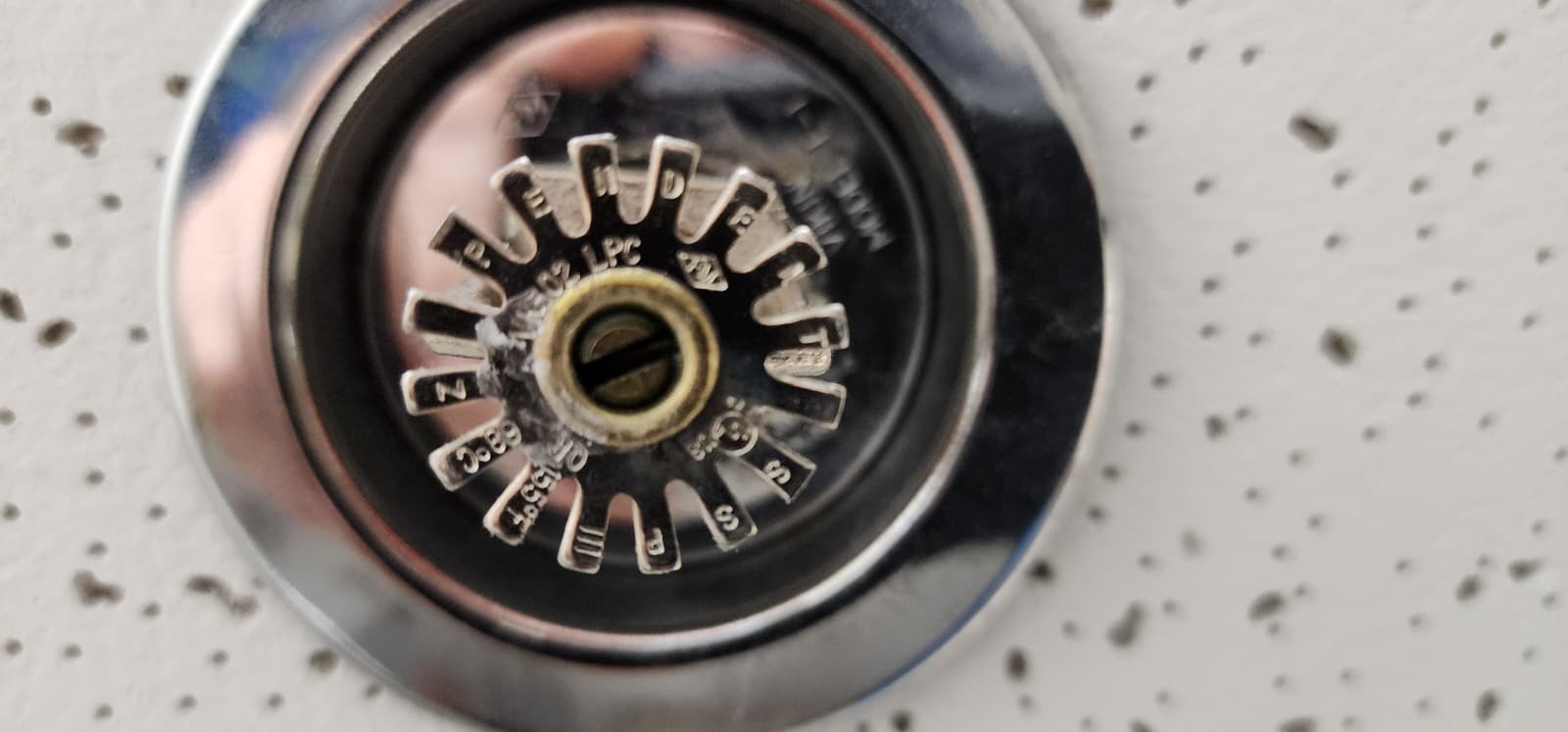

Field photos: Samektra. The Viking VK302 is identified from the cast frame marking and the “QR155°F” deflector stamp; the upright is identified by its readable deflector data (K5.6, 175°F, VdS/CE/FM/c-UL-us) with response type to be confirmed from the listed data sheet.

Field method hierarchy

↔ Swipe to see all columns

Where Each Type Is Required, Allowed, or Prohibited

Response type is a design decision dictated by occupancy and hazard — not by cost or aesthetics. This table is the field reference. The throughline: fast-response protects people, standard-response protects against high-challenge fires by letting them develop.

↔ Swipe to see all columns

* “Limited” means standard-response is permitted only under the specific listed exceptions in NFPA 13 §9.4.3.1 (for example, where conditions do not allow QR, or certain dry-system situations). The default for new light-hazard and healthcare work is quick-response. Always verify the exception applies before specifying SR in these occupancies.

Two ideas tie the table together. First, quick-response is required in light hazard (§9.4.3.1) and is what unlocks the design-area reduction (§19.3.3.2.3.1) that lets a designer protect a smaller remote area — a real cost and water-supply benefit, not just a safety one. Second, in storage and extra hazard the engineering deliberately wants the slower SR head (or, for suppression, the large-orifice ESFR head). A fast-response head over a deep rack fire can open before the plume is strong enough to carry water down to the seat, throwing water the plume simply pushes aside.

The Rule That Gets Buildings Written Up: Never Mix in a Compartment

In plain terms: once a compartment has quick-response sprinklers, every sprinkler in that compartment must be quick-response (with the narrow exceptions covered next). You cannot have a room that is mostly QR with a few SR heads patched in, and you cannot finish out a QR corridor with leftover SR stock. It is not a paperwork preference — mixing response types breaks the way the system is designed to operate.

Why — the “sprinkler skipping” problem

When a fire starts, heat rises and spreads across the ceiling as a hot gas layer. Sprinklers activate based on how fast their element absorbs that heat. Now imagine QR and SR heads sharing one ceiling:

The hydraulic calculation that sized the pipe and the pump assumed a known, uniform response across the design area. Mix two RTIs and that assumption collapses: you can over-tax the water supply with too many open heads and leave the seat of the fire under-protected at the same time. That is the worst of both outcomes, and it is why the rule is a hard prohibition rather than a recommendation.

What counts as a “compartment”?

A compartment is defined in NFPA 13 (Chapter 3 definitions) and is essentially a space bounded by walls and a ceiling that limit fire and heat spread. The practical field test inspectors use: small openings between spaces can keep them as separate compartments — a single doorway up to about 36 in. wide with no lintel, or openings up to roughly 8 ft wide with at least an 8 in. lintel (drop) from the ceiling, are commonly treated as a compartment boundary. Two adjoining offices that open to each other through a wide cased opening with no lintel are, for sprinkler-response purposes, one compartment — and must be all one response type. When in doubt, confirm the compartment boundaries with the AHJ before you mix.

Where Fast and Standard CAN Legitimately Coexist

“Never mix in a compartment” is not “never in the same building.” A large facility routinely has both. The lawful arrangements all share one trait: the two response types never share the same ceiling gas layer. These are the exceptions referenced by §9.4.3.2 (in §9.4.3.3–§9.4.3.5) and the storage chapters.

The Healthcare Angle CMS and TJC Actually Survey

Healthcare is where response type stops being a design nicety and becomes a survey line item. Hospitals, nursing homes, and ambulatory facilities are light-hazard occupancies under NFPA 101, so §9.4.3.1 brings quick-response in by default for new work. More specifically, NFPA 101 calls for quick-response or residential sprinklers in smoke compartments that contain patient sleeping rooms — the logic being that in a building full of people who cannot self-evacuate, faster activation buys the critical minutes for defend-in-place.

The standard healthcare pattern is a standard-spray, control-mode sprinkler fitted with a quick-response operating element. CMS enforces sprinkler installation and NFPA 25 inspection/testing through its Life Safety Code K-tags (sprinkler installation under K-351, ITM under K-353), and the Joint Commission surveys the same under its Environment of Care / Life Safety chapters. A standard-response head left behind in a quick-response sleeping compartment — typically after a renovation where a contractor finished out a wing from the wrong box of heads — is a real, citable deficiency. As the field comments on this page describe, surveyors do catch it from the bulb diameter alone.

Renovation closeout checklist

Inspection, Testing & Replacement: Different Clocks

Response type also changes the long-term maintenance clock. Under NFPA 25 (2023), sprinklers are sample-tested or replaced at ages that depend on type. A representative sample — 1% of the population or 4 sprinklers, whichever is greater NFPA 25, §5.3.1.2 — is laboratory-tested for sensitivity and function; pass and you reset the clock, fail and the whole population is replaced.

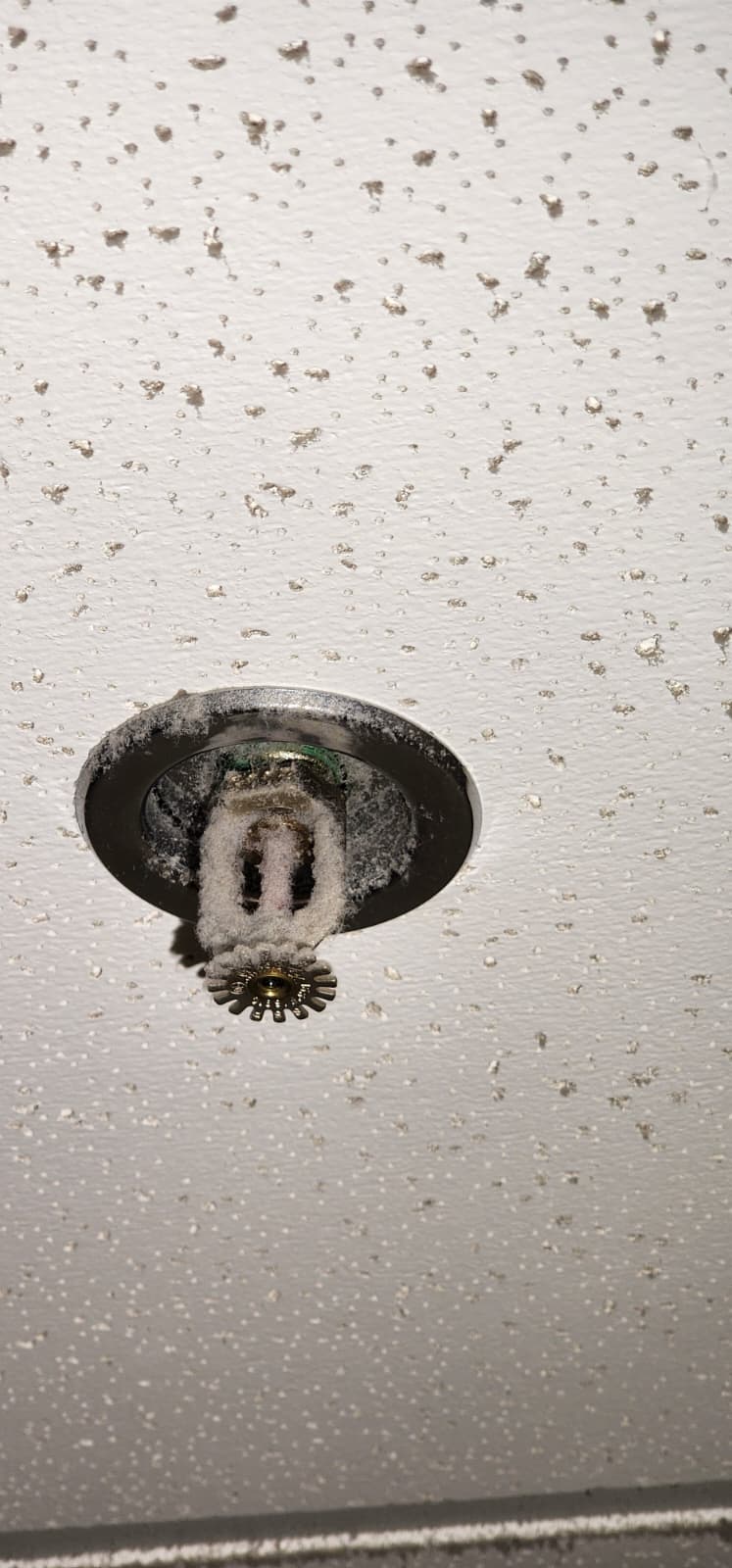

† The fast-response interval rose from 20 to 25 years in the 2023 edition of NFPA 25 after field data showed greater reliability. Many existing inspection programs and older references still say 20 — confirm which edition your AHJ enforces. After the first sample test, all types retest every 10 years (every 5 once standard-response passes 75 years). Any head with paint, corrosion, leakage, loaded deposits, or mechanical damage is replaced immediately, regardless of age.

What You Might Not Know

Inspection Report Language

When you find a suspected response-type mismatch in the field, write the finding so it survives review — observation, basis, risk, and corrective action, with the response type framed as something to verify rather than a claim made from the floor. Copy/paste starting language:

Ask Clara

Standing under a ceiling with one head that looks different from the rest? Clara — the site’s assistant — can walk you through exactly what to photograph and pull to confirm whether it is quick-response or standard-response, and how the NFPA 13 compartment rule applies to your situation.

The Bottom Line

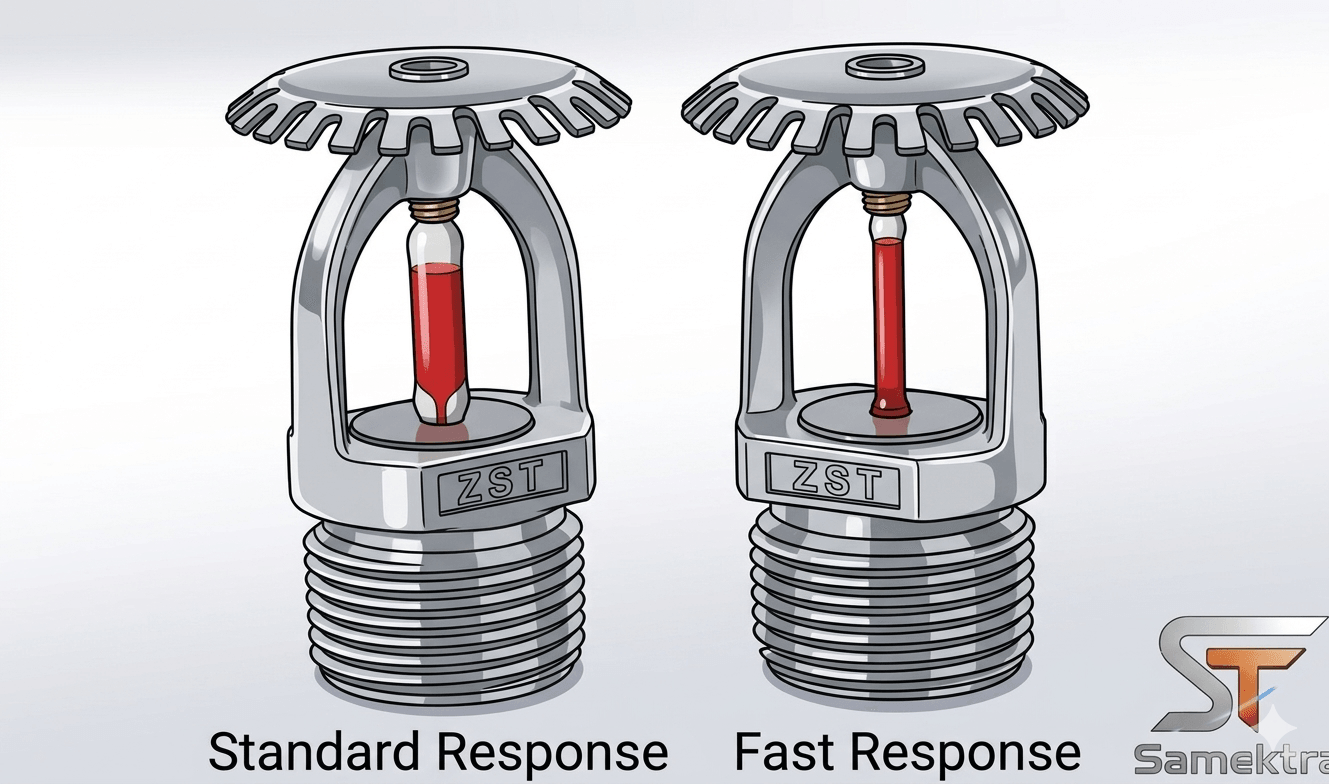

Response type is the property that hides in plain sight. It does not change the temperature rating, the orifice, the orientation, or the look of a sprinkler — only the speed of the element, captured as RTI. Quick-response (RTI ≤ 50, 3mm bulb) is required where life safety drives the design: light-hazard occupancies, dwellings, and healthcare sleeping compartments. Standard-response (RTI ≥ 80, 5mm bulb) is the deliberate choice where a high-challenge or storage fire needs to develop before the water hits it.

The rule to never forget is NFPA 13 §9.4.3.2: within a compartment, all sprinklers must be the same response type, because mixing them causes sprinkler skipping that defeats the hydraulic design. They can coexist across a building — in separate compartments, as in-rack-vs-ceiling layers, or behind a draft curtain — but never sharing one ceiling's gas layer. And the easiest way to break a compliant building is a single replacement head of the wrong response type. Match temperature, K-factor, and response type, every time, and verify it on the deflector and the data sheet — not by eyeballing the bulb color.
