Fire Alarm Strobes & Candela
Visual Coverage for Emergency Notification
Strobes deliver the visual half of emergency notification. Picking the right candela rating, placing appliances so no occupant is outside the coverage envelope, and synchronizing multi-strobe rooms to avoid seizure risk are the three core design challenges. NFPA 72 §18.5 + ADA drive the rules.
What Strobes Do and Why
The visual signal is the mandatory visible component of a fire alarm notification. Its purpose is to alert occupants with hearing impairments and to reinforce the audible signal for all occupants in high-noise environments. NFPA 72 §18.5 governs the candela rating, mounting height, synchronization, and coverage geometry of every strobe installation in the United States.
The ADA overlay comes through ADA Title II and Title III via §215 of the 2010 ADA Standards: any public accommodation or commercial facility with a fire alarm system must have visual alarms that comply with NFPA 72. The functional effect is that strobes are required in more rooms than NFPA 72 alone would mandate — notably single-user bathrooms, conference rooms, and any space where a deaf occupant could be alone with the door closed.
Candela Ratings and Room Sizing
Candela (cd) measures luminous intensity. Fire alarm strobes are rated at discrete candela steps: 15, 30, 75, 110, 135, 185, 205. Most modern units are field-selectable (a rotary switch inside the cover sets cd) so a single SKU can cover any room size.
NFPA 72 Table 18.5.5.4.1(a) maps room dimension to required candela for wall-mounted appliances. A condensed version:
| Max Room (ft × ft) | Wall-Mount cd (one per wall) |
|---|---|
| 20 × 20 | 15 cd |
| 30 × 30 | 30 cd |
| 40 × 40 | 75 cd |
| 45 × 45 | 110 cd |
| 50 × 50 | 135 cd |
| 54 × 54 | 185 cd |
| 60 × 60 | 205 cd |
Rooms exceeding 60 × 60 ft require multiple strobes on multiple walls — see §18.5.5.4.3. Ceiling-mount sizing is in a separate table (18.5.5.4.1(b)) and generally requires higher candela ratings than equivalent wall mount for the same room size because ceiling-mounted light falls off with distance more quickly.
Mounting Height
Wall-mount strobes must be installed 80–96 inches above the finished floor (NFPA 72 §18.5.5.1), with the top of the lens no more than 6 inches below the ceiling. This range places the lens at or above most occupants' eye height and within peripheral view. A strobe at 60 in. AFF is a code violation; so is a strobe mounted at 72 in. hidden behind office furniture.

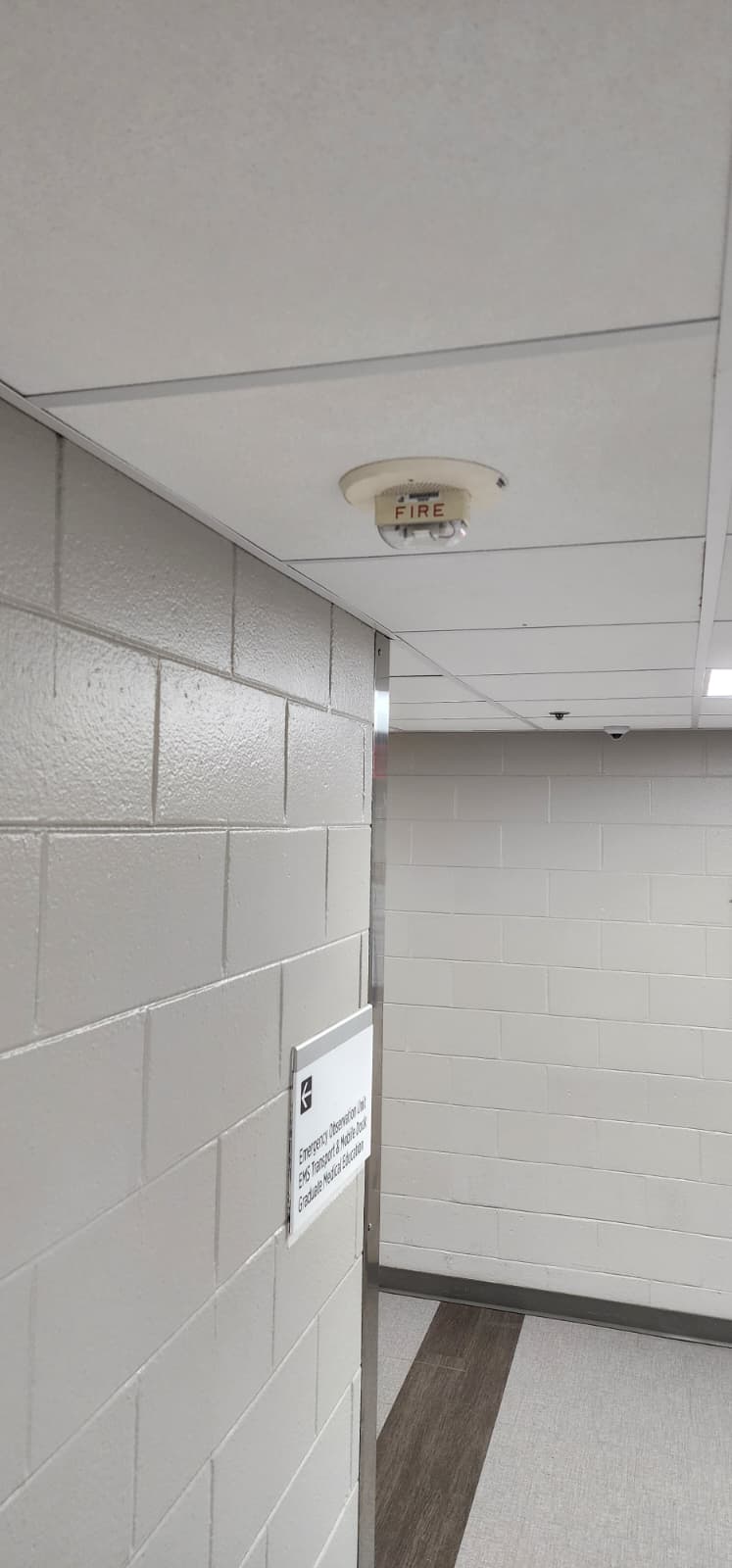

Ceiling-mount strobes are permitted where listed by the manufacturer. The effective candela falls off with ceiling height — a ceiling-mount strobe listed at 15 ft maximum ceiling will not cover the same floor area at a 20 ft ceiling. Always verify against the unit's listing, not just the generic NFPA 72 table.
Synchronization (the Seizure Rule)
NFPA 72 §18.5.4.4: strobes visible from the same location must flash within 10 ms of each other. The reason is photosensitive epilepsy — asynchronous flashes in the 5–30 Hz range can trigger seizures in sensitive occupants. The rule applies even when strobes are on different NAC circuits or powered by different booster panels, as long as they are visible from the same location.
Synchronization is delivered by a sync protocol — a modulation pattern on the NAC power output that tells downstream strobes when to flash. Major protocols: System Sensor (Honeywell), Wheelock (Cooper/Eaton), Gentex, AMSECO. Protocols are not interchangeable; mixing brands without a sync module causes compliance failure and can cause real harm.
Field rule: specify one protocol per listening/viewing space, and when retrofitting match the existing protocol or install a sync bridge at the boundary. “System Sensor sync” is a real reviewable specification line, not a preference.
Where Strobes Are Required (Even When You Forget)
- Every public-use bathroom, including single-user corridor bathrooms (ADA).
- Every conference room, break room, private office where an occupant could be alone behind a closed door.
- Every lactation room, meditation room, examination room in healthcare.
- Every classroom with a door.
- Every stairway landing (not just corridors).
- Every elevator lobby and vestibule.
- Every assembly space sized per the candela table — sanctuaries, gymnasiums, auditoriums often need high-candela or multi-wall coverage.
ITM
- Annual functional test — each strobe must flash during the alarm. Technician visually confirms each appliance at least once.
- Synchronization check — observe multi-strobe rooms during alarm; visible asynchrony indicates a sync protocol failure.
- Candela setting audit — periodically verify the field-selectable rotary switch has not drifted or been tampered with. Some units silently default to their lowest cd rating if the switch is mis-positioned.
- Voltage at the appliance — end-of-line units on long NAC runs may receive under-voltage; candela rating is invalid below the minimum operating voltage on the listing.
Frequently Asked Questions
What is a candela and how does it relate to room size?
Why must strobes flash in sync?
Is an ADA bathroom required to have a strobe?
Wall vs ceiling mount — which is correct?
References
1. NFPA 72 (2022), §18.5 — Visible Characteristics.
2. NFPA 72 (2022), Table 18.5.5.4.1(a) — Wall-mount strobe sizing.
3. NFPA 72 (2022), Table 18.5.5.4.1(b) — Ceiling-mount strobe sizing.
4. ADA Standards for Accessible Design, §215 — Fire Alarm Systems.
5. UL 1971 — Signaling Devices for the Hearing Impaired.
