Soiled Utility vs. Soiled Holding
Same Room, or Two Different Rooms?
Three rulebooks govern this room, and they do not agree on whether the two names mean the same thing. Getting that wrong builds the wrong room — or writes up the wrong finding.
Stanislav Samek
Founder of Samektra Safety Management & Training in Gwinnett County, Georgia, and the writer and editor behind LifeSafetyWiki. Works metro-Atlanta inspections, ITM analysis, plan-review & AHJ readiness, OSHA program development, and life-safety training. Editorial rule on every article: cite the standard, link the section, distinguish state-adopted from published editions, and never invert a constraint.
The question, and why it has no single answer
If you have walked a hospital with a mock surveyor or the actual life safety surveyor, you have probably heard soiled utility and soiled holding used interchangeably, as though the two names described the same room. Somebody eventually asks the obvious question — are these two different rooms, or one room with two names? — and gets two confident, contradictory answers.
They are both right, because three separate rulebooks govern that room and they do not agree with each other about whether the distinction exists.
First, who writes these
FGI is the Facility Guidelines Institute — an independent non-profit that publishes the Guidelines for Design and Construction, the book that says what rooms a healthcare facility needs and what goes in them. It is not a fire code and it is not federal law. It matters because most states adopt it by reference for healthcare design, which turns it into an enforceable requirement at plan review. It is revised on a roughly four-year cycle, and the edition that binds a given space is generally the one in force when that space was designed and built.
NFPA 101, the Life Safety Code, is the fire and egress side. CMS adopts the 2012 edition for Medicare and Medicaid participation, and translates its findings into K-tags — the numbered deficiency codes on a Life Safety Code survey report.
ASHRAE 170, Ventilation of Health Care Facilities, sets the air design — pressure relationships, air changes, filtration, where the exhaust goes.
The three overlap constantly, and each one is enforced by different people at different moments in a building’s life. That is the whole reason this question is confusing.
| Rulebook | What it governs, and who enforces it | Two rooms? |
|---|---|---|
| FGI Guidelines | Design and construction. Enforced by the state plan reviewer at permit, and by the accreditor for spaces built under it. Fixtures. A soiled workroom is equipped to process; a soiled holding room is equipped only to hold. | DIFFERENT |
| NFPA 101 / CMS K-tags | Life safety. Enforced by CMS, the accreditor and the fire marshal, for the life of the building. Neither term appears. The code asks what is in the room and how much of it — never what the door sign says. | SAME |
| ASHRAE 170 | Ventilation. Enforced at design, commissioning, and any survey that looks at pressure relationships. The two names share a single combined row in the design-parameter tables. | SAME |
Architecture distinguishes them. Fire code and ventilation do not.
That one sentence resolves most of the arguments. The rest of this article is what each rulebook actually says, and the two places where getting it backwards costs real money.
What FGI says: processing is the dividing line
The FGI Guidelines for Design and Construction is where the distinction is real. Notice first how FGI handles the naming problem — it puts both names in a single section heading, “Soiled Workroom or Soiled Holding Room” FGI 2.1-3.8.12, and then differentiates by what the room is equipped to do.
The sink does not make a room soiled
Worth being exact, because this is where the shorthand misleads. What makes a room soiled is what goes into it — contaminated linen, waste, used instruments. Both of the rooms below are soiled rooms. Neither is soiled because of its plumbing.
What the sink tells you is whether that soiled room is equipped to process or only to hold. And it is the evidence of the distinction rather than the cause of it: the function decides the room, and the fixtures follow. FGI’s own review panel phrased it as instrument-washing sinks being generally found in a soiled workroom and not a soiled holding room — a description of what you will see, not a definition of what makes it so.
Soiled workroom — built to process
- Instrument-washing or clinical sink
- Work counter
- Handwashing station
- Storage
- Space for waste and soiled linen receptacles
Soiled holding room — built to hold
Temporary holding of soiled material awaiting collection. Where the processing genuinely happens somewhere else, the processing fixtures — the clinical sink and work counter — can come out.
The handwashing station and the receptacle space do not.
California adopted this structure almost verbatim, which makes the logic easy to read in a free public source — and makes the ordering explicit. The combined heading lists the full fixture set, then permits the clinic sink and work counter to be omitted where a compliant central sterile supply exists elsewhere and the room is used only for temporary holding CBC §1226.4.13.4. Note which way that runs: the room being holding-only is the condition, and losing the sink is the consequence. Not the other way round.
The worked example FGI itself published
FGI’s interpretations for the 2022 Hospital Guidelines contain a question that is exactly this argument, and the panel’s reasoning is more useful than the ruling. A facility processing ultrasound probes with a self-contained, automated high-level disinfection unit asked whether a soiled workroom was really required, or whether a soiled holding room would do.
The answer was that a soiled workroom is required — but the reasoning is the part worth keeping. The panel pointed out that the automated unit is not plumbed, so gross bioburden has to be washed off the probe before it goes in, and that washing needs an instrument-washing sink. One reviewer put the distinction in a single line: instrument-washing sinks are generally found in a soiled workroom and not a soiled holding room. Another noted the phrase “when necessary” in the standard refers to when high-level disinfection is necessary — not to whether the organization feels like providing the room.
The part most people miss
The panel also agreed the workroom does not have to be in that space. Several reviewers landed on the same practical position: a department can have a soiled holding room locally, as long as staff have access to a soiled workroom elsewhere in the same clinical area. So the real design question is not “which room do I build here” but “where in this clinical area does processing happen, and can staff reach it” — which is an operational question that has to be answered by the clinicians who will use the space, before the architect draws either room.
What the fire code says: neither term exists
Now switch rulebooks, and the distinction evaporates. Search NFPA 101 as published for “soiled utility” or “soiled holding” and you will not find them. The Life Safety Code does not care what the room is called or what fixtures it has. It asks two questions: what is in the room, and how much of it. That is the general rule — and your state may have amended it, which is the next section.
Hazardous areas in health care occupancies are a specific list — boiler and fuel-fired heater rooms, bulk laundries, paint shops, maintenance and repair shops, combustible storage rooms above the area threshold, and rooms with soiled linen or collected trash above the volume threshold NFPA 101 §18.3.2.1 / §19.3.2.1. CMS carries that same language into the survey: K-0321 names soiled linen and trash collection rooms exceeding 64 gallons among the areas requiring enclosure K-0321.
Renaming the room changes nothing
This is the expensive misunderstanding. A room does not stop being a hazardous area because the drawing calls it a holding room instead of a utility room. If it collects soiled linen or trash above the threshold, it needs the enclosure, the rated or smoke-resistant separation as applicable, and the self-closing door — whatever the sign says. The reverse is equally true and gets missed in the other direction: a genuinely small holding room that stays under the threshold is not automatically a hazardous area just because the word “soiled” is on the door. Classify on contents and volume, then look at the sign.
Two thresholds people constantly conflate
There is a room rule and a receptacle rule, they live in different chapters, and they carry different numbers.
| Rule | Where it lives | NFPA 101-2012 (CMS / accreditor) | NFPA 101-2024 (e.g. GA state) |
|---|---|---|---|
| The ROOM is it a hazardous area? | Hazardous areas list, §18/19.3.2.1 | Soiled linen or trash collection room over 64 gal | Same 64 gal trigger, carried into the 2024 list |
| The RECEPTACLE left unattended | Operating features, §18/19.7.5 | 32 gal, plus 0.5 gal/sq ft average density and 32 gal per any 64 sq ft. A mobile receptacle over 32 gal, unattended, must sit in a room protected as a hazardous area. Recycling containers up to 96 gal are excluded where labeled and listed to FM Approval Standard 6921 or equivalent | Single 64 gal trigger for the unattended receptacle. The labeled-recycling allowance is not new here — it already exists in the 2012 enforcement set |
That table trips people up because the two rules sound alike and are asking completely different questions. Put plainly:
The ROOM rule asks: does this room need to be built like a hazardous area?
It is about construction — the walls, the barrier or the sprinklers, and a door that closes and latches by itself. If the room is used to collect soiled linen or trash above the threshold, it has to be enclosed that way.
The RECEPTACLE rule asks: where is this container allowed to sit?
It is about housekeeping. A receptacle is the container itself — the linen hamper, the trash barrel, the wheeled cart, the locked shredding bin. If it is over the threshold and nobody is attending it, it has to be inside a room protected as a hazardous area. Not in the corridor, not in an alcove, not tucked behind a door.
What “unattended” actually means
Attended means a staff member is with it, right now, actively using it. A housekeeper working a corridor with their cart beside them is attending it. The moment they walk into a patient room and leave the cart in the hall, it is unattended — and if it is over the threshold, it is now a finding. This is why the citation so often lands on the cart rather than on the room.
Worked example, under the edition CMS enforces. A 40-gallon mobile linen hamper parked in a corridor while staff are elsewhere is already a problem: it is over the 32-gallon receptacle limit and unattended. Now here is the part people get wrong — wheeling it into an ordinary room does not fix it. The rule does not say “put it somewhere else,” it says a mobile receptacle over 32 gallons left unattended shall be located in a room protected as a hazardous area K754; NFPA 101-2012 §18.7.5.7, §19.7.5.7. So the receiving room has to carry hazardous-area protection, even though that one 40-gallon container never reaches the separate 64-gallon room trigger. Two different rules, two different routes — and they arrive at the same place.
The practical consequence is that the receptacle rule is the one your staff break, hourly, without meaning to. The room rule is settled once by the architect and then rarely changes. The receptacle rule is re-decided every time somebody rolls a bin somewhere and walks away.
Two editions, one building
CMS enforces the 2012 edition of NFPA 101 for Medicare and Medicaid participation, and accreditors surveying with deemed status follow it. Your state fire marshal enforces whatever the state adopted — Georgia moved to the 2024 edition in May 2025. A Georgia hospital therefore lives under a 32-gallon unattended-receptacle rule from one enforcer and a 64-gallon one from another, at the same time, in the same corridor. Operate to the tighter number and you satisfy both. This is the same both-editions-bind problem covered in NFPA 101: 2012 vs 2024.
How the room has to be enclosed
- Existing health care occupancies keep the either/or: a 1-hour fire barrier or automatic sprinkler protection. Where the sprinkler option is used, the room still needs smoke partitions, and the door is self-closing or automatic-closing either way §19.3.2.1.
- New construction is stricter, and has been since well before 2024. Under the edition CMS enforces, a new hazardous area is enclosed with a 1-hour fire-rated barrier with a ¾-hour door and protected by sprinklers — not one or the other K321, 2012 NEW; NFPA 101-2012 §18.3.2.1. If you have heard that 1-hour-even-when-sprinklered arrived with the 2024 edition, that is wrong: it is the long-standing new-construction rule.
- The door is where the findings actually come from. Self-closing, positive-latching, and not propped — which in a room staff enter with both hands full, all day, is a behavioural problem long before it is a hardware problem.

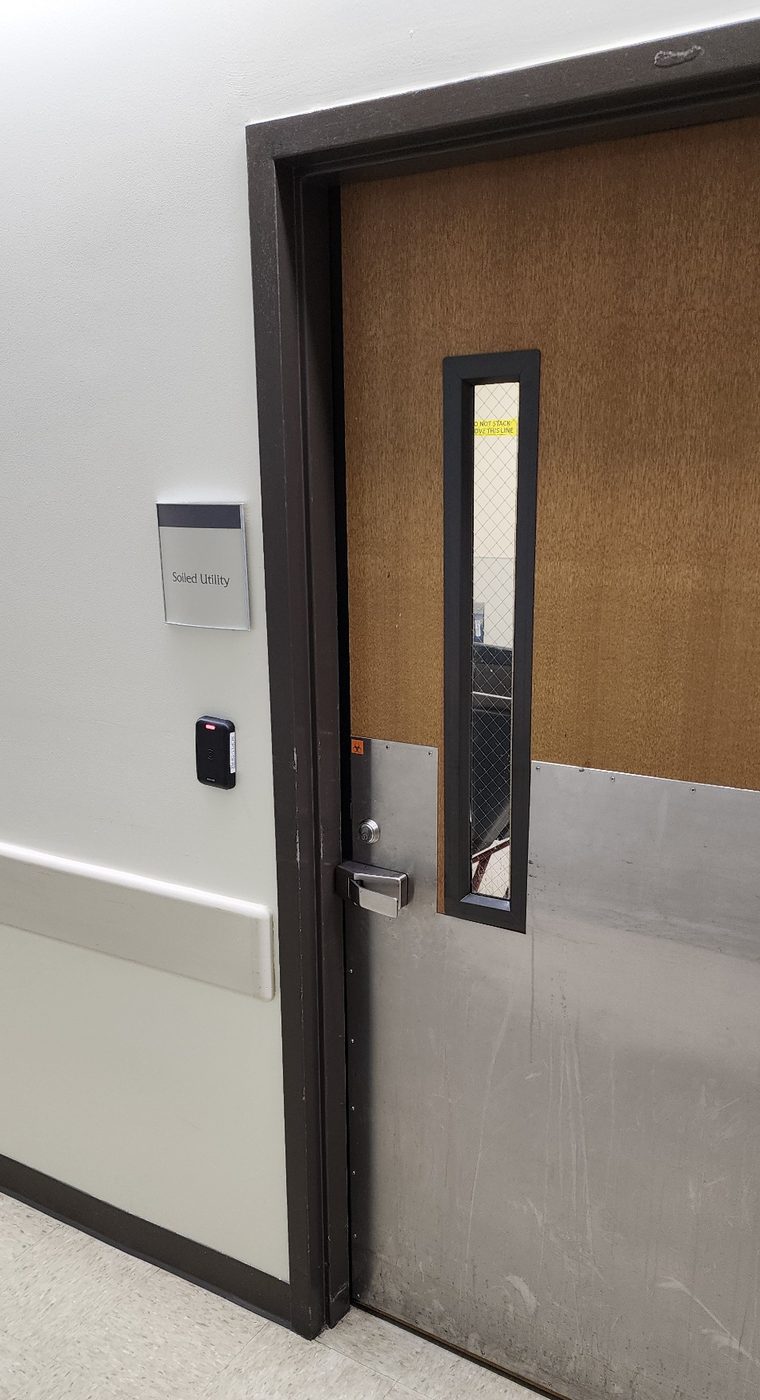

One door, most of the article. The sign names the room, but the wired-glass vision panel and the closed, latched leaf are what the enclosure requirement is actually about. The badge reader is access control, which is an infection-prevention and security expectation rather than a fire-code one. The biohazard label tells you what is inside. And through the window you can just read the yellow “DO NOT STACK ABOVE THIS LINE” sign — sprinkler clearance, because the moment this room becomes storage, the ceiling clearance rule shows up too.
Georgia names the room — and drops the gallons
Everything above describes NFPA 101 as published. States amend it, and Georgia’s amendment lands squarely on this room. Georgia adopts the Life Safety Code with modifications in Rule 120-3-3-.04(72), and two of those modifications add an entry the base code does not contain:
New health care — added to the hazardous-area list at §18.3.2.1.2:
“(8) Soiled utility rooms also used for combustible storage — 1 hour.”
Existing health care — added to the hazardous-area list at §19.3.2.1.5:
“(9) Soiled utility rooms used for combustible storage.”
Read what that does. In Georgia the phrase “soiled utility room” is in the adopted fire code, by name — so the tidy claim that the code never uses the term is true of NFPA 101 as published and misleading here. More importantly, the added entry carries no gallon figure at all. Its trigger is combustible storage, not volume.
Staying under 64 gallons does not settle it in Georgia
A Georgia soiled utility room that is also used to store combustibles is a hazardous area on that basis, whatever the container arithmetic says. So the question to ask on a Georgia walk is not only “how many gallons” but “is anything being stored in here?” — the boxes of supplies, the spare equipment, the case cart parked in the corner. That is the amendment’s target, and it is the most common way these rooms actually get used.
Check your own state the same way before relying on the base-code answer. An amendment like this one is easy to miss precisely because it is not in the book you are holding.
Which editions actually bind a hospital
Hospitals participating in Medicare and Medicaid continue to be surveyed under NFPA 101, 2012 edition, and NFPA 99, 2012 edition, as adopted by CMS — and NFPA 99 matters separately here, because CMS adopts it directly rather than only through NFPA 101. A newer published edition, or Georgia’s adoption of one, does not automatically replace the CMS survey requirement.
The part people miss is that the adopted codes drag other standards along with them. Where a provision of NFPA 101-2012 invokes another NFPA standard, it invokes the edition named in that adopted code — not whatever edition is current. For a K-tag survey those are the editions in play:
| Standard | Edition a hospital is surveyed against |
|---|---|
| NFPA 101 — Life Safety Code | 2012 |
| NFPA 99 — Health Care Facilities Code | 2012 (adopted directly by CMS) |
| NFPA 10 — Portable Fire Extinguishers | 2010 |
| NFPA 13 — Sprinkler Installation | 2010 |
| NFPA 25 — Water-Based ITM | 2011 |
| NFPA 72 — Fire Alarm Code | 2010 |
| NFPA 80 — Fire Doors | 2010 |
| NFPA 96 — Kitchen Ventilation | 2011 |
| NFPA 110 — Emergency Power | 2010 |
One precision, because this gets overstated
Not every standard in that list applies in its entirety to every hospital. A referenced standard applies to the extent the provision invoking it reaches, and CMS exceptions, categorical waivers and facility-specific waivers can modify the result. The table tells you which edition to open, not that every clause in it is enforceable against you.
And your state’s adopted codes have to be evaluated separately for state enforcement. In Georgia that means the 2024 Life Safety Code with the Rule 120-3-3 amendments above, alongside — not instead of — the CMS 2012 set. Two enforcers, two edition stacks, same room. Where they differ, the stricter provision is the one to build and operate to.
What ASHRAE says: one row for both
The ventilation standard settles the naming question in the most direct way available: it does not distinguish. ASHRAE 170 lists “soiled workroom or soiled holding” as a single combined entry in its design-parameter tables, cross-referenced to the same FGI section that covers both. Whatever you call the room, the air design is identical:
- Negative pressure relative to adjacent areas — the room pulls air in, so odour and contamination do not migrate to the corridor.
- All room air exhausted directly outdoors.
- No recirculation by means of room units.
- MERV-8 minimum filtration.
Be careful quoting air changes from memory
The qualitative requirements above are stable. The air-change numbers are not — they move between editions and between the inpatient and outpatient tables. The 2021 standard as amended lists 2 outdoor and 6 total air changes per hour for this room in the specialized outpatient table; the inpatient table and older editions are not identical, and secondary summaries circulating online disagree with each other.
Confirm the figure against the edition and the table that actually apply to your project before using it for design, commissioning, or a compliance determination. A number quoted from the wrong table is worse than no number.
There is a reason the engineer and the surveyor sometimes cite different editions at each other, and it is not that one of them is wrong. They reach ASHRAE 170 by different routes: the life-safety route runs through NFPA 99, whose 2012 edition is what CMS enforces, while the design route runs through whichever FGI edition the space was designed and built to. Existing spaces are generally held to what they were designed under unless they are renovated. Record which edition each space was designed to — that document is what ends the argument during a survey, and almost nobody has it.
The pressure requirement, and how to check it in thirty seconds
Here is a distinction worth getting right, because a lot of people quote a number that does not apply to this room. For a soiled workroom or soiled holding room, ASHRAE 170 requires a pressure relationship — negative — not a numeric pressure differential. The table entry is a direction. That is the whole requirement.
Numeric minimums do exist in the standard, but they live in the sections written for specific rooms: an airborne infection isolation room must hold at least −0.01 in. w.g. relative to adjacent non-AII spaces and have its envelope sealed to that value; an operating room must hold at least +0.01 in. w.g. to all adjoining spaces; bronchoscopy and sputum induction rooms carry the same −0.01 figure ASHRAE 170-2017 Add. j §8.2, §8.4.1, §8.5.2. None of that reaches the soiled utility room.
What that means on a walk-round
You are demonstrating direction, not hitting a target. Air moving into the room with the door closed is what the pressure requirement asks for — though direction alone is not full compliance, since the air changes, the exhaust path and the filtration in the same table still have to be met. A room reading zero, or blowing outward into the corridor, is the finding. Do not fail a soiled room for measuring −0.006 in. w.g., and do not spend money chasing −0.01 in a room the standard never asked to hold it — unless your own design basis or your state says otherwise, in which case that document is now the requirement.
Three ways to check, in increasing order of defensibility
| Method | What it tells you | Good for |
|---|---|---|
| Tissue or smoke | Direction only. Hold a strip of tissue at the door undercut with the door closed and watch which way it pulls. | A five-second screen while you are already standing there. Free. Proves nothing on paper. |
| Vaneometer | Direction and air velocity at the undercut, in feet per minute. | A documented rounding check. Cheap, instant, nothing to charge or calibrate on the spot. |
| Digital manometer | The actual differential pressure across the door, in inches of water column. | Commissioning, balancing reports, and any record you expect a surveyor or engineer to accept. |

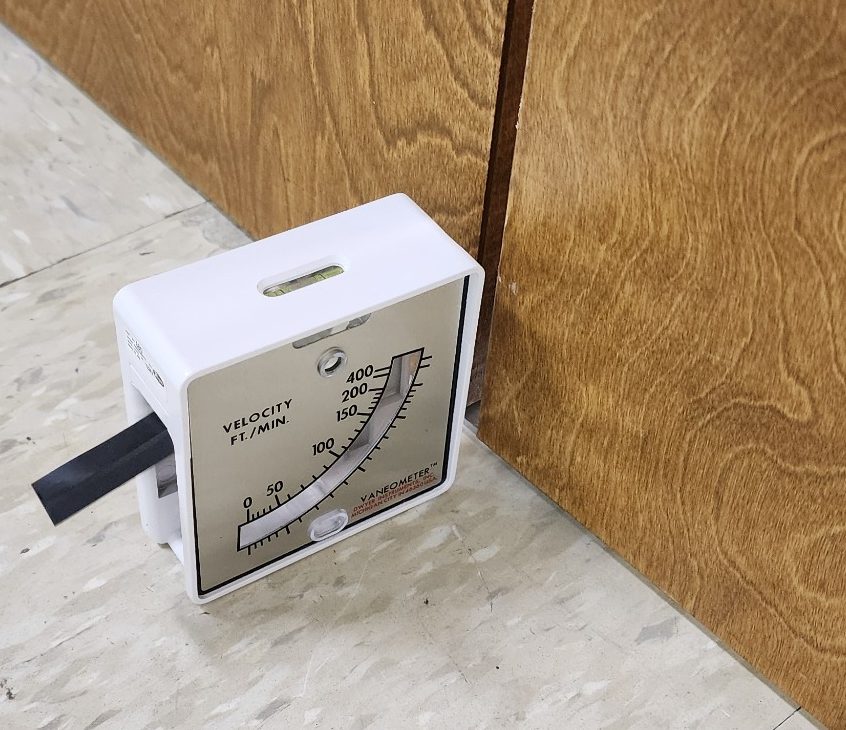

A vaneometer set at the undercut of a soiled utility room door. The scale reads velocity in feet per minute — this one covers 25 to 400 fpm — and the spirit level on top has to be centred or the vane hangs wrong and the number is wrong. It needs no batteries and nothing to warm up.
Read that photo again — it is a finding, not a pass
When this reading was taken the vane was deflected by air moving out of the room and into the corridor. The room was positive. For a soiled utility room that is backwards, and it is the single most consequential thing this instrument can tell you.
Negative pressure is not a paperwork preference. It is what keeps the contamination inside the room — the odour, the aerosols and the airborne contaminants coming off soiled linen, waste and used instruments. A soiled room under positive pressure does the opposite of its job: it pushes that air out into the corridor that patients, visitors and staff are walking down, and it does it continuously, not just when the door opens.
So a photograph of the instrument sitting at the undercut is not evidence of compliance. The direction of the swing is the answer, and here the answer was the wrong one. The instrument was doing its job; the room was not.
What to do when a soiled room reads positive
- Confirm it is real before you report it. Door fully closed, instrument level, and the air system in its normal operating mode rather than an overnight or weekend setback.
- Check the exhaust is actually running. A dead or belt-slipping exhaust fan is the most common single cause, and it is the quickest to confirm.
- Treat it as a balance problem, not a room problem. The room goes positive when supply exceeds exhaust. That balance is often broken by something that happened somewhere else — a renovation, a re-balanced neighbouring room, a filter loaded up, a damper moved.
- Escalate it as an infection-control issue, not a comfort complaint. Wording matters for how fast it gets funded: this is contaminated air entering a patient corridor.
- Re-check and log it after the fix, and keep both readings. The before-and-after pair is what demonstrates the corrective action closed.
How to actually use one
- Close the door. The reading is meaningless with it open or propped — and a room that reads correctly closed will often go neutral the moment the door opens, which is expected behaviour, not a defect.
- Level it. Use the bubble. Off-level, the vane hangs wrong and the number is wrong.
- Set it at the undercut with the vane facing the gap, and read which way the vane swings — that is your direction — and where it settles on the scale.
- Check the HVAC is in its normal operating mode. Some exhaust runs on a schedule or drops back overnight; a reading taken in setback proves nothing about the rest of the day.
- Record it. Date, room, direction, reading, door closed. A dated log of directional checks is worth far more at survey than a remembered impression that “it always pulls in.”
One caution on the instrument: a vaneometer measures velocity, not pressure. It is excellent at answering “which way is the air going, and is it moving at all,” which is exactly the question this room’s requirement asks. It cannot give you a differential in inches of water, so it does not replace a manometer in a commissioning report — and balance shifts when adjacent rooms change, so a reading is a snapshot, not a permanent finding.
The fourth rulebook: your own infection prevention department
There is a rulebook that is not a code at all, and it is often the one that actually stops your project: the hospital’s own infection prevention and control standards. The clearest example is the question of washable ceiling tile.
Plenty of infection preventionists require sealed, scrubbable, non-porous ceiling tile in a soiled utility room, and will reject a standard fissured mineral-fiber lay-in panel on sight. Contractors get this pushback constantly and go looking for the code section behind it. There usually is not one. Here is the honest picture:
| Ceiling requirement | Where it actually comes from |
|---|---|
| Monolithic ceiling gypsum, no fissures or crevices | FGI, but only in restricted areas — operating rooms, rooms for invasive procedures needing an aseptic field, protective environment rooms, and similar. A soiled utility room is not on that list. |
| Cleanable with routine housekeeping equipment, no ledges or crevices | FGI’s general surfaces and finishes provisions. This does reach the soiled utility room — but it is a performance requirement, not a product specification. It does not say “vinyl-faced tile.” |
| Sealed, washable, non-porous tile specifically | Usually institutional policy — the facility’s own IP standards or design criteria, sometimes a health authority’s guidance. Widely recommended in design practice. Rarely a code citation. |
The reasoning is sound even where the citation is not
A soiled utility room is a warm, humid, aerosol-generating space. Standard mineral-fiber tile is porous and absorbent; it stains, harbours moisture, and cannot be wiped down without shedding. Every design guide that touches these rooms says the same thing — use washable, sealed ceilings and avoid fibrous materials that trap contaminants. That is good practice whether or not anyone can point to a section number.
So the answer to “is washable ceiling tile required in a soiled utility room?” is layered. Cleanability itself is a code requirement — FGI’s surfaces provisions reach the ceiling of this room. What is normally not a code requirement is the specific product: sealed, scrubbable, non-porous tile is typically your organization’s own standard. Which is a real requirement — just not the kind you argue about with the code book. If the standard exists in writing, cite the policy in the submittal and the argument ends. If it does not exist in writing, that is worth fixing, because right now it is being enforced from memory by whoever shows up to the walkthrough.
There is a telling detail here. One Canadian health authority publishes an infection prevention audit tool specifically for soiled utility rooms, and it is thorough — it checks that work surfaces are flat, seamless and washable, that walls are flat and sealed around plumbing, that floors are flash-coved and seamless, that the hand hygiene sink is used only for hand hygiene and is separate from the utility sink, that faucet aerators are removed, that there is no sink overflow, that PPE is stored away from the soiled area, and that doors stay closed when the room is not in use.
It never mentions the ceiling. Which is the point: ceiling tile is a real infection-control concern and a genuine institutional standard in many hospitals, but it is not a universal one. Ask your IP department what their standard is, in writing, before you specify the room — and notice how many of the items on that audit list are things the fire code and the ventilation standard never look at either.
Which room do I actually need?
Work it in this order. The first two questions are operational, and answering them out of order is how facilities end up with a beautifully detailed room that staff cannot use.
- Will anything be processed here? Rinsing, flushing bedpans, washing instruments, disposing of fluid — if yes, it is a workroom, and it needs the clinical or instrument-washing sink and the work counter. Ask the clinicians, not the drawing.
- If not, where does processing happen instead? A holding room is only defensible when staff have real access to a workroom in the same clinical area. “Down two corridors and through a badge reader” is not access; it is a future workaround.
- How much soiled linen or trash will actually accumulate? This decides the hazardous-area classification, independently of the answers above. Measure the containers you really use, not the ones on the equipment list.
- Which editions bind this building? The CMS edition and the state-adopted edition, which may differ. Design and operate to the stricter.
- Is the enclosure and door consistent with that classification? Barrier or sprinklers as applicable, smoke partitions where required, self-closing and positive-latching door.
- Does the air match? Negative, exhausted outdoors, no room-unit recirculation — verified with a real pressure reading, not an assumption.
What to look at when you walk one
- Door propped, or the closer disconnected, or a wedge on the floor.
- Door does not positively latch when released from the open position.
- Containers over the threshold sitting outside the room, unattended, in a corridor or alcove.
- Room pressure reading positive or neutral instead of negative — air should move into the room, keeping contaminants in. Tissue at the undercut is a 5-second screen; a vaneometer gives direction plus velocity; a manometer is the record.
- A handwashing station being used as an instrument sink, or an instrument sink being used for handwashing.
- Clean supplies stored in the soiled room, or the soiled room opening directly into a clean utility room.
- Penetrations above the ceiling in what is supposed to be a rated enclosure — this room is a favourite for unsealed conduit.
- The sign says holding, the fixtures say workroom, and the ventilation record says neither.
Inspection Report Language
The finding to avoid writing is “soiled utility room not compliant.” Name the classification trigger, the enforcer’s edition, and the specific condition. Copy/paste starting language:
Ask Clara
Working out which room your project actually needs, or which edition binds a specific condition? Clara — the site’s assistant — knows the hazardous-area thresholds in both editions, the K-tag mapping, and the state adoption picture.
SUGGESTED PROMPT
“What is the difference between a soiled utility room and a soiled holding room, and does it change whether the room is a hazardous area? I need to know which NFPA 101 edition applies for CMS versus my state fire marshal, and what the receptacle volume thresholds are in each.”
▶ Watch: Clean vs. Soiled Utility: Hospital Room Essentials Explained
Source: 4yourCNA — the clean/soiled split in plain terms, from the perspective of the staff who use both rooms every shift · Open on YouTube ↗
Frequently Asked Questions
Is a soiled utility room the same thing as a soiled holding room?
What actually makes a room a soiled workroom rather than a soiled holding room?
If I call it a holding room, does it stop being a hazardous area?
What is the volume threshold that makes it a hazardous area?
Which edition applies to me — 2012 or 2024?
My soiled utility room is under positive pressure. How serious is that?
What pressure does a soiled utility room have to hold, and how do I check it?
Are washable ceiling tiles required in a soiled utility room?
What is FGI, and is it actually enforceable?
Do the ventilation requirements change between the two room types?
Why does my accreditor keep citing a different ventilation edition than my engineer used?
Does any of this apply outside hospitals?
Our own team handles hospital EOC/TJC readiness walk-throughs, plan review, and OSHA program development — Samektra staff on-site, not a vendor referral.
References
1. NFPA 101, Life Safety Code, 2012 edition (CMS-adopted) — §18.3.2.1 and §19.3.2.1 hazardous areas; §18.7.5 / §19.7.5 furnishings and receptacles. Decoded on this site at NFPA 101 (2012) Decoded.
2. NFPA 101, Life Safety Code, 2024 edition — §18.3.2.1 (1-hour barriers for the listed hazardous rooms in new construction, and the smoke-partition list at §18.3.2.1.3); §19.3.2.1 (existing either/or, with smoke partitions per §8.4 where the sprinkler option is used); §18.7.5.7.1 and §18.7.5.7.2 (unattended receptacle threshold and the labeled clean-waste carve-out).
3. CMS, Fire Safety Survey Report, Form CMS-2786R — K321 lists soiled linen and trash collection rooms exceeding 64 gallons among the hazardous areas; the 2012 NEW entry requires a 1-hour fire-rated barrier with a ¾-hour door and sprinkler protection, while the 2012 EXISTING entry is the 1-hour-or-sprinklers alternative. K754 carries the receptacle rule: receptacles not exceeding 32 gallons, average density not exceeding 0.5 gal/sq ft, no more than 32 gallons within any 64 sq ft, and mobile receptacles over 32 gallons located in a room protected as a hazardous area when unattended — with recycling containers up to 96 gallons excluded where labeled and listed to FM Approval Standard 6921 or equivalent.
3a. Georgia Secretary of State, Rule 120-3-3, State Minimum Fire Safety Standards — §120-3-3-.04(72)(p)3 adds to the new health care hazardous-area list at §18.3.2.1.2: "(8) Soiled utility rooms also used for combustible storage - 1 hour." Paragraph (q)2 adds to the existing health care list at §19.3.2.1.5: "(9) Soiled utility rooms used for combustible storage." Neither added entry states a gallon threshold.
3b. CMS, Life Safety Code and Health Care Facilities Code requirements — the adopted editions hospitals are surveyed against. The referenced-standard editions in this article are those named by the adopted 2012 codes; a referenced standard applies to the extent the invoking provision reaches, subject to CMS exceptions and waivers.
4. Facility Guidelines Institute, Guidelines for Design and Construction of Hospitals, 2022 edition — §2.1-3.8.12, Soiled Workroom or Soiled Holding Room (the section reference cross-cited by ASHRAE 170).
5. Facility Guidelines Institute, Interpretations, 2022 Hospital Guidelines — the ultrasound-probe interpretation on §2.2-3.5.8.19(2)(b), in which the review panel concludes a soiled workroom with an instrument-washing sink is required and observes that instrument-washing sinks are generally found in a soiled workroom and not a soiled holding room.
6. ANSI/ASHRAE/ASHE Addendum h to Standard 170-2021, Ventilation of Health Care Facilities — design-parameter table entry for “soiled workroom or soiled holding,” cross-referenced to FGI 2.1-3.8.12. Values cited in this article are from the specialized-outpatient table; confirm against the edition and table applicable to your project.
7. NFPA 99, Health Care Facilities Code, 2012 edition — the ventilation route CMS and accreditors reach ASHRAE 170 through.
8. Georgia Rule 120-3-3, adopting the 2024 edition of NFPA 101 effective May 27, 2025 — the source of the two-edition overlay described here for Georgia facilities. See NFPA 101: 2012 vs 2024.
9. ANSI/ASHRAE/ASHE Addendum j to Standard 170-2017 — the numeric pressure differentials cited here belong to specific room types: airborne infection isolation (envelope sealed to 0.01 in. w.g.; minimum −0.01 in. w.g. to adjacent non-AII spaces), operating and caesarean delivery rooms (at least +0.01 in. wc to all adjoining spaces), and bronchoscopy / sputum induction (minimum −0.01 in. w.g.). No equivalent numeric minimum is assigned to the soiled workroom or soiled holding row, which specifies a direction only.
10. Dwyer Instruments Model 480 Vaneometer — swing-vane anemometer, 25 to 400 fpm, integral spirit level, no power required, stated accuracy ±5% of full scale to 100 fpm and ±10% above. The instrument photographed in this article.
11. Facility Guidelines Institute — surfaces and finishes provisions on ceilings (cleanable with routine housekeeping equipment; no ledges or crevices), and the restricted-area list requiring monolithic ceilings. Note that soiled workrooms and soiled holding rooms are not among the rooms requiring a monolithic ceiling; the 2022 cycle did extend monolithic flooring and integral wall base to these rooms.
12. Fraser Health, Infection Prevention & Control Soiled Utility Room Audit Tool — a working health-authority audit checklist for these rooms. Audits work surfaces, walls, floors, sink separation, PPE storage, storage, workflow direction and door closure; notably contains no ceiling item, which is why this article treats washable ceiling tile as an institutional standard rather than a universal one.
13. 4yourCNA, Clean vs. Soiled Utility: Hospital Room Essentials Explained — the embedded video. A short, plain-language explanation of what belongs in each room, from the perspective of the staff who carry things into both of them every shift. It is orientation-level rather than code-level, which is precisely why it is useful: it is the mental model most of the people using your soiled room actually have.
14. California Building Code §1226.4.13.4, Soiled Workroom or Soiled Holding Room — an example of a state adopting the combined heading with an explicit allowance to omit the clinical sink and work counter where the room is used only for temporary holding and compliant central sterile supply exists elsewhere.
Open the discussion panel to comment, flag an inaccuracy, add field experience, or ask a question. Approved contributions earn SRP and may be incorporated into the article.
