Flexible Sprinkler Hose Drops (Flex Drops)
What's allowed, how many bends you actually get, and the installs that fail inspection — braided hose between the branch line and the sprinkler, done right

The tile I shouldn’t have popped

If you’re like our team, you can’t walk under a suspended ceiling without wondering what’s going on above it. Last week one of our teammates lifted a tile during a walk-through and found a braided stainless sprinkler hose tied in a complete 360-degree loop — a full circle of excess hose, orbiting the branch line like it was waiting for permission to land. A few bays over, two more drops crossed the ductwork in lazy S-curves. Nothing was leaking. The heads were centered in their tiles. To almost everyone in the building, this ceiling was fine.

Here’s the uncomfortable part: whether it actually IS fine cannot be answered from NFPA 13 alone. Flexible sprinkler hose fittings are a listed product, and nearly every rule that decides pass-or-fail — how many bends, how tight, how long, which bracket, how much friction loss the designer must absorb — lives in the manufacturer’s listing documents, not in the standard. NFPA 13’s core instruction is one sentence long: install them in accordance with the listing NFPA 13 §17.4.1.3.3.1. That single sentence drags the entire submittal sheet into enforceable territory — and it’s why the loop in that photo is a real finding, not a style complaint.

What a flex drop is, and why your ceiling is full of them

A flexible sprinkler hose fitting is a factory-built assembly: a corrugated stainless hose (usually wrapped in stainless braid), an inlet fitting that threads onto the branch line, an outlet reducer that accepts the sprinkler, and a listed bracket that anchors the sprinkler to the ceiling grid. It replaces the traditional hard-pipe “armover” — the rigid elbow-nipple-elbow assembly a fitter would otherwise cut, thread, and level to land a head in the center of a tile.

The technology came out of Japan in the 1980s, built for earthquakes: a suspended ceiling and the structure above it move independently in a seismic event, and rigid drops through ceiling tiles shear heads off or trap them above the tile. A hose lets the sprinkler ride WITH the ceiling. It entered NFPA 13 as a named product in the 2007 edition — the same year the first iPhone shipped — as §9.2.1.3.3, and moved to §17.4.1.3.3 in the 2019 restructure. NFPA 13 even rewards the seismic behavior directly: where sprinklers are installed on flexible hose, the oversized clearance hole normally required where a rigid drop penetrates the ceiling is not required NFPA 13 §18.4.11.1 (2019 ed.).

The reason they took over ordinary offices, hotels, and hospitals has less to do with earthquakes and more to do with labor: a crew hanging flex drops can land several times as many heads per hour as a crew cutting hard-pipe armovers, and the head can be repositioned within the tile after the ceiling grid goes in. Speed is legitimate. What speed culture quietly erodes is the discipline the listing demands — which is the rest of this article.

What the code actually requires

NFPA 13’s requirements are compact enough to quote in full spirit. In the 2019 and 2022 editions NFPA 13 §17.4.1.3.3.1–.4:

• Install per the listing. Listed flexible sprinkler hose fittings and their anchoring components must be installed in accordance with the requirements of the listing — which incorporates the manufacturer’s installation instructions wholesale.
• The ceiling itself is part of the system. Suspended ceilings the brackets attach to must comply with ASTM C635 (grid manufacture/performance) and be installed per ASTM C636. A flimsy or improvised grid cannot legally carry a flex drop.
• Six feet unsupported, maximum. Where a hose run exceeds 6 ft and is supported by a suspended ceiling, a hanger attached to the structure is required so that no unsupported length exceeds 6 ft.
• A relocation warning label must be provided on the anchoring component — because the signature failure mode of this product is somebody moving the head later without recalculating anything.

The 2025 edition tightened the two loopholes practitioners had been complaining about for a decade. New §16.8.8 caps hose length by ceiling type — 12 ft above rigid ceilings, 6 ft above lay-in tile ceilings — on the logic that above a lay-in ceiling, untrained hands can relocate sprinklers with no regard for spacing. And new §28.3.4.8.1 requires hydraulic calculations to account for flex-hose friction loss based on the number of bends referenced in the listing documentation, ending the habit of calcing a straight-ish hose and installing a pretzel.

How many bends do you actually get?

This is the question everyone asks, and the honest answer is: it’s printed on the submittal sheet, and it scales with hose length and listing agency. But the rules for counting are universal, and they are the part field crews most often get wrong:

• A bend is each 90° change in flow direction. A 180° U-turn is TWO bends. A full 360° loop is FOUR.
• The allowance is really a degrees budget. Most listings let you trade shallow bends for deep ones: two 45° bends or three 30° bends equal one 90°. Victaulic’s and EasyFlex’s published example: a hose allowed three 90° bends (270°) can take two 30° bends plus two 90° bends, because 240° ≤ 270°.
• Radius is measured to the hose centerline, and a 180° U-bend requires TWICE the minimum radius.
• There’s a no-bend zone at each end. The hose must run straight off its fittings before the first bend — EasyFlex prints “DO NOT bend within 2.52″ from connection nuts” on every spec page; SprinkFlex says 2¾″. Kinks at the fitting collar are exactly the failure this rule prevents.
• At least one bend is mandatory. Victaulic: “DO NOT install flexible hose in a straight configuration.” A taut, straight hose has no slack for the movement it exists to absorb.

What the acceptable shape looks like

Original diagram — the geometry every manufacturer’s instructions describe: a short straight run off each fitting, sweeping bends at or above the listed radius, a crossover that clears (never rests on) other services, and a listed bracket screwed to the grid. Right side: the four shapes that fail on sight.

Real listed values, side by side

Values from each manufacturer’s published submittal data (Victaulic 10.85, ASC/FlexHead FP-8.18 and SuperFlex data, EasyFlex EF221403, SprinkFlex FP-SUB-HB-7). Always pull the current sheet for the exact model and length on your job — these change with revisions, and intermediate lengths have their own rows.

Read that table twice and the industry’s biggest flex-drop misunderstanding falls out of it: the same physical hose gets 12 bends under UL and 4 under FM. Neither agency is wrong — they test differently. The practical rule: know which listing governs your building, and design and inspect to that agency’s numbers. A contractor who bends an FM-insured job’s hoses to the UL allowance has installed something the governing approval never blessed — and nobody will catch it from the floor.

Exhibit A: the full loop

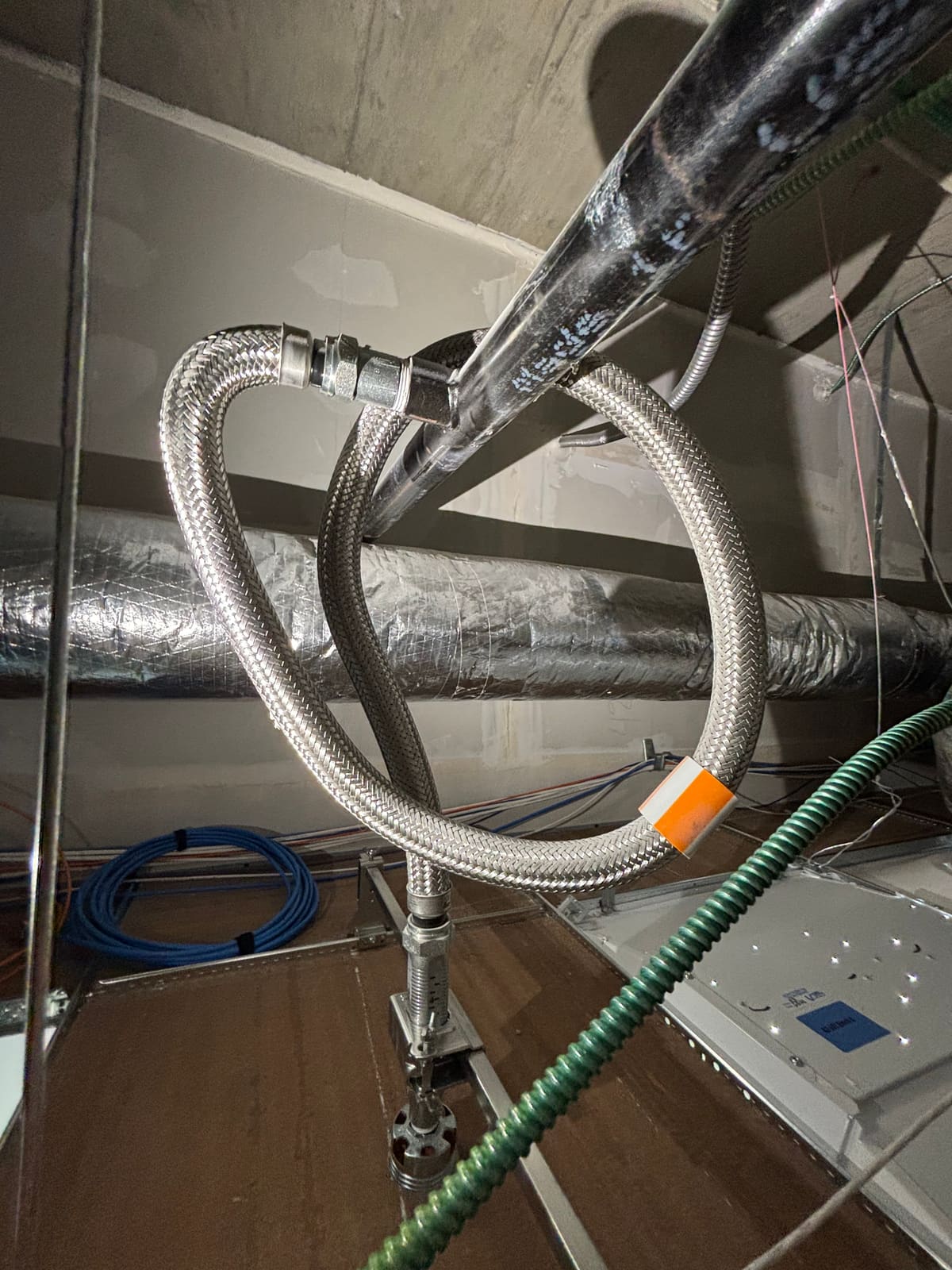

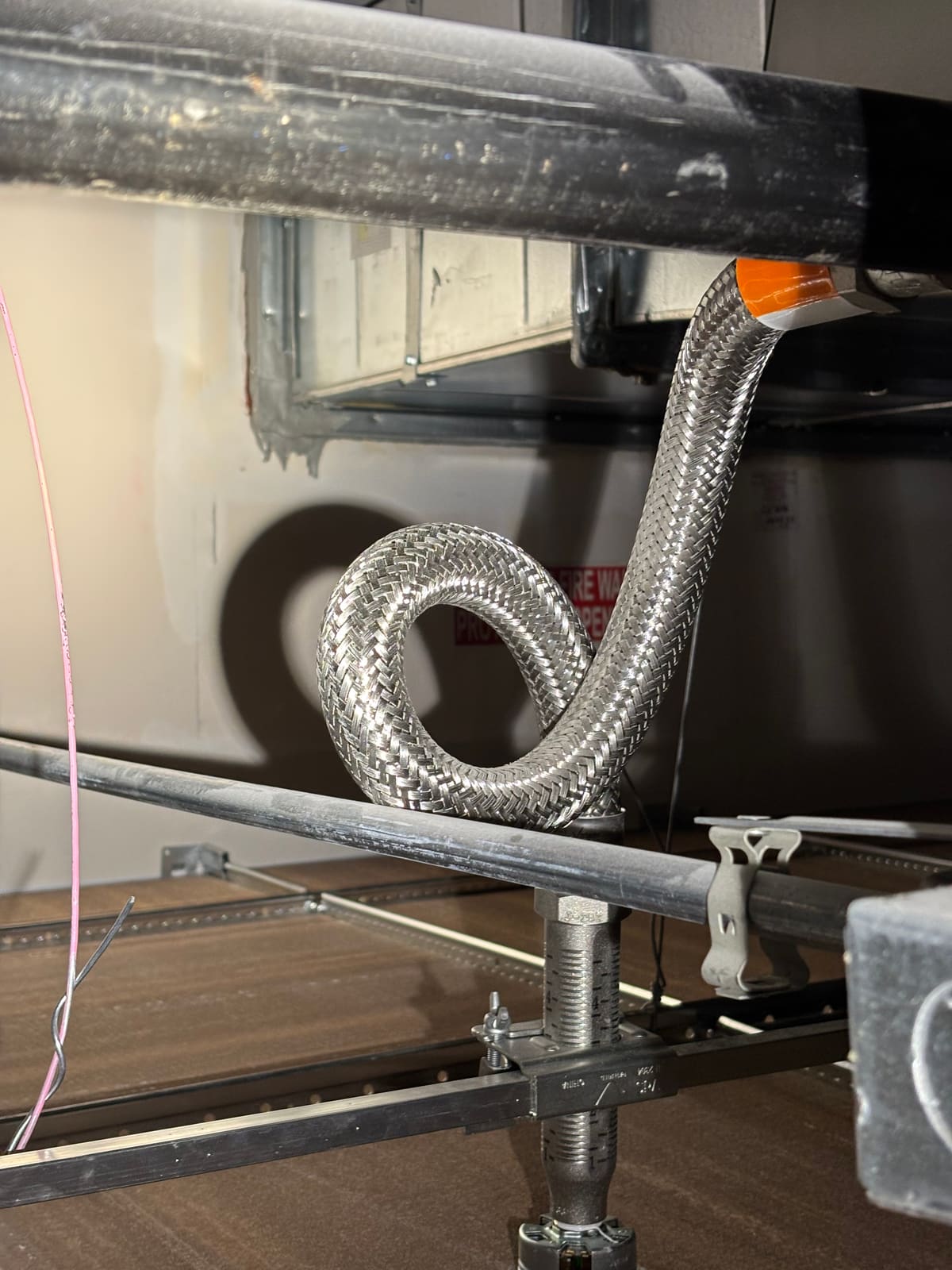

Field photo: a braided flex drop absorbing its excess length as a complete 360° loop around the branch-line area before dropping to the head. One loop = four 90° bends of the budget, spent before the hose does any useful routing.

Do the arithmetic with me. The loop alone is 360 degrees — four bends under the universal counting rule. Add the bend where the hose leaves the branch-line fitting and the bend where it turns down into the ceiling bracket, and this hose is carrying roughly six bends’ worth of direction change. Under a UL listing on a long braided hose (the friendliest case in the table above), that might squeak inside a 60–72″ hose’s budget of 10–12 — if every curve respects the 2″ centerline radius, which the tight crossover point of a coiled loop routinely violates. Under an FM approval, this configuration was over budget before it finished the first circle.

And that’s the generous reading. The Tri-Service fire protection engineering guide names this exact configuration — “using a flexible hose that is too long for the installation and coiling the unnecessary length” — on its list of inappropriate uses, independent of whether the bend math happens to fit. A loop also parks hose weight where it wants to rest on tiles, grid wires, and whatever else shares the plenum, and it advertises the real root cause: somebody ordered one stock length for every drop in the building instead of matching hose length to drop geometry. Manufacturers sell 24″, 31″, 36″, 48″, 60″, and 72″ hoses precisely so the excess never exists.

Exhibit B: the loop hiding in the S-curves

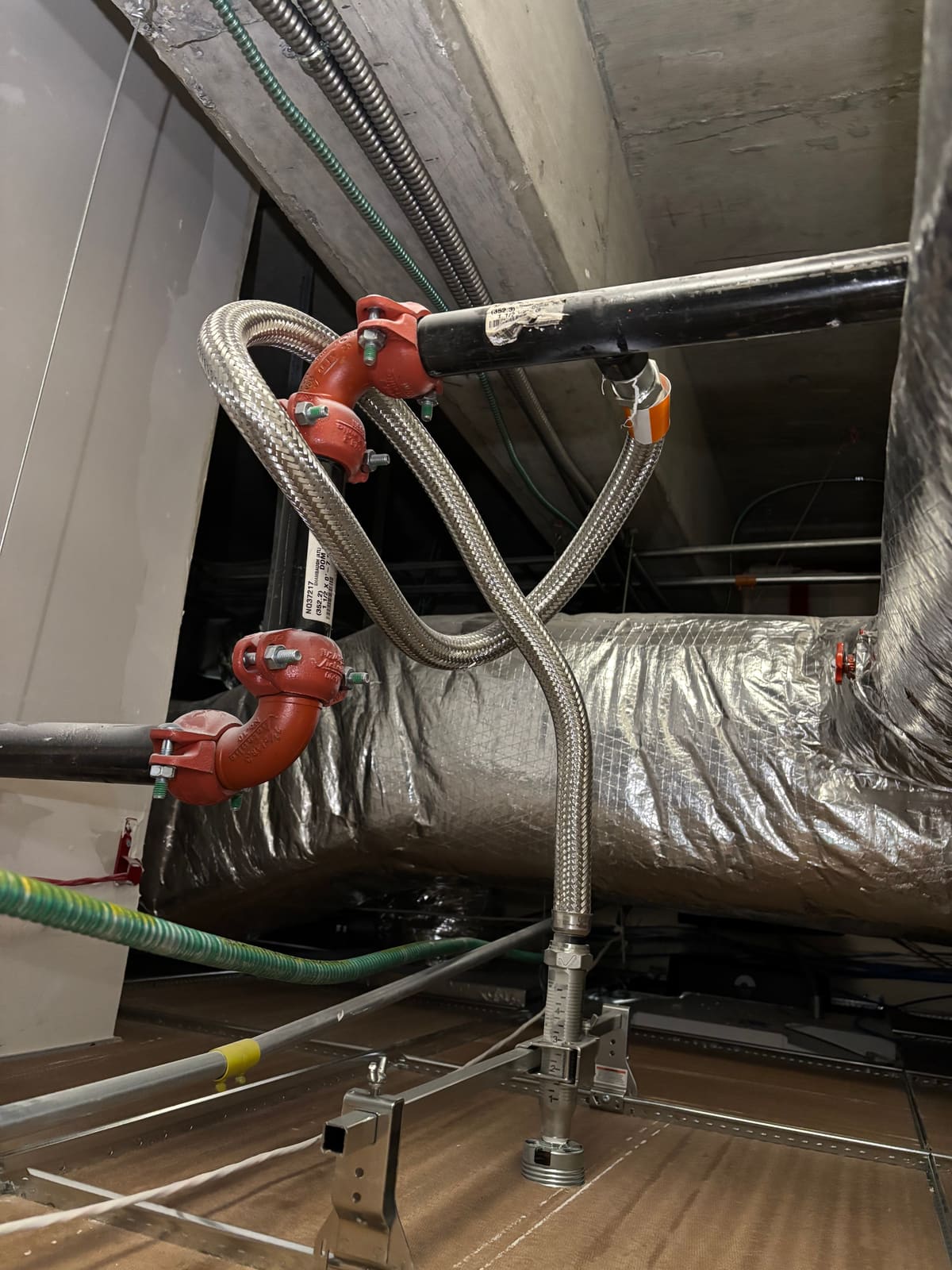

Field photo: two flex drops leaving grooved branch-line fittings. At first glance, sweeping S-curves — but trace the left hose and it crosses over itself, with the vertical drop pipe passing through the loop. The graduated scale on the listed grid bracket at the bottom is the part done right.

This photo is the more dangerous teaching exhibit, because it almost passes the walk-by glance — and we’ll admit it almost passed ours. From the floor, these read as gentle S-curves. Trace each hose end to end and the story splits:

• The right hose (orange tape) is the legitimate shape. Rise off the fitting, crest over the duct, descend to the drop — three to four 90° equivalents by the sum-of-degrees rule. Under UL on a 48–72″ braided hose, that fits the budget; under FM it’s at or past the line. This is what a flex drop is supposed to look like.
• The left hose is Exhibit A wearing a disguise. Follow it: off the elbow, around, and back across ITSELF — a full 360° of direction change — with the vertical drop pipe threaded through the middle of the loop. That’s two independent failures in one move: the loop burns four bends of the budget before any useful routing, and a hose is not allowed to wrap around piping or any other service in the plenum. Worse, because the pipe passes through the loop, the hose is captive — you cannot re-dress this into compliance. It comes off and gets replaced with the right length.
• Check the no-bend zone on both. The curves coming off the branch-line fittings are where the bend-radius gauge goes. Bends that start inside ~2.5″ of the connection nut are where kinks and fatigue failures live.
• The bracket is the half of the product people forget. That graduated bar is doing real work: it positions the head in the tile AND anchors it against the grid per the listing. Both end brackets must be screwed to the grid with their supplied screws — a bracket resting on the tees by gravity is not installed per listing.
• Nothing touches, nothing carries. Hoses must not rest on the ductwork, pass through joist channels, or wrap around other services — and nothing (wiring, other trades’ supports) gets to hang from the hose or the drop. Same principle as every other piece of the sprinkler system NFPA 13 §17.1.3.1.

One paragraph on the friction toll

Without going deep on the math: every flex hose costs the system real pressure, published on the submittal sheet as an equivalent length of 1″ pipe — and a typical 4-ft hose “costs” roughly 24–34 feet of pipe, often more friction than the branch line it hangs from. Three things follow. The designer must include it in the hydraulic calculations (the 2025 edition of NFPA 13 says so explicitly, tied to the bend count NFPA 13 (2025) §28.3.4.8.1). A crew that swaps flex drops in for hard pipe during a tenant improvement without re-running the calcs has quietly changed the system’s hydraulics — most AHJs require new calculations for exactly this move. And the more bends a hose carries in the field, the more it costs — which is one more reason the loop in Exhibit A matters beyond the rulebook.

Proper installation, start to finish

Synthesized from the Victaulic, FlexHead, SprinkFlex, EasyFlex, and Tyco installation instructions — the steps are near-universal, the torque numbers are not, so treat the values here as examples and use your product’s sheet:

• 1. Match the hose to the drop. Length as close to actual need as the catalog allows, K-factor within the hose’s listing, and the correct listing agency’s design values (UL vs FM) from the start.
• 2. Verify the ceiling. Grid must be ASTM C635 material installed per C636, in the duty class the bracket’s listing requires. On existing ceilings some AHJs (San Francisco, for one) want a structural engineer’s letter before sign-off.
• 3. Connect to the top or side of the branch line — it keeps pipe-scale and debris out of the hose and the head.
• 4. Torque the connection nut only. Victaulic’s figure is 40 ft-lbs on the nut; SprinkFlex is hand-tight plus ¾ turn (~15 ft-lbs); Tyco warns that over-torque distorts the nipple and cuts the o-ring. Never put a wrench on the braided hose, and never let the hose twist while tightening — hold the fitting with a backup wrench.
• 5. Route with sweeping bends. Respect the minimum centerline radius, stay out of the no-bend zone at both fittings, keep the bend count (and total degrees) inside the listed table, and give it at least one bend. No torsion — bends stay in-plane unless the instructions show otherwise, and out-of-plane bends must not twist the hose.
• 6. Route to drain. The hose should drain back to the branch line or through the reducer — no intermediate low points that trap water (explicit in Tyco’s instructions, good practice everywhere, and non-negotiable on dry systems).
• 7. Install the bracket per its own instructions. Both ends screwed to the grid, center bracket square, set screws at their listed torque, drop vertical so the hose isn’t levering the bracket sideways and skewing the head.
• 8. Install the sprinkler with a backup wrench on the reducer so the tightening torque doesn’t wind up the hose or the bracket.
• 9. Leave the paperwork trail. Relocation warning label on the bracket (it’s a listing requirement), and the shop drawings should show make, model, length, bend count, and equivalent length so the next inspector can actually verify what they’re looking at.

The manufacturer documents, distilled

Everything above traces back to the manufacturers’ own published instructions — and since “install per the listing” makes those documents enforceable, they belong in your project folder, not just the contractor’s. Here are the primary documents with the takeaways that matter in the field:

One thing you will NOT find in any of these documents: an “allowed kink.” Every manufacturer treats visible flattening or creasing as permanent damage requiring replacement — what they regulate is bends: how many, how tight, how far from the fittings, and never twisted. Links current as of August 2026; if one moves, search the document number (I-VICFLEX, 10.85, FP-8.18, TFP727).

The big NOs

Common mistakes an inspector actually finds

• 🔁 The stock-length coil — one hose length ordered for the whole job, excess absorbed as loops (Exhibit A). Root cause is procurement, not the fitter.
• 📐 Bend budget blown invisibly — nobody can count bends from the floor, which is why AHJ checklists verify above-ceiling before tiles go in, and why the calc should assume the listed maximum bends unless the drawings specify otherwise.
• 🪝 Bracket not screwed to the grid — clipped on by gravity, missing set screws, or attached to grid that was never C635/C636 in the first place.
• 🧾 Missing relocation labels — a listing requirement, and the cheapest finding on this whole page to fix.
• 🚚 Heads moved by other trades — the ceiling contractor re-centers a head two tiles over during a re-lamp, spacing and calcs be damned. The signature flex-drop failure mode; tamper-resistant screws and labels exist because of it.
• 🧮 The forgotten equivalent length — flex swapped for hard pipe in a TI with no new calcs, or UL figures used on an FM job.
• 🥶 Freeze exposure — a wet-system hose routed high into an unconditioned plenum is wet pipe in cold space like any other; insulation strategy or a listed flexible dry sprinkler is the answer, not hope.
• 🌀 Kinks at the fitting collar — the no-bend-zone violation, usually from muscling the head into position after the bracket was set.
• 🎨 Field paint — a coating the listing never evaluated; on the head itself it’s an automatic NFPA 25 replacement conversation.

Watch a by-the-book install

Ten minutes of manufacturer install footage is worth an hour of prose. This Victaulic reference shows the full sequence on a VicFlex pendent assembly — hose routing off the branch line, bracket attachment to the grid, and centering the head in the tile:

Inspection Report Language

When you find a flex drop installed outside its listing — the loop, the kink, the missing bracket screws — write the finding so it survives review. Copy/paste starting language:
